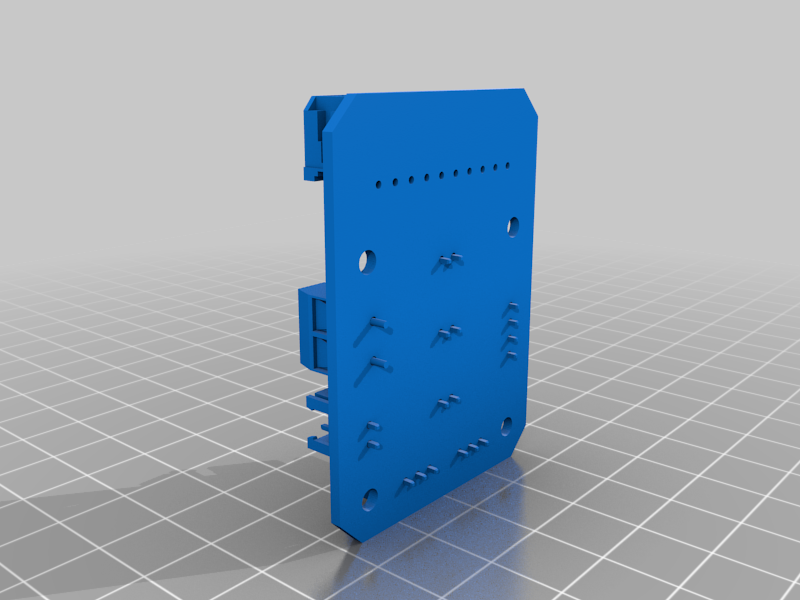

Toolhead PCB

par RaptorHunter

Fichiers imprimables (4)

Description

This is a improvement of my PCB for Toolheads, the last version had a common negative for all connections which caused a problem because boards use de negative to control the Fans.

Designs where PCB is used.
https://www.thingiverse.com/thing:4259308
https://www.thingiverse.com/thing:4078659

Connector Micro-Fit 3.0
https://www.molex.com/molex/products/part-detail/crimp_housings/0430252000

If you want to order the PCB please order from this link:
https://www.pcbway.com/project/shareproject/Toolhead_PCB.html

2pin XH2.54 for the extruder thermistor
2pin XH2.54 for the extruder fan
2pin XH2.54 for the layerfan
2pin XH2.54 for BL Touch Endstop
3pin XH2.54 for BL Touch Servo
3pin XH2.54 for Addressable LED
4pin XH2.54 for the stepper motor
2pin KF301 for the hotend heater cartridge
20pin Molex Microfit or any connector a 3mm pitch for the main cable.

Please consider donating a pizza or a spool of filament.
