PCB Holder

von braincodec

Druckbare Dateien (10)

Beschreibung

If you're one of those people who like electronics, then you know how frustrating it can be when you need to hold a PCB for soldering a component.

That was my case when I decided to make a stand PCB. First I was looking at what was available in the market (Weller by example), in order to have some reference on which to base my design. Finally, I decided on a type of support that allows to turn the PCB in order to be able to have easy access to both sides of it.

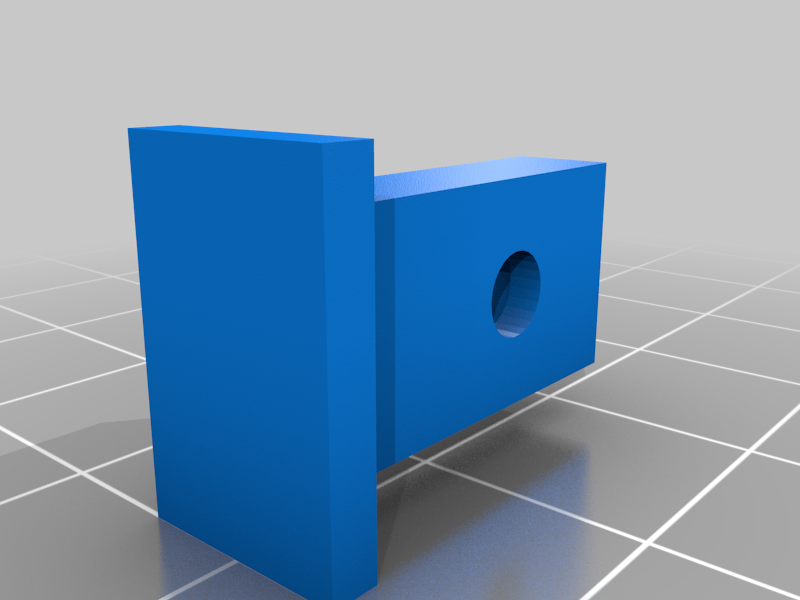

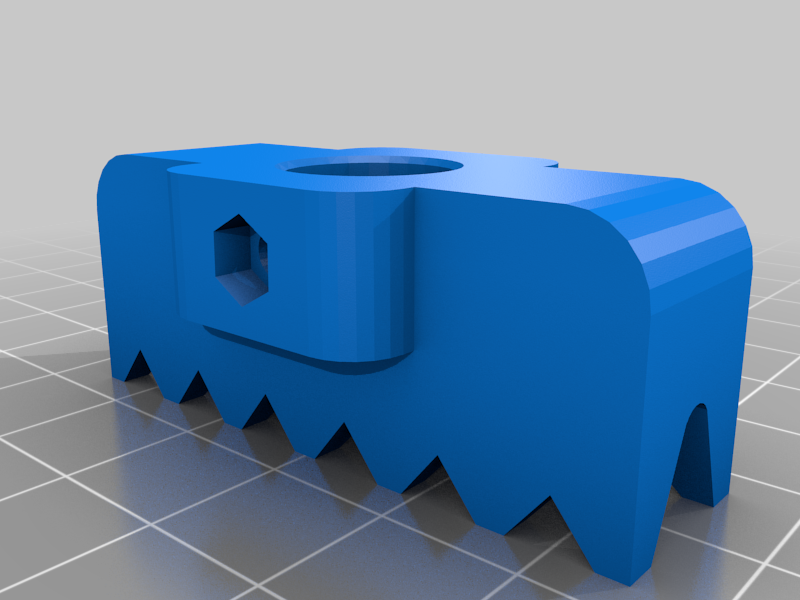

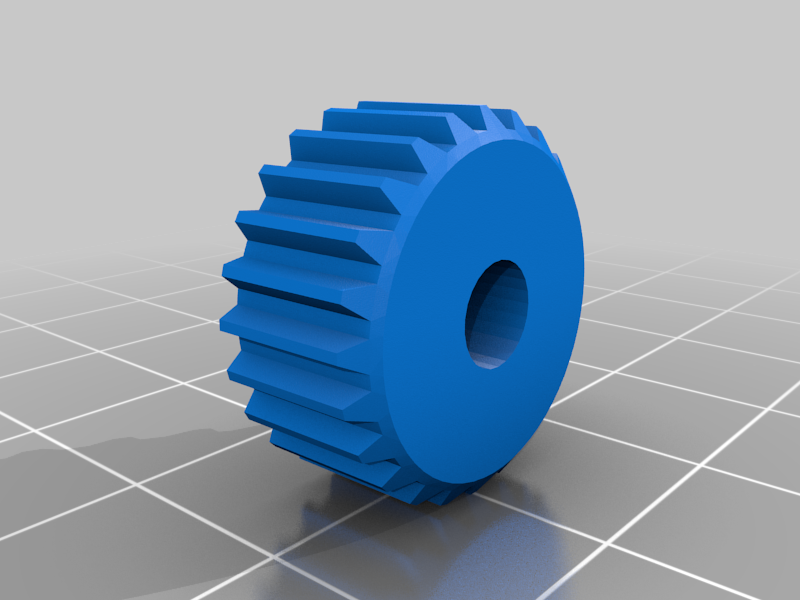

The hardest part was to design the clamping mechanism. In the end I think I found a good solution, based on three springs that allow the PCB firmly secure but at the same time release with little effort, to rotate if necessary.
