Headrest mount
von Holodrio
Druckbare Dateien (4)
-
stlmounting_bracket.stl
79 Ko · 2 257 Downloads
-
stlDev.holder_1.stl
84 Ko · 2 109 Downloads
-
stlDev.holder_2.stl
73 Ko · 2 103 Downloads
-
stlDev.Holder_3.stl
192 Ko · 2 170 Downloads
Beschreibung
This headrest mount is an individual mounting platform for your car. You can easily install different devices. In my case, a small 10" LED TV.
Print two mounting brackets and one specific device holder.
Put it together with three M6x30 screws.
The mounting brackets are made for 10mm headrest bars. Thicker bars may also work.
I've designed different device holder.
Dev.holder_1 (10° angle) : especially for 'Reflexion LED1014DV'
Dev.holder_2 (10° angle) : without mounting holes, size 110x50mm

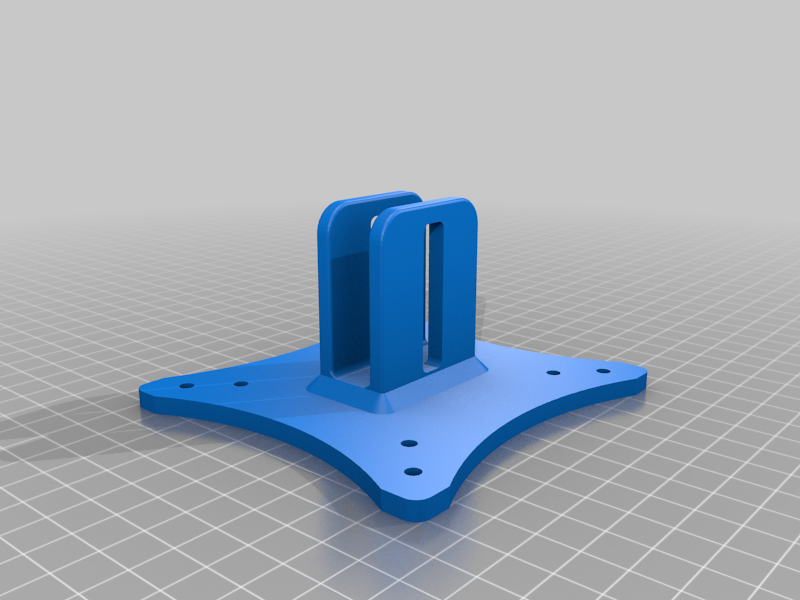

Dev.Holder_3 (0° angle) : with mounting holes, size 141x141mm
