Universal quadpod
von ok1cdj
Druckbare Dateien (4)
-

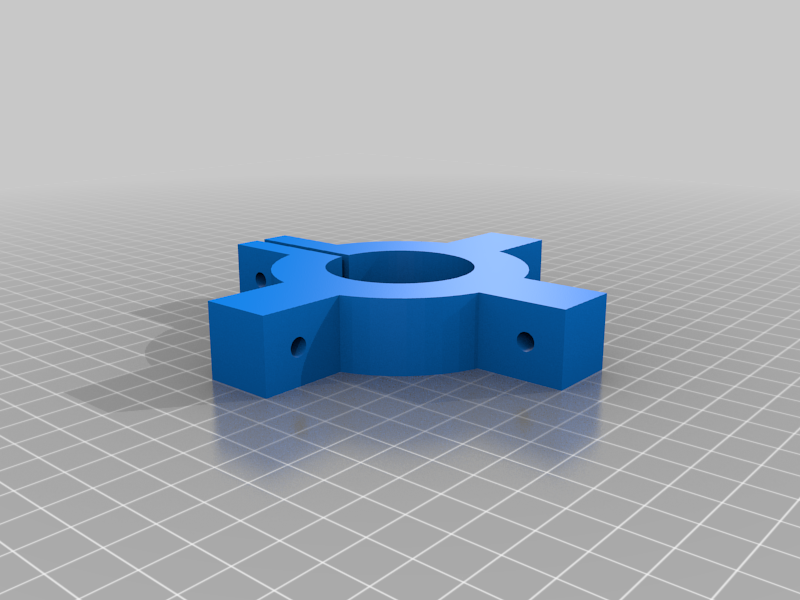

stlquad_pod_dxwire.stl
233 Ko · 1 010 Downloads
-

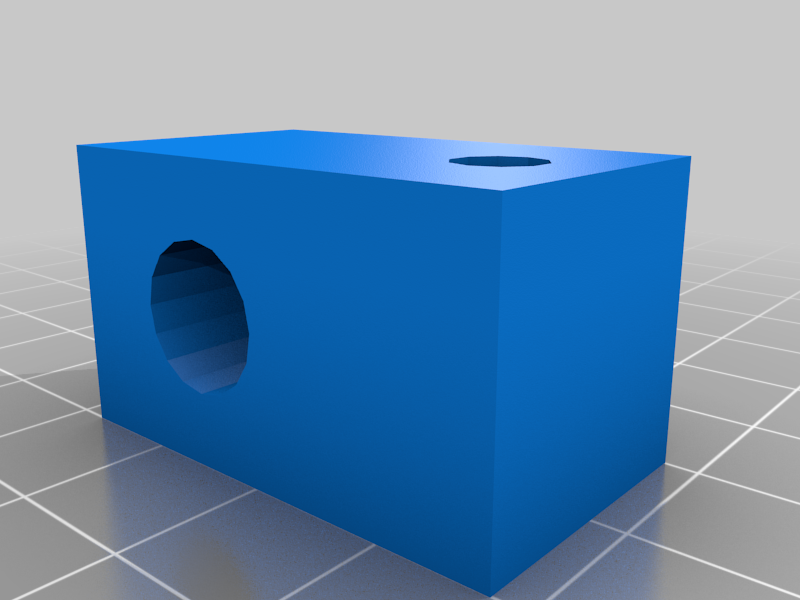

stlquad-end-arm.stl
21 Ko · 1 015 Downloads
-
stlquadpod-middle_arm.stl
8 Ko · 1 039 Downloads
-

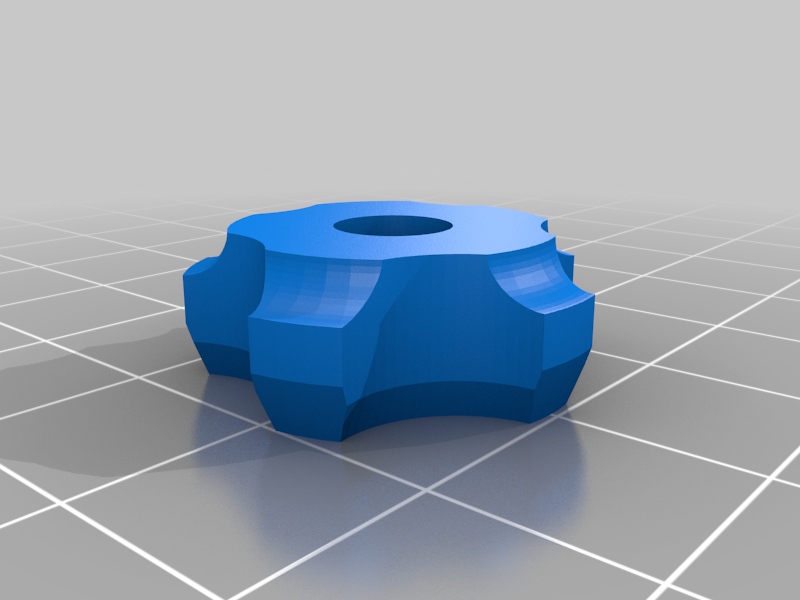

stlknob-M6.stl
427 Ko · 1 017 Downloads
Beschreibung
This is version for 12,5 m Fiberglass telescopic pole from DX Wire. Diameter 42 mm.
For smaler poles i'm using 15x2mm aluminium strip, for lager poles 20x2mm.
In this version are used M6 screw but you can use M5 for smaller poles.
The design is made in OpenScad and you can easily change the dimensions.
