Nonstop Sorting Machine STL files

von Unknown

Druckbare Dateien (26)

Beschreibung

This is just the files exported to STL from http://www.thingiverse.com/thing:194551

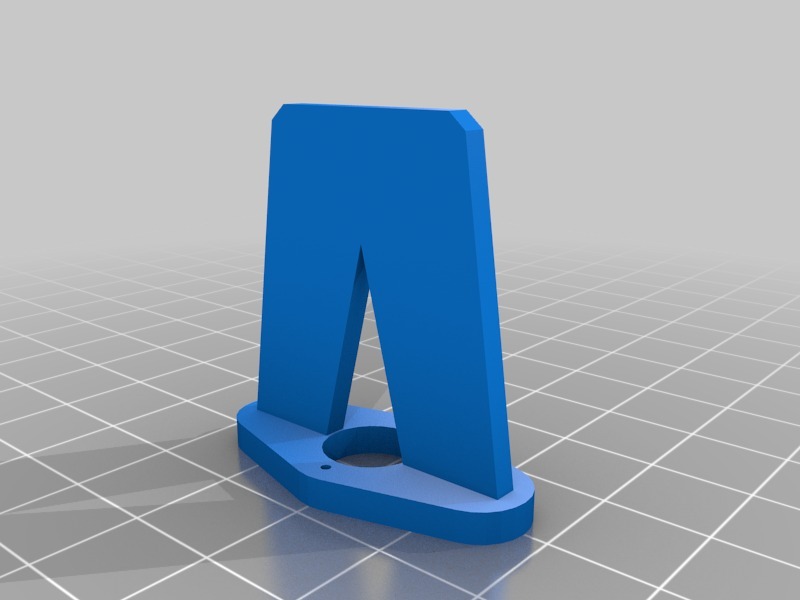

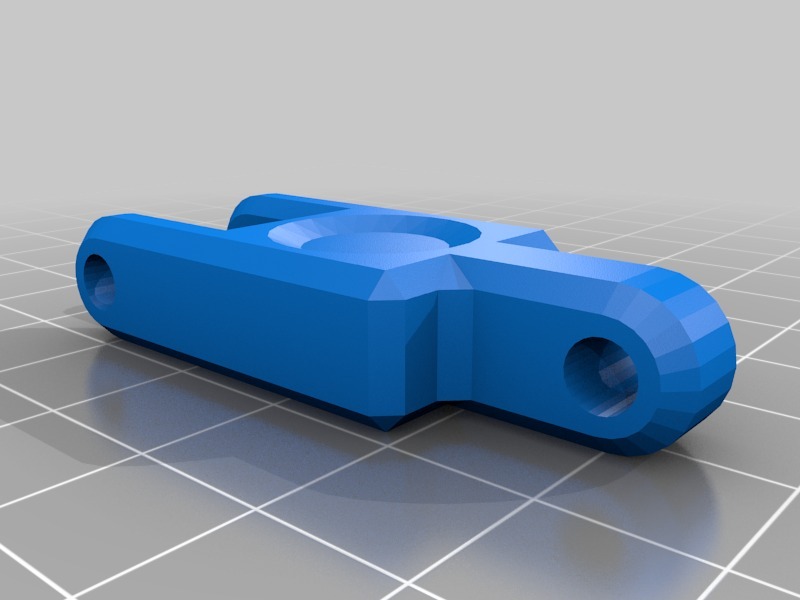

As a note, after printing the parts and comparing assemblies some of the part names are incorrect based on functions. For example, the part labeled lightsensorbrkt1 and 2 are actually servo mounts for the feeder or belt advancer servo. Machine pins, is actually the chain pins, not sure where the others go yet. Short link is the servo hold downs on the sorting table part. Long link is the servo side of the ratcheting belt advance. The servo X bracket is a stirring device along with the triangle bracket for the funnel feeder. There seems to be a missing bracket for the color sensor.
I cannot take any credit for the design, I simply exported the parts to make this easier for folks to print. Hoping that the code is released for this before I get mine printed.

Hey guys, the source code is released over here http://www.eevblog.com/forum/projects/my-nonstop-skittles-sorting-machine/15/ in the latest post.
