PanelMax Vertex

von tommyc

Druckbare Dateien (5)

Beschreibung

Upper vetex mount for PanelMax.

This is just a new enclosure, see http://www.thingiverse.com/thing:18597 for more detail.

Short video demo here:
http://youtu.be/GwANBxC13Qw

Tutorial here http://goo.gl/Lk0i6

If you don't want to source the parts, you can get my panelmax kit here http://ebayitem.com/150886149485

Preassembled panelmax available here
http://ebayitem.com/150848171067

Apr 1, 2012

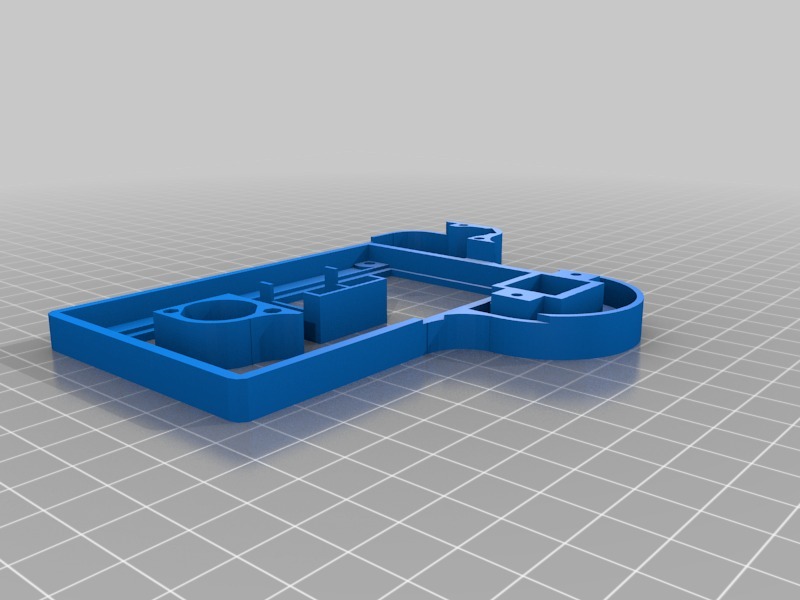

Added the left vertex version.

Apr 2, 2012

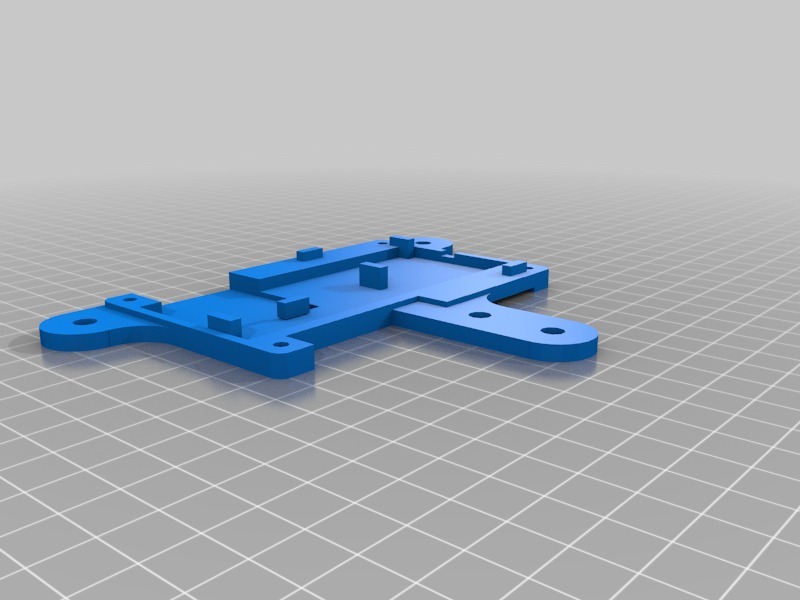

Updated the STL files for right vertex version. now it has all the bells and whistles that the left version has.

SCAD uploaded

Apr 3, 2012
Updated right_front.stl and scad file with a wire channel for ground wire going into the click encoder. left version unaffected.

Posted pictures of my own panelmax vertex.
