Linear Motion Guide 2020 (double precision)
von Lehaiver
Druckbare Dateien (5)
-

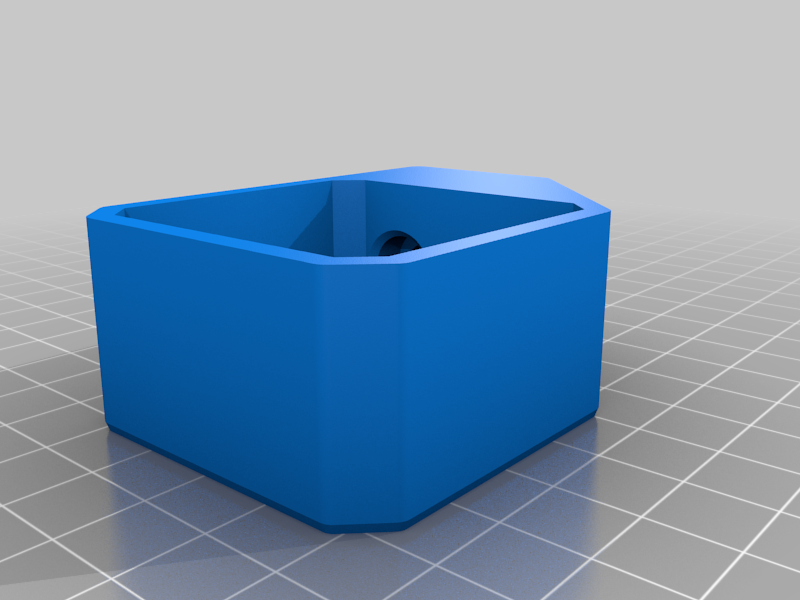

stlnema17_mount_1.STL
226 Ko · 7 995 Downloads
-

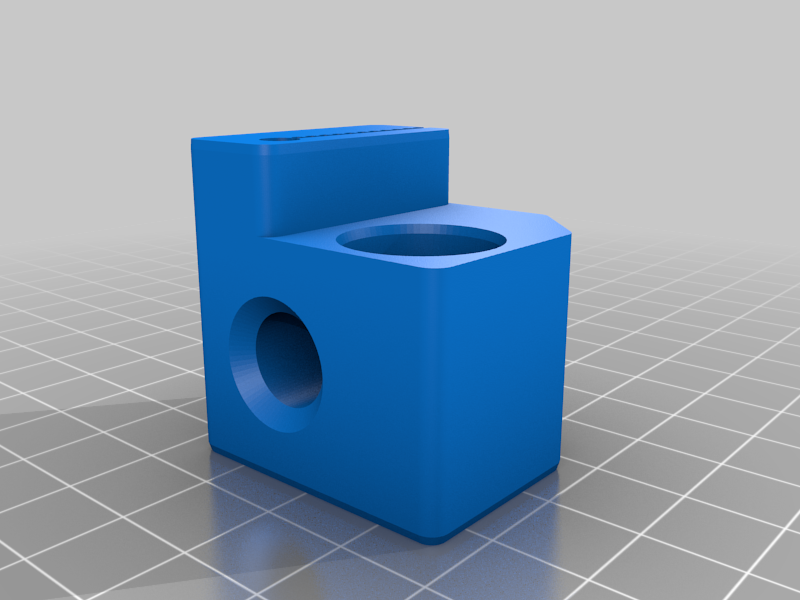

stlidle_pul_mount_1.STL
429 Ko · 8 017 Downloads
-

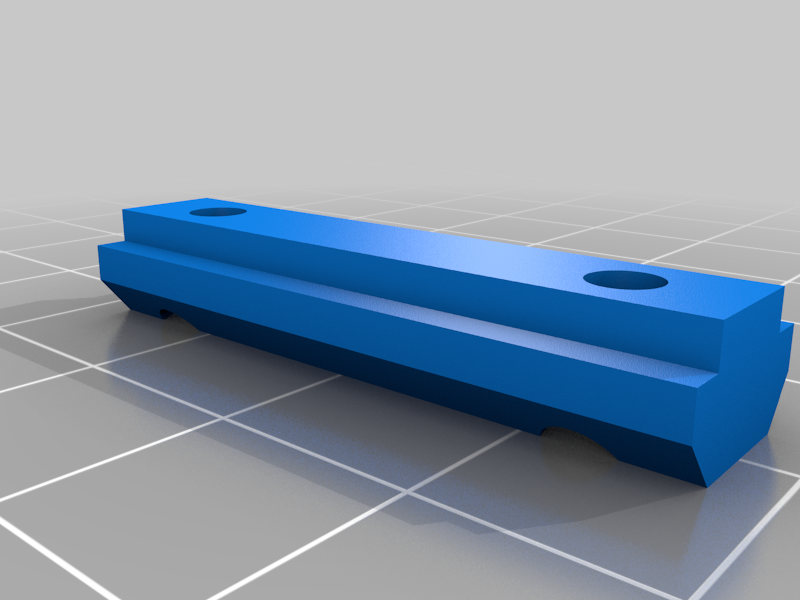

stlmgn12_fix.STL
64 Ko · 7 984 Downloads
-

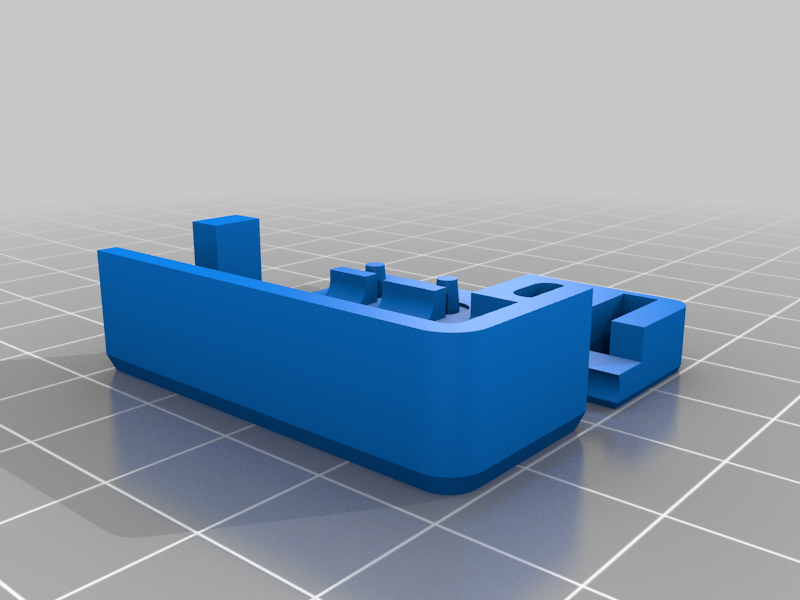

stlsw.stl
307 Ko · 7 937 Downloads
-

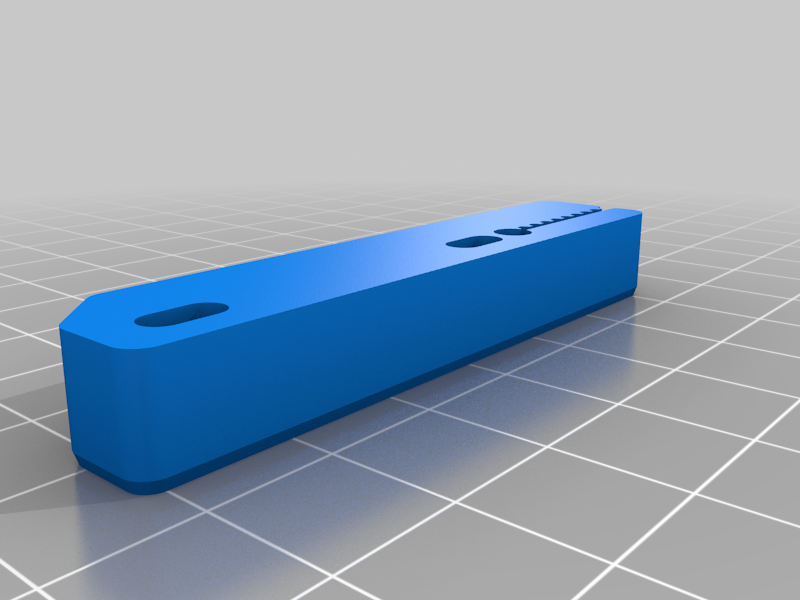

stlbelt_fix.STL
203 Ko · 7 908 Downloads
Beschreibung
!!! Prototype. Not tested.
Printable parts for a linear motion guide (MGN12 linear rail (length 250mm) + MGN12H linear carriage block. Ref. link: http://ali.pub/vnk2s).
Mounts on the standard aluminium 20x20mm profile.
CAD (SW2013): https://grabcad.com/library/linear-motion-guide-2020-double-precision-1
Aluminium profile: 20x20mm length 274mm (1.8mm thickness, 6mm slot)
Belt: GT2 open ended (940mm)
Pulley: GT2 16 teeth 2pcs, idle pulley GT2-16 (w/o teeth) 2pcs
Stepper motor: NEMA17
Bearings: 625ZZ x 2pcs
