These are parts I used on my Level 1 Certification rocket that flew on a Cesaroni H100 motor.

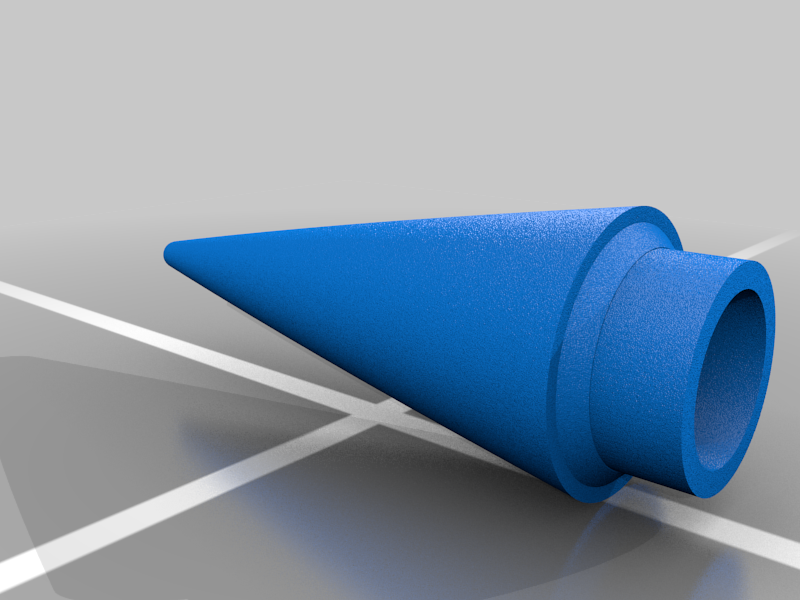

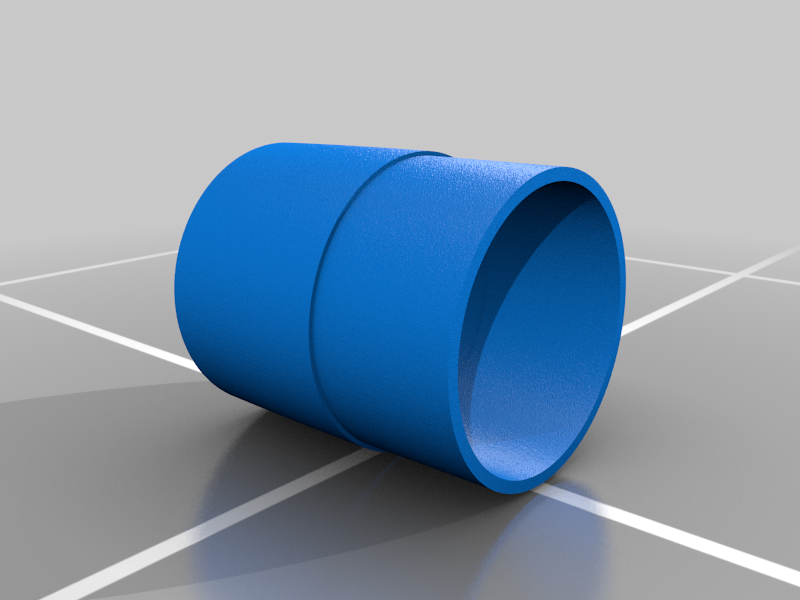

The nose cone is a 5:1 spherically blunted tangent ogive nose cone that fits a T300-34 body tube. It prints in four pieces which can be glued together, sanded, and painted.

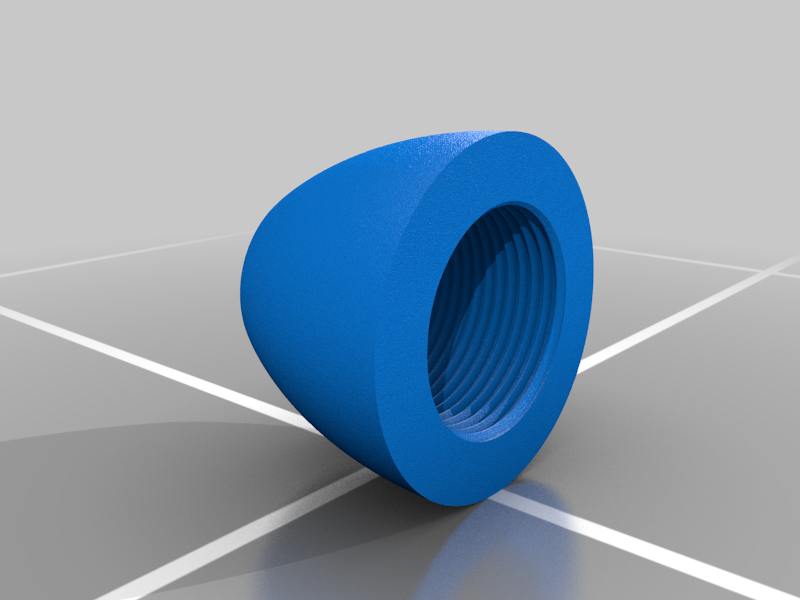

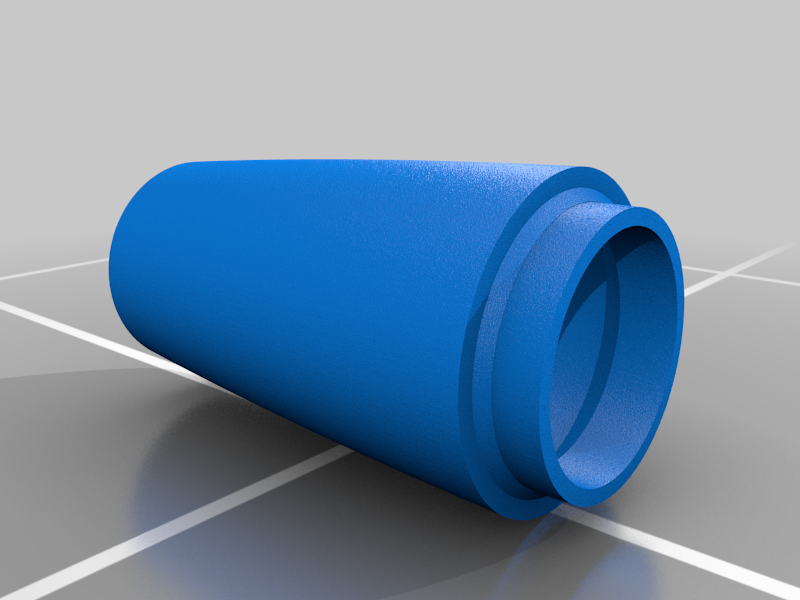

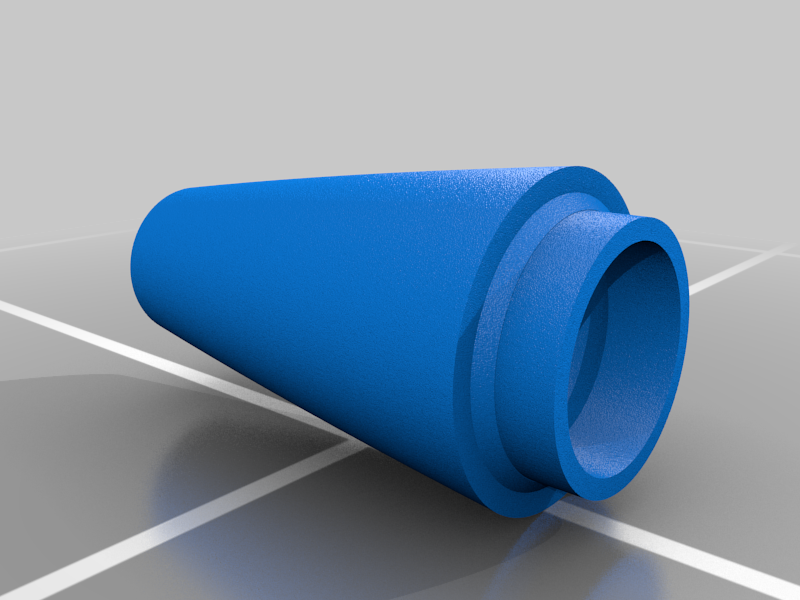

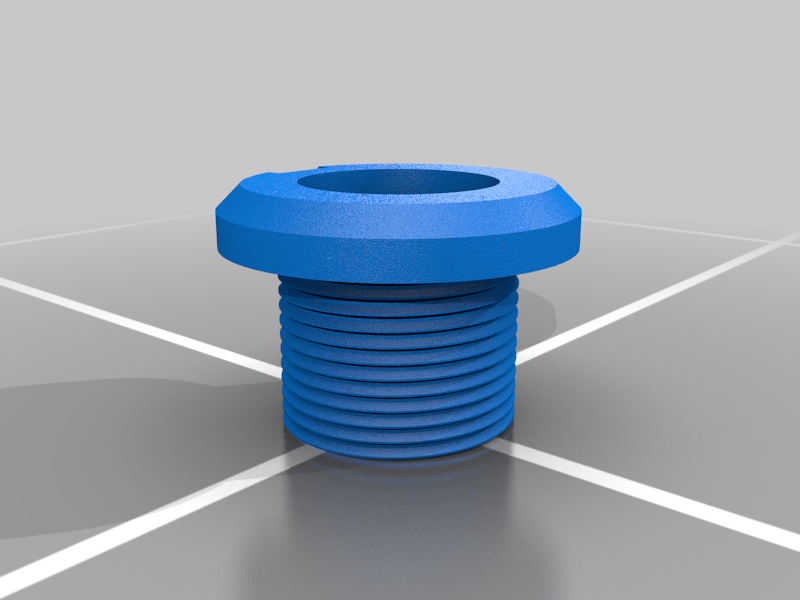

The tail cone doubles as a motor retainer and fits a T38-34 38 mm motor mount tube and has a notch modeled into it to allow for a rail lug to be placed at the bottom of the rocked body. There are two versions that work with a reloadable Cesaroni casing or a single use Aerotech.
