Tank Float level switch 20mm pipe

von Volkvanmyn25

Druckbare Dateien (3)

  • stl

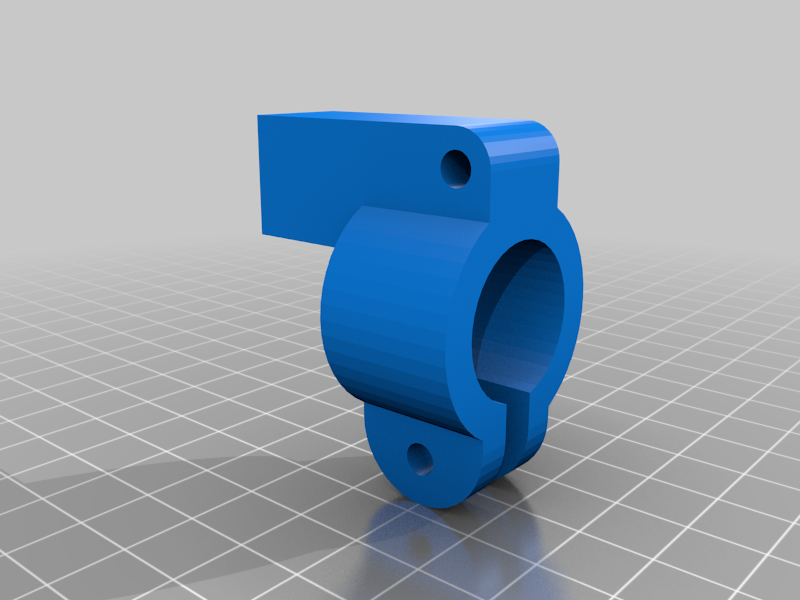

    float_switch_clamp_vers_3.STL

    53 Ko · 536 Downloads

    Herunterladen
  • stl

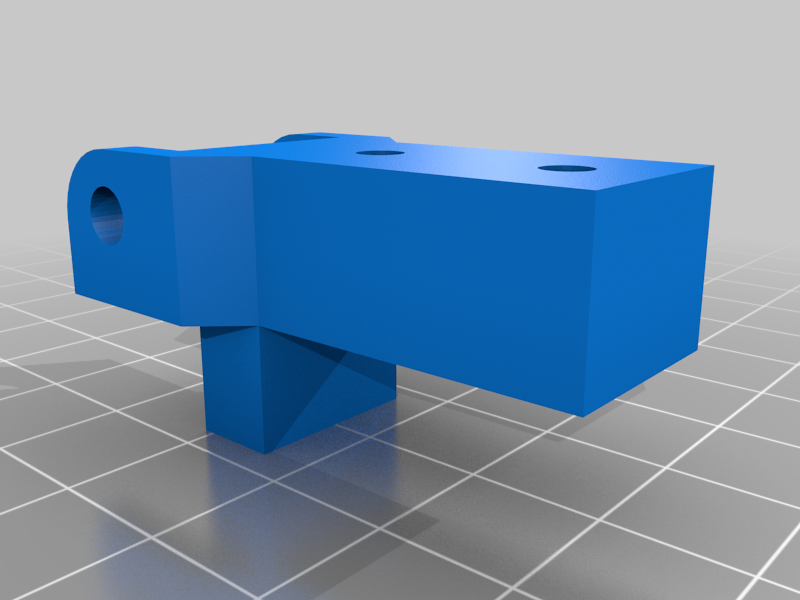

    float_ball_mount_vers_3.STL

    42 Ko · 540 Downloads

    Herunterladen
  • stl

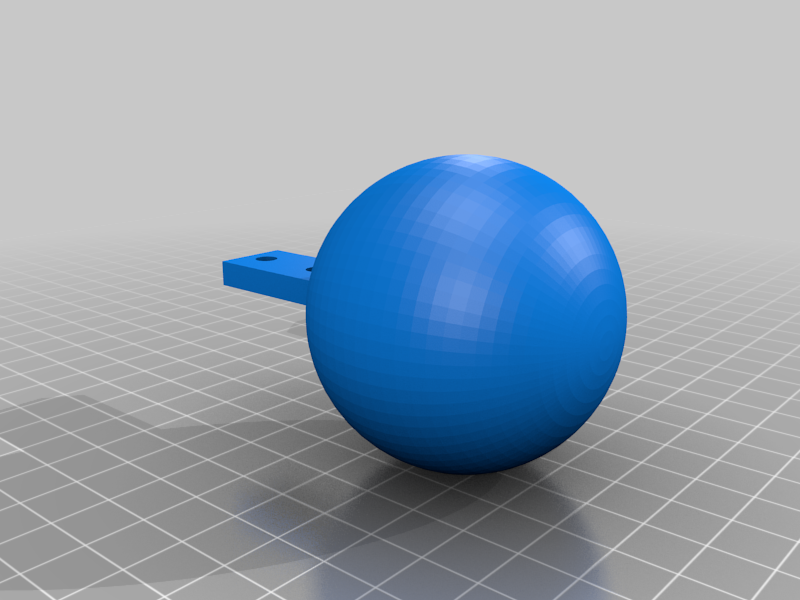

    float_ball.STL

    475 Ko · 498 Downloads

    Herunterladen

Beschreibung

Here is another float switch for a tank using a reed sensor. It is designed to be fitted onto a 20mm pvc pipe that you place inside a tank.

Link to the magnet used
http://www.mantech.co.za/ProductInfo.aspx?Item=15M0681-W

Tags

#Floater #switch
