r1PPER V3
von J99works
Druckbare Dateien (9)
-
stlV3_2_100mm_stretched_X.stl
2 Mo · 771 Downloads
-

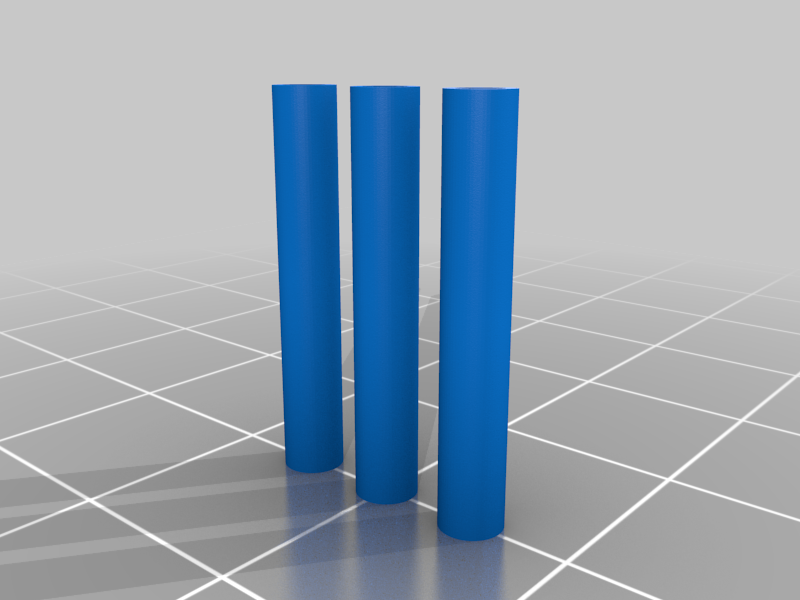

stlcolumnS.stl
49 Ko · 733 Downloads
-
stl110_V3.stl
2.4 Mo · 778 Downloads
-
stlsides_for_V3_only.stl
92 Ko · 764 Downloads
-
stlV3_110mm_stretched_X.stl
2 Mo · 765 Downloads
-
stlSides_for_V3_only-clover.stl
140 Ko · 771 Downloads
-
stlV3_1_100mm_stretched_X.stl
2 Mo · 757 Downloads
-
stlFc-pads.stl
100 Ko · 764 Downloads
-
stlside_V3.2.stl
206 Ko · 756 Downloads
Beschreibung
NEWS :

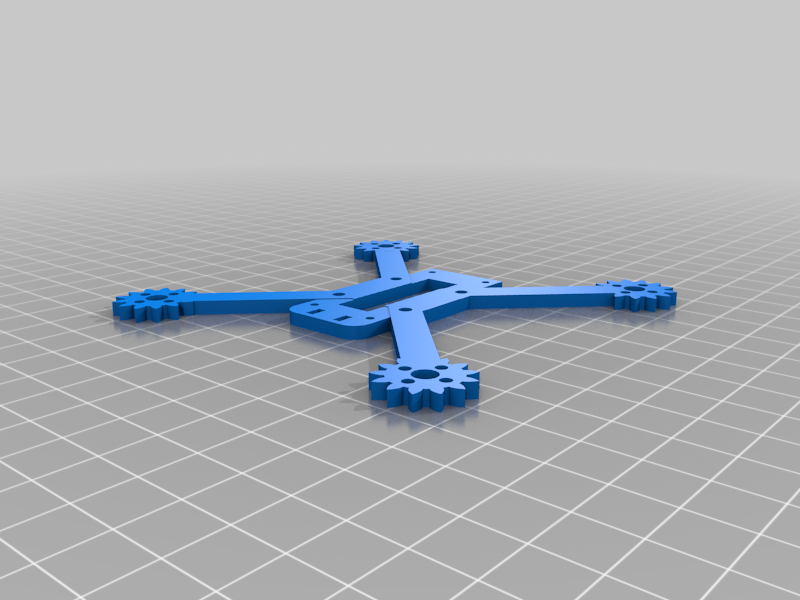

- V3.2 Stretched 100mm version - for all 2 inch props (up to 53mm props), lighter, more durable, no props in view of camera !

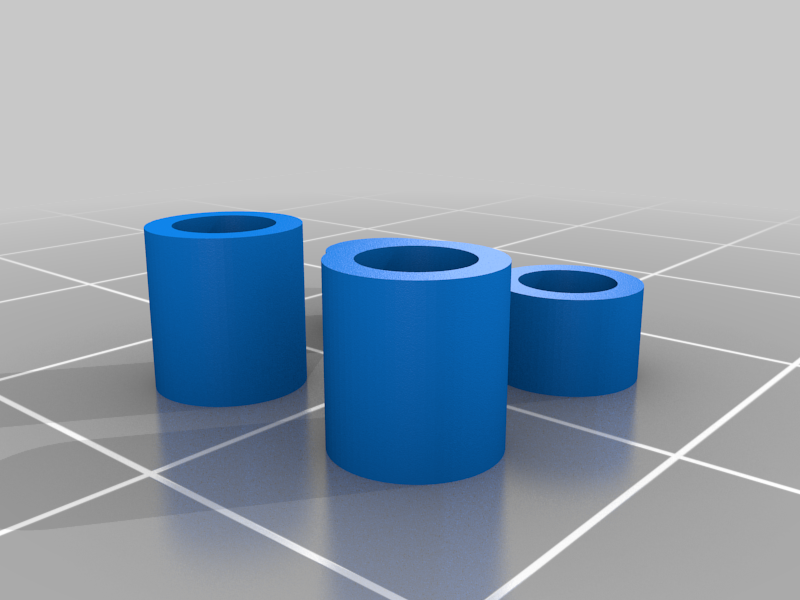

- Pads to mount FC

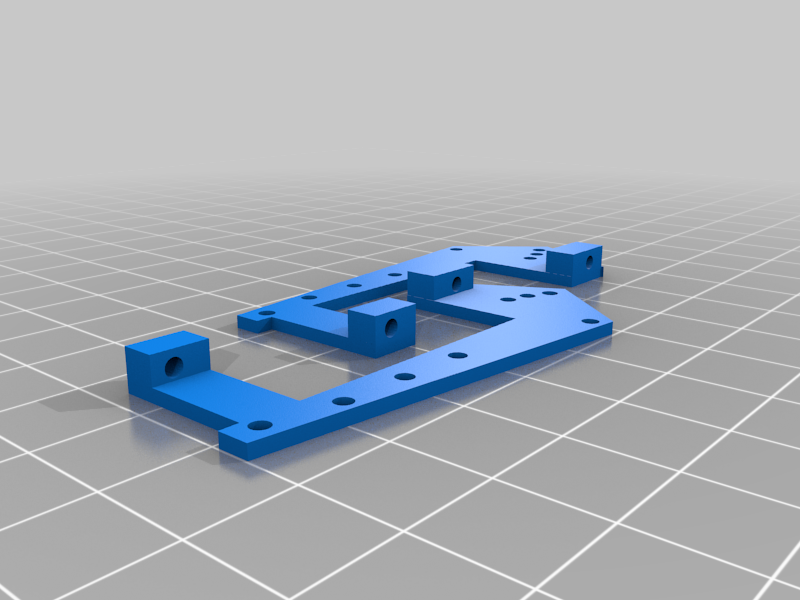

More durable 2mm sides - side V3.2.stl

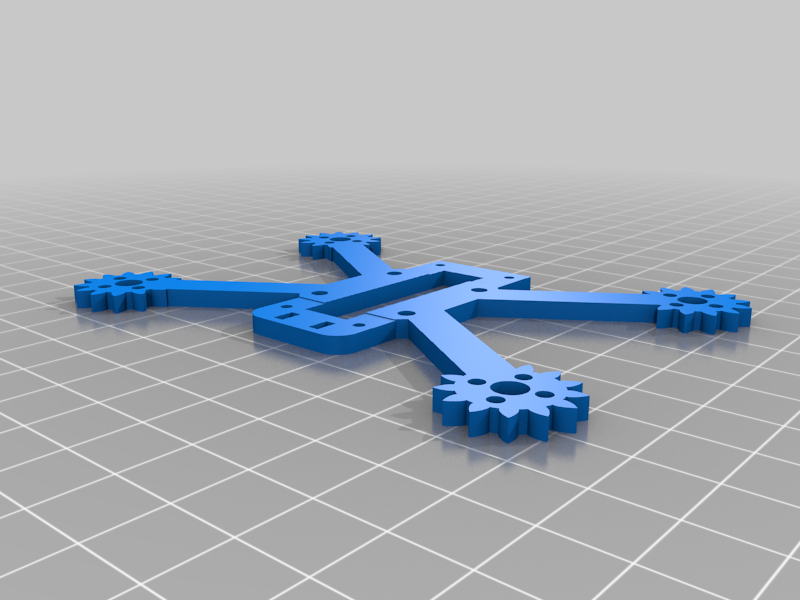

- V3 - 110mm : True X frame - recommended for 19xx props, Gemfan 2035 should fits too

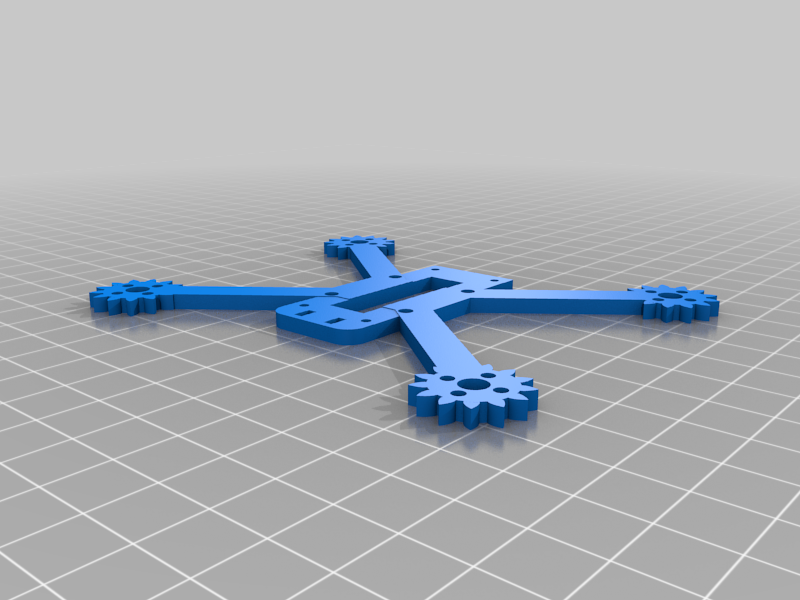

- V3 110mm Stretched X - for all 1.9 - 2.1 inch props (for example GF 2040)

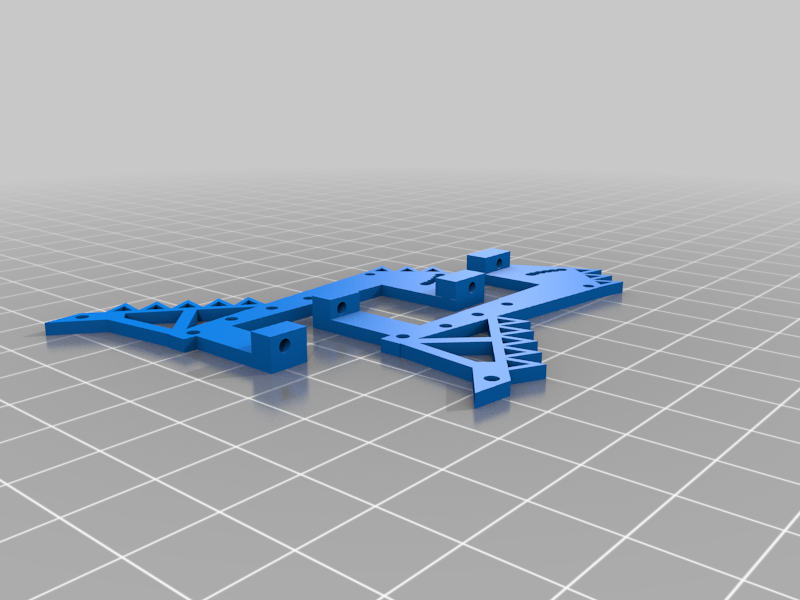

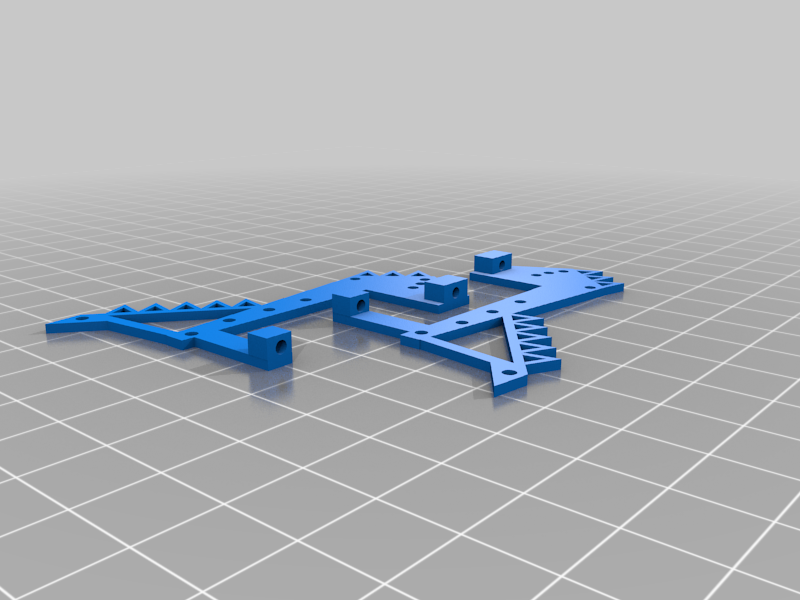

Sides with or without clover antenna protector (fits on V3 and newer)
- Light weight frame - About 12
- You will need 10x M2 screw to hold it together (+16 for motors)
- Designed for 110x (i am using 1103) motors, 20x20mm stack, Wider fpv camera - up to 19mm wide (Runcam micro swift,), i am using split TX02 (separated camera and VTX)
Evolution of r1PPER : 1 https://www.thingiverse.com/thing:2702391
2 https://www.thingiverse.com/thing:2757055
