Cycloidal Drive
von Meia
Druckbare Dateien (7)
-

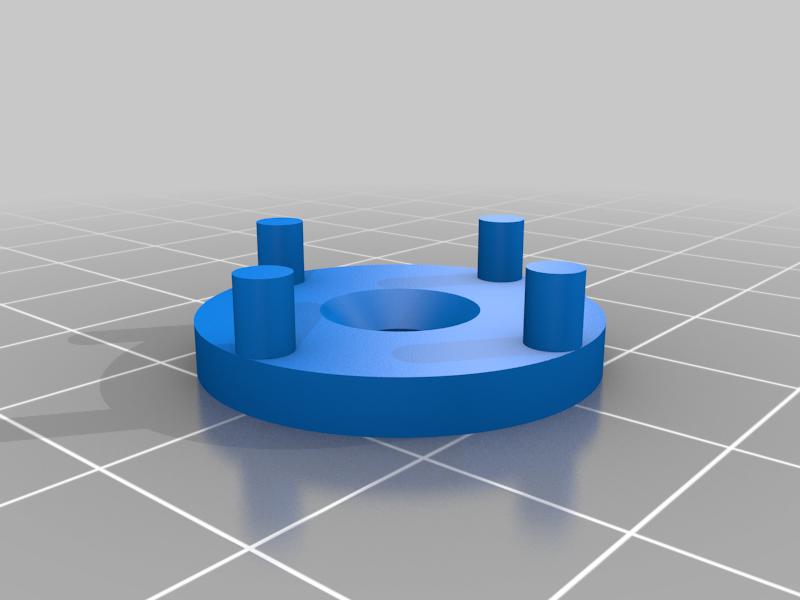

stlPin_Plate1.stl
169 Ko · 2 054 Downloads
-

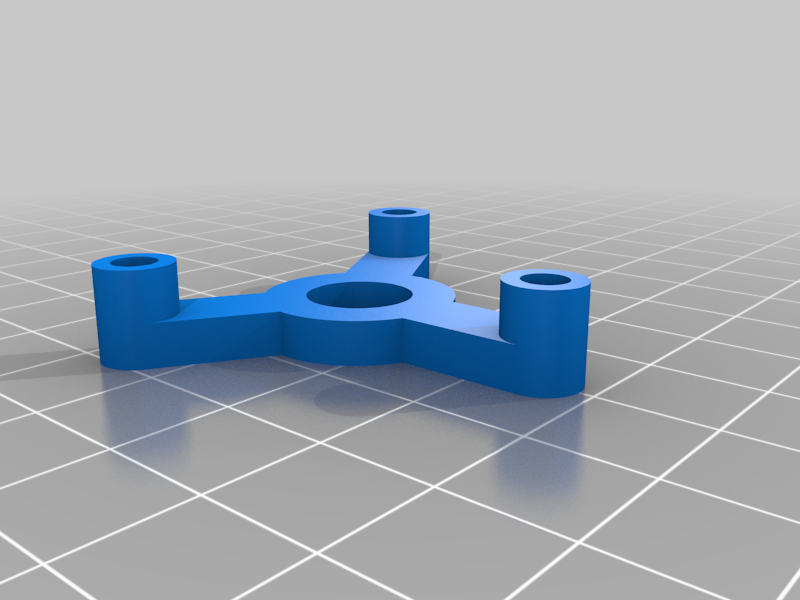

stlUpper_Plate2.stl
195 Ko · 2 042 Downloads
-

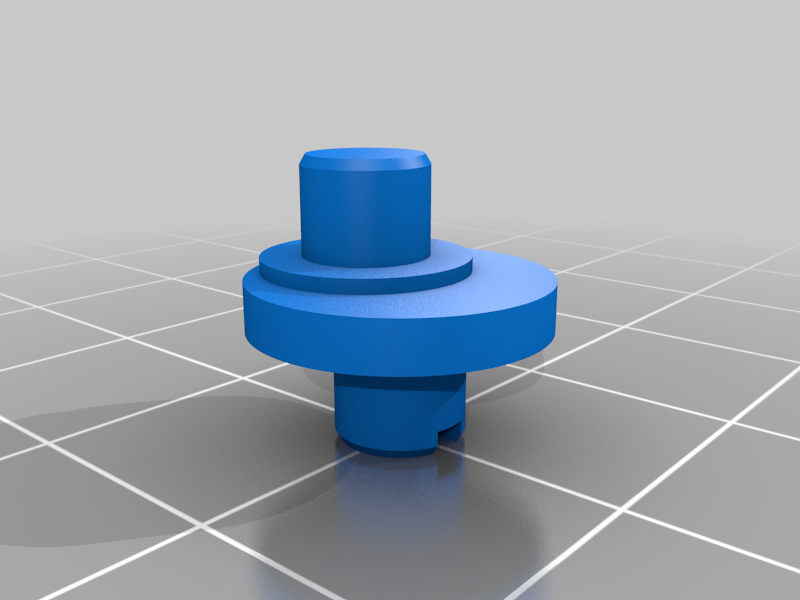

stlExcentric_Shaft1.stl
184 Ko · 2 054 Downloads
-

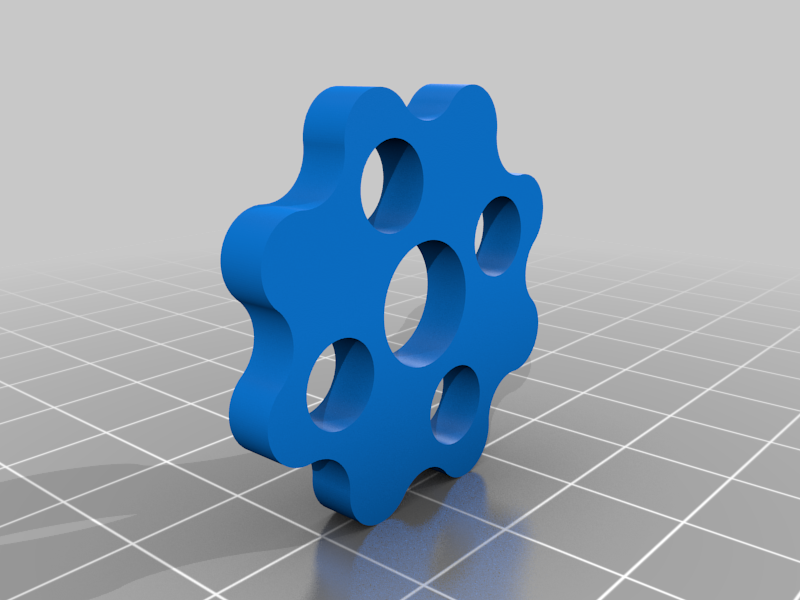

stlCycloid_Disc1.stl
275 Ko · 2 050 Downloads
-

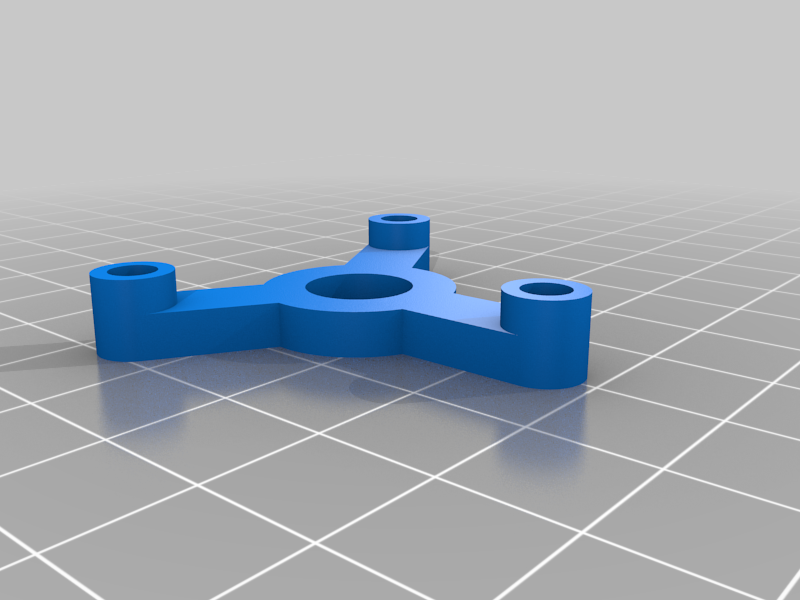

stlBaseplate2.stl
196 Ko · 2 036 Downloads
-

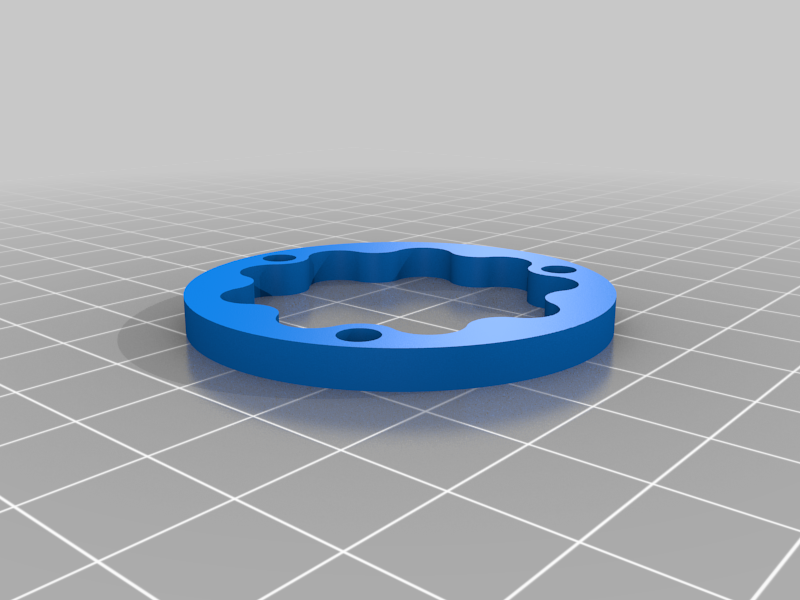

stlOuter_Ring1.stl
284 Ko · 2 069 Downloads
-
stepCyclo_Gear.stp
266 Ko · 1 973 Downloads
Beschreibung
This is a cycloidal gearbox with a transmission ratio of 1:8.
In addition to the 3D-printed parts you will need 3 5x10x4 (dxDxW) bearings, 3 M4x20 bolts, 1 M5 bolt, 1 M3 bolt and a small 5mm washer.
If you put it together carefully and maybe sand it a little it will run very smoothly.
