RC Cable Camera - ROLL-E
von Revamped_Outdoors
Druckbare Dateien (16)
-

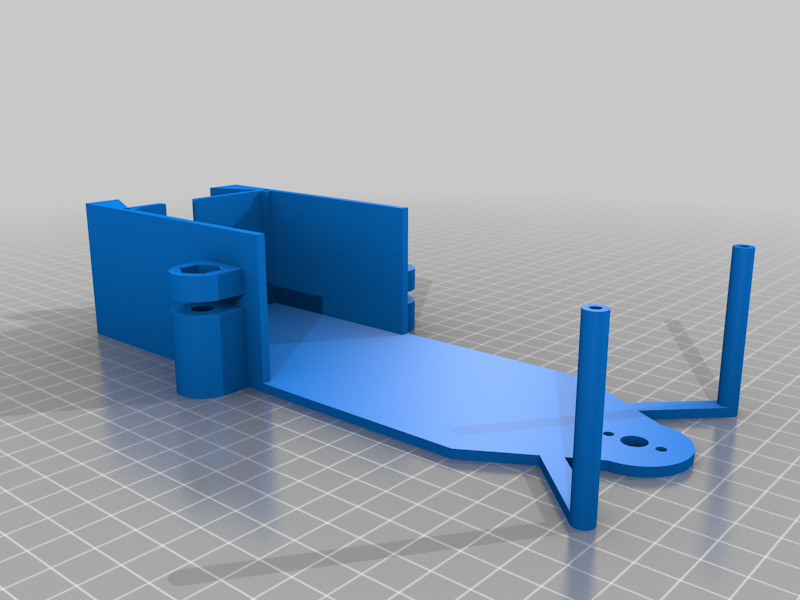

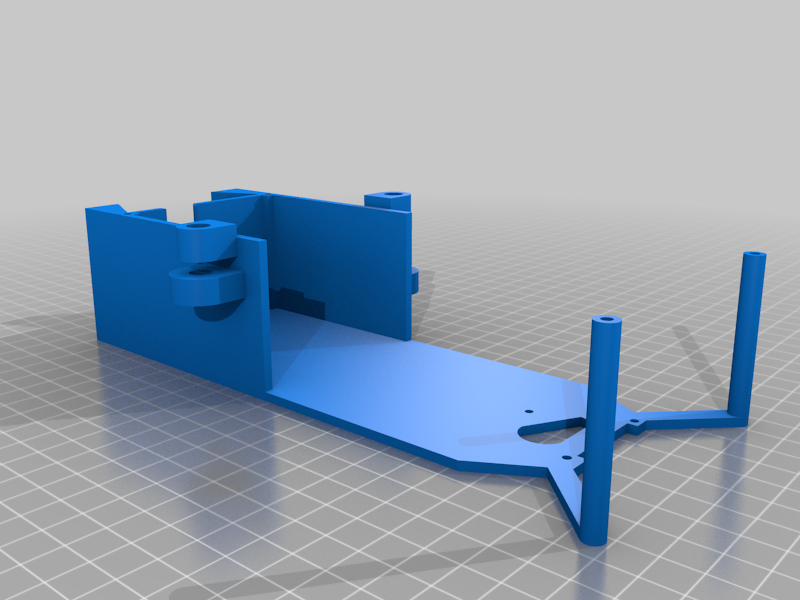

stl01.Body_back_plate_Tumbler_RC_motor.stl
298 Ko · 1 452 Downloads
-

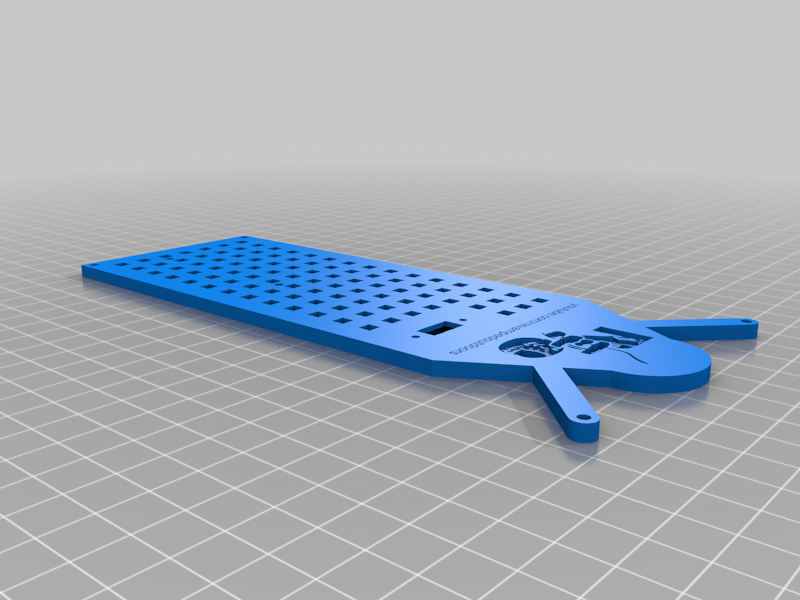

stl02.Face_plate.stl
1 Mo · 1 449 Downloads
-
stl03.Drive_wheel_1.5x_Tumbler_RC_motor.stl
1.4 Mo · 1 450 Downloads
-
stl04.Drive_wheel_Tumbler_RC_Motor.stl
547 Ko · 1 451 Downloads
-

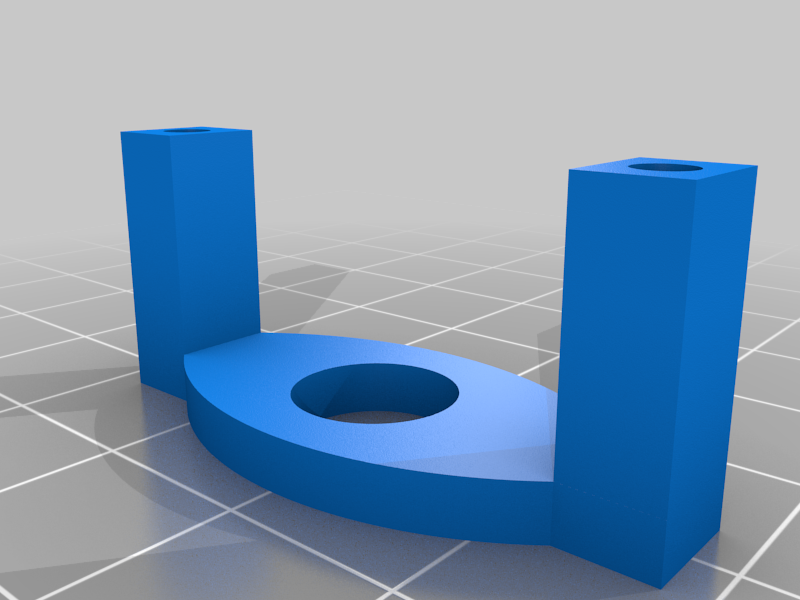

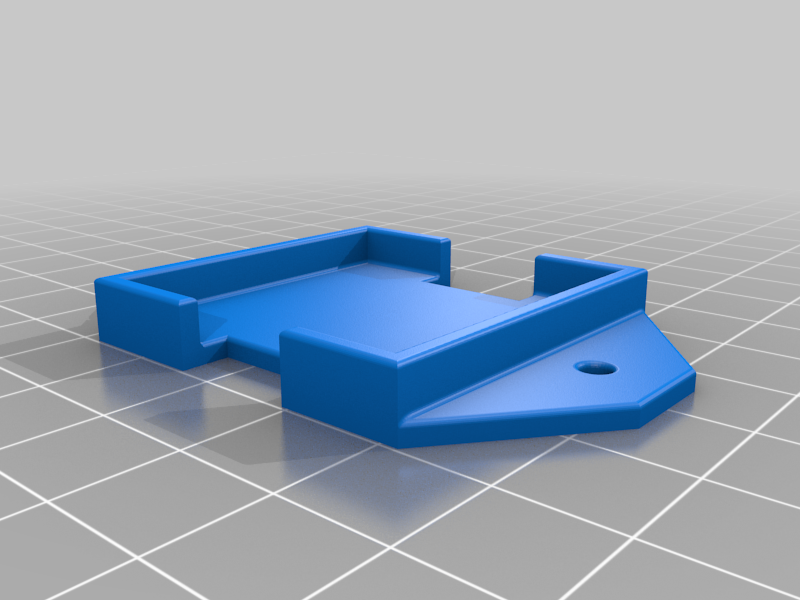

stl05.ESC_mount.stl
212 Ko · 1 446 Downloads
-

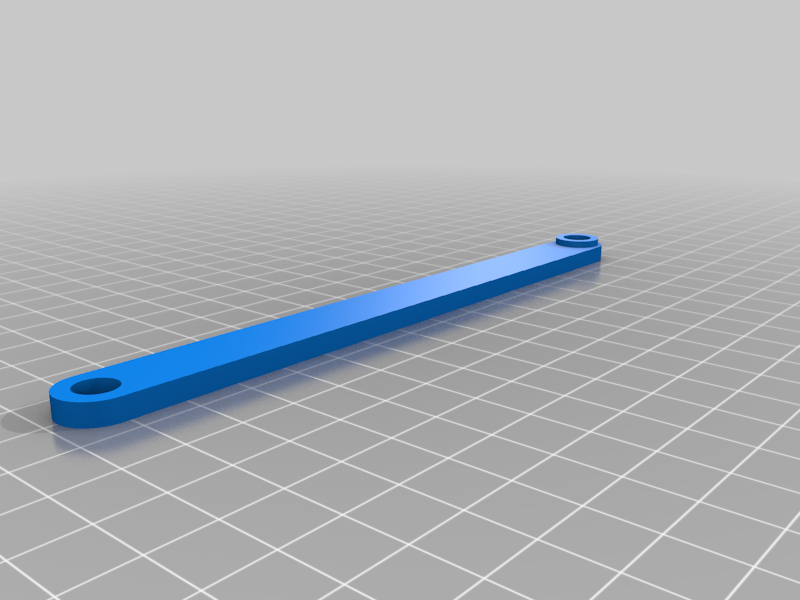

stl06.Arm_x2_print.stl
53 Ko · 1 448 Downloads
-

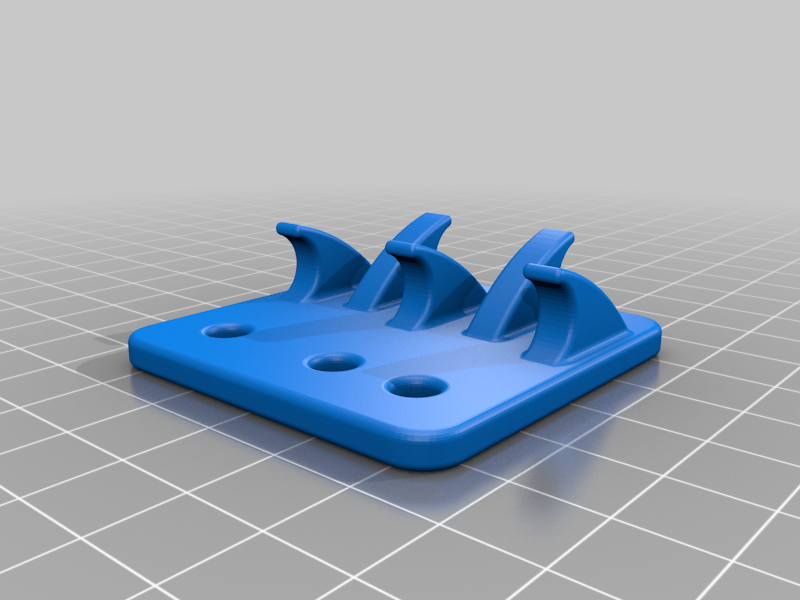

stl07.Rope_cleat.stl
793 Ko · 1 452 Downloads
-

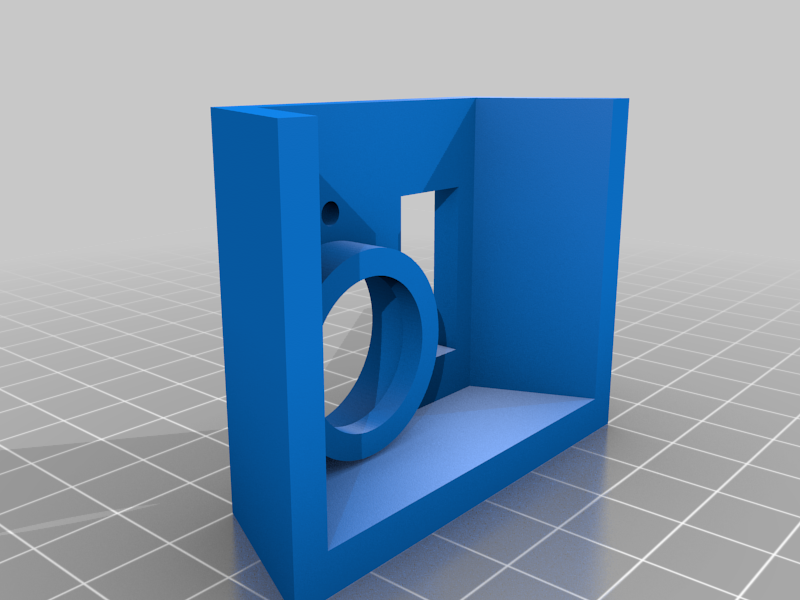

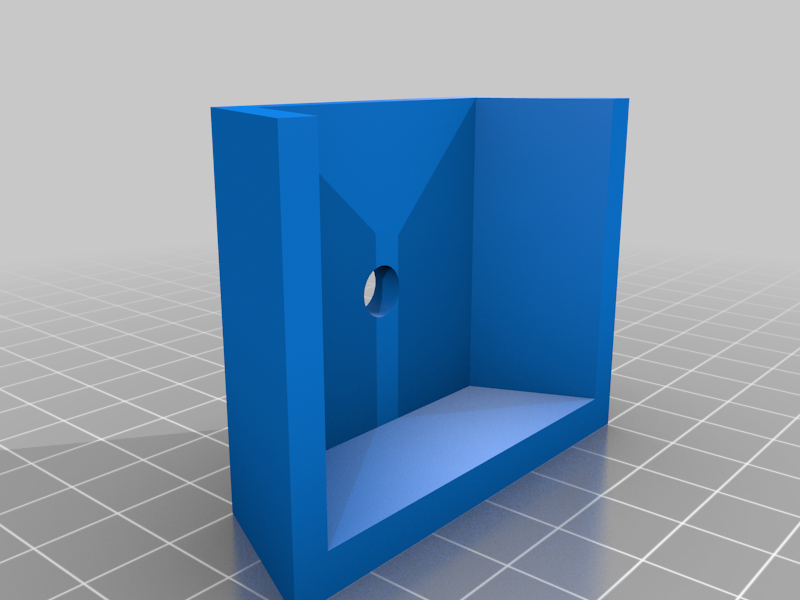

stl08.Body_insert_one_bolt_hole.stl
22 Ko · 1 449 Downloads
-
stl09.Body_insert_servo_motor.stl
96 Ko · 1 453 Downloads
-
stl10.Servo_insert_safety_catch_around_bolt.stl
122 Ko · 1 449 Downloads
-

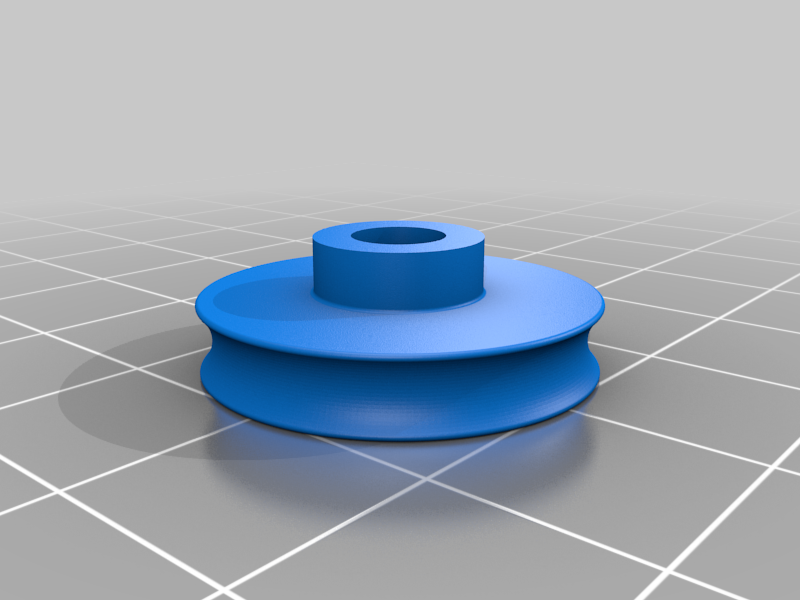

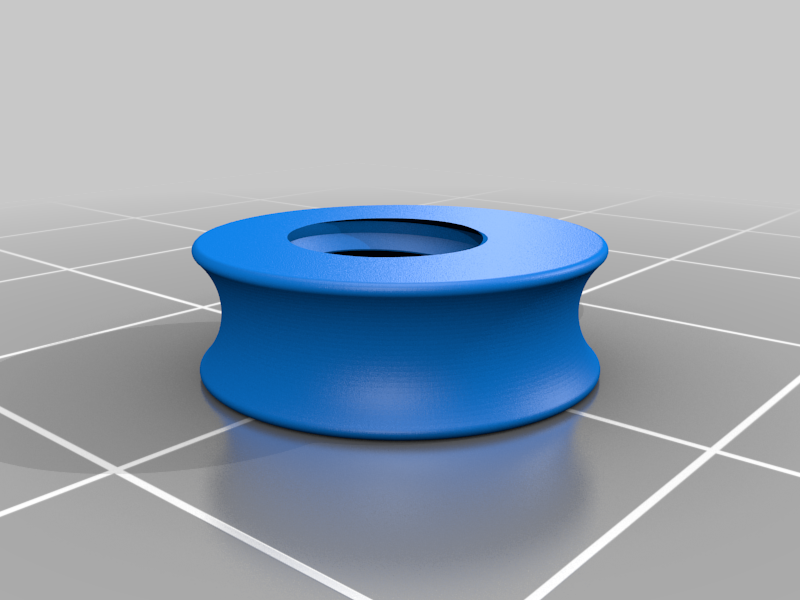

stl11.Small_pulley_rubberband.stl
1.7 Mo · 1 443 Downloads
-
stl12.Servo_pulley_for_rubberband.stl
1.2 Mo · 1 448 Downloads
-

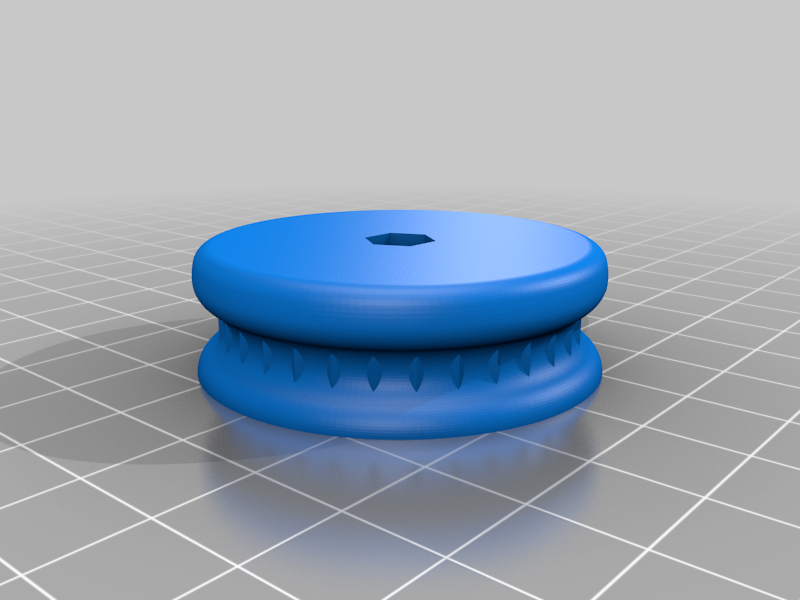

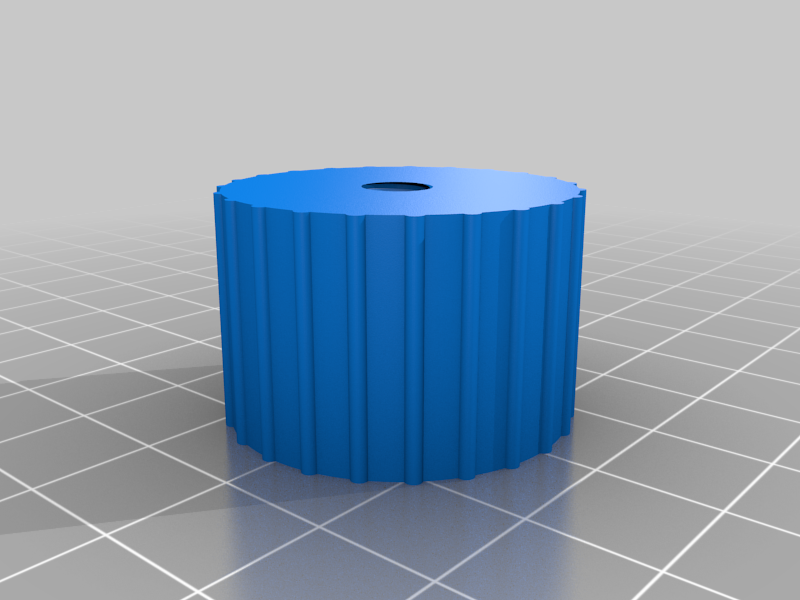

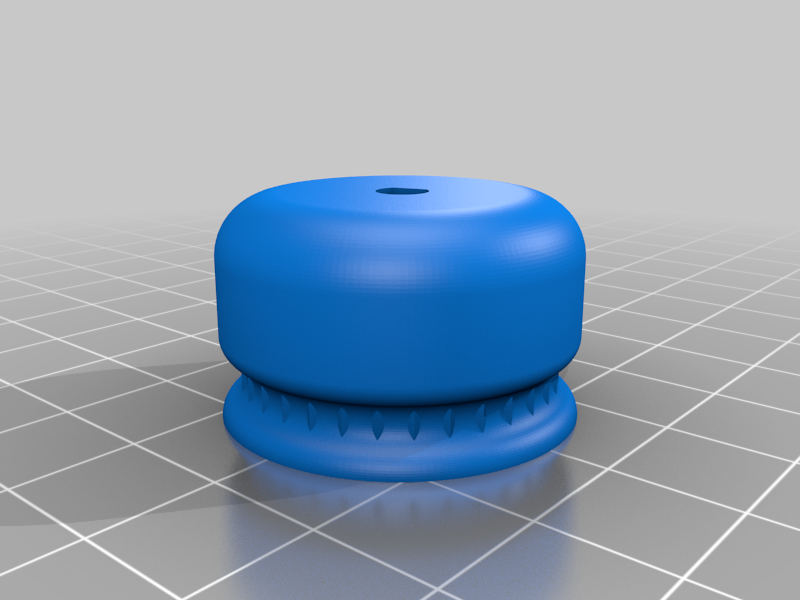

stl13.Arm_tightening_knob_closed_top.stl
1.7 Mo · 1 440 Downloads
-

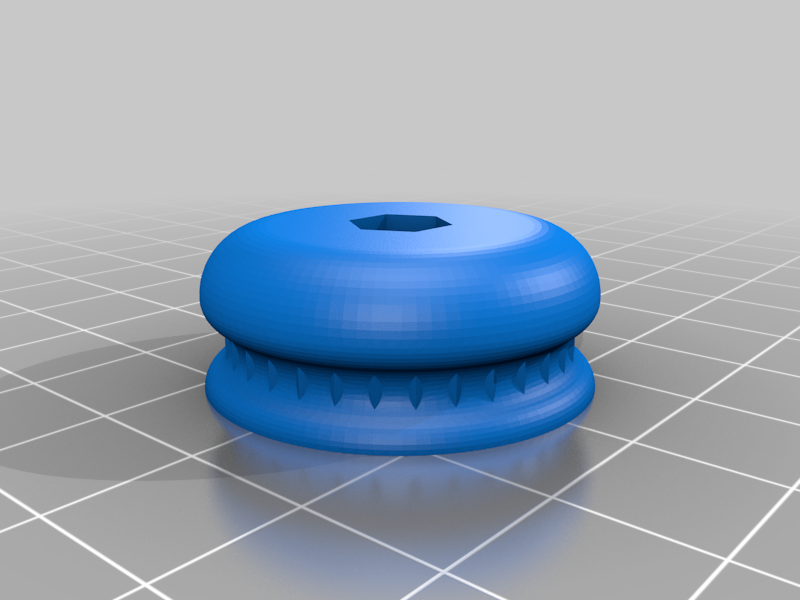

stl14.Arm_tightening_knob_through_thread.stl
1.8 Mo · 1 446 Downloads
-
stlEGM01.Econ_Gear_Motor_Back_Plate.stl
328 Ko · 1 443 Downloads
-
stlEGM02.Drive_wheel_econ_gear_motor_4mm_d_shaft.stl
1.4 Mo · 1 446 Downloads
Beschreibung
Hello all, I will soon include a full description on assembly but it is rather straight forward, if you have any questions in the mean time I will include a brief overview video which you can find here:
https://youtu.be/nawF633fHjk
I have exported the STLs in the format in which I print them. Depending on your bed size you may be able to arrange them so you can print all at once. The only parts that need to have supports are the servo insert and the main body, the rest should be able to bridge without problems. I printed all but one part with 100% infill PLA. The drive wheel I like to keep light weight and printed with 20% infill 3 perimeters. All modeling had 0.20 clearance for parts which work with my printer. If you need slightly more you can scale ALL parts to whatever you like and it should hold consistent, as long as all are scaled!
Hopefully you enjoy it feel free to modify it as neccessary! The fusion 360 files on this are all over the place in about 10 different versions. I modeled this from the bottom up so there were a lot of iterations but if there is a lot of people that want me to export the project files I will. It just might be a bit of a mess and take me awhile. You know how it goes sometimes ;/.
Thanks for looking at it and hopefully printing it out!
