Makerfire Gate Holder
von Thump2010
Druckbare Dateien (15)
-
stlMakerfire_Gate_Holder_Spike.stl
630 Ko · 739 Downloads
-

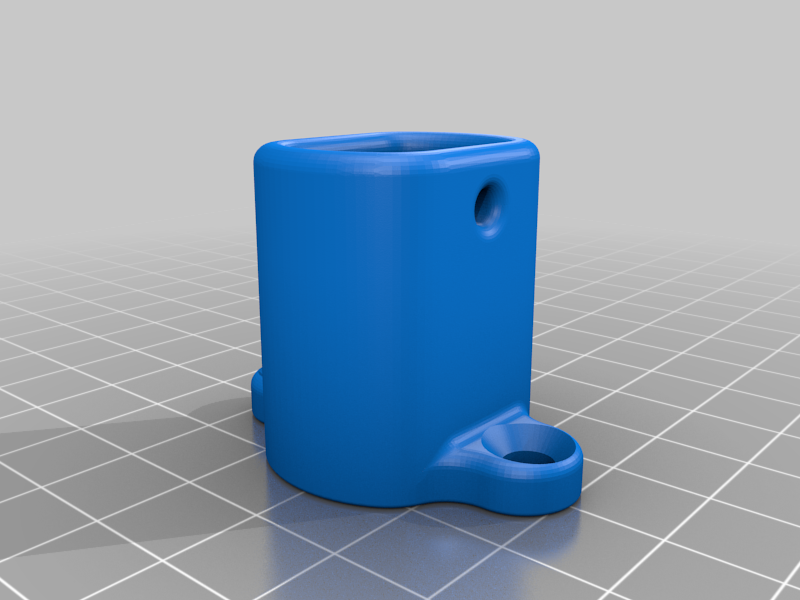

stlMakerfire_Gate_Holder_Wall_Foot_1_hole_Horizontal.stl
568 Ko · 735 Downloads
-

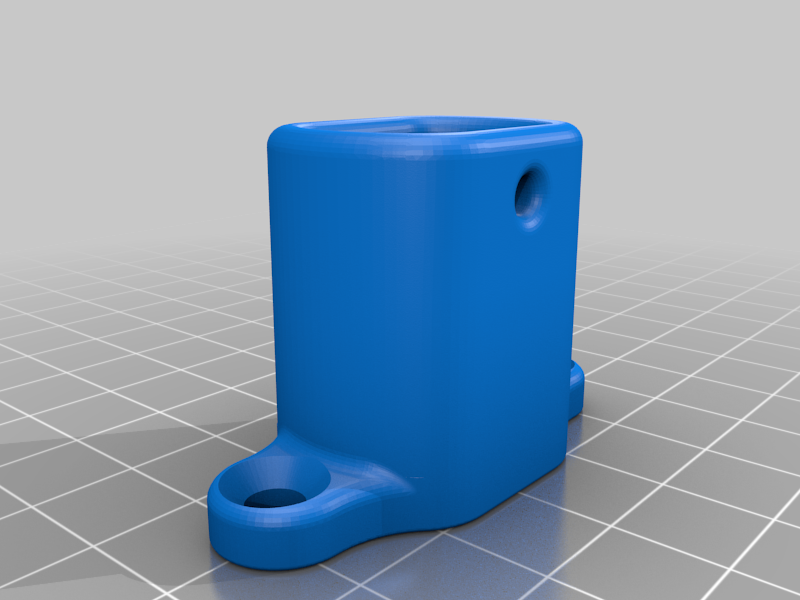

stlMakerfire_Gate_Holder_Wall_Foot_2_hole_Horiz.stl
574 Ko · 734 Downloads
-

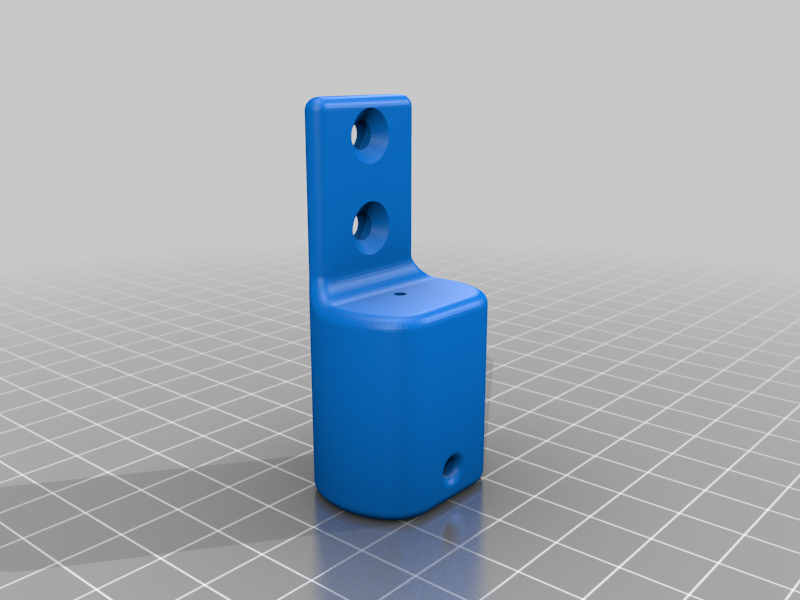

stlMakerfire_Gate_Holder_Wall_Foot_2_hole_vertical.stl
640 Ko · 740 Downloads
-
stlMakerfire_Gate_Holder_Wall_Foot_2_hole_90_degree_Horizontal.stl
645 Ko · 734 Downloads
-
stlMakerfire_Gate_Holder_Foot_Large.stl
648 Ko · 744 Downloads
-

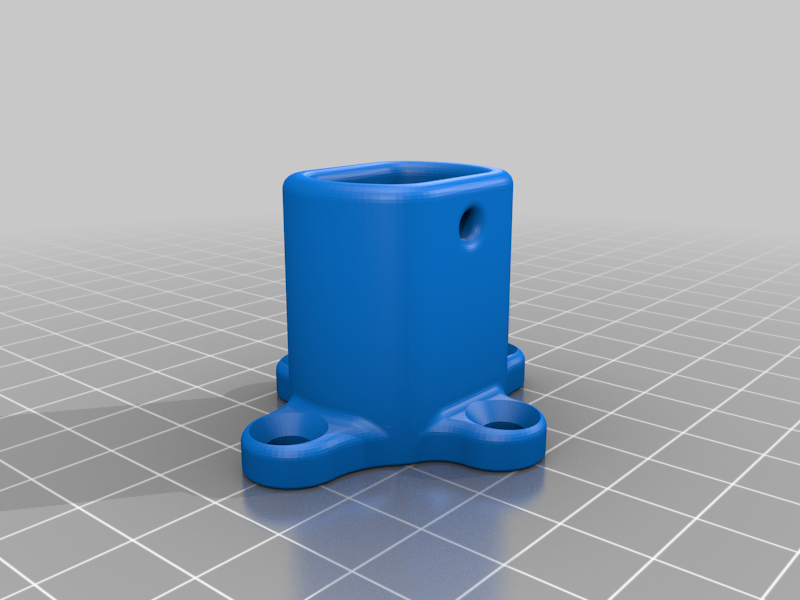

stlMakerfire_Gate_Holder_Wall_Foot_4_hole.stl
694 Ko · 734 Downloads
-

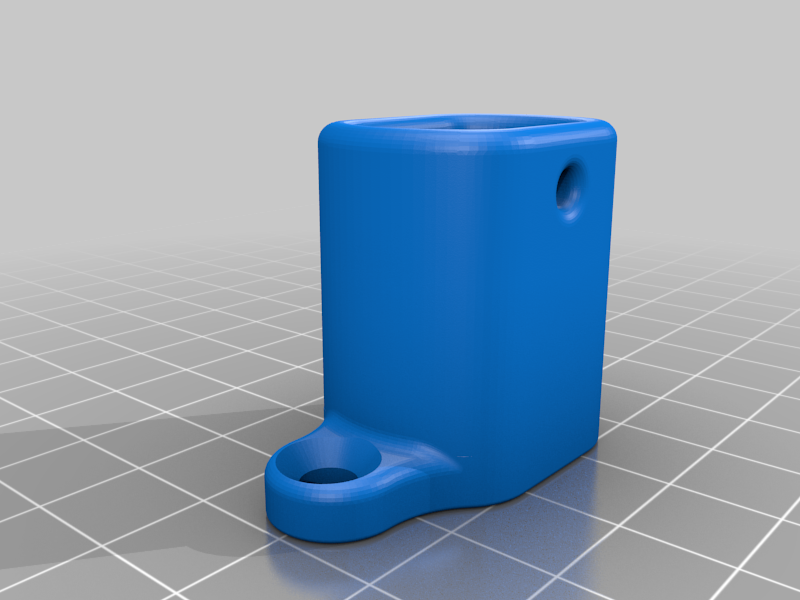

stlMakerfire_Gate_Holder_Wall_Foot_1_hole_Vertical.stl
588 Ko · 739 Downloads
-
stlMakerfire_Gate_Holder_Foot_Small.stl
635 Ko · 738 Downloads
-
stlMakerfire_Gate_Holder__Pin.stl
313 Ko · 744 Downloads
-
stlMakerfire_Gate_Holder_Wall_Foot_2_hole_90_degree_vertical.stl
642 Ko · 739 Downloads
-
stlMakerfire_Gate_Holder.stl
426 Ko · 769 Downloads
-

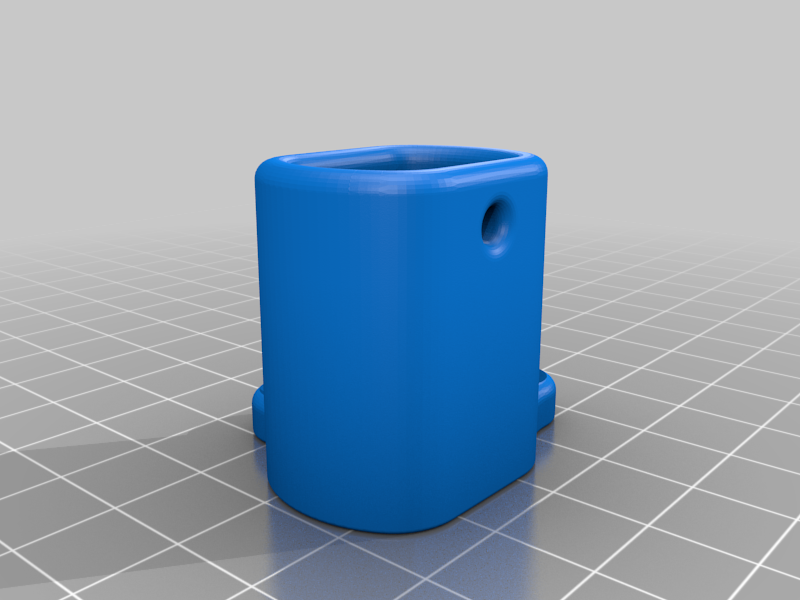

stlMakerfire_Gate_Holder_Foot.stl
644 Ko · 739 Downloads
-
stlMakerfire_Gate_Holder_Wall_Foot_Horizontal.stl
507 Ko · 735 Downloads
-
stlMakerfire_Gate_Holder_Wall_Foot_Vertical.stl
465 Ko · 735 Downloads
Beschreibung

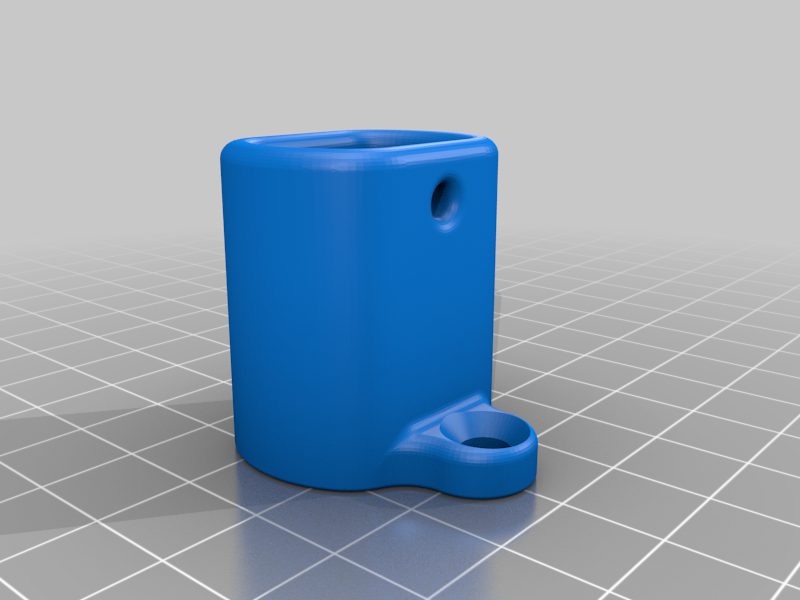

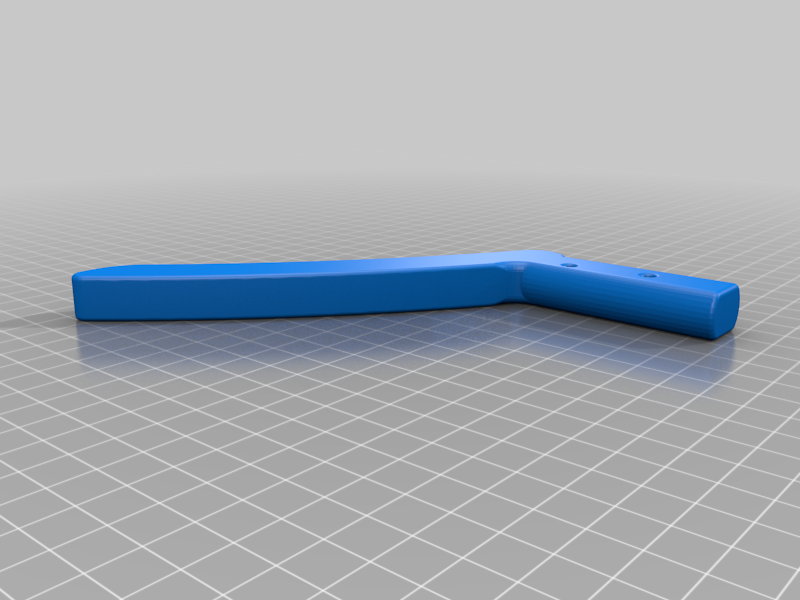

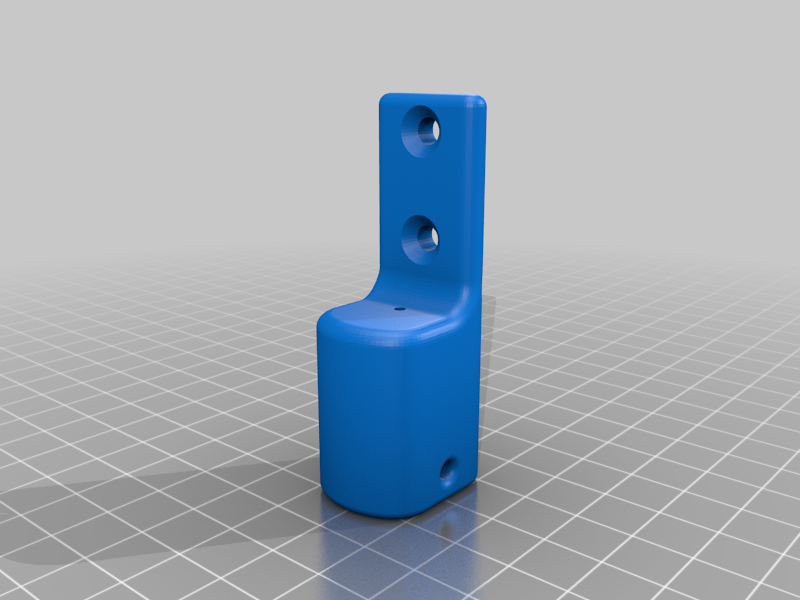

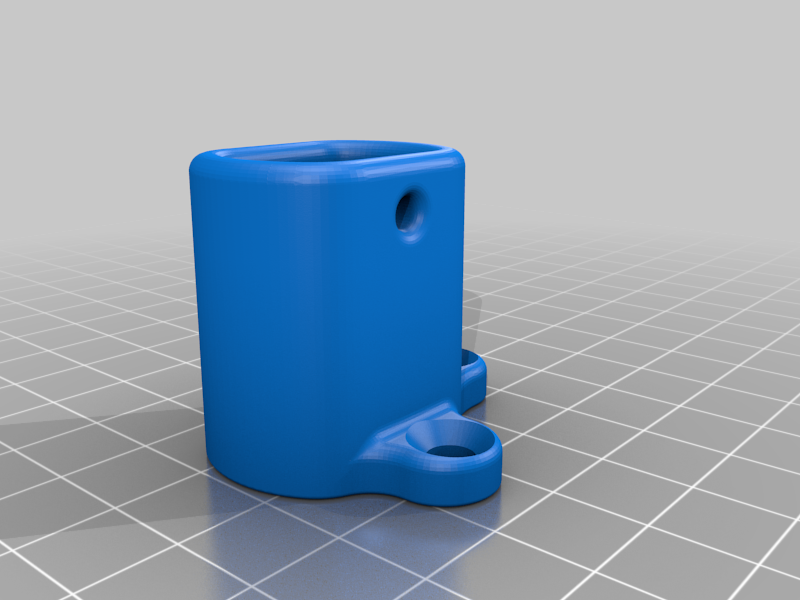

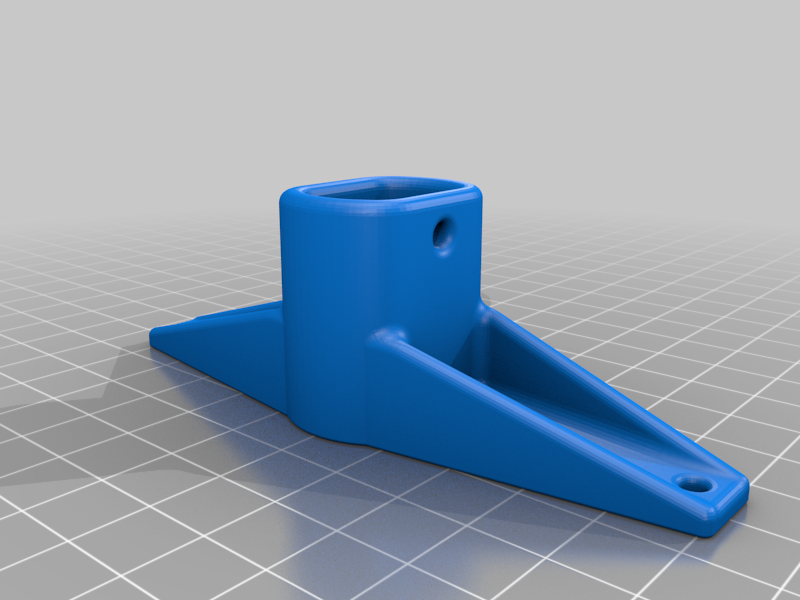

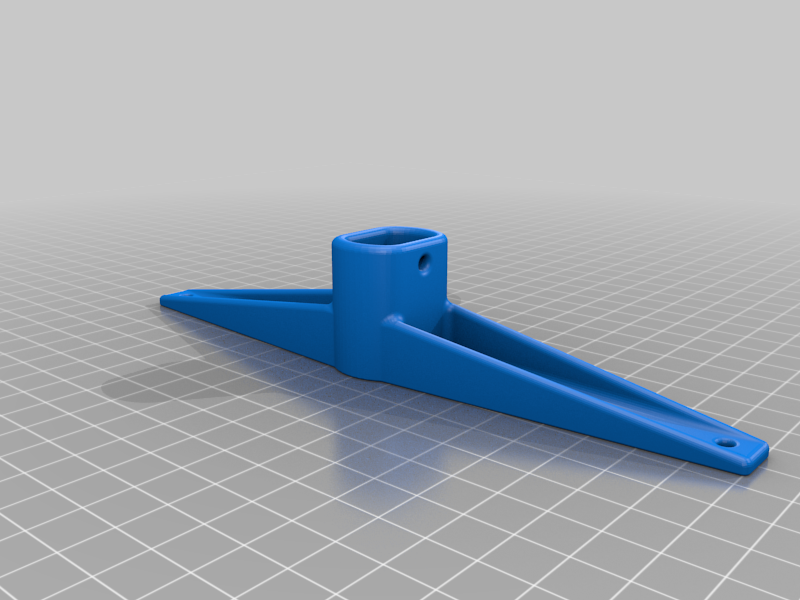

I bought some Makerfire gates from Good Venture Drones, they have hooks to hang them and I was thinking about stapling them in the house here and there for a track but decided that would be a PITA.I then thought about a stand with feet, then the idea came of a foot that can be screwed to a wall, door, shelf, etc. then someone in the Facebook 2S POWER-WHOOP GROUP asked me about hanging them from the ceiling so I made the holder with a small lip that you pop the gate into and then it is loose to move but wont fall out then added holes for pins in the mount so they don't fall out.

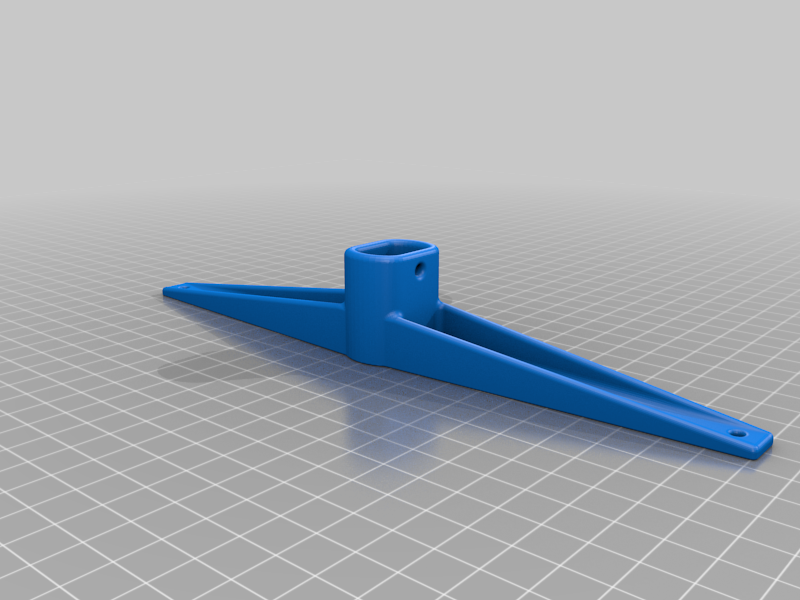

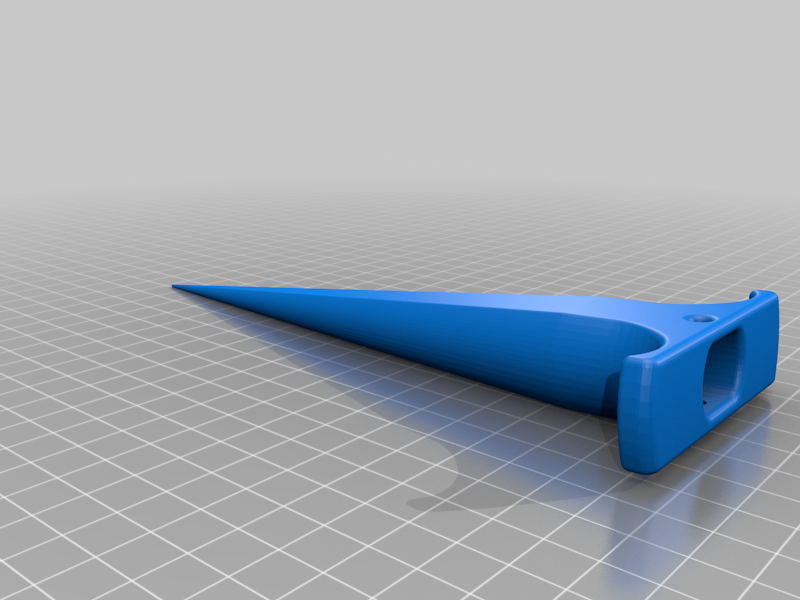

I also had the idea of a spike to push into the grass that will work well in the summer but being winter I only printed what I need for flying inside the house so I have a lot more designs than what I have printed for photos as I just printed what I needed but I tried making a mount for every possible need.
The printed parts will fit in the middle of the gates when they are folded and put in their carry bags keeping everything for the 3 gates in the bag together.
With the mounts screwed around my house I can set up and tear down my indoor track in less than 10 minutes.
They may fit other gates of 27" diameter but I don't have others so try it and let me know.

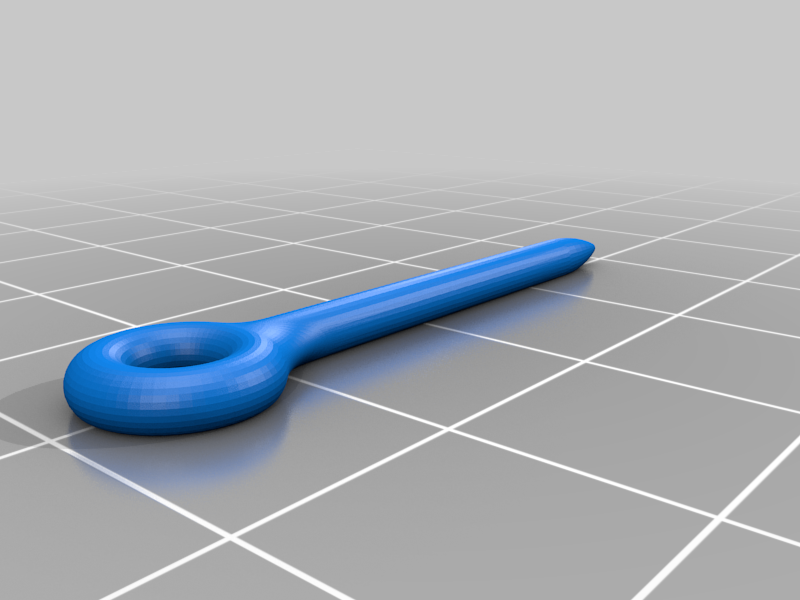

I made it so you could use a cotter pin to hold the holder to the foot/mount but I also made a pin that can be printed.
I hope I thought of all permutations of the foot/mount, if I missed something let me know.
I printed at a 0.2mm layer height.
3 perimeters.
whatever you want for the infill.
The holder and 2 of the feet need support nothing else does.
