Compost shredder
von thymark
Druckbare Dateien (16)
-

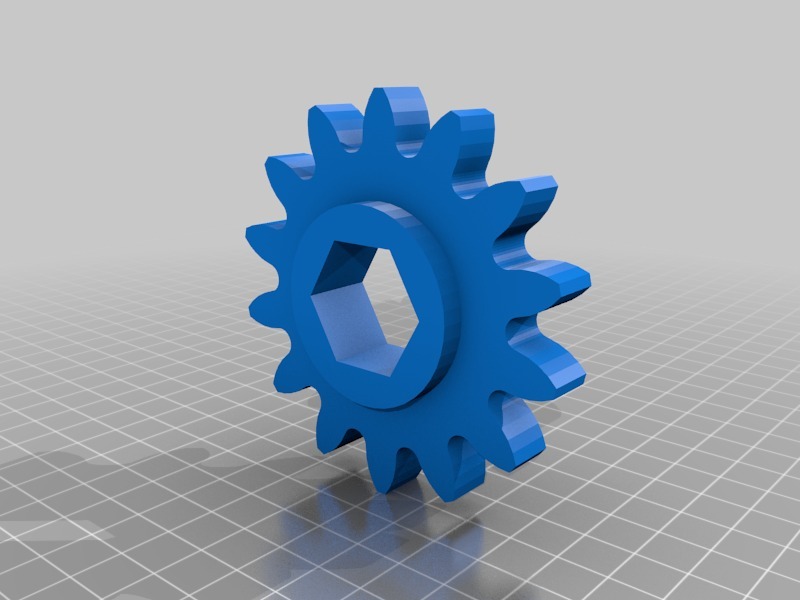

stlspur_gear.STL
81 Ko · 25 553 Downloads
-

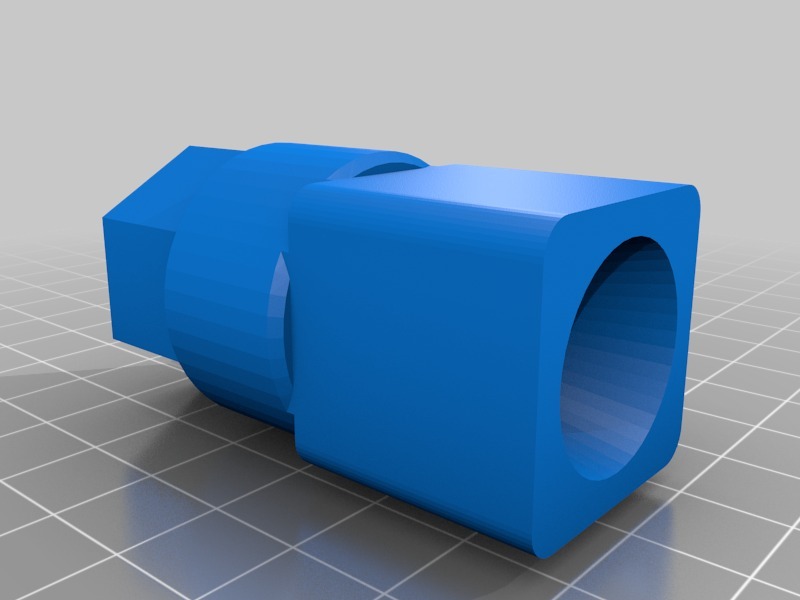

stlfor_shaft1.STL
46 Ko · 24 989 Downloads
-

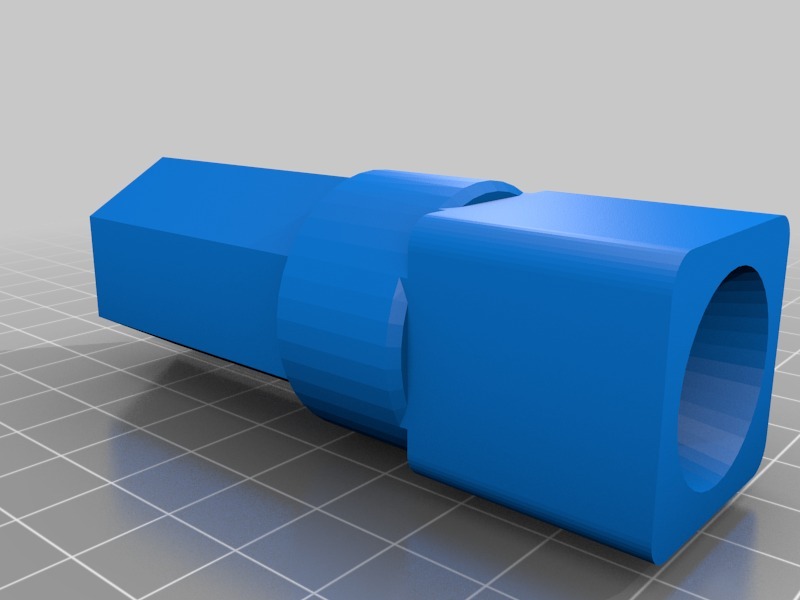

stlfor_shaft_long.STL
47 Ko · 25 188 Downloads
-

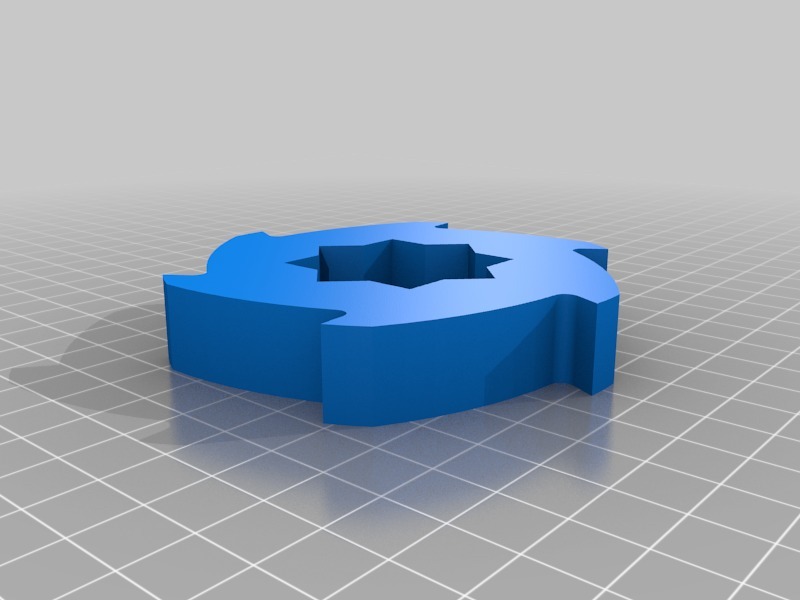

stlbioshredder.STL
28 Ko · 25 734 Downloads
-

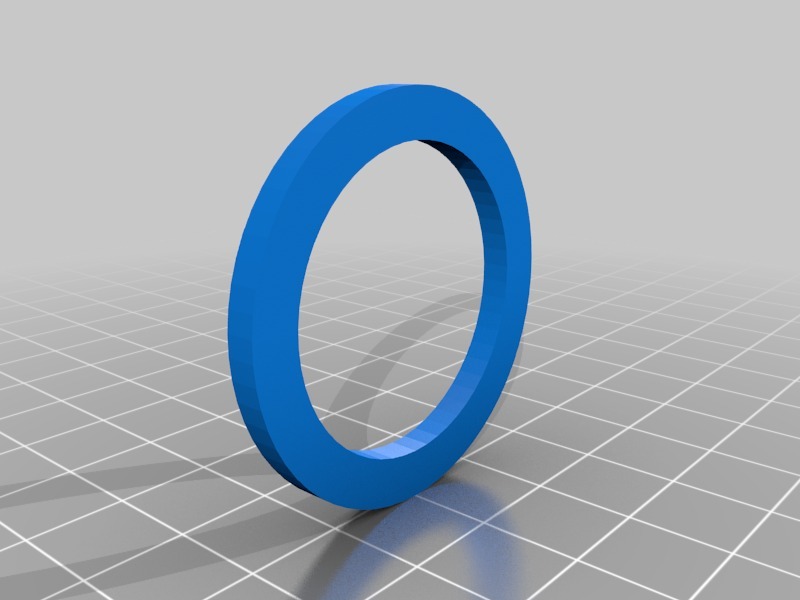

stlprint_st.STL
23 Ko · 24 871 Downloads
-

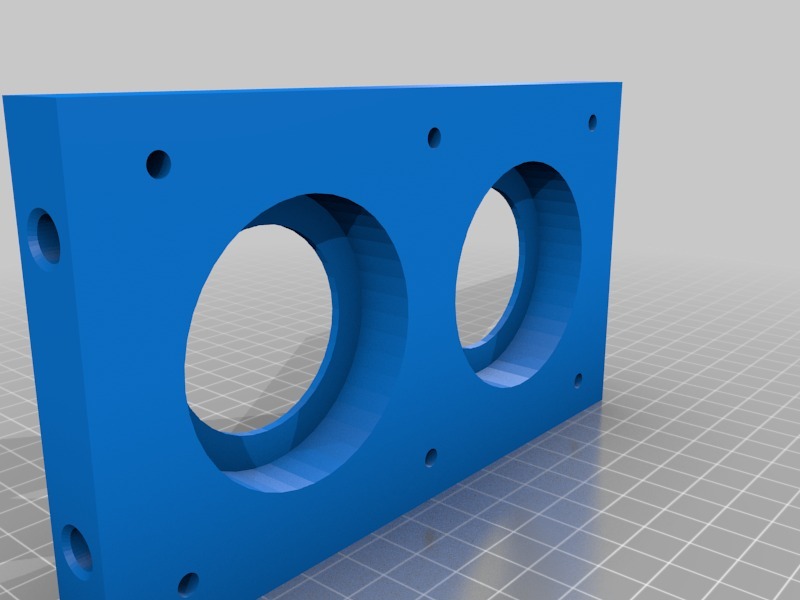

stlprinted_bearing_holder.STL
124 Ko · 24 987 Downloads
-

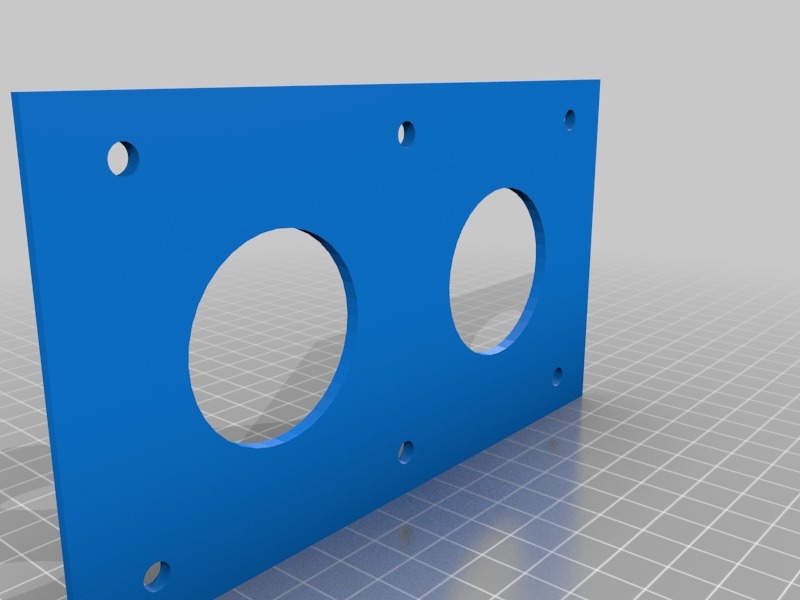

stlprinted_bearing_holder_thin.STL
65 Ko · 25 083 Downloads
-

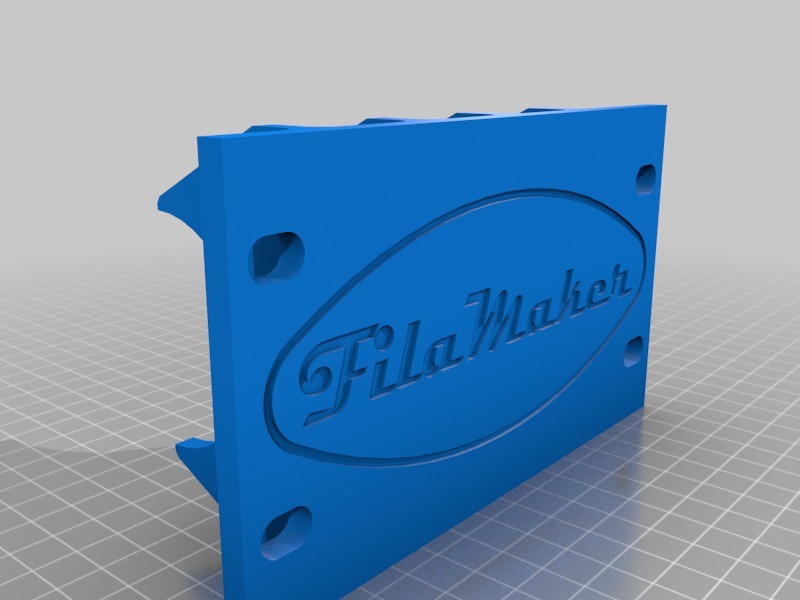

stlside_print.STL
216 Ko · 25 200 Downloads
-

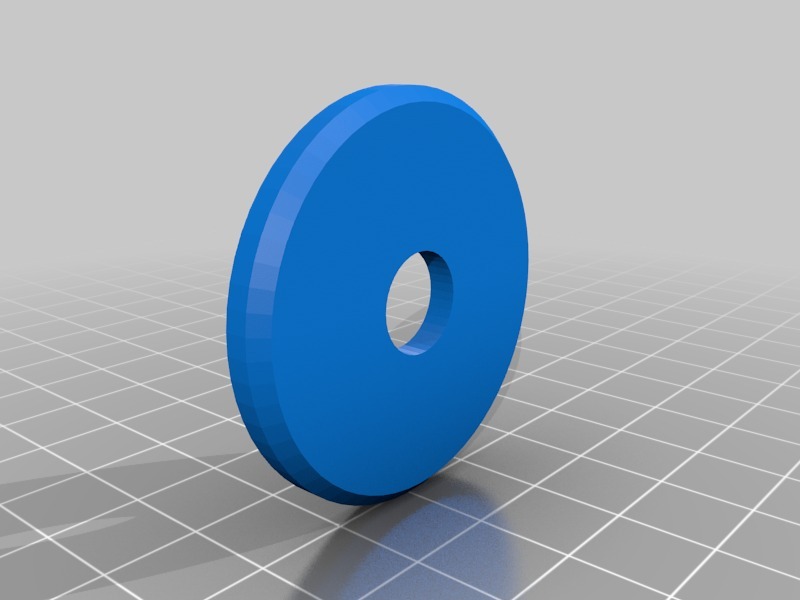

stlcup.STL
36 Ko · 24 827 Downloads
-

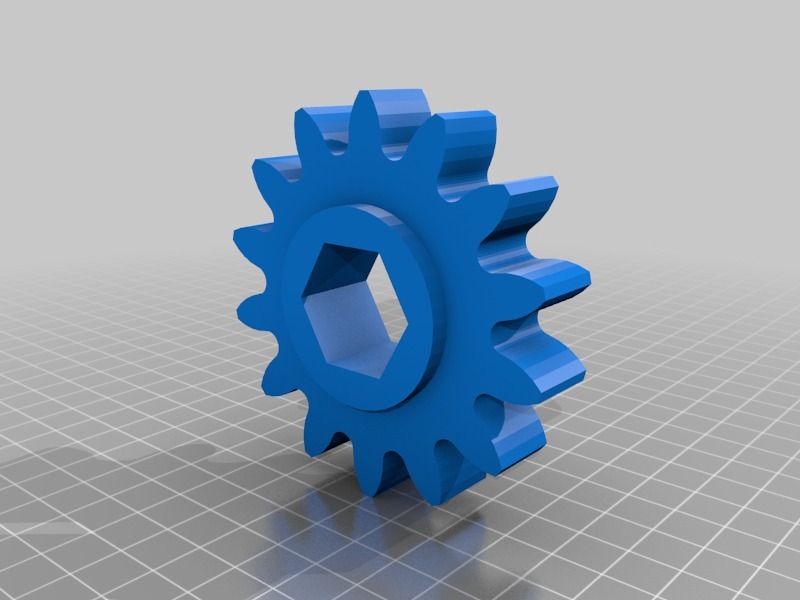

stlspur_gear_15mm.STL
81 Ko · 24 996 Downloads
-

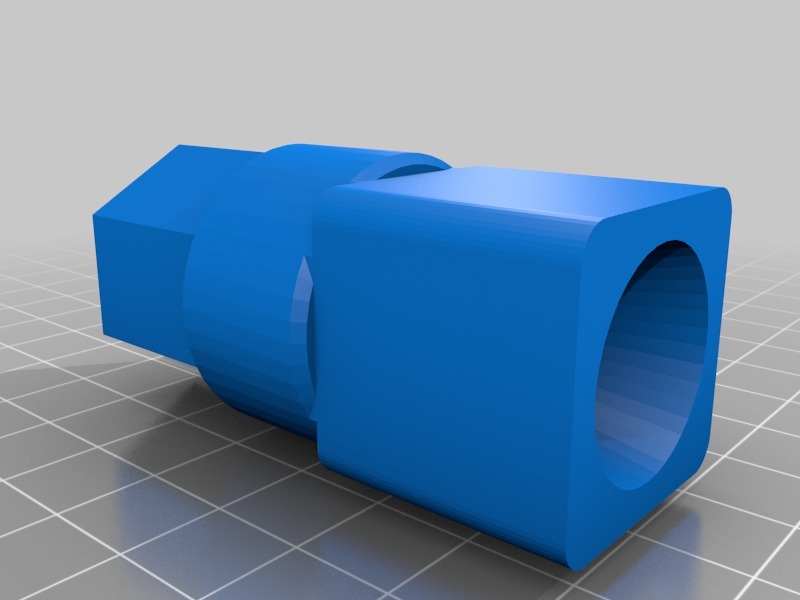

stlfor_shaft1+5.STL
46 Ko · 24 663 Downloads
-

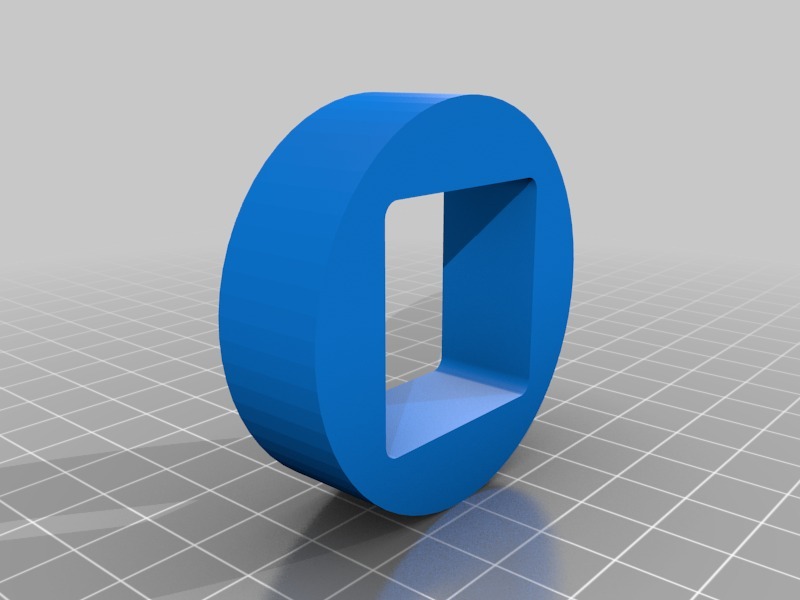

stlbioshredder_spacer_2.STL
21 Ko · 24 100 Downloads
-

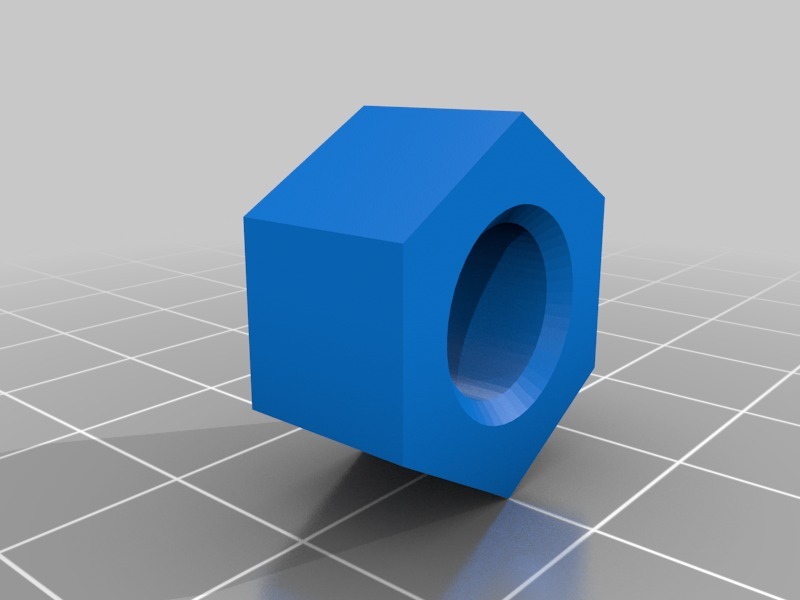

stlnut_17.STL
28 Ko · 23 530 Downloads
-

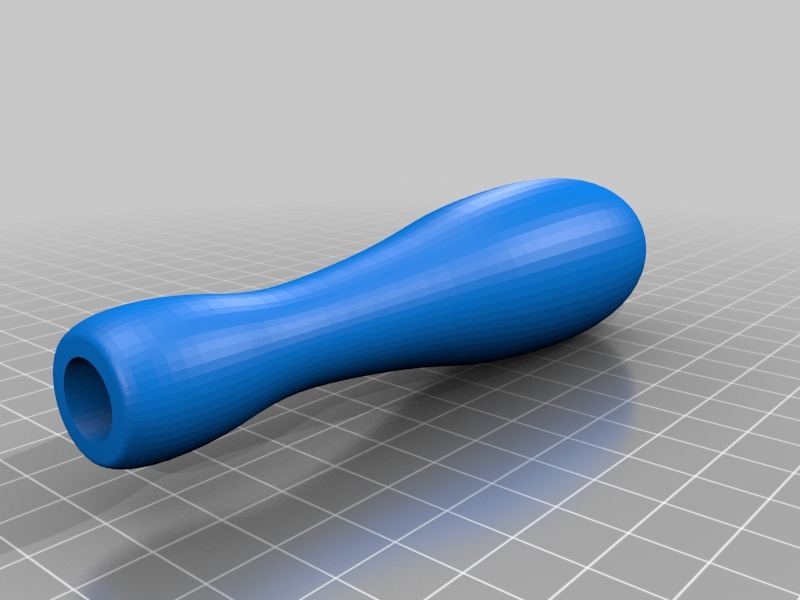

stlprint_handle.STL
265 Ko · 23 629 Downloads
-

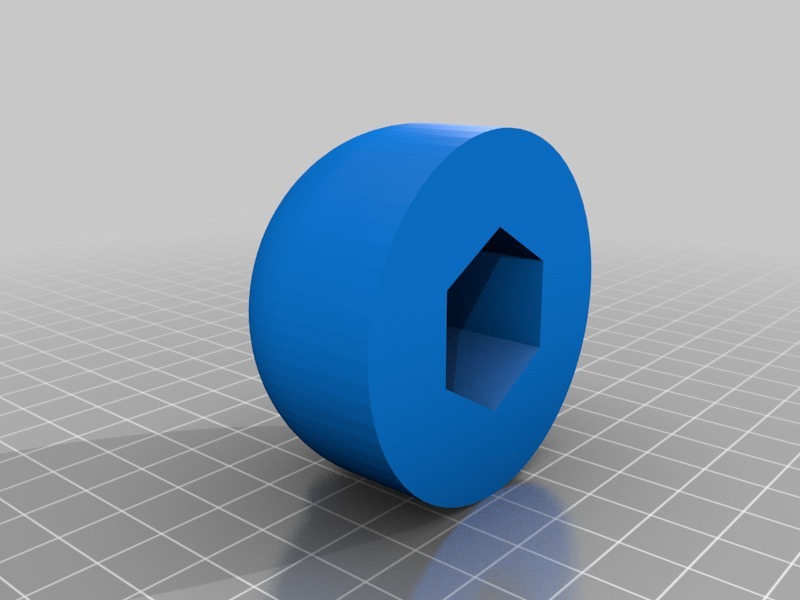

stldom.STL
325 Ko · 23 505 Downloads
-
step3dprinted_shredder_big.STEP
4.4 Mo · 23 504 Downloads
Beschreibung
This is the first working 3D printed shredder for kitchen food waste. Perfect to make compost.
http://youtu.be/1erMSmSHajU
Printed from PLA.
How to assembly : http://issuu.com/marcusthymark/docs/boom_assembly/0
First version breaks at 25Nm torque, second version at 50 Nm torque.
The version uploaded here is number 3 and hold up to 74 Nm torque. ( Then break )
Shredding some chicken bones : http://youtu.be/A4rg--VEXVM
How to assemble vid : http://youtu.be/j4a-f51Ypc0
Metric ball bearings : SKF SS6006
