Stackable Box System for Screws and Nuts
von e-nozzel
Druckbare Dateien (16)
-
stlBox1.stl
701 Ko · 5 478 Downloads
-
stlStand.stl
709 Ko · 5 286 Downloads
-
stlBox_small_3mm_slot_V2.stl
487 Ko · 5 195 Downloads
-
stl
Box_small_2mm_slot_V2.stl
502 Ko · 5 168 Downloads
-
stl
Box_small_4mm_slot_V2.stl
489 Ko · 5 147 Downloads
-
stlBox_small_7mm_slot_V2.stl
489 Ko · 5 250 Downloads
-
stl
Box_small_6mm_slot_V2.stl
489 Ko · 5 131 Downloads
-
stl
Box_small_5mm_slot_V2.stl
489 Ko · 5 141 Downloads
-
stlStand_Wallmount.stl
775 Ko · 5 127 Downloads
-
stlBox_BIG.stl
689 Ko · 5 149 Downloads
-
stlStand_Wallmount_Duo.stl
1.1 Mo · 5 096 Downloads
-
stlStand_Light_Duo.stl
1.1 Mo · 5 057 Downloads
-
stlBox_very_small.stl
379 Ko · 5 071 Downloads
-
stlBox_very_small_nose.stl
510 Ko · 5 059 Downloads
-
stlBox_BIG_with_label_insert.stl
727 Ko · 4 854 Downloads
-
stlBox1_with_label_insert.stl
635 Ko · 4 885 Downloads
Beschreibung
Remix -> http://www.thingiverse.com/thing:1090191

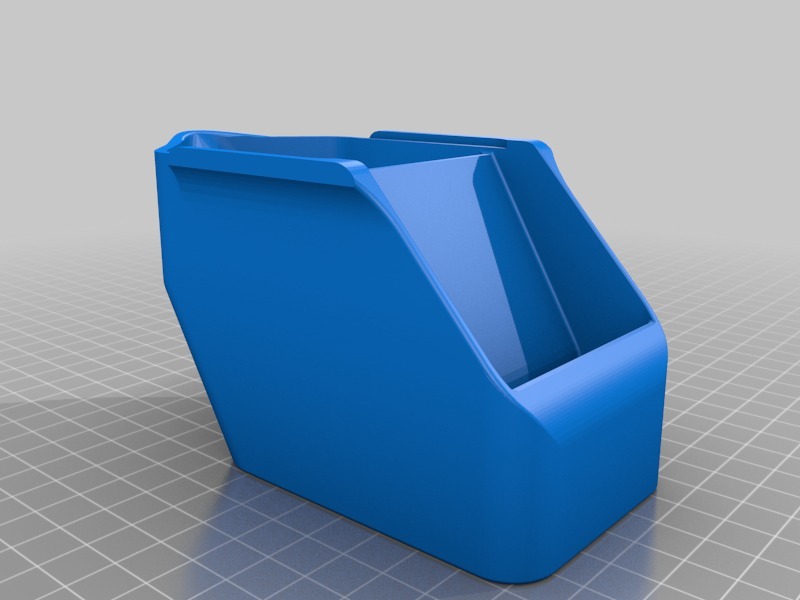

Intend to organize screws. Take 1-2-3 through the front or dump out a Hand full on the back of the box...
Box on pics is filled with 500 Screws M3x12mm.
i have to replace the wall in the middle for nuts, spacers and longer/bigger screws. will upload some more boxes wich fit in the System soon...

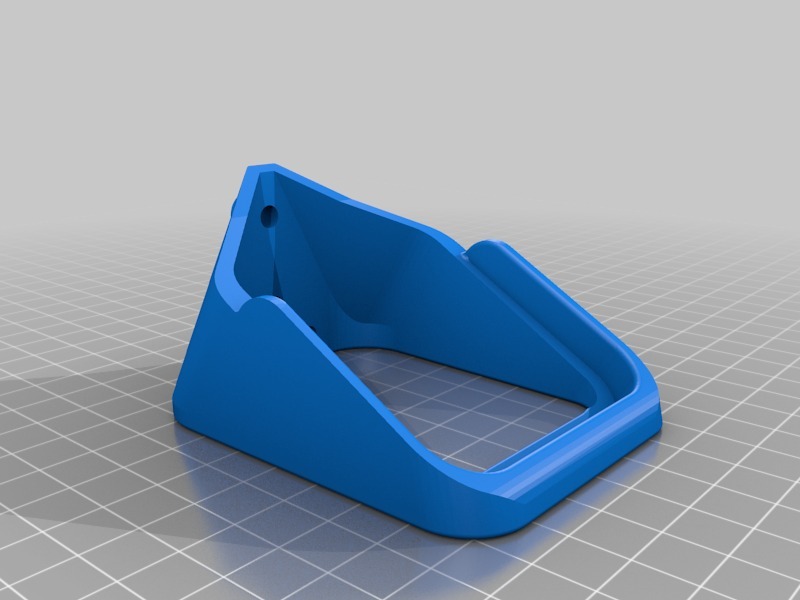

the stand has holes for wallmount, but this Version is not stiff enough to hold more than 1-2 boxes if filled with heavy stuff like screws. update for wallmount with stiffer design also comming soon...
UPDATE:
i´ve added small boxes with 2 and 3mm Slots V2. (removed 2-7mm boxes from yesterday cuz they didn´t fit exactly at the back and need Support for the slot)
This versions are good for M3 Spacers and M3 Nuts.

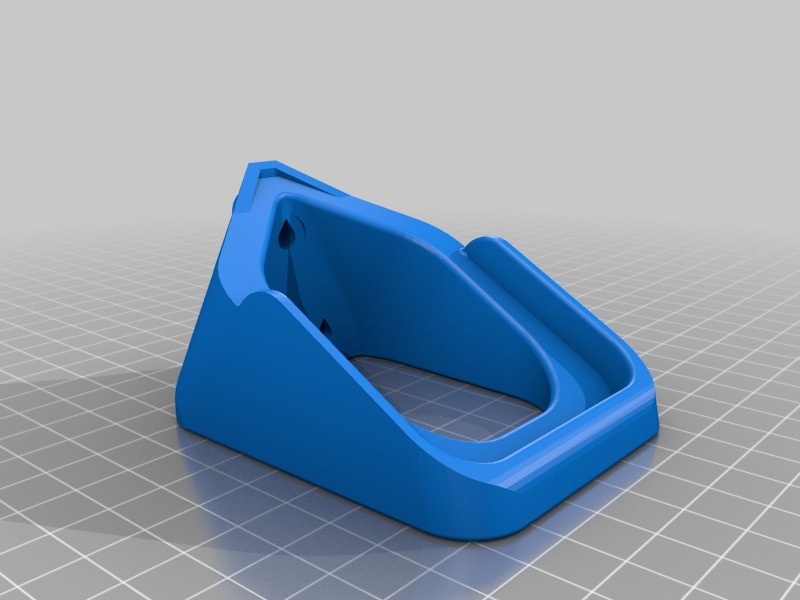

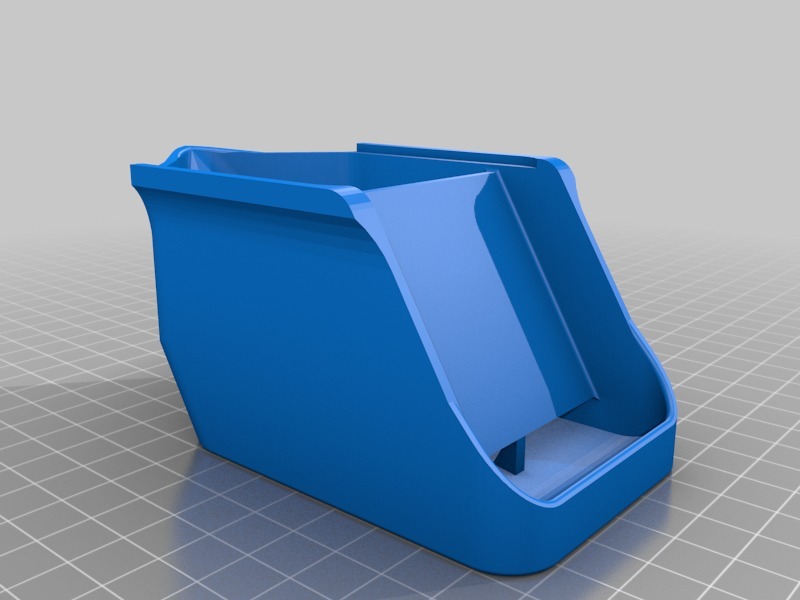

Added: V2 of 4, 5, 6 and 7mm Sloted Boxes and the more stable wallmount Version of the stand. (not printed yet but slices nice in slic3r)

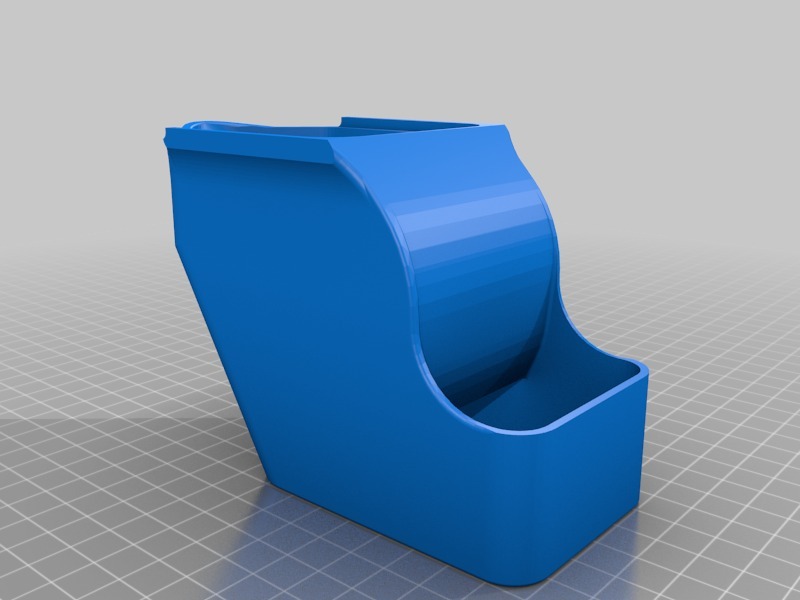

Added: Box Big Version

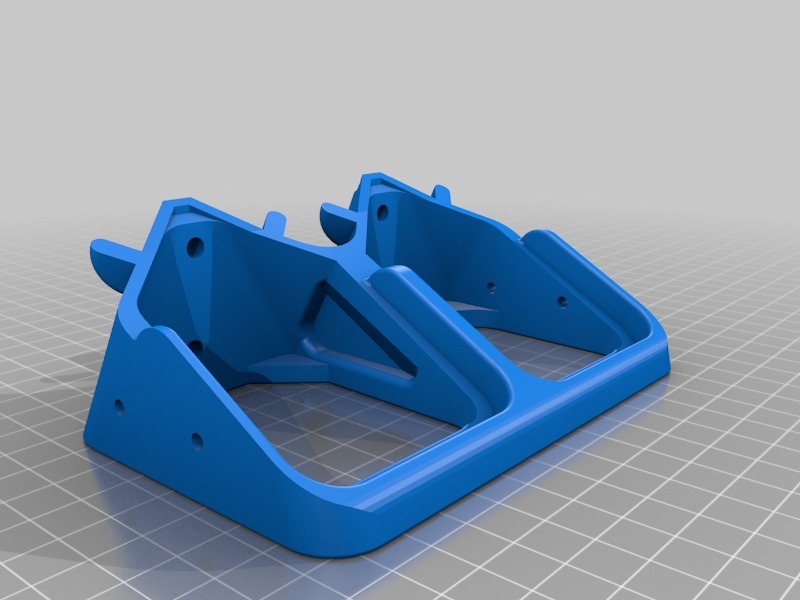

Added: Stand_Wallmount_Duo.stl <- Stand for 2 boxes, rigid, wallmountable and with holes (2xM3) to connect more Units in a row.

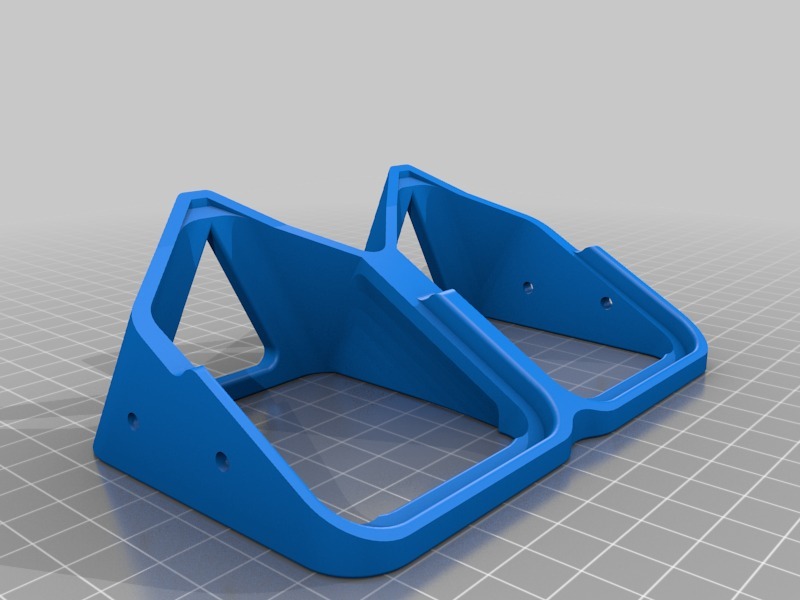

Added: Light Version of the dual stand, use it if you dont need wallmount and reduce print time/material

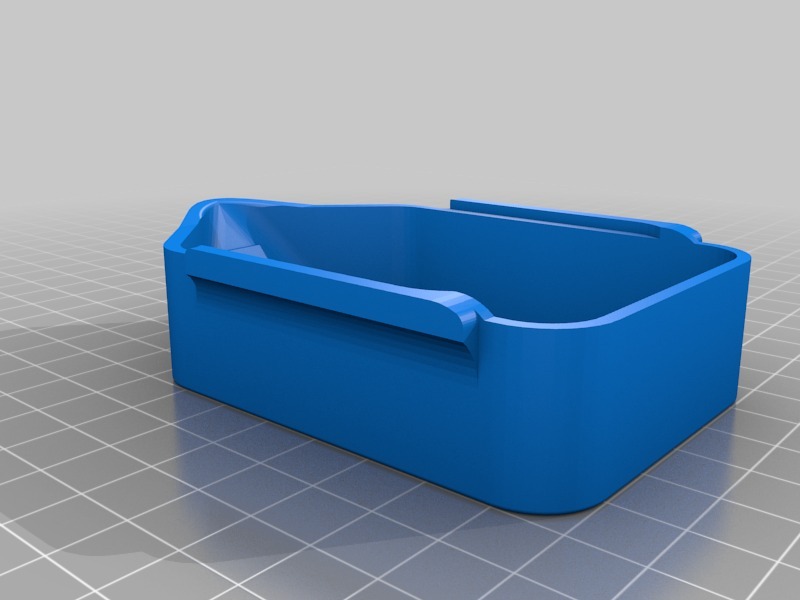

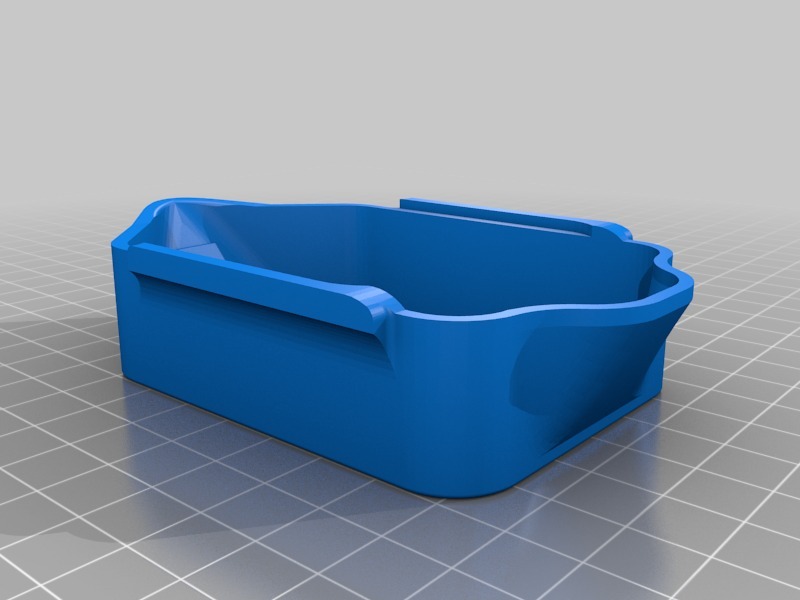

Added: ‘Box_very_small.stl’ and ‘Box_very_small_nose.stl’
Update:
======

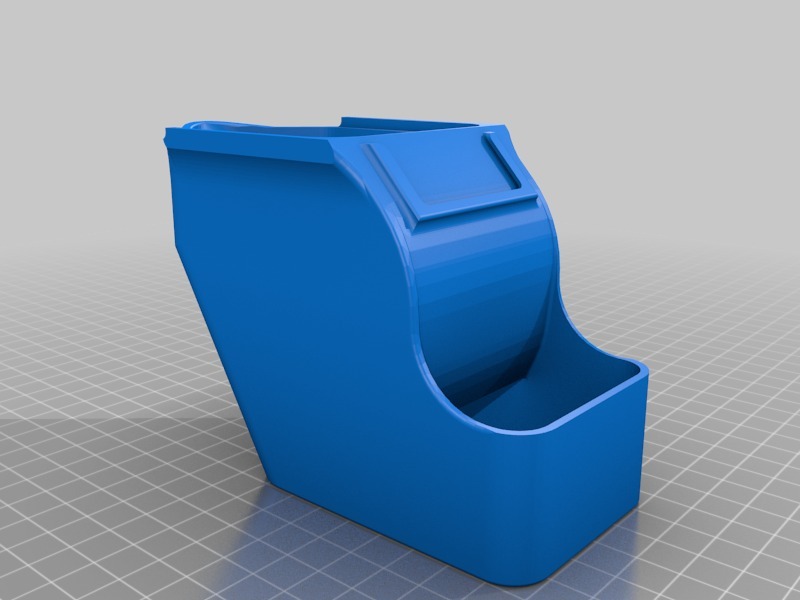

Added: "Box1_with_label_insert.stl" and "Box_BIG_with_label_insert.stl"
Made for 20x40mm Paper Labels
