Pine64 LCD case
von iGor711
Druckbare Dateien (8)
-
stlpineScreenCASEfinal.stl
18 Ko · 293 Downloads
-
objPine64LCD.obj
368 Ko · 271 Downloads
-
stlpineScreenBATTERY.stl
39 Ko · 297 Downloads
-
stlpineScreenPineBack.stl
156 Ko · 291 Downloads
-
stlpineScreenPineBottom.stl
132 Ko · 295 Downloads
-
stlPineBezel.stl
2 Ko · 296 Downloads
-
stlPinespacer.stl
18 Ko · 298 Downloads
-
stl
lcdSpacer.stl
684 o · 302 Downloads
Beschreibung
I was searching around for a case for the pine 64 with its touch screen other than the one you can order from their site or the cheap acrylic one i couldn't find any so i designed this one in tinkercad. have not gotten around to printing the model yet but as soon as i do i will update posting.

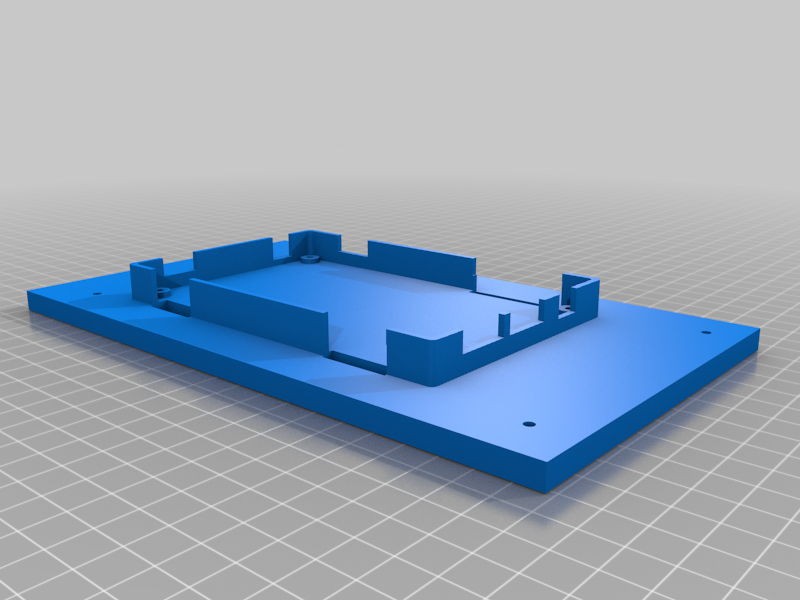

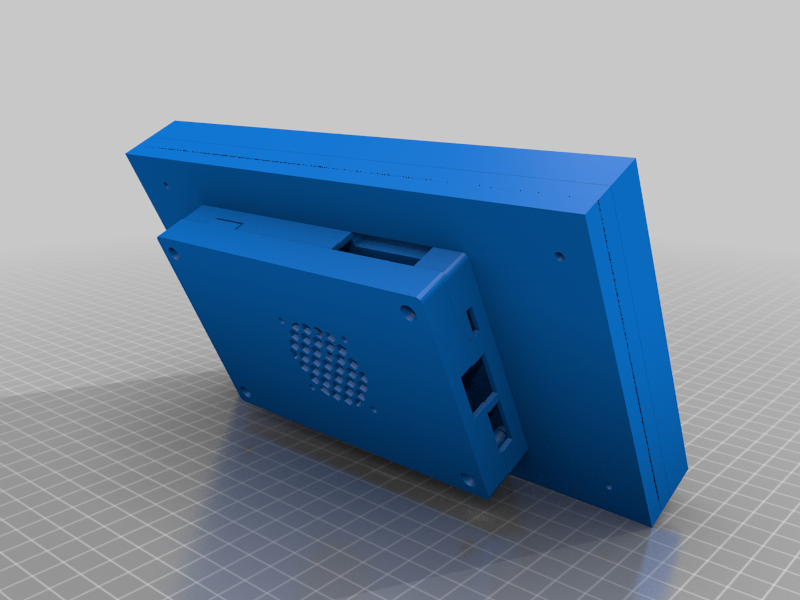

case is designed to hold pine64 board along with the pine64 lipo battery as well the LCD
print setting
20% infill on layers

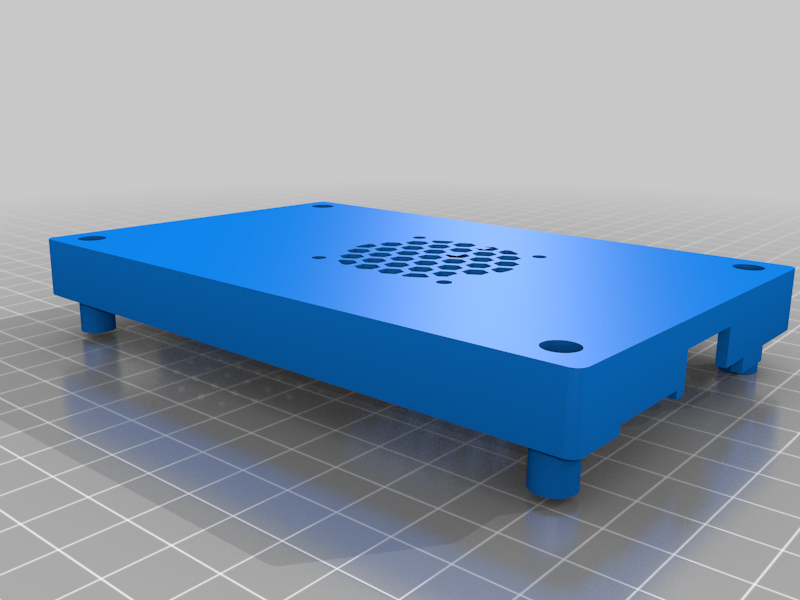

35% infill on pine cover
pine cover recommend 100% infill
nozzel@210
bed@60-61
update
----print in progress
8/21/19

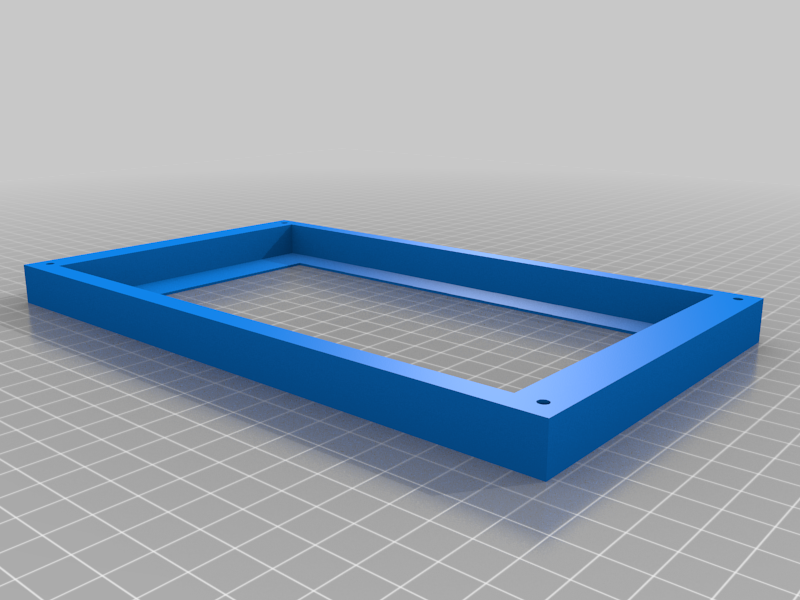

front face plate appears to be a bit lose fitting around screen bezel
FACE-PLATE UPDATE
8/22/2019

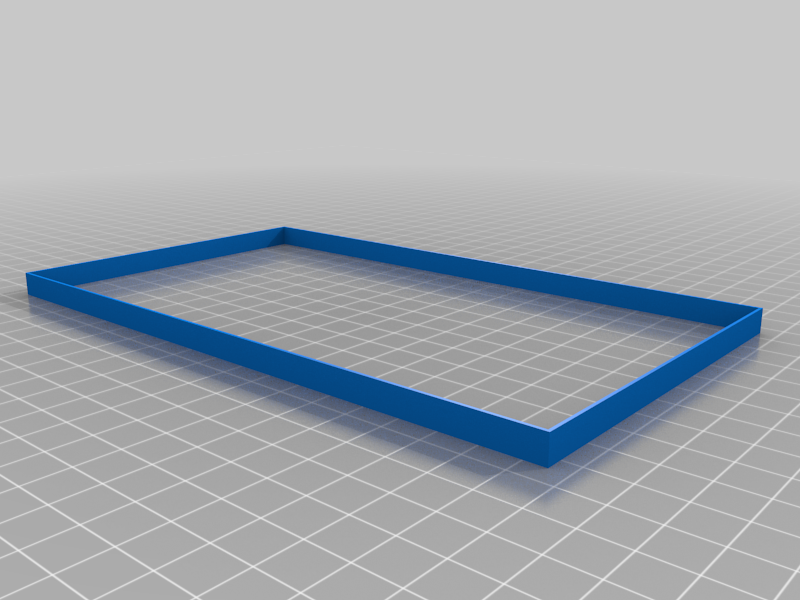

ive added a bezel for the screen to fill the lose fit in faceplate around screen. this item could possibly be printed in a softer material and provide some shock resistance
8/23/2019

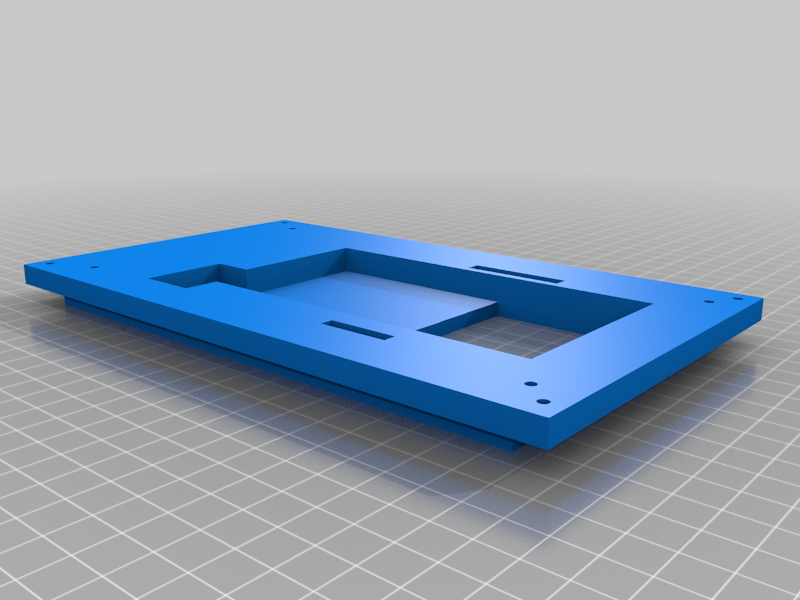

Battery layer -screen plate
ive noticed to adapter for lcd tends to get in the way of battery layer con be fixed with some modifying but in the case of not wanting to modify ive made a spacer to acount for the LCD ribbon cable extender adapter
case hardware
M2 screws
pine 64 https://store.pine64.org/?product=pine-a64-board-1gb
pine64 lcd https://store.pine64.org/?product=7-lcd-touch-screen-panel
bt/wifi module https://store.pine64.org/?product=wifi-802-11bgn-bluetooth-4-0-module
