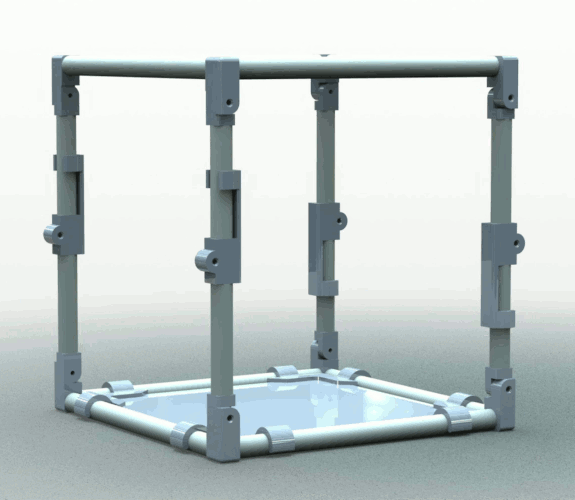

Folding Softbox
von zi3d
Druckbare Dateien (9)
-
stlcorner-hingeA1.stl
140 Ko · 708 Downloads
-
stl
corner-hingeA2.stl
77 Ko · 696 Downloads
-
stl
corner-hingeA1-mirrored.stl
140 Ko · 697 Downloads
-
stl
corner-hingeA2-mirrored.stl
77 Ko · 699 Downloads
-
stl
side-hingeA1.STL
86 Ko · 696 Downloads
-
stl
side-hingeA2.STL
85 Ko · 697 Downloads
-
stl
stand-mount.stl
36 Ko · 696 Downloads
-
stl
stand-mount-support.stl
37 Ko · 690 Downloads
-
stl
half-complect.stl
1.3 Mo · 696 Downloads
Beschreibung
Simple folding softbox for subject photography.
TODO: backround scene mount
Bill of materials:
printed parts:
4x corner-hingeA1.stl
4x corner-hingeA1-mirrored.stl
4x corner-hingeA2.stl
4x corner-hingeA2-mirrored.stl
4x side-hingeA1.stl
4x side-hingeA2.stl
4x stand-mount.stl
or
2x half-complect.stl
plastic tubes 10x1:
like this https://kazan.megastroy.com/products/241618
8x 346mm
8x 150mm
polycarbonate:
1x 335x335x4
fasteners:
8x screw M2x16
4x screw M2x10
12x washer M2
12x nut M2
https://www.youtube.com/watch?v=N4jsnUvhMuo
https://www.youtube.com/watch?v=_5TKUMHP5vY
