Detailed Wankel Engine Model
von petropixel
Druckbare Dateien (4)
-
stlwankel_rotor_chambers.stl
97 Ko · 6 530 Downloads
-
stlwankel_housing_portedx.stl
130 Ko · 6 511 Downloads
-
stlwankelcrank.stl
19 Ko · 6 390 Downloads
-
stlwankelecc.stl
23 Ko · 6 369 Downloads
Beschreibung

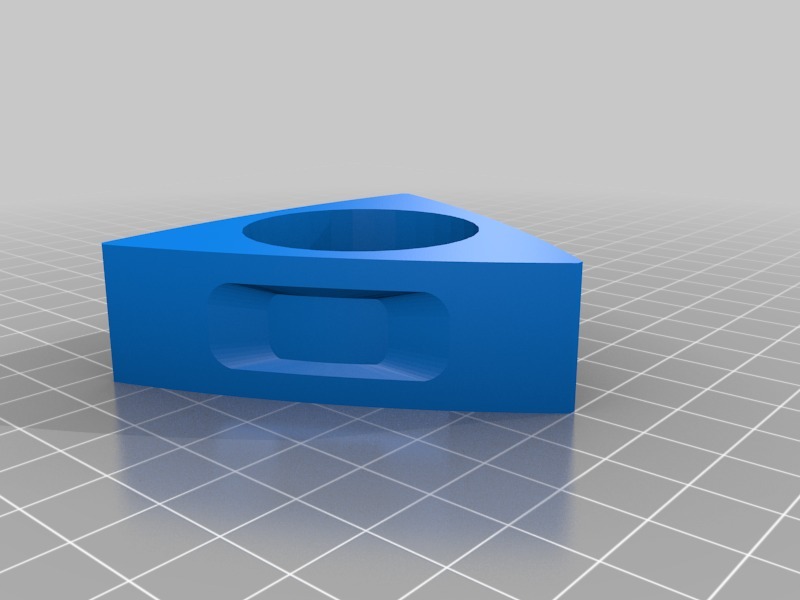

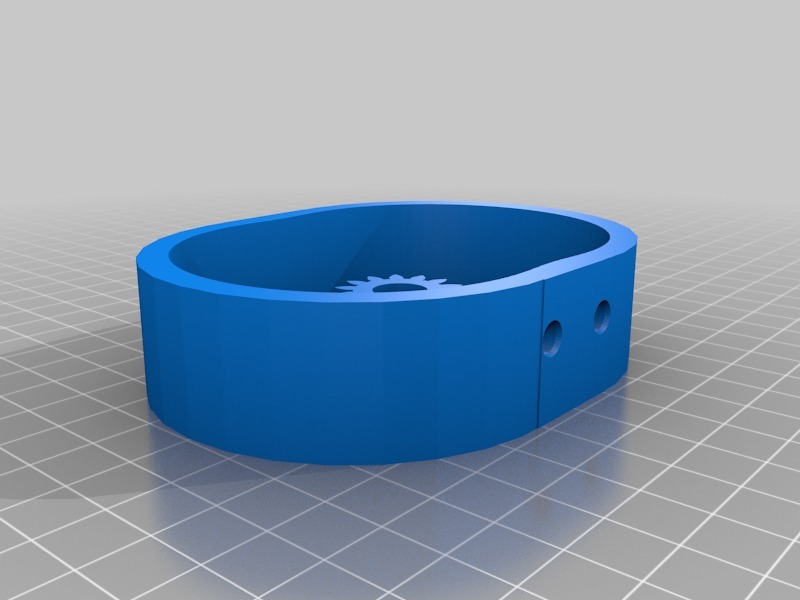

Added combustion chamber recesses to the rotor, spark plug holes and intake/exhaust ports to the housing. Technically the ports should take a 90 degree bend and exit out the side, but then you wouldn't be able to watch the rotor movement from the crank side of the housing.

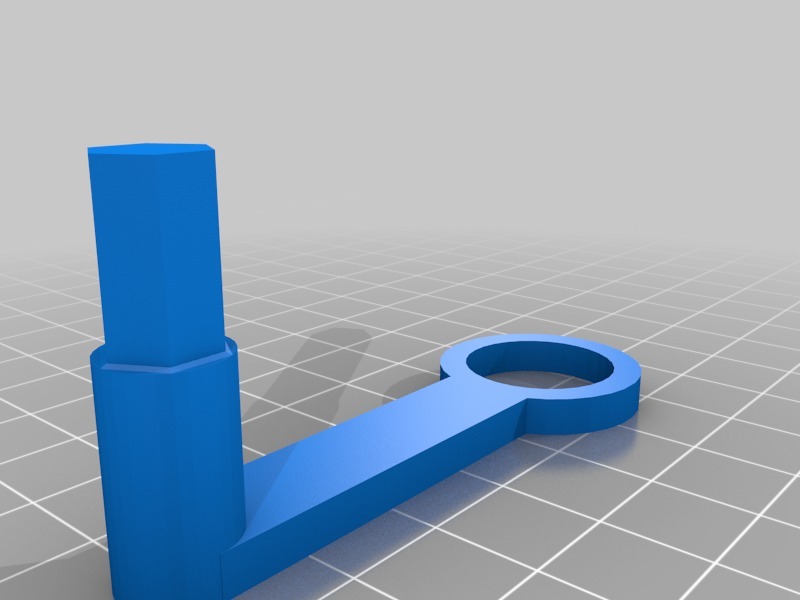

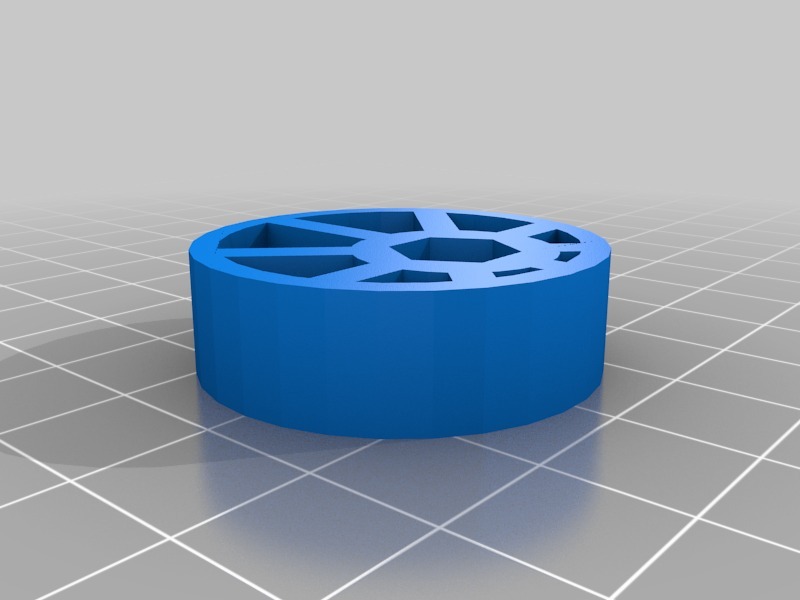

The crank and eccentric have been modified for a looser fit, the originals weren't working for me.
