Variable column
von Fredle1957
Druckbare Dateien (20)
-
stlEinsatz_60_120_Grad.stl
183 Ko · 470 Downloads
-
stl
Einsatz_2_x_120_Grad.stl
339 Ko · 471 Downloads
-
stl
Einsatz_1_x_60_Grad_erhoeht.stl
307 Ko · 474 Downloads
-
stl
Einsatz_60_2_x_120_Grad.stl
225 Ko · 469 Downloads
-
stl
Einsatz_Trichter_6.stl
424 Ko · 476 Downloads
-
stl
Aufnahme_Grundplatte.stl
134 Ko · 475 Downloads
-
stl
Aufnahme.stl
263 Ko · 474 Downloads
-
stl
Abschluss_Oben.stl
184 Ko · 470 Downloads
-
stl
Abstandshalter.stl
158 Ko · 472 Downloads
-
stl
Einsatz_2_in_1.stl
175 Ko · 471 Downloads
-
stl
Einsatz_Kreuzung.stl
203 Ko · 470 Downloads
-
stl
Einsatz_1_x_120_Grad.stl
86 Ko · 471 Downloads
-
stlEinsatz_Auslass_6er.stl
969 Ko · 455 Downloads
-
stl
Einsatz_Trichter_1.stl
286 Ko · 476 Downloads
-
stlGrundplatte.stl
59 Ko · 452 Downloads
-
stl
Einsatz_2x120-180_Grad.stl
340 Ko · 473 Downloads
-
stl
Einsatz_3_in_1.stl
125 Ko · 470 Downloads
-
stl
Einsatz_3_x_60_Grad.stl
431 Ko · 476 Downloads
-
stl
Einsatz_3_x_60_Grad_erhoeht.stl
678 Ko · 478 Downloads
-
stl
Einsatz_Auslass_6er_V2.stl
1.3 Mo · 476 Downloads
Beschreibung
CAUTION: I only design Gravitrax parts and extensions that are not available for purchase.
This construction is a variable pillar that can perform many functions.

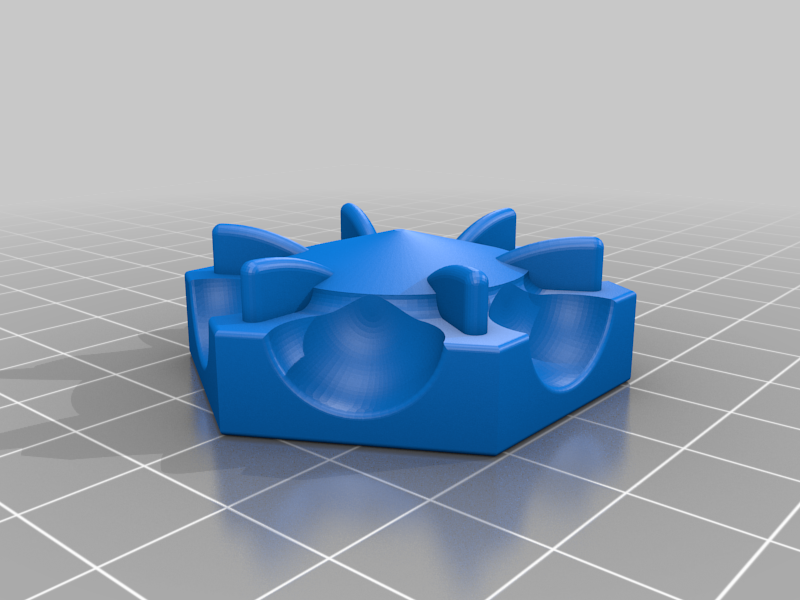

The pillar consists of the inserts (green) and the mounting stones (white).
Round rods with a diameter of 6mm are required for assembly. I used wooden dowels, which are available in different lengths (30mm, 40mm to 1m). Other round rods with 6mm can also be used.
There are three types of recording stones:

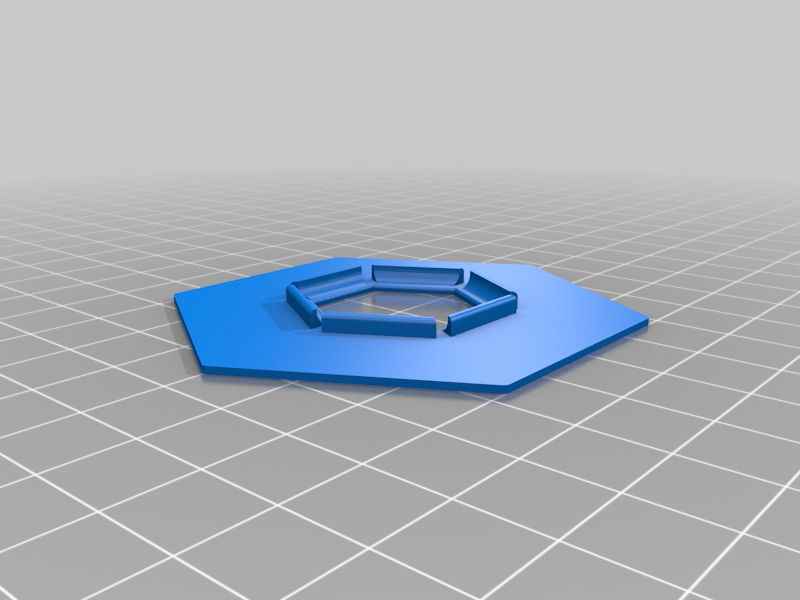

- The lower stone consists of two parts (“Aufnahme Grundplatte” and “Grundplatte”), these parts are printed individually and then glued together.
- With the “Aufnahme” the pillar is built up, this stone can be used several times – also as an upper end.
- On the “Abschluss Oben” any curved stone or a transparent plate can be placed.
If a high column (see Bild 7) is required, spacers can be used to stabilize.
