NeXTcube Universal IO Mount

von SYNTHTC

Druckbare Dateien (3)

  • stl

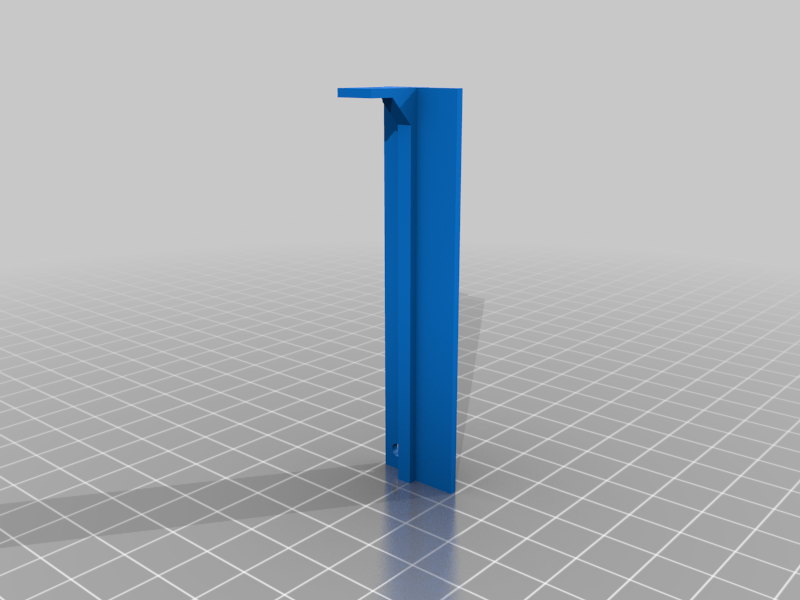

    NeXTcube_nuio_mount_bottom_rail.stl

    18 Ko · 196 Downloads

    Herunterladen
  • stl

    NeXTcube_nuio_mount_backplate.stl

    713 Ko · 200 Downloads

    Herunterladen
  • stl

    NeXTcube_nuio_mount_top_rail_v2.stl

    24 Ko · 166 Downloads

    Herunterladen

Beschreibung

Mount to house the AsteronTech NeXT Universal IO Soundbox replacement board in a NeXTcube / NeXT Computer.

Parts:

  1. Back Plate
  2. Top Rail (longer rail piece)
  3. Bottom Rail (closest to stereo jack)

Say hello to fellow NeXT enthusiasts at NeXT Computer Forums

Made in collaboration with AsteronTech

Looking for an external case for your NeXT Universal IO? Check out my NeXT NU_IO case: https://www.thingiverse.com/thing:4615196

Looking for a blank slot cover to use for your own mounts or just as a replacement? Check out my NeXTcube Slot Cover: https://www.thingiverse.com/thing:4644935

Updates
v2 12/26/2020 - added v2 of the top rail that strengthens up the whole assembly quite a bit

Tags

#Next #next computer #NeXT Universal IO #nextcube #NU IO
