Makerbase TFT35
von tk-1103
Druckbare Dateien (7)
-

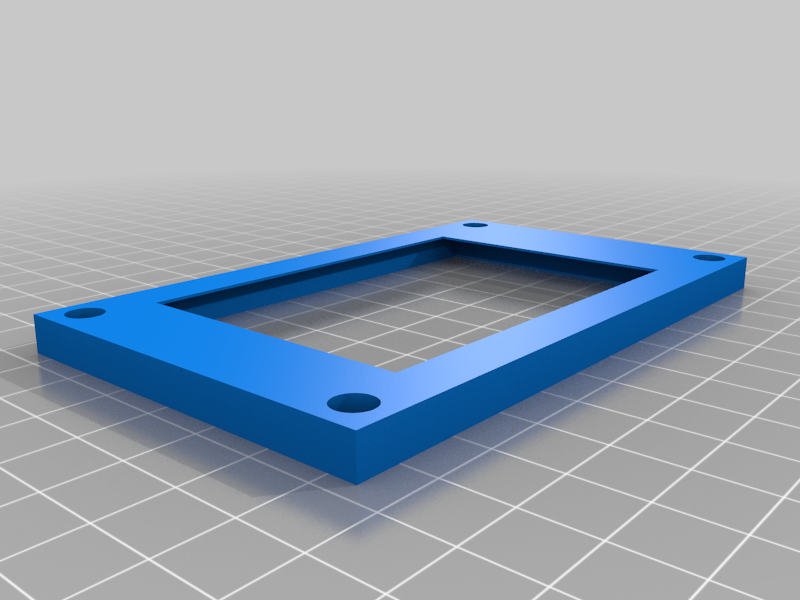

stltft35_housing_top.stl
438 Ko · 293 Downloads
-

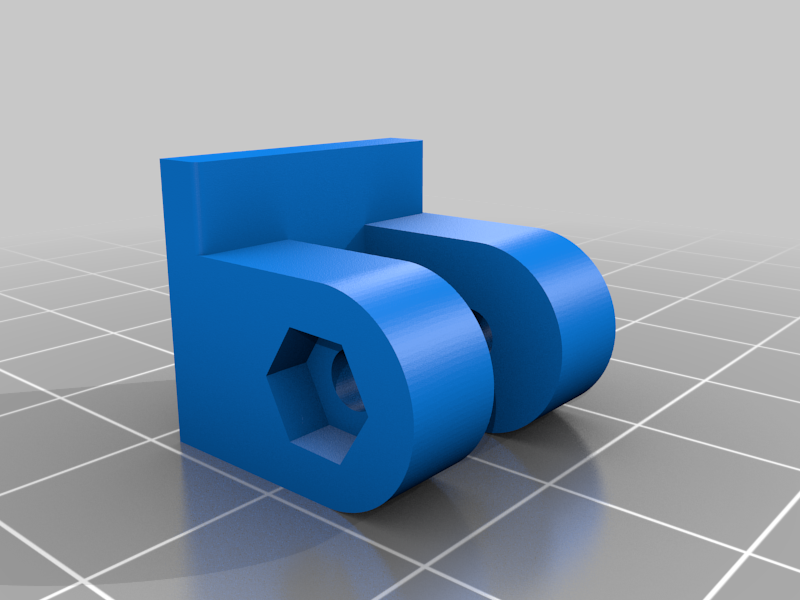

stlMKS_TFT28_LCD_CaseBracket_61.stl
105 Ko · 290 Downloads
-

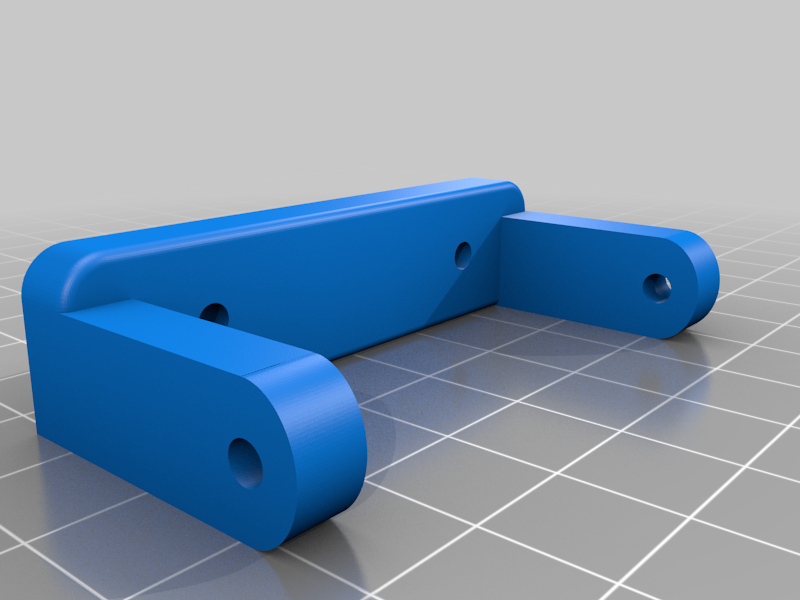

stlMKS_TFT28_LCD_Mounting_Bracket_61.stl
161 Ko · 255 Downloads
-

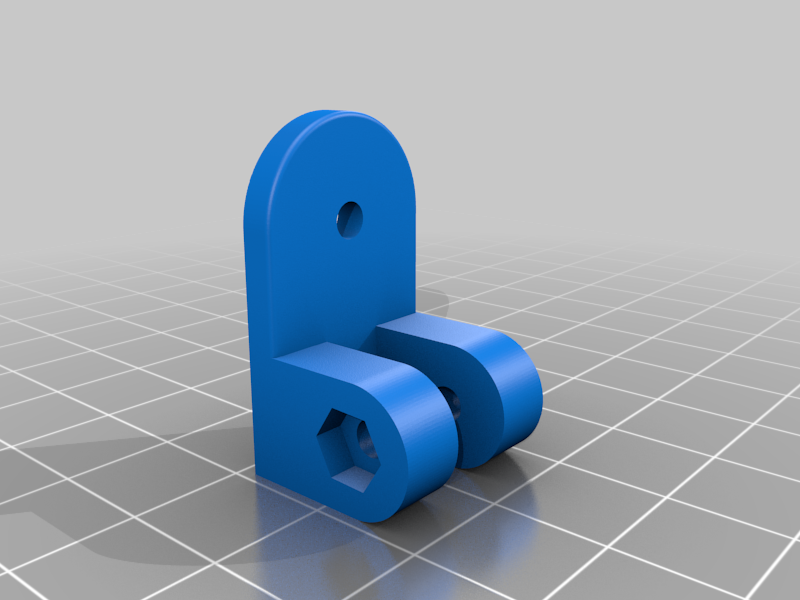

stlMKS_TFT28_LCD_CaseBracket_45.stl
195 Ko · 258 Downloads
-
stlMKS_TFT28_LCD_Mounting_Bracket_45.stl
191 Ko · 291 Downloads
-

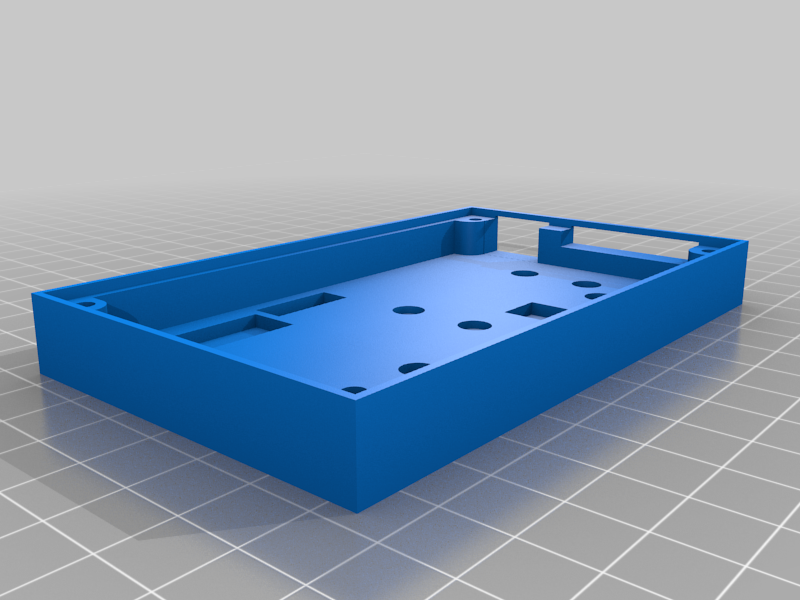

stltft35_housing_botton_ver1.stl
1 Mo · 290 Downloads
-
stltft35_housing_botton_ver2.stl
1 Mo · 292 Downloads
Beschreibung
Housing for the Makerbase MKS TFT35
The housing has the dimensions:
Length: 113mm
Width: 68mm,
Depth: 19.3mm.
There are recesses that can be broken open, for example, to attach the radio module or filament sensor or the other parts.
