Rope weaving machine

von andriell

Druckbare Dateien (8)

Beschreibung

This is a machine for weaving ropes at home. The ropes are nice and cute.
The number of parts depends on the number of threads from which you want to weave. The minimum is for two threads, the maximum is for four. I printed different parts of this machine with different fillings. To make it you need details:

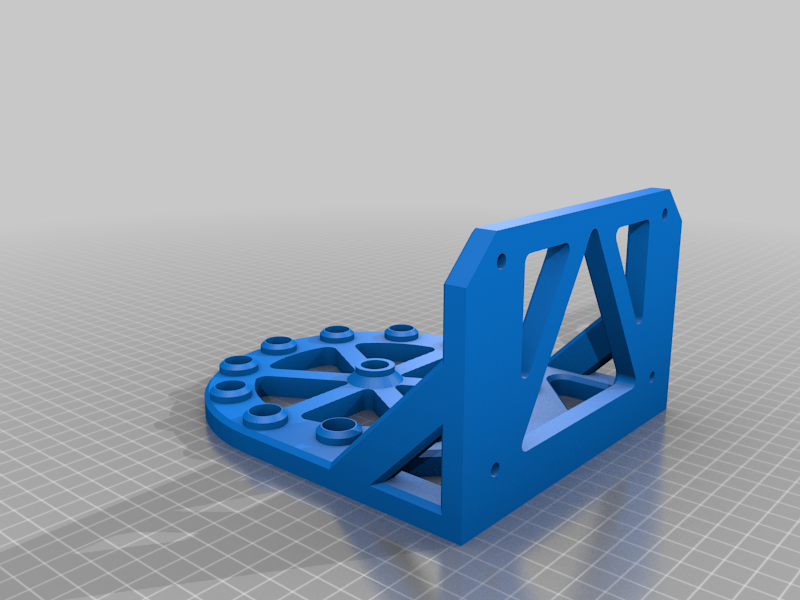

  • body.stl - 1 pc. filling 50%
  • big gear.stl - 1 pc. filling 50%

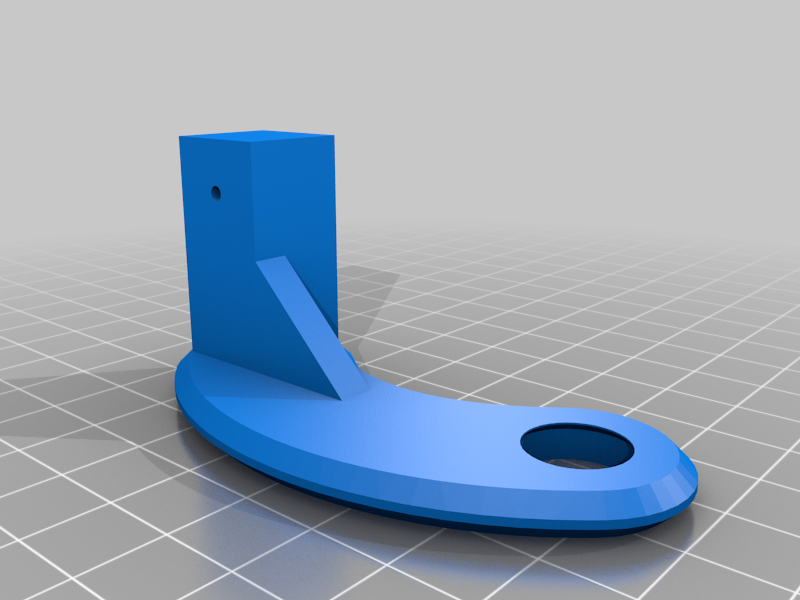

  • handle.stl - 1 pc. filling 100%
  • lever.stl - 1 pc. filling 100%
  • pin.stl - 3 - 5 pcs. filling 100%. They are about 0.2 mm wider than the bearing bore diameter. After printing, you may need to file them with a file or nail file.

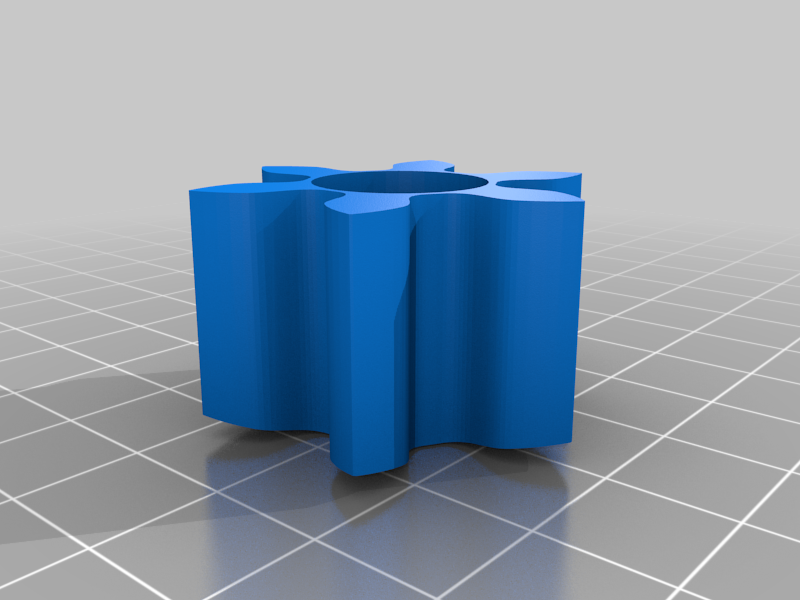

  • small gear.stl - 2 - 4 pcs. filling 50%
  • bearings MR148ZZ - 4 - 6 pcs. I bought the bearings here: https://www.2ram.ru/l/53 or https://www.2ram.ru/l/54
  • Hooks made of wire or paper clips 2 - 4 pcs.

Additional details:

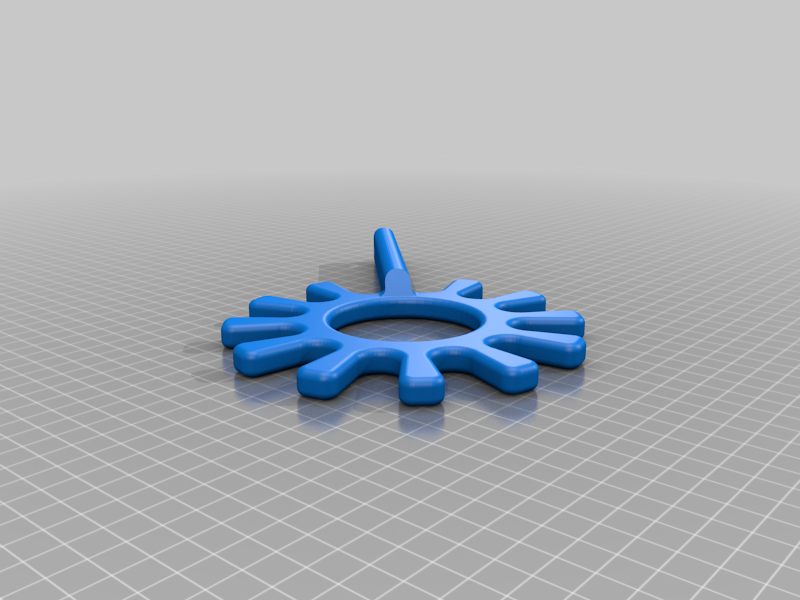

  • comb.stl - 1 pc. filling 25%

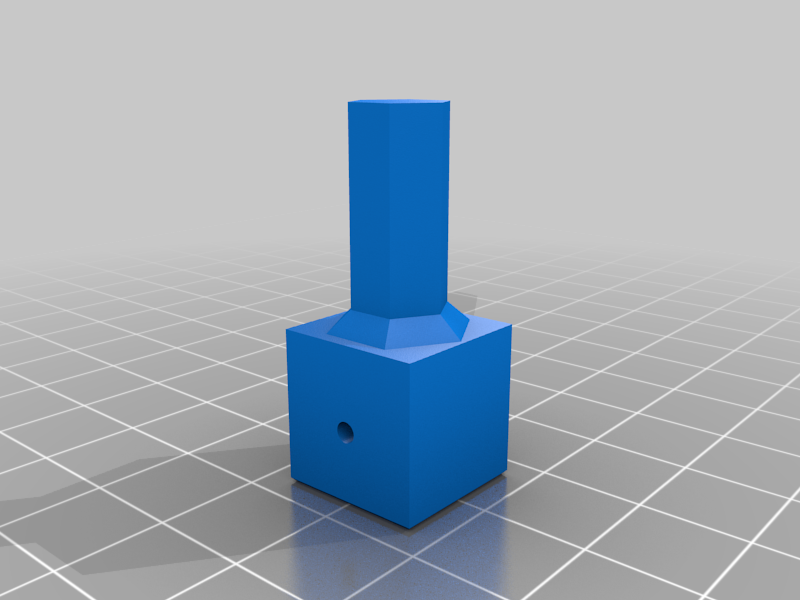

  • for screwdriver.stl - 1 pc. filling 100%

The swivel can be bought here https://www.2ram.ru/l/56 or at the nearest fisherman's shop.
