Parallel line ruler
von prototype-integral
1 / 5
Druckbare Dateien (2)
-

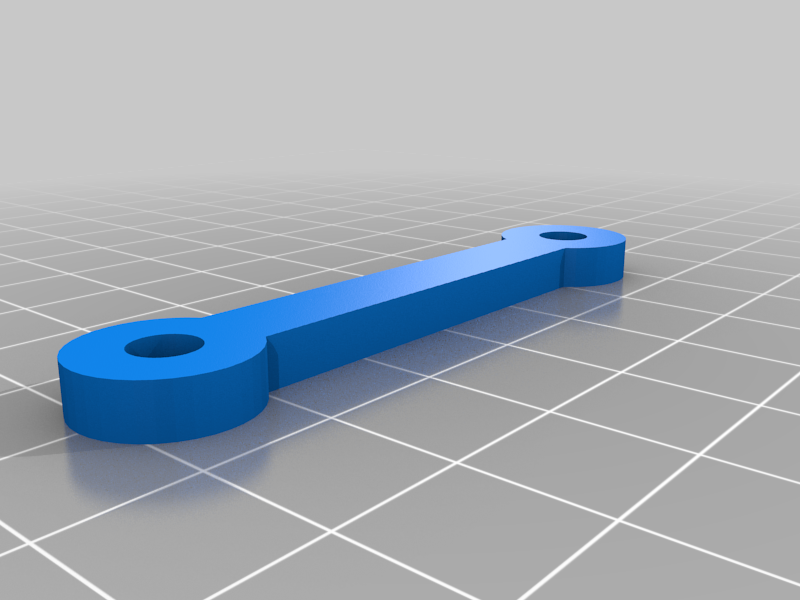

stlParallel_line_ruler_-_connection.STL
26 Ko · 121 Downloads
-

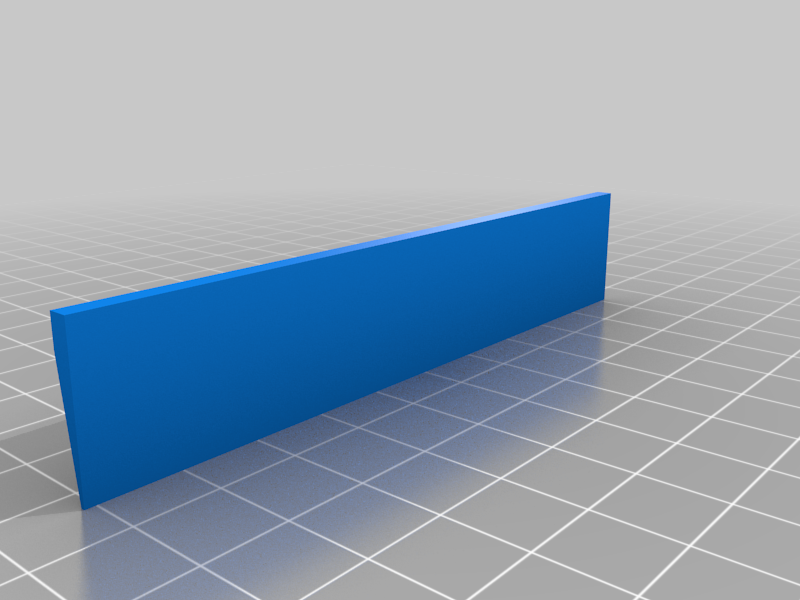

stlParallel_line_ruler_-_Ruler.STL
103 Ko · 125 Downloads
Beschreibung
Summary
This is a ruler meant for drawing Parallel lines, useful to estimate Linear Correlation coefficient
Instructions
- Print two rulers and two links
- Place both rulers facing inwards
- Place links on nubs
- Hold down one ruler and move second one to desired position
Known Issues
- Measurement markers may be too small to print effectively on FDM printer
- Only accurate enough for rough estimates
