Reloading Prep Station

von jimmyvegas29

Druckbare Dateien (8)

Beschreibung

First, this was inspired by https://www.thingiverse.com/thing:4739172 However its not a remix as no parts from that thing was used to make my design, it was used for inspiration from the gearing perspective as well as the DC Motor and DC Power brick

I wanted to create a slimmer, sleeker reloading prep station as to not take up as much room on my reloading bench. Plus it was just a really fun project.

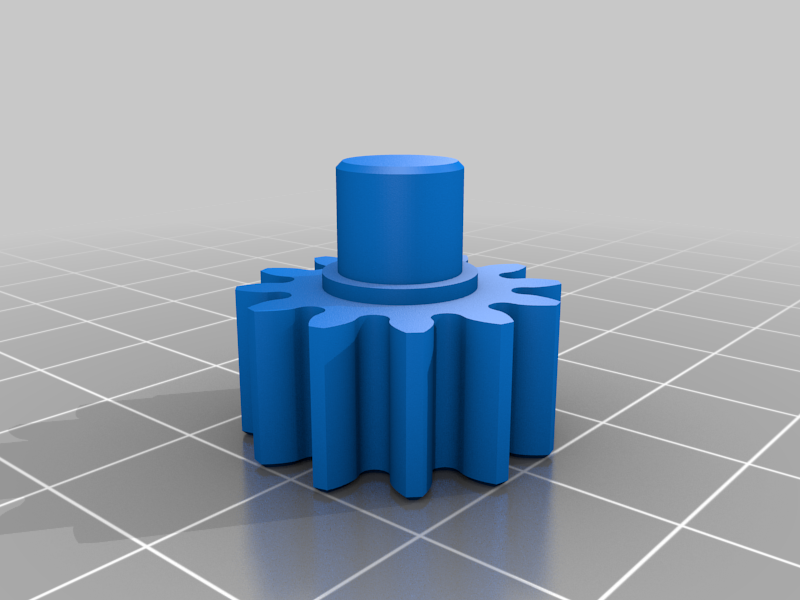

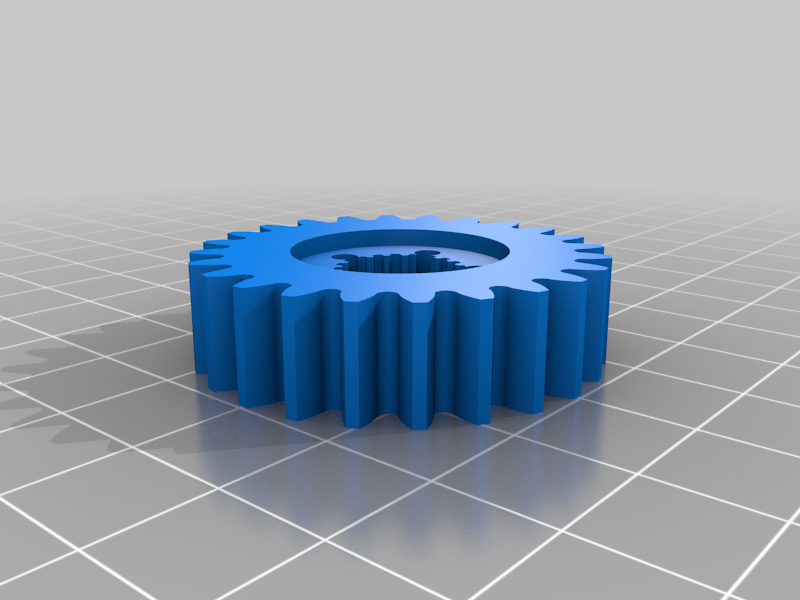

Gear ration is 1:2 so the tool heads will sping at 200RPM, in testing this is plenty and is also the same gear ratio as the reloading prep station this was inspired by.

F3d file included incase you want to make your own mods.

See BOM for links to parts used.

Screws:
5 - M3x6 Button Head Screws
4 - M3x12 Socket Head Cap Screws
2 - M3x35 or M3x40 Socket Head Cap Screws

Hardware:
1 - GT2 20T 6MM Pullet (Removed the top ring with pliers)
1 - 12V DC Motor 100 RPM
1 - 12V DC Power Supply
8 - 22x8x7 Skateboard Bearings
1 - Rocker Switch
1 - Lyman 7777800 Case Prep Multi Tool
