Multimeter Box/Case
von PasCV
Druckbare Dateien (8)
-

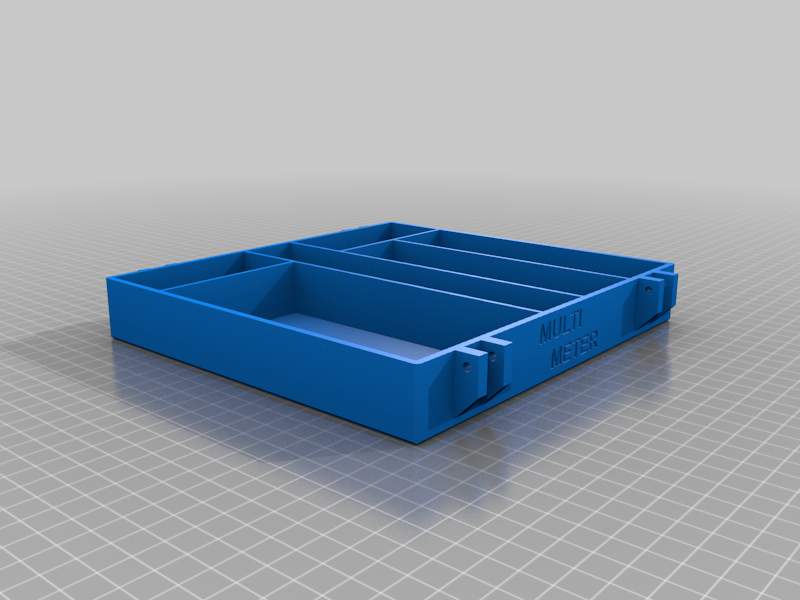

stlMB-Bottom.stl
109 Ko · 497 Downloads
-

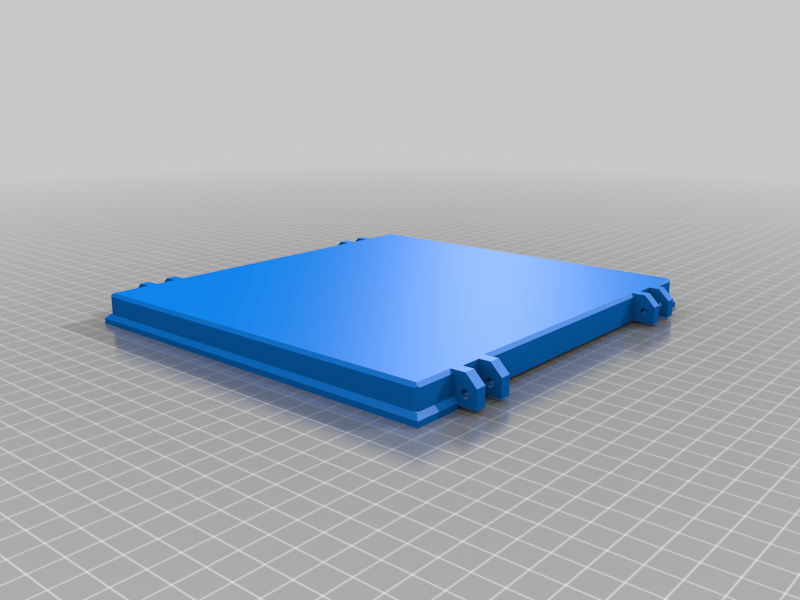

stlMB-Top.stl
79 Ko · 471 Downloads
-

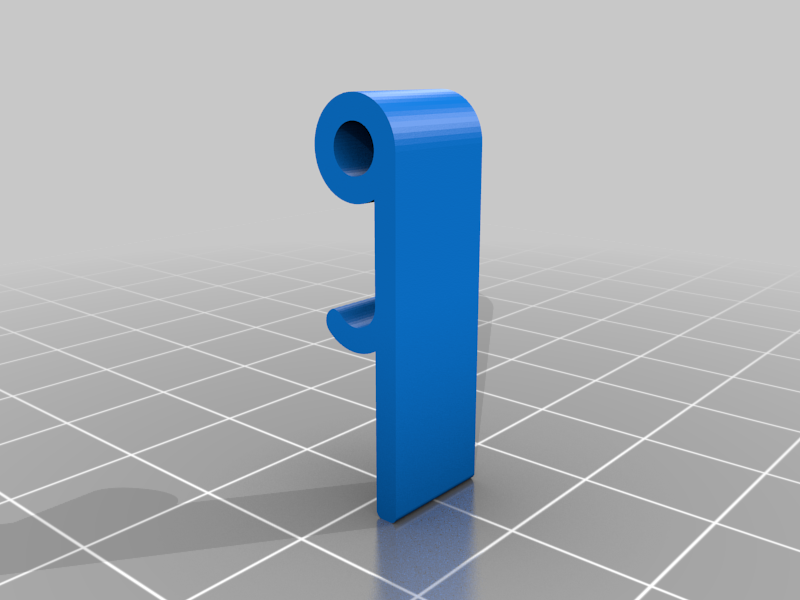

stlMB-Latch.stl
48 Ko · 482 Downloads
-

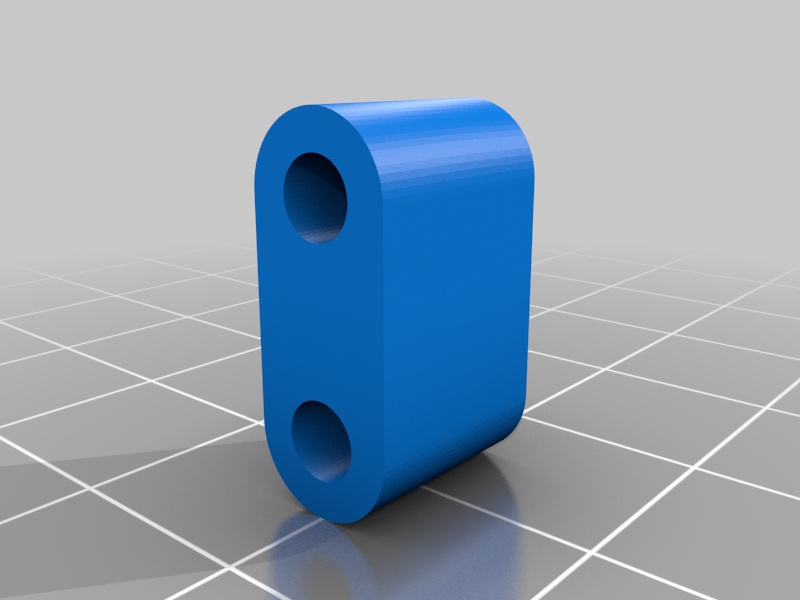

stlMB-Hinge.stl
62 Ko · 483 Downloads
-

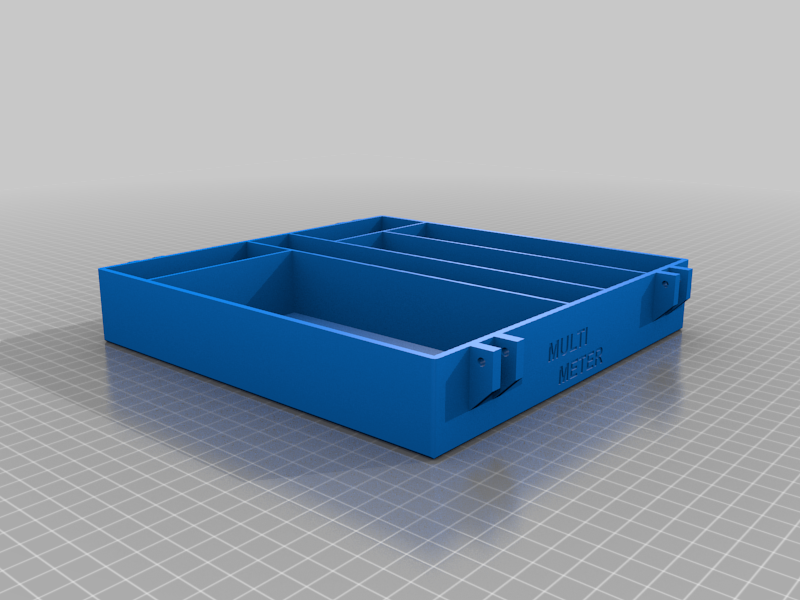

stlMB-Bottom_-_Fluke117.stl
110 Ko · 462 Downloads
-

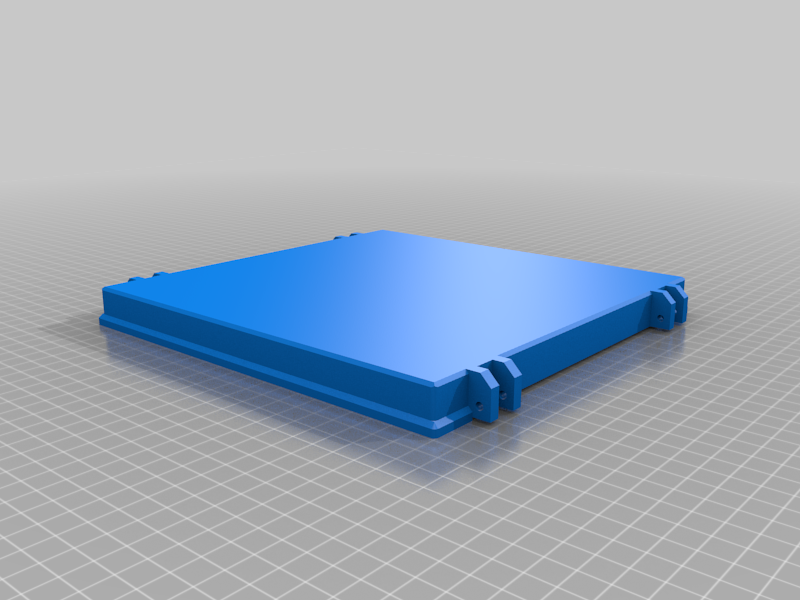

stlMB-Top-Fluke117.stl
82 Ko · 449 Downloads
-
stlMB-Bottom-140x75x35.stl
109 Ko · 467 Downloads
-

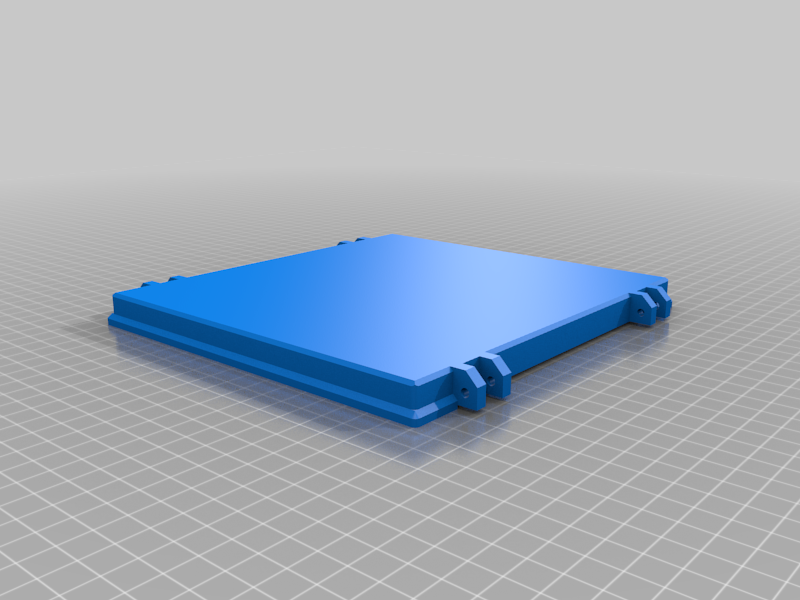

stlMB-Top-140x75x35.stl
74 Ko · 260 Downloads
Beschreibung
This is a simple case for a multimeter and its accessories. 8 M3 screw with nuts are required to assemble it. To print it is required a large bed printer.
The dimensions of the multimeter compartment for the standard size are 130x65x35mm.
I have also made a version for the Fluke 117. the dimensions of the multimeter compartment for this version are 170x90x50mm
EDIT
Added a version for a 140x75x35mm multimeter
