Gridfinity baseplates (square corners)
von Johanninho
Druckbare Dateien (15)
-
stlGridfinity_square_frame_1x1.stl
48 Ko · 2 989 Downloads
-
stlGridfinity_square_frame_1x3.stl
143 Ko · 2 885 Downloads
-

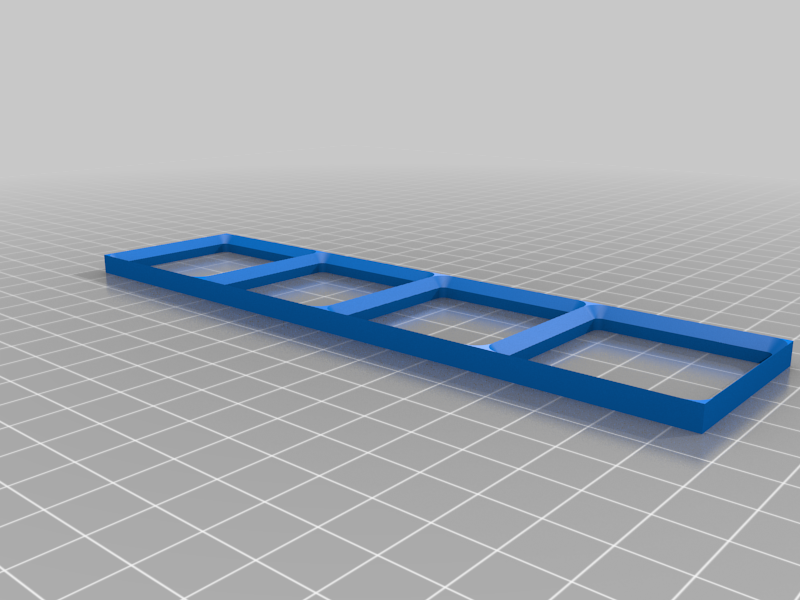

stlGridfinity_square_frame_1x4.stl
188 Ko · 2 911 Downloads
-
stlGridfinity_square_frame_2x3.stl
273 Ko · 3 027 Downloads
-

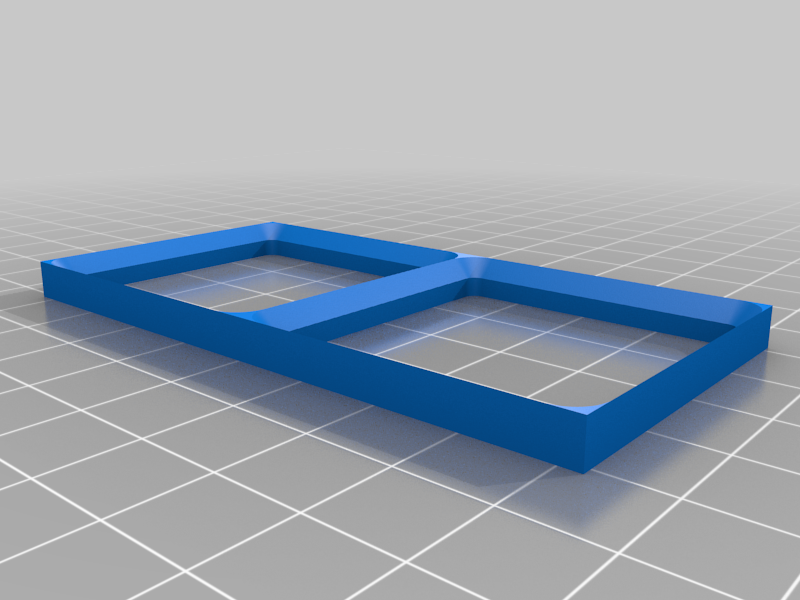

stlGridfinity_square_frame_1x2.stl
96 Ko · 2 872 Downloads
-
stlGridfinity_square_frame_3x3.stl
410 Ko · 3 398 Downloads
-
stlGridfinity_square_frame_3x5.stl
696 Ko · 3 079 Downloads
-

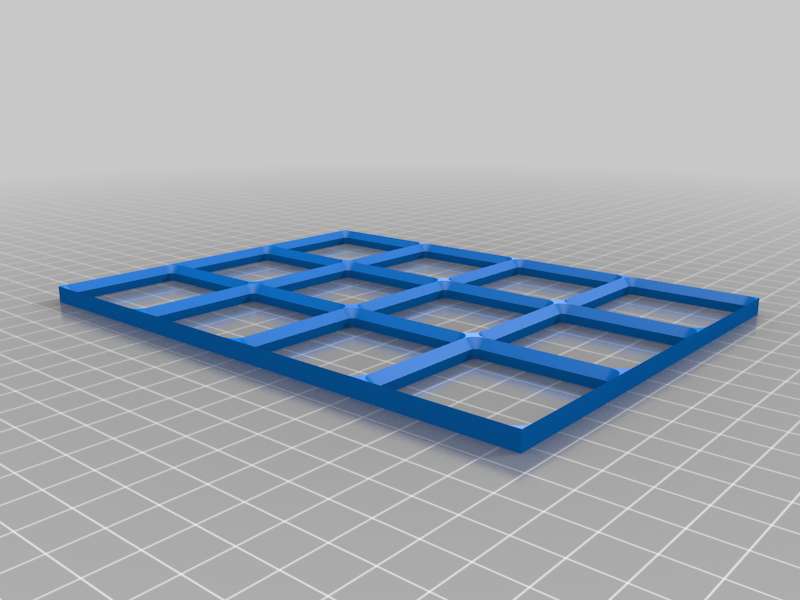

stlGridfinity_square_frame_4x5.stl
929 Ko · 3 135 Downloads
-

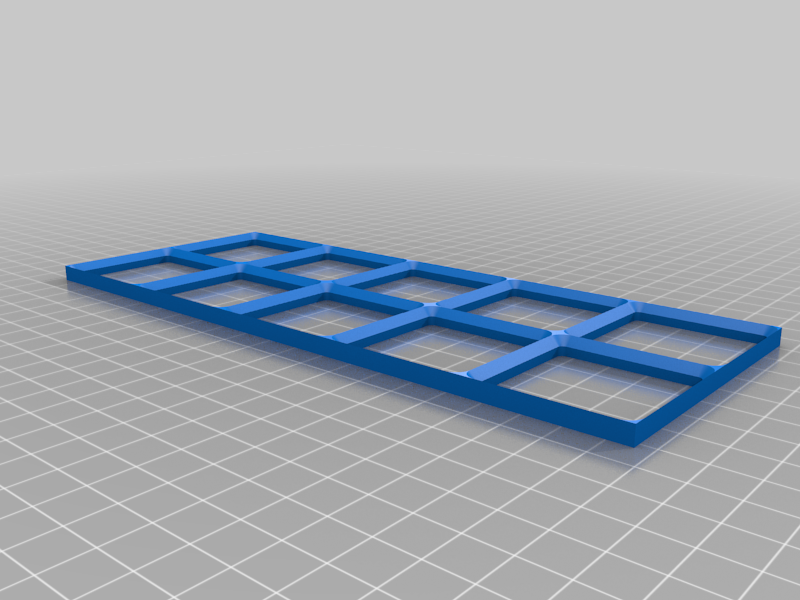

stlGridfinity_square_frame_2x5.stl
464 Ko · 2 948 Downloads
-

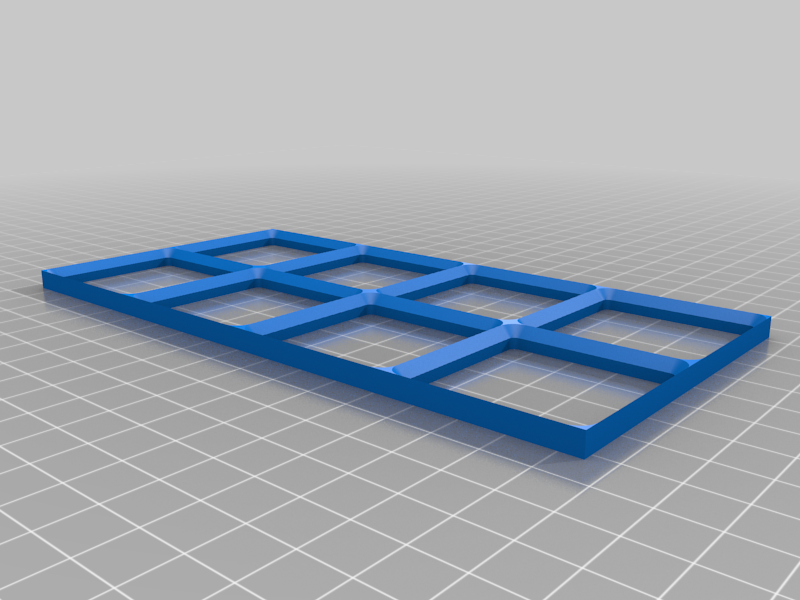

stlGridfinity_square_frame_2x4.stl
369 Ko · 2 933 Downloads
-

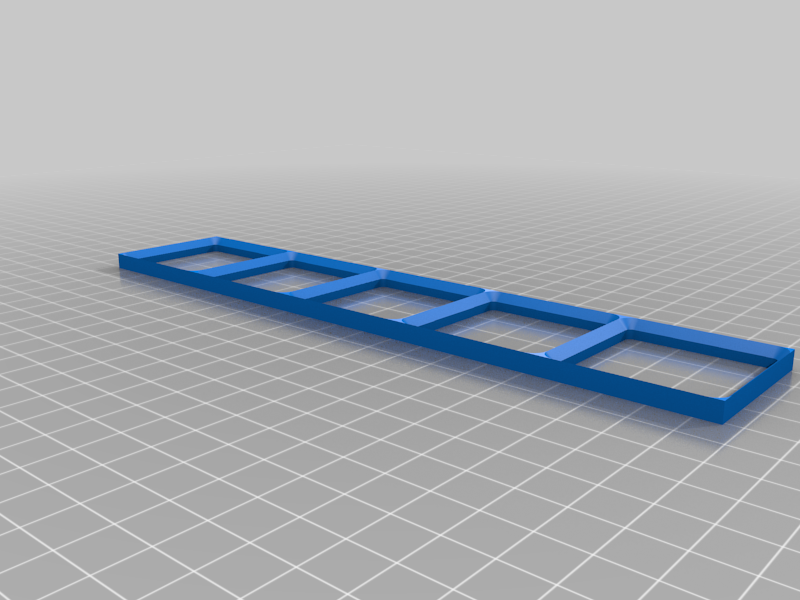

stlGridfinity_square_frame_1x5.stl
232 Ko · 2 875 Downloads
-
stlGridfinity_square_frame_3x4.stl
553 Ko · 3 034 Downloads
-
stlGridfinity_square_frame_2x2.stl
184 Ko · 2 937 Downloads
-
stlGridfinity_square_frame_4x4.stl
738 Ko · 3 307 Downloads
-

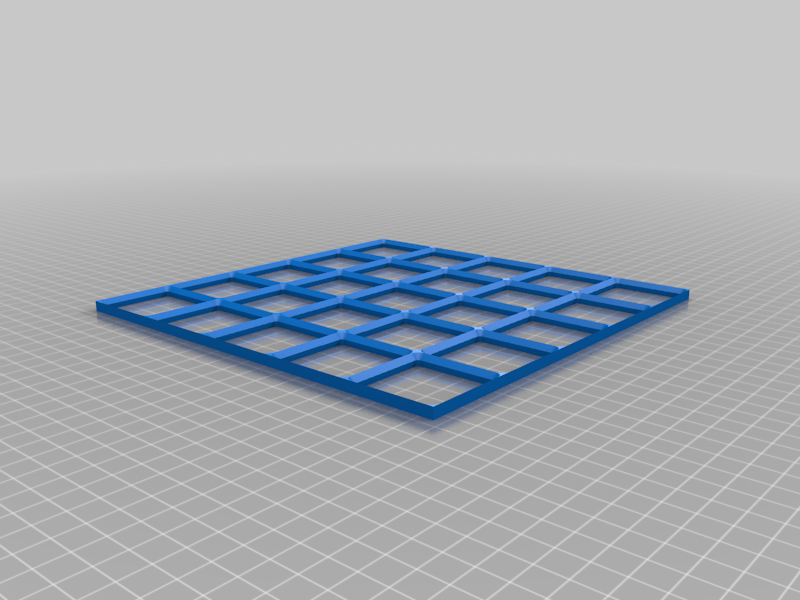

stlGridfinity_square_frame_5x5.stl
1.1 Mo · 3 739 Downloads
Beschreibung
Gridfinity baseplate / frame / grid
Bread & butter, no frills baseplate in different sizes, from 1x1 to 5x5, with hold onto your butts square corners.
These are of course esthetically superior to the original ones when combining several printed grids, as they are square and therefor don't leave any gaps in the corners.
Also, Zack's grid gave me elephant's foot, which according to my doctor is perfectly safe, I just can't donate blood for a year. This version doesn't, so it's easier to combine different sizes to fit your needs - without the spacing being off.
Of course, this also comes down to printer settings, so adjust yours before printing.
I didn't include baseplates bigger than 5x5 because prints with big footprints warp more easily, at least on my Ender 3 v2.
More contributions will come, to gridfinity and beyond!
Useful links and shoutouts:
- Zack's original baseplates: https://tinyurl.com/4e3jbfa6
- Cram42's Onshape gridfinity template: https://tinyurl.com/4yfyyxwv
- Gridfinity spec sheet: https://gridfinity.xyz/specification/
Edit: 30.10.2025
- One user reported too tight tolerances printing these, so I advise you do a test print of 2 or more small-squared grids, to check the tolerances of (1) your printer and any (2) bins you have on hand.
- The baseplates I printed myself when releasing this design, are still going strong in my drawer and work fine with old and new bins and modules.
- Also, since I made this design, several great alternatives for baseplates have popped up - including a few Gridfinity generators with various baseplate options. You might want to check those out. I have used Perplexing labs' generator for bins and larger gridplates.
