Eccentric Cycloid Generator
von ThinkingandTinkering
Druckbare Dateien (9)
-

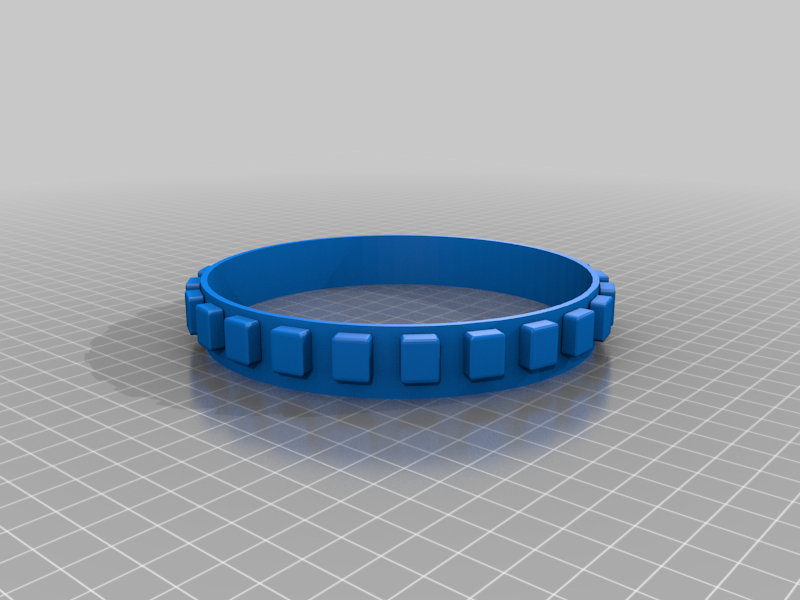

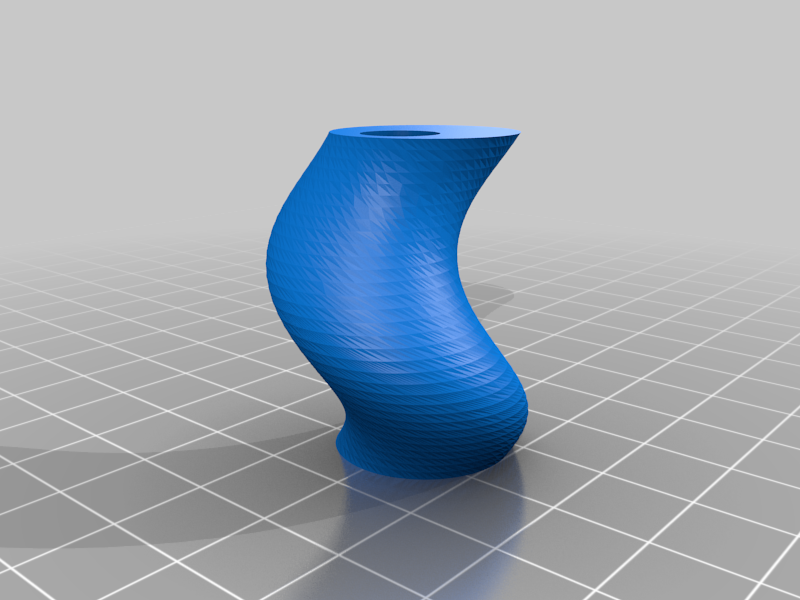

stlcoil_former.stl
348 Ko · 1 599 Downloads
-
stlcoil_former_carrier.stl
684 o · 1 567 Downloads
-

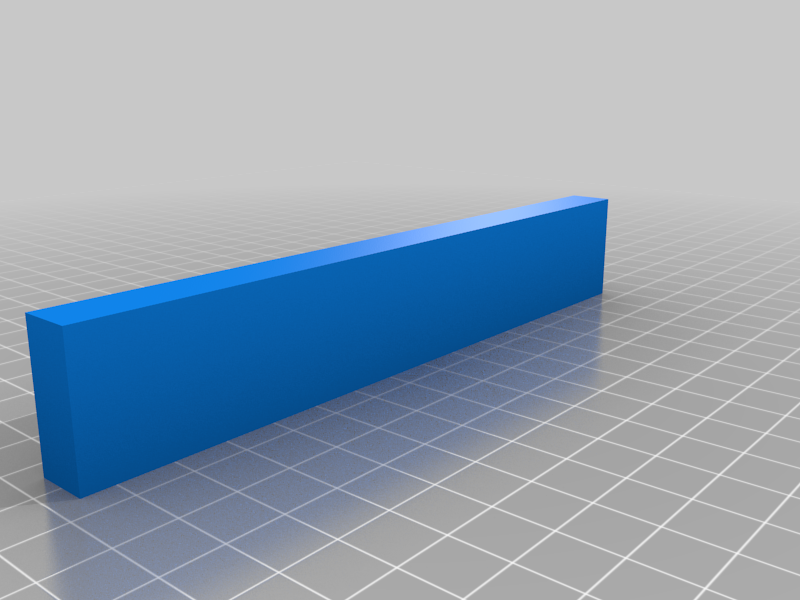

stlsides_x2.stl
86 Ko · 1 591 Downloads
-

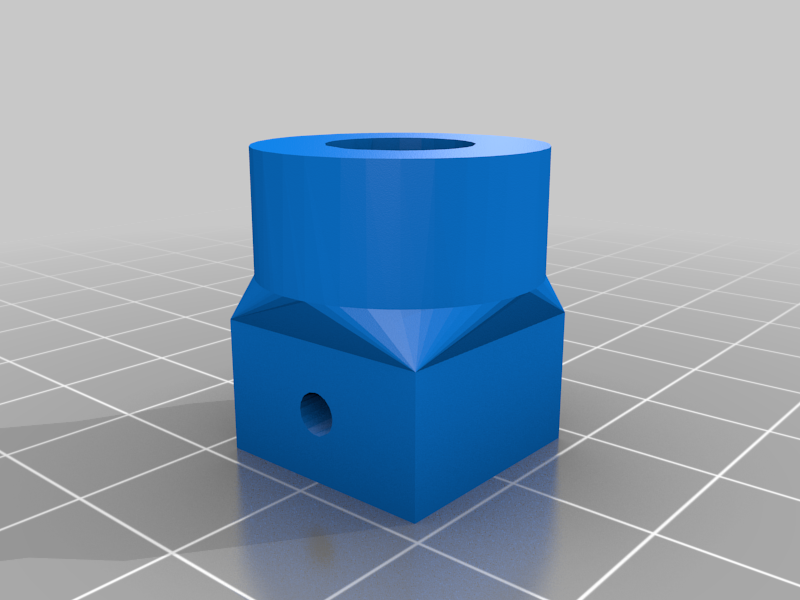

stlsmall_gear.stl
303 Ko · 1 603 Downloads
-

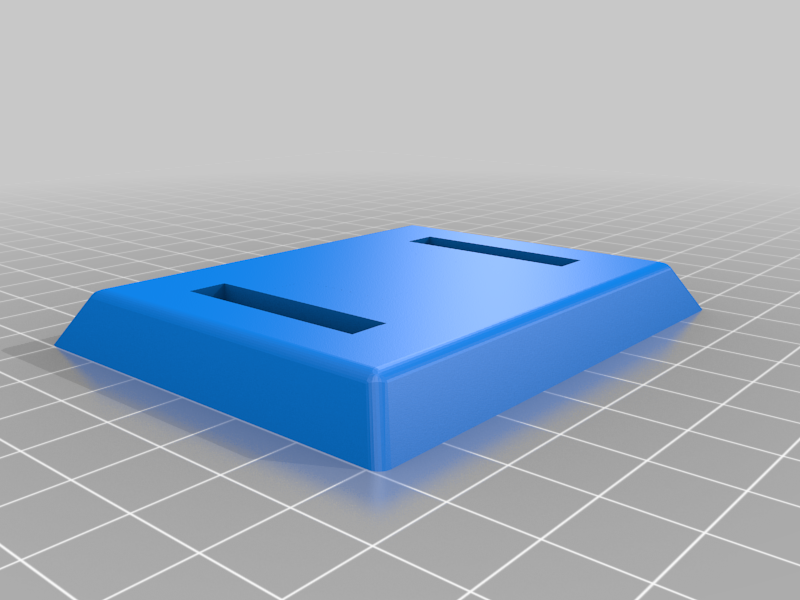

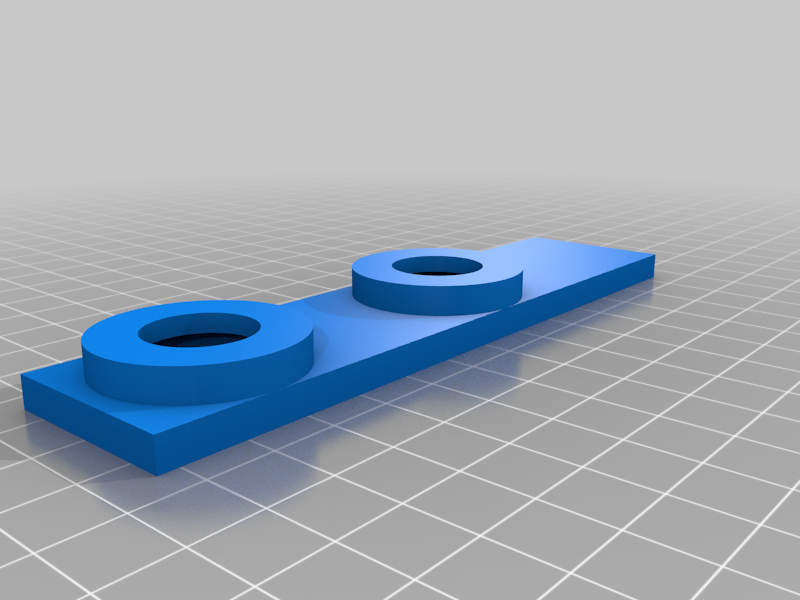

stlplates_x2.stl
20 Ko · 1 583 Downloads
-

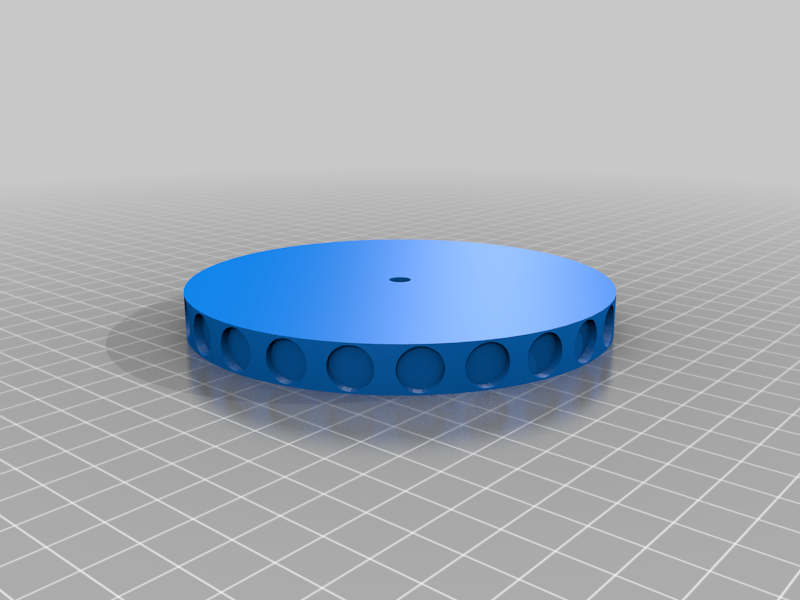

stlmagnet_carrier.stl
203 Ko · 1 592 Downloads
-

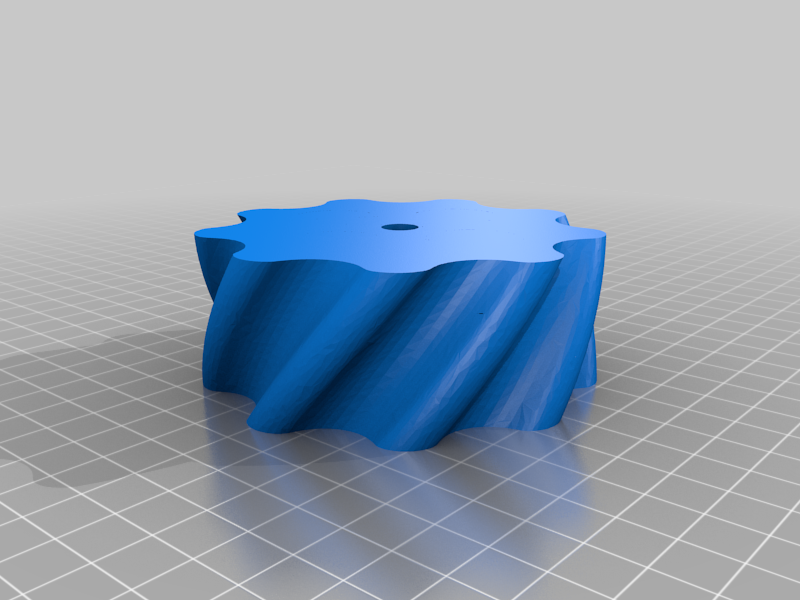

stllarge_gear.stl
808 Ko · 1 603 Downloads
-

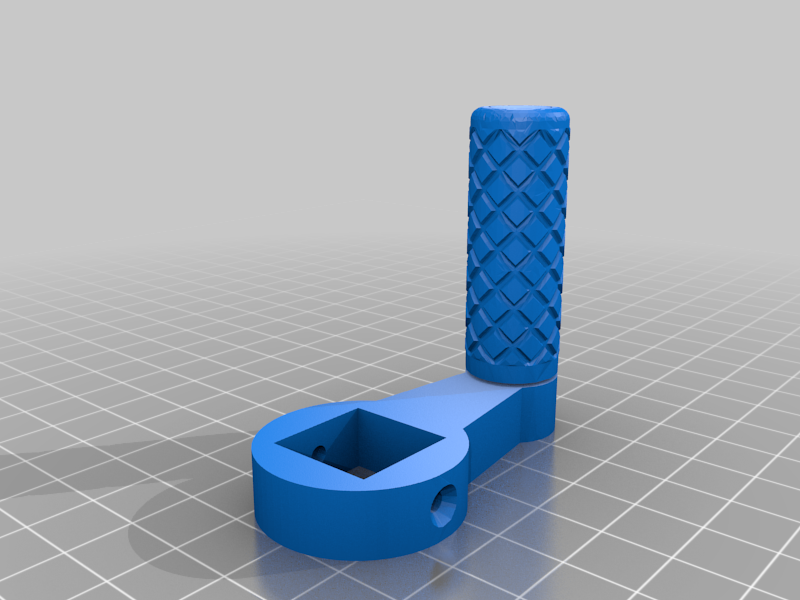

stlhandle.stl
330 Ko · 1 604 Downloads
-
stlhandle_clip.stl
23 Ko · 1 543 Downloads
Beschreibung
You can find a video on this in operation at
the bearings are 22mm by 8mm by 7mm skater bearings and al shafts are 8mm mild steel bar cut to size
the serpentine coil is made with 0.2mm enameled copper wire at 200 turns. The method of making serpentine coils can be found here
