Locking ball and socket arm
von alexrich82
Druckbare Dateien (6)
-
stlball_and_socket_v5_-_main_body.STL
446 Ko · 32 358 Downloads
-
stlball_and_socket_v5_-_alligator_clip_holder.STL
320 Ko · 31 674 Downloads
-

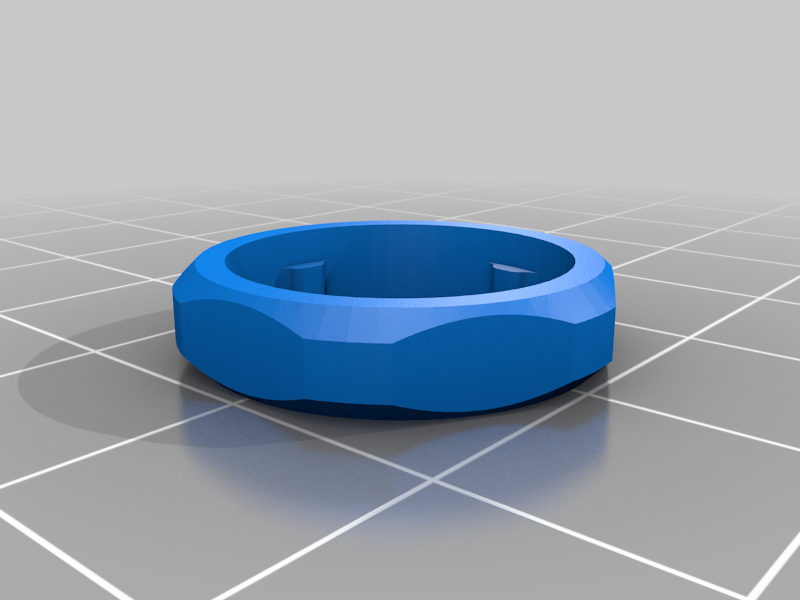

stlball_and_socket_v5_-_twist_lock.STL
71 Ko · 31 966 Downloads
-
stlball_stud_12.5mm_dia.STL
374 Ko · 29 188 Downloads
-
stepball_and_socket_joint.STEP
394 Ko · 29 021 Downloads
-
stlStickvise_BallandSocketv5_Jaw.STL
308 Ko · 19 537 Downloads
Beschreibung
Interested in the PCB holder shown in the picture and want to support me? Check out Stickvise, my low profile soldering vise:
- Information: http://www.stickvise.com
- Buy it on Amazon: http://amzn.to/2dgmQCE
Ball and socket system, upgraded with a quarter turn twist lock on each ball joint to greatly increase pullout strength.
My idea is to create a ball and socket system that is not only 3d printable but extremly strong and will not pop apart easily. This would be suitable for things like an LED lamp arm or heavy duty alligator clip where you don't want the neck popping apart.
My original project was posted on hackaday:
https://hackaday.io/project/5739-locking-ball-and-socket-gooseneck-system
Update 5/17/15
New STL files posted on 5/17/15 - should work much better on printers with larger layer height / lower resolution
