StarLight - Modular Lamp

von 4ndreas

Druckbare Dateien (11)

Beschreibung

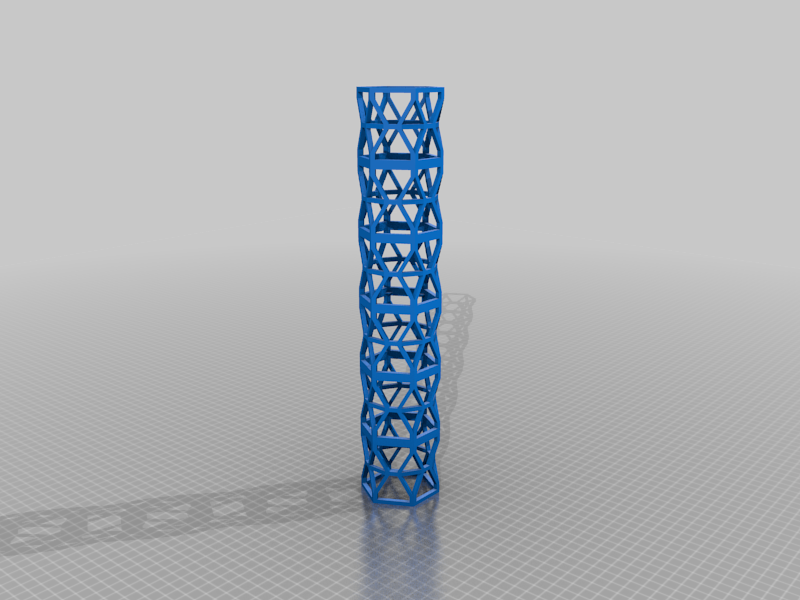

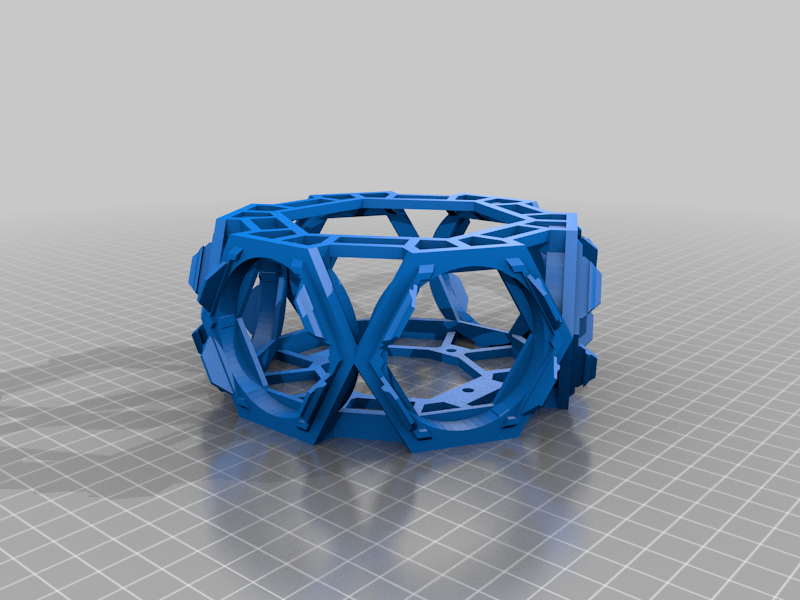

This is my modular lighting system. It is based on a joint and a tower structure. It can build in various forms. I decides to build a star Like structure.

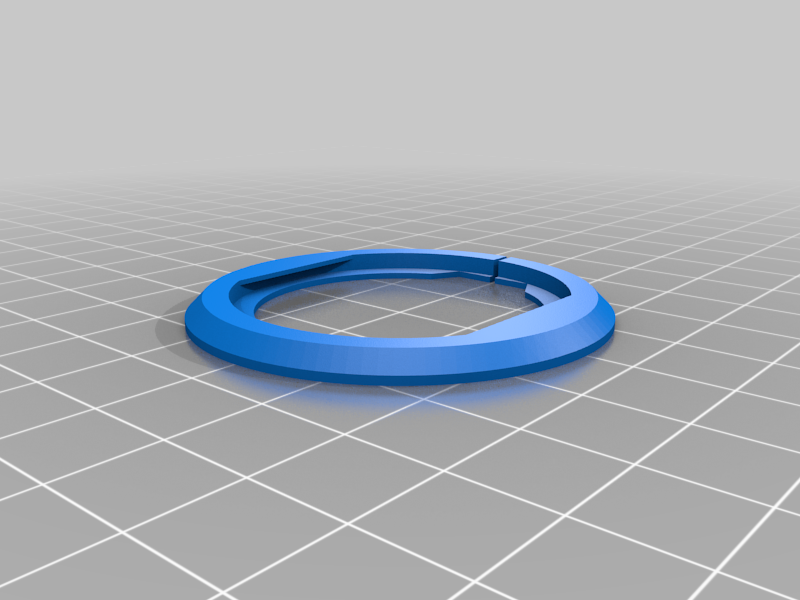

I use LED disks with an WS2811 controller and 6 rgb leds with a diameter of about 40mm.

As white light I use 50mm disk leds. Mounted on a 70mm heatsink.

I used 12mm Aluminium tubes for the cables.
To control the leds I used a sparkcore, but for future use I recommend an esp866 module.

I post more detailed assembly information soon.

I added a demo scetch and a new video with more details.
https://youtu.be/UsbwFbMxnlg
https://www.youtube.com/watch?v=UPnAon349_Y

Tags

#arduino #LED #lightitup #neopixel #sparkcore #tablespoon #ws2811
