I-Beam

von jlehman

Druckbare Dateien (1)

Beschreibung

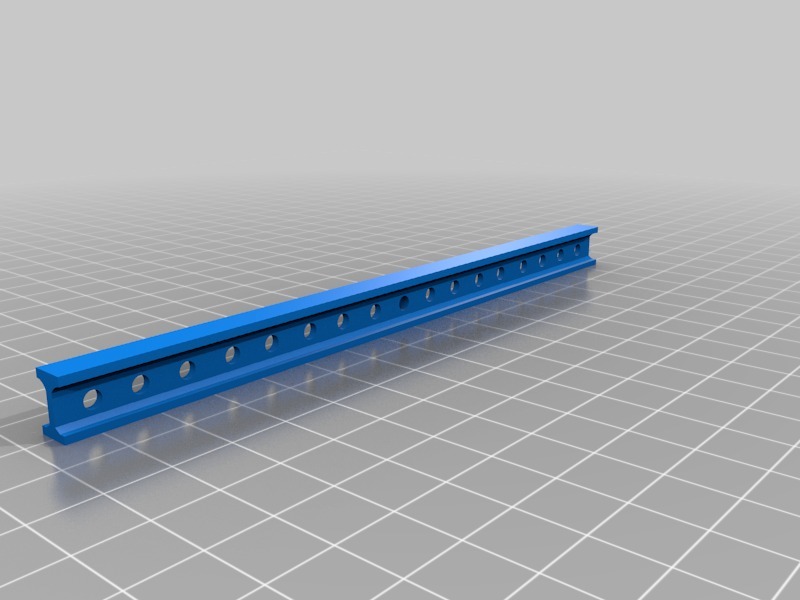

I needed some small I-Beams for a project so I decided to make one of my own. The beam is 150 mm long x 10mm high x 5 mm wide. The holes are 3.0 mm diameter. I am fairly new to CAD, so I this is only my 2nd design using sketchup.
