Digger

by iClint

Printable files (11)

  • stl

    base.stl

    3.1 Mo · 1 435 downloads

    Download
  • stl

    bucketControl.stl

    2 Mo · 1 433 downloads

    Download
  • stl

    bucketLinkage.stl

    247 Ko · 1 419 downloads

    Download
  • stl

    bucketLinkageLong.stl

    90 Ko · 1 439 downloads

    Download
  • stl

    bucketLinkageShort.stl

    266 Ko · 1 430 downloads

    Download
  • stl

    leftBoom.stl

    198 Ko · 1 428 downloads

    Download
  • stl

    pegsAndFeet.stl

    5.1 Mo · 1 433 downloads

    Download
  • stl

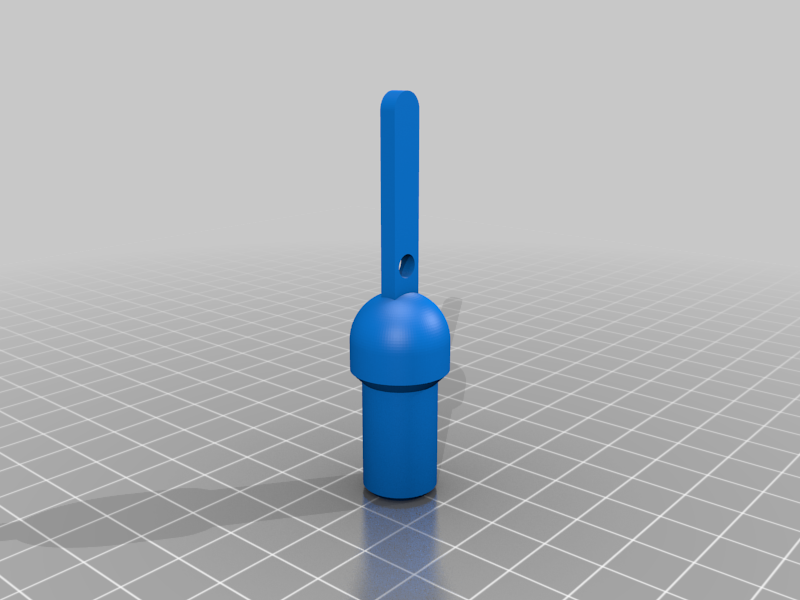

    pivot.stl

    1.1 Mo · 1 415 downloads

    Download
  • stl

    rightBoom.stl

    1011 Ko · 1 416 downloads

    Download
  • stl

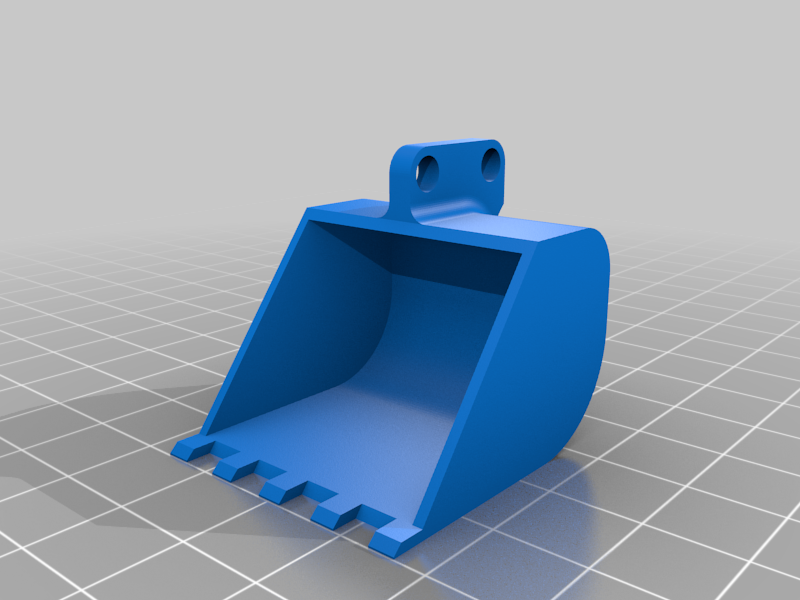

    BucketV1.1.stl

    685 Ko · 1 441 downloads

    Download
  • stl

    forwardBoom.stl

    77 Ko · 1 358 downloads

    Download

Description

I will not be making any further modifications or updates to this model, unless by request. Digger 2.0 replaces this model now http://www.thingiverse.com/thing:1427173

Inspired by the Finger Digger (http://www.thingiverse.com/thing:297336) I Modelled my digger using Fusion360.

My Digger has both boom up/down and bucket in/out controls.

It was a lot of fun to design and I'm printing the first version of it as I type this description.

This is a work in progress so print at your own risk as some tweaks to the design may be needed that won't be apparent until I finish printing my prototype.

Changes:
Bucket V1.1 - Strengthened flange connecting bucket to boom.

Tags

#construction toys
