BigPrinter Customization
by ewald
Printable files (56)
-
stl4relais-trager-klammer.stl
12 Ko · 634 downloads
-
stl4relais-trager.stl
44 Ko · 627 downloads
-
stlCable_holder_V2_right_hand_side.stl
814 Ko · 625 downloads
-
stlBridge_Pulley_side.stl
1.1 Mo · 628 downloads
-
stlCable_holder_V2_left_hand_side.stl
804 Ko · 624 downloads
-
stl40mm-Fan_Cover_-_Thin.stl
696 Ko · 597 downloads
-
stlabstand-12mm.stl
11 Ko · 623 downloads
-
stlcable-end-B.stl
67 Ko · 620 downloads
-
stlcable-end-A.stl
68 Ko · 632 downloads
-
stlhotend2-klammer.stl
22 Ko · 626 downloads
-
stlhotend2-trager.stl
129 Ko · 624 downloads
-
stlraspi-trager.stl
244 Ko · 631 downloads
-
stlschalter-klammer.stl
23 Ko · 624 downloads
-

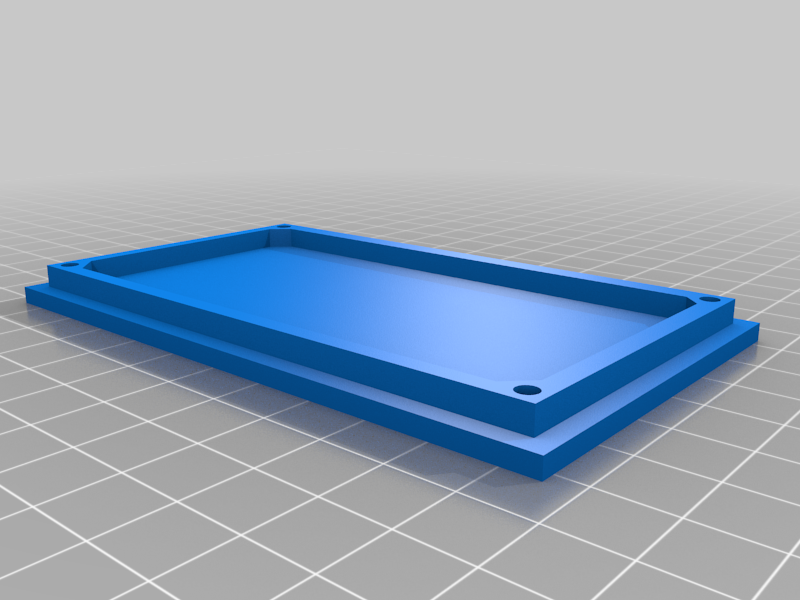

stlschalter-deckel.stl
24 Ko · 623 downloads
-

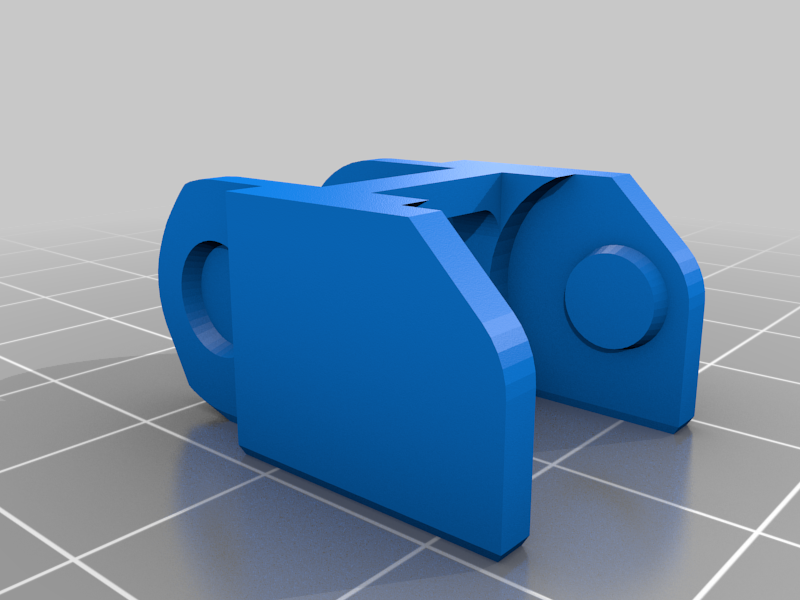

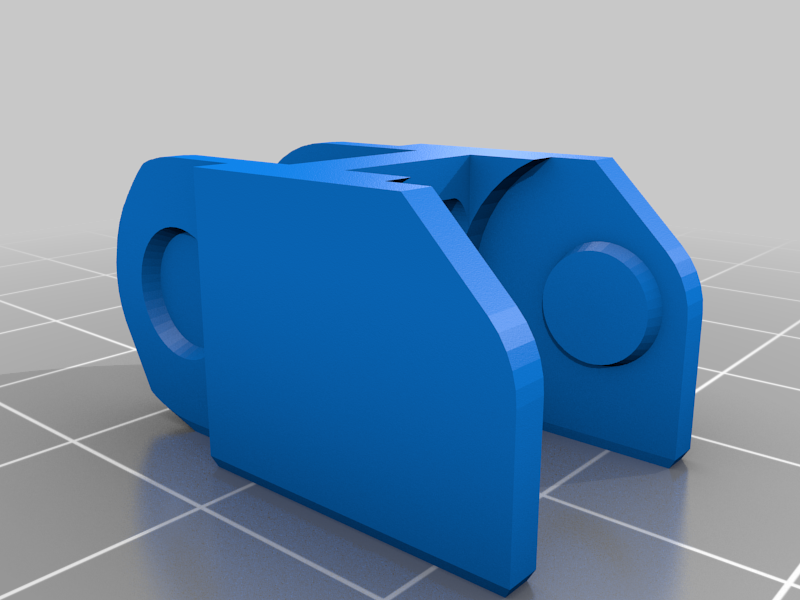

stlchain-part-19mm.stl
66 Ko · 629 downloads
-

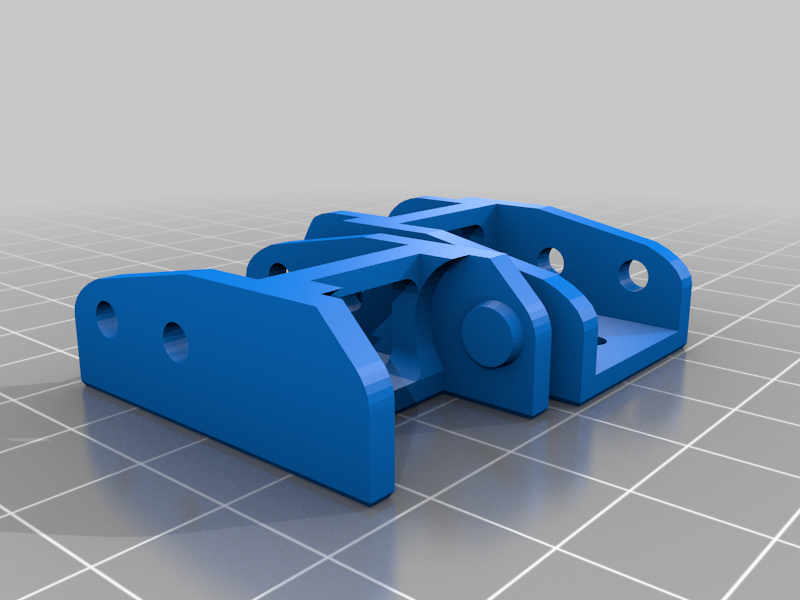

stlchain-ends-23mm.stl
133 Ko · 628 downloads
-
stlchain-ends-19mm.stl
131 Ko · 625 downloads
-
stlchain-ends-15mm.stl
133 Ko · 622 downloads
-
stlchain-part-15mm.stl
66 Ko · 624 downloads
-
stlchain-part-19mm.stl
66 Ko · 581 downloads
-
stlschalter-gehause.stl
81 Ko · 627 downloads
-
stldcdc-klemme.stl
23 Ko · 627 downloads
-

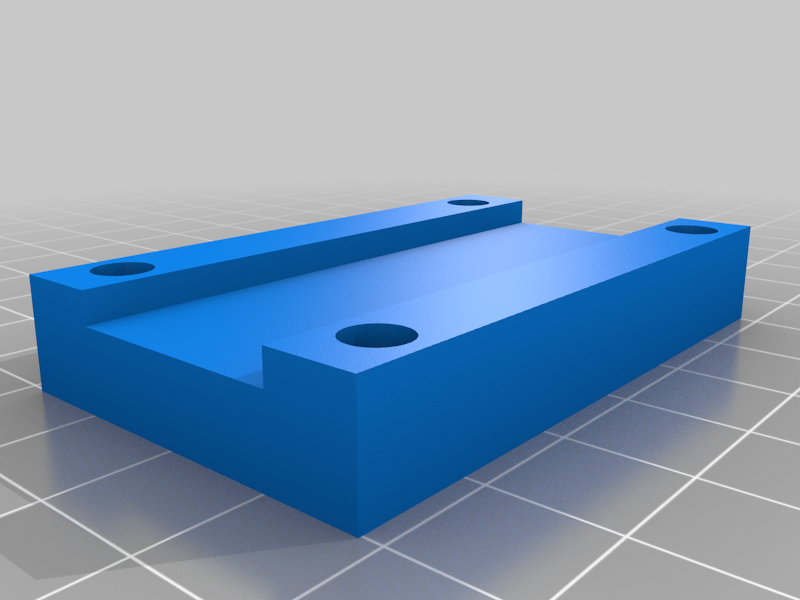

stldcdc-trager.stl
45 Ko · 629 downloads
-
stlethernet-halter.stl
41 Ko · 624 downloads
-
stleuro-klammer.stl
23 Ko · 626 downloads
-
stleuro-trager.stl
109 Ko · 624 downloads
-
stlketten-trager-2.stl
23 Ko · 622 downloads
-
stlketten-trager-1.stl
23 Ko · 620 downloads
-
stlL-kreuz.stl
42 Ko · 624 downloads
-
stlt-winkel.stl
54 Ko · 621 downloads
-
stlt-kreuz.stl
234 Ko · 626 downloads
-
stllufter-klammer.stl
22 Ko · 622 downloads
-
stlmotor-klemme.stl
47 Ko · 619 downloads
-

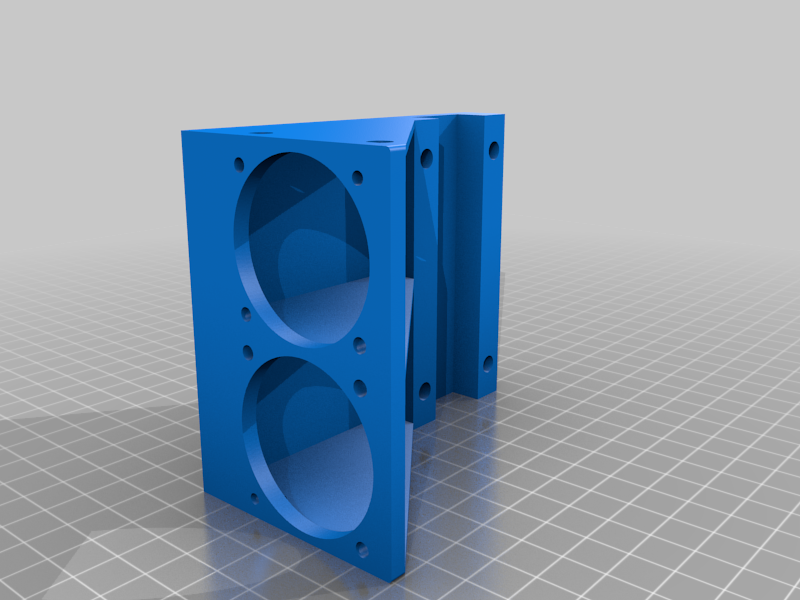

stllufter-trager.stl
217 Ko · 630 downloads
-
stlmosfet-klemme.stl
23 Ko · 623 downloads
-
stlmotor-halter.stl
93 Ko · 617 downloads
-
stlmosfet-trager.stl
45 Ko · 621 downloads
-
stlnetzteil-24v-klammer.stl
23 Ko · 622 downloads
-
stlethernet-klammer.stl
23 Ko · 592 downloads
-
stlnetzteil-24v-mit.stl
30 Ko · 623 downloads
-
stlnetzteil-24v.stl
52 Ko · 625 downloads
-
stlnetzteil24v-ohne.stl
31 Ko · 618 downloads
-
stltensioner-corner-right.stl
73 Ko · 620 downloads
-
stltensioner-corner-left.stl
73 Ko · 625 downloads
-
stltensioner-right.stl
116 Ko · 618 downloads
-
stltensioner-left.stl
116 Ko · 618 downloads
-
stlx-trager-klemme.stl
14 Ko · 613 downloads
-

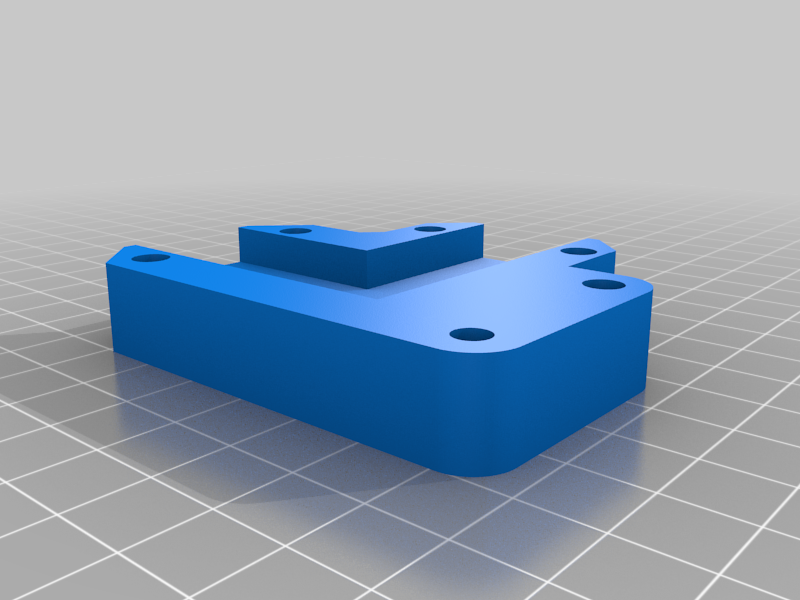

stly-motor-trager2.stl
88 Ko · 627 downloads
-

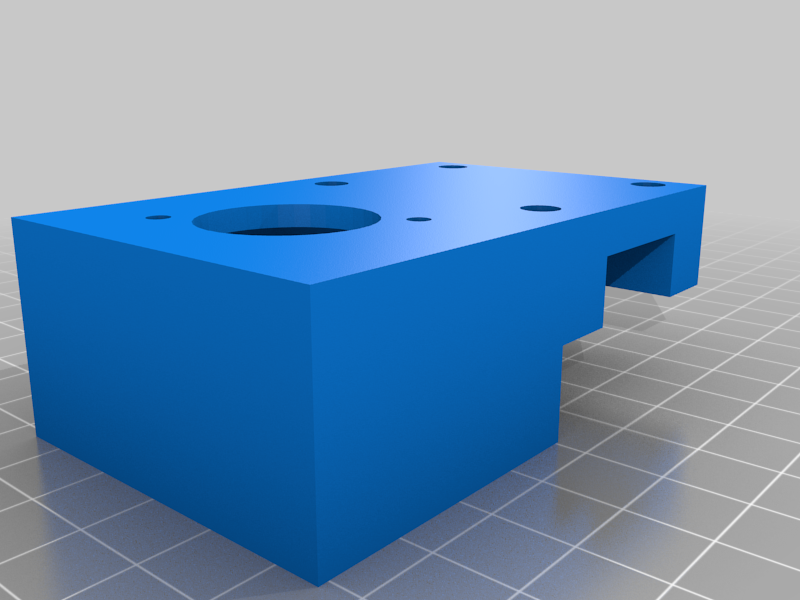

stlz-antrieb-lager.stl
95 Ko · 622 downloads
-

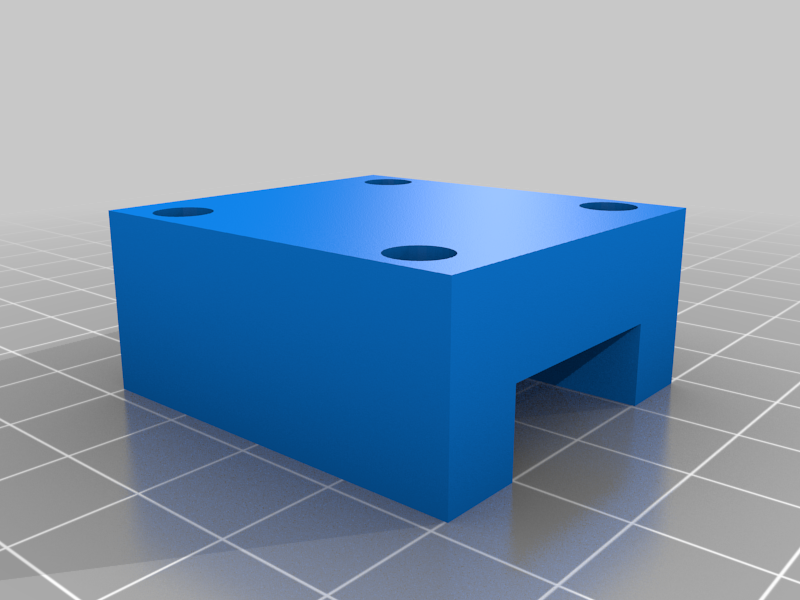

stlz-antrieb-lager-klammer.stl
49 Ko · 621 downloads
-
stlz-endstop-trager.stl
36 Ko · 617 downloads
-
stlz-endstop-klemme.stl
12 Ko · 623 downloads
-
stlz-trager.stl
61 Ko · 617 downloads
-

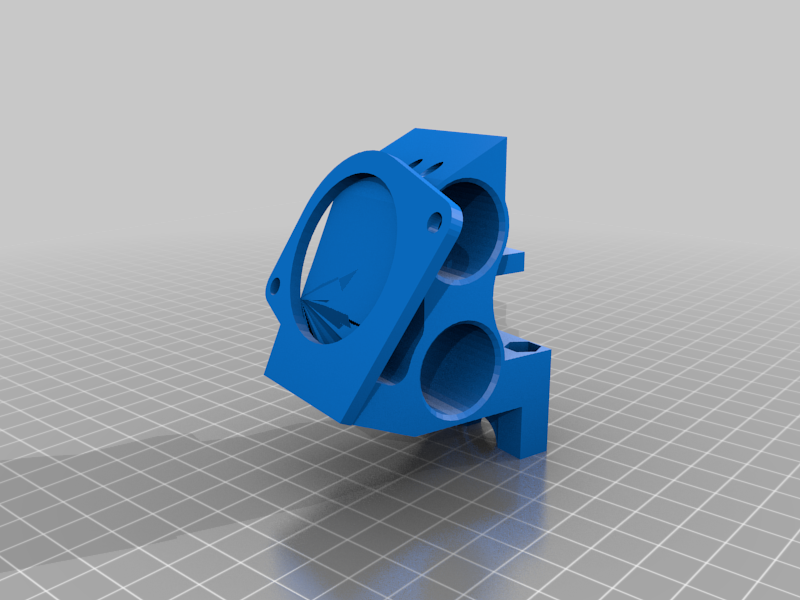

stlhotend2-fan.stl
189 Ko · 622 downloads
-
stly-welle-stabilisator.stl
96 Ko · 619 downloads
-
stly-welle-stabilisator-klemme.stl
44 Ko · 626 downloads
Description
Some months ago I noticed that my Prusa I3 clone tends to be too small. I had to cut my models in half several times to get them printed. So I decided to build a BigPrinter clone.
This project uses 20x20 aluminium profiles which are screwed together with previously printed brackets. All the parts are easily accessible and you can customize to your personal needs.
Ivan kindly offered a link to his Fusion360 project on his former website files but it seems he hasn't changed anything in the last months (or maybe is secretly about to so :-).

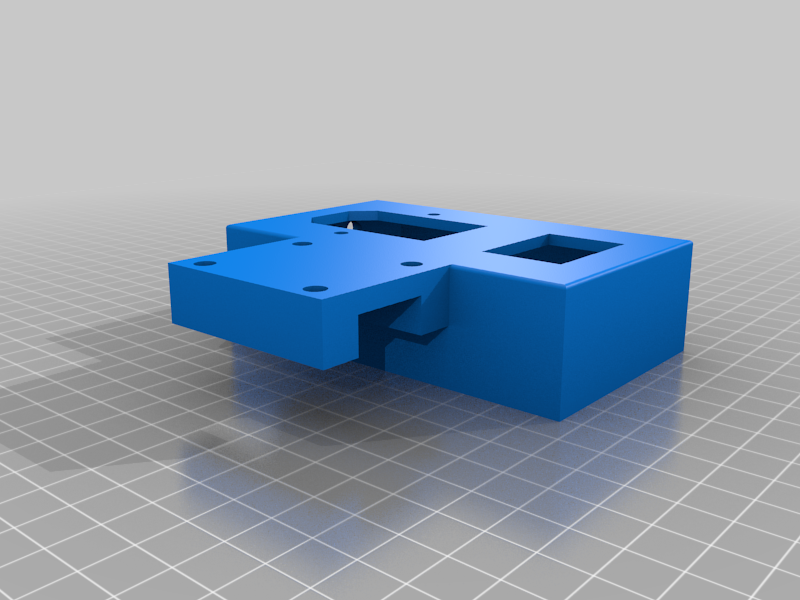

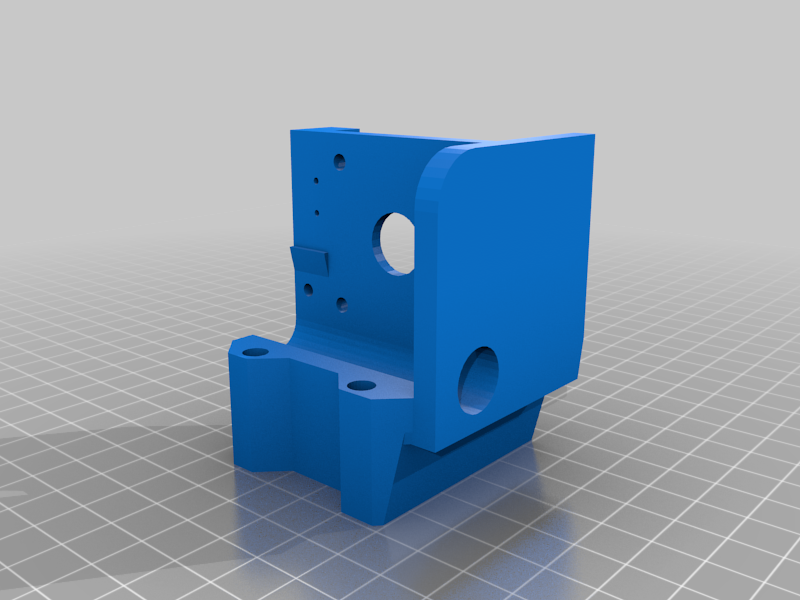

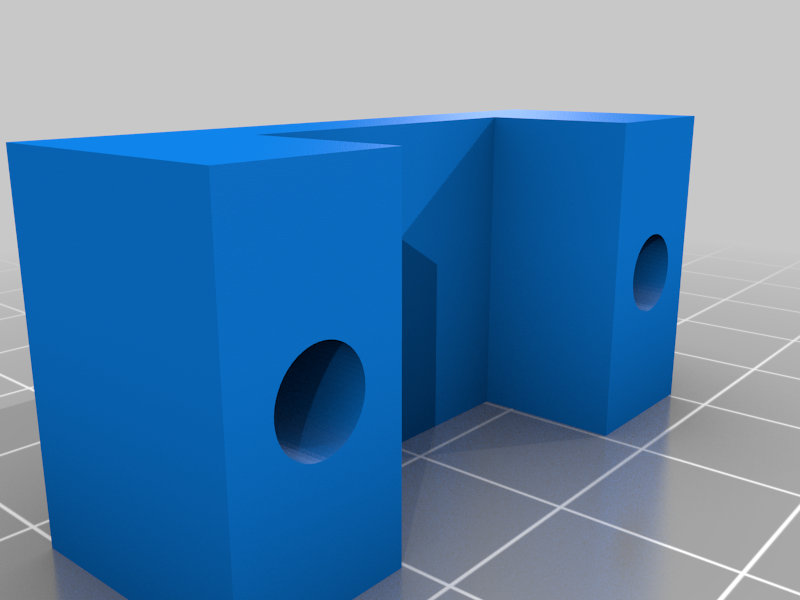

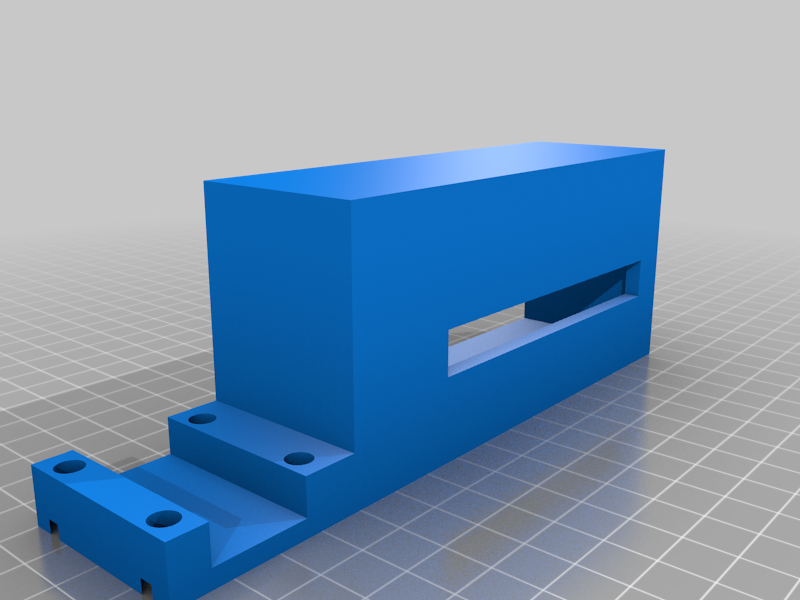

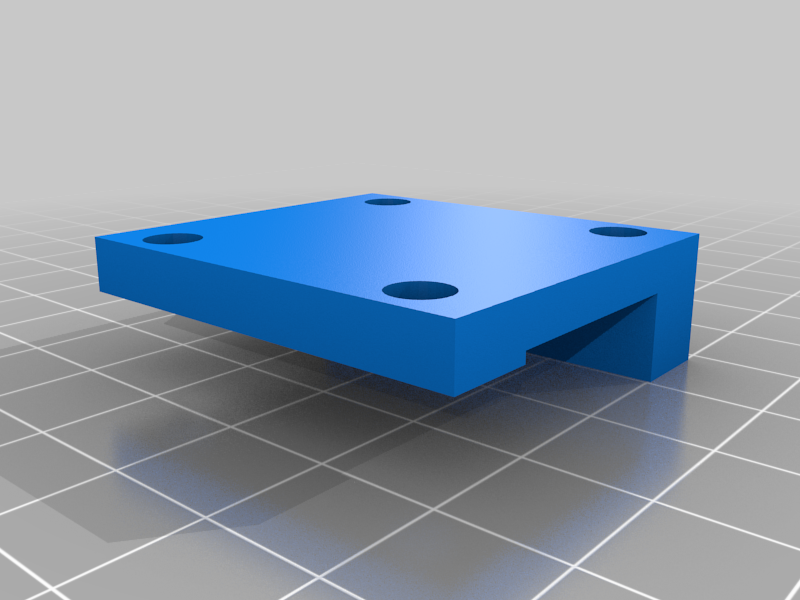

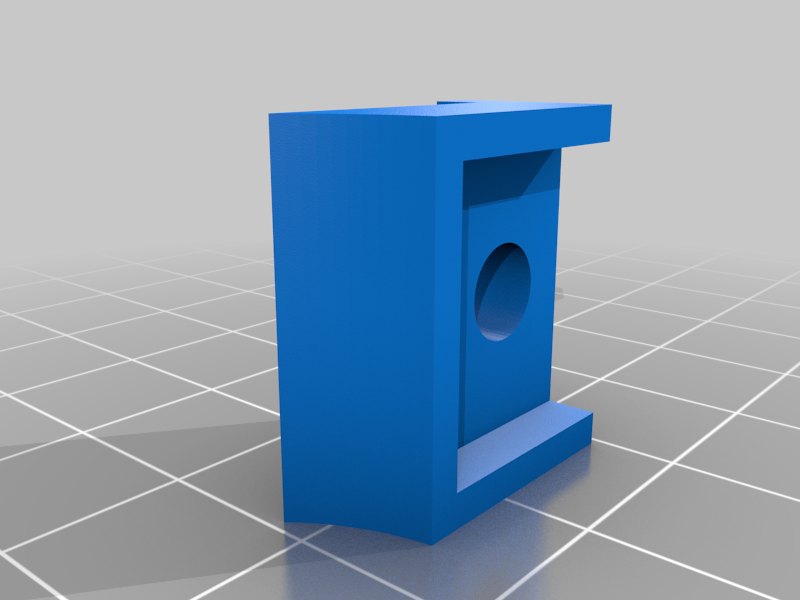

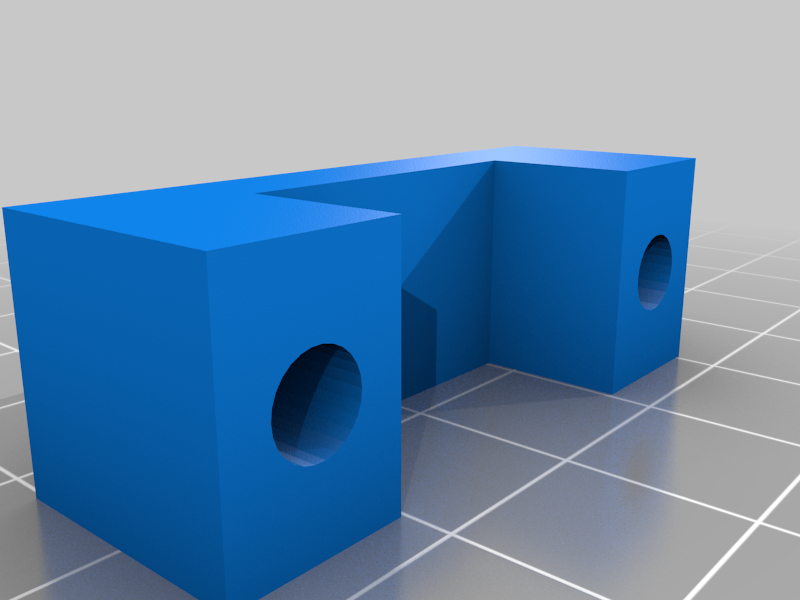

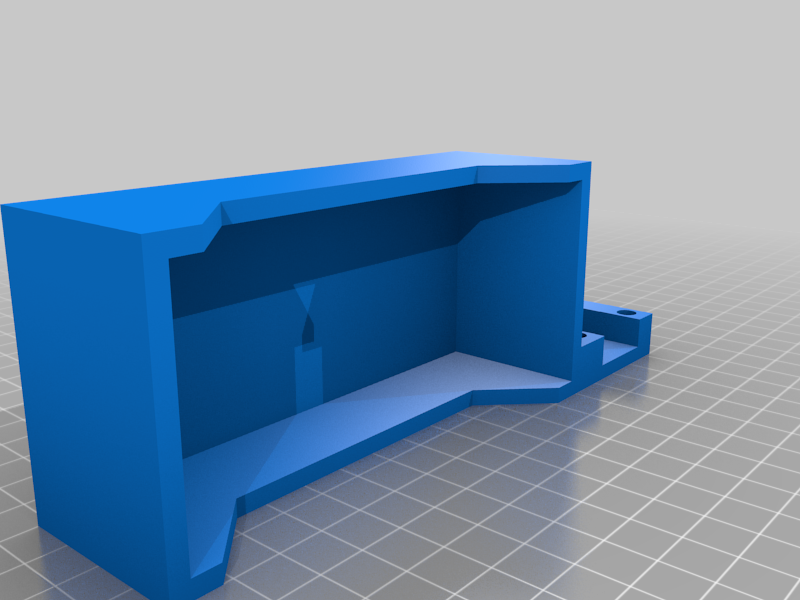

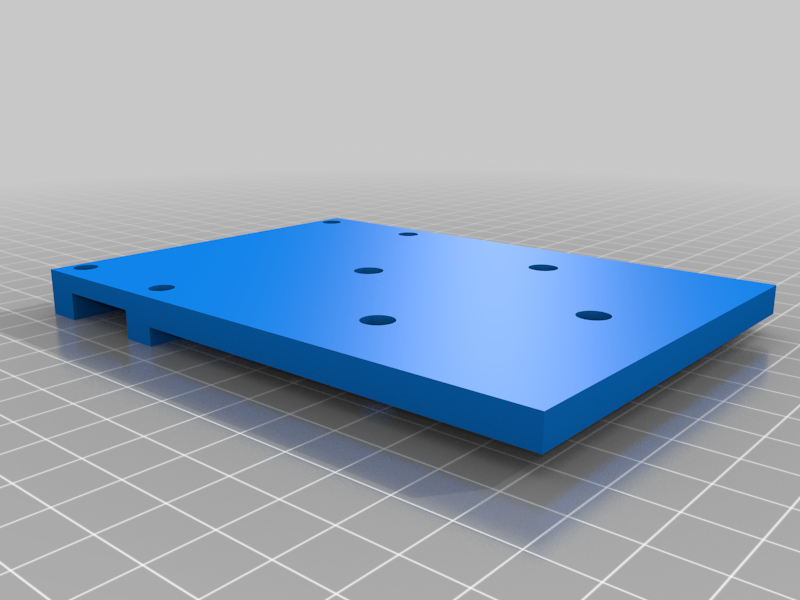

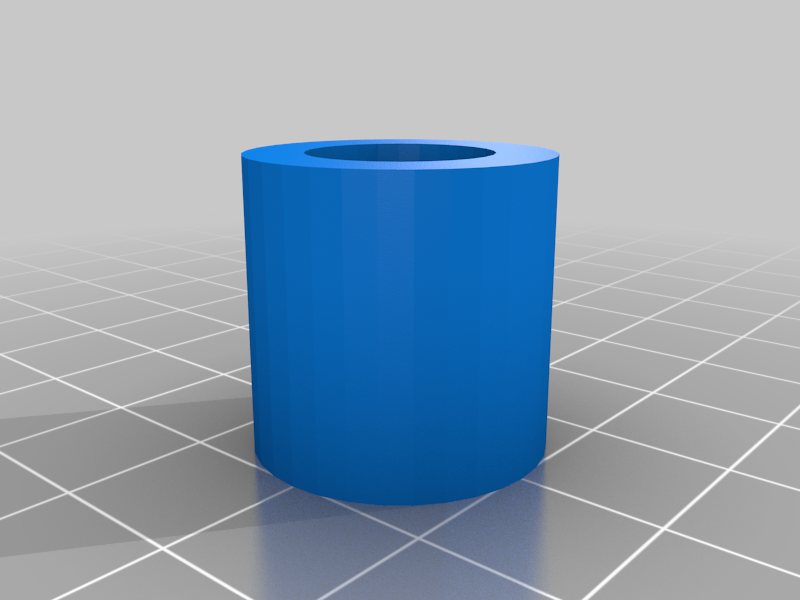

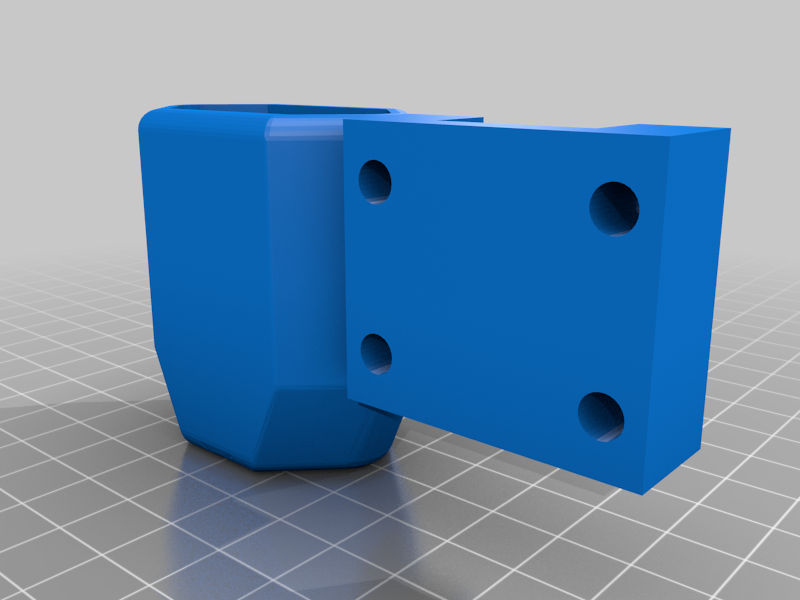

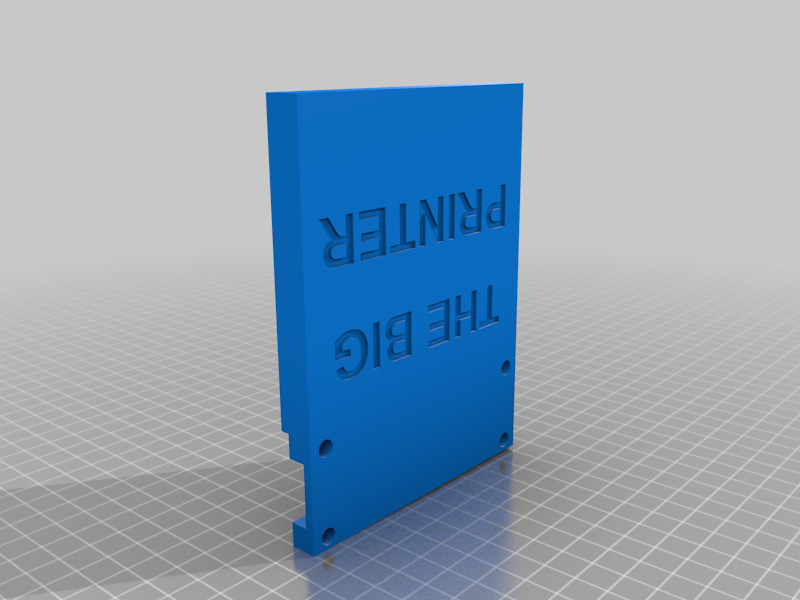

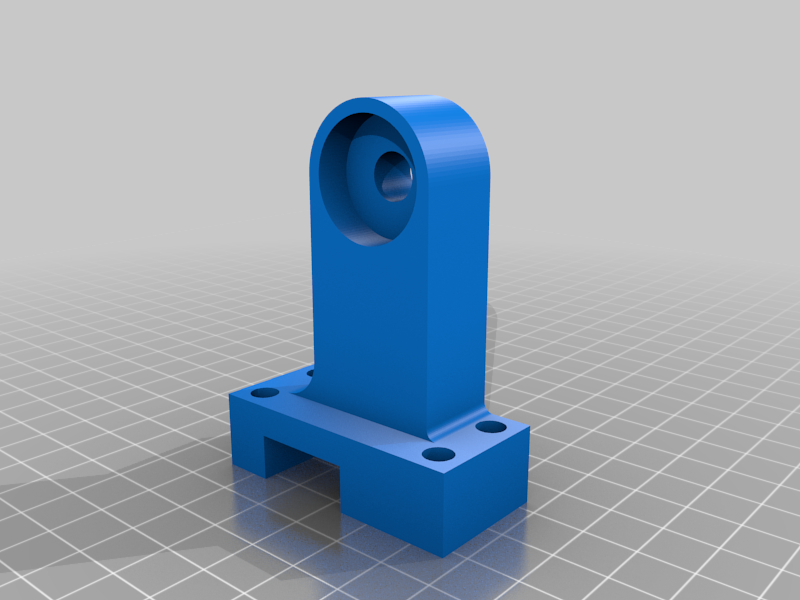

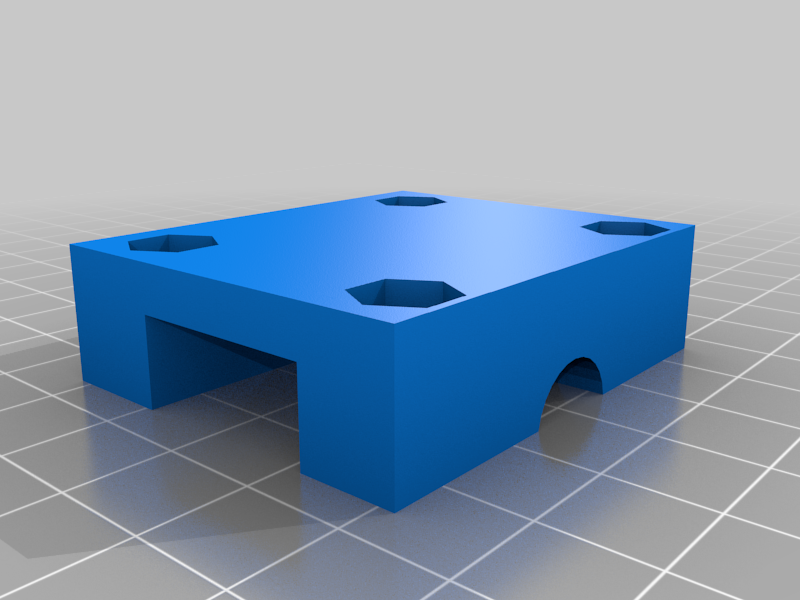

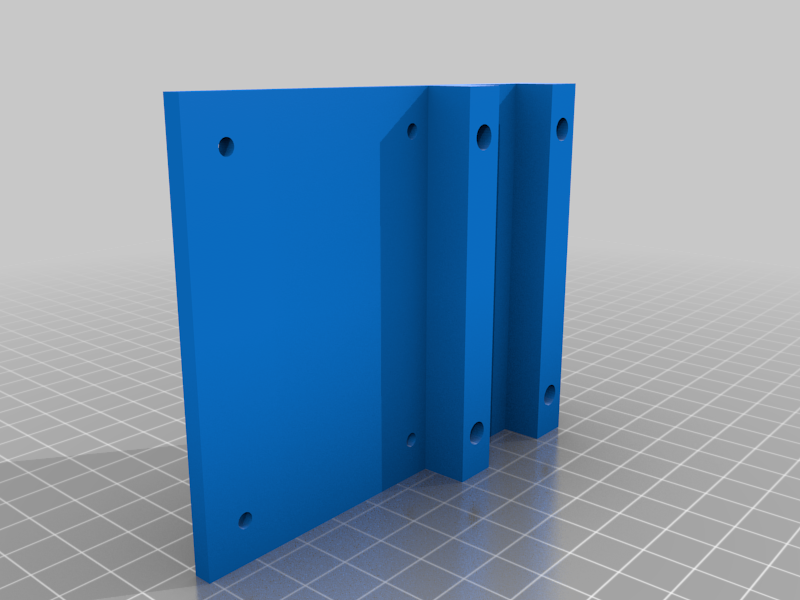

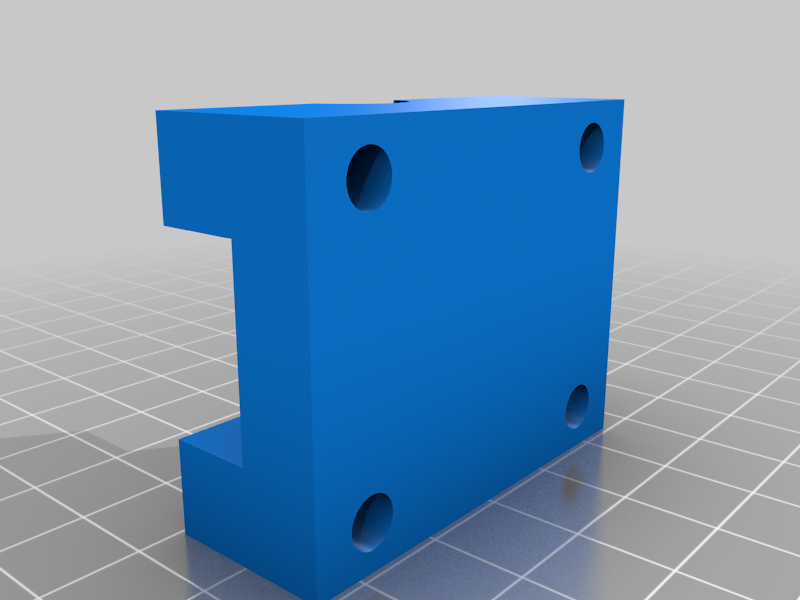

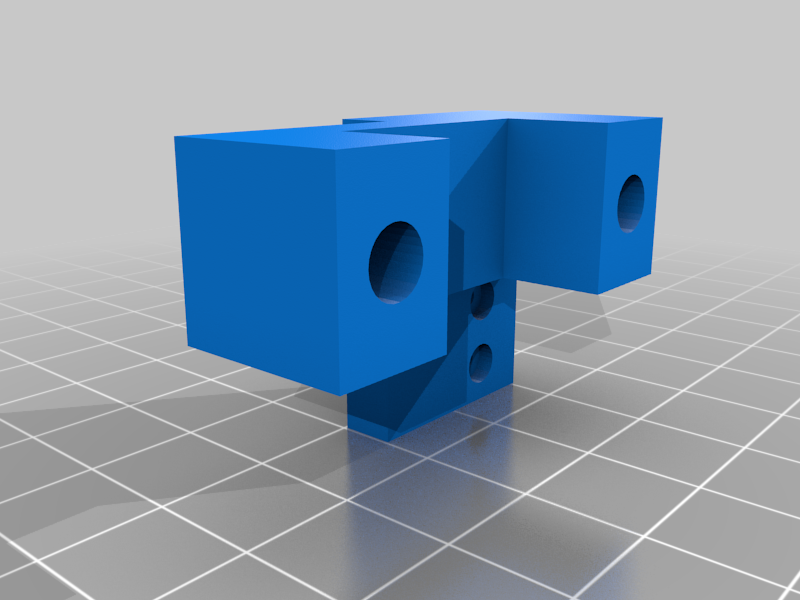

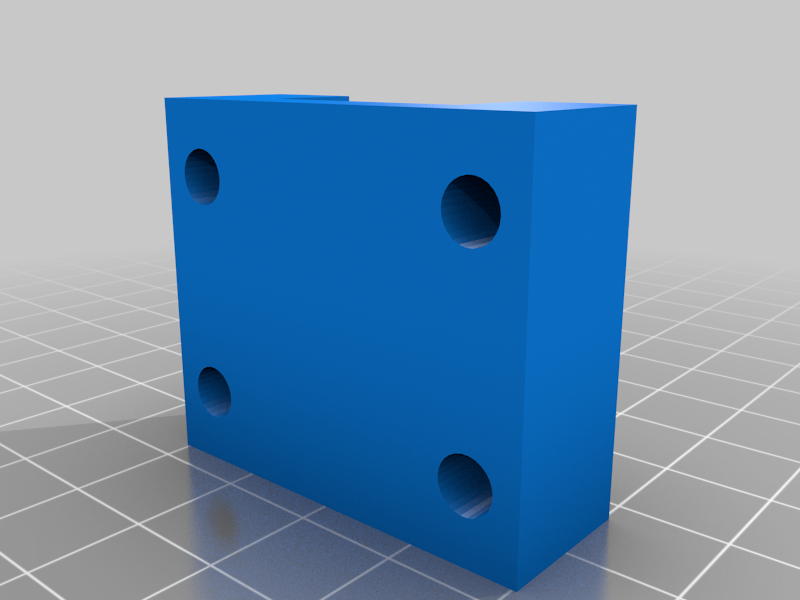

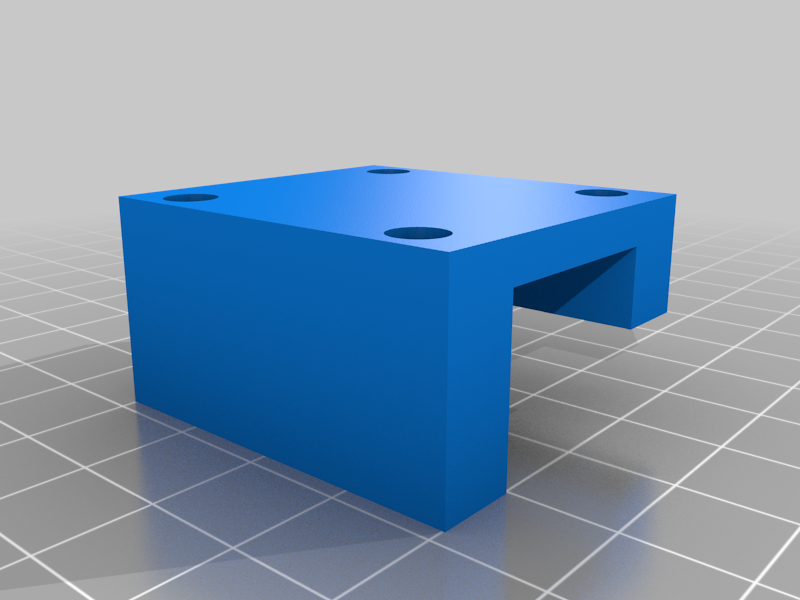

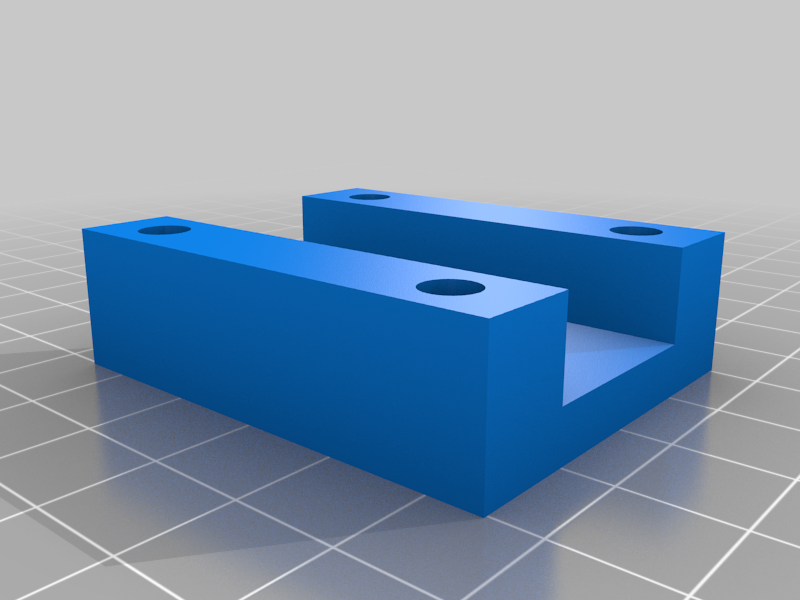

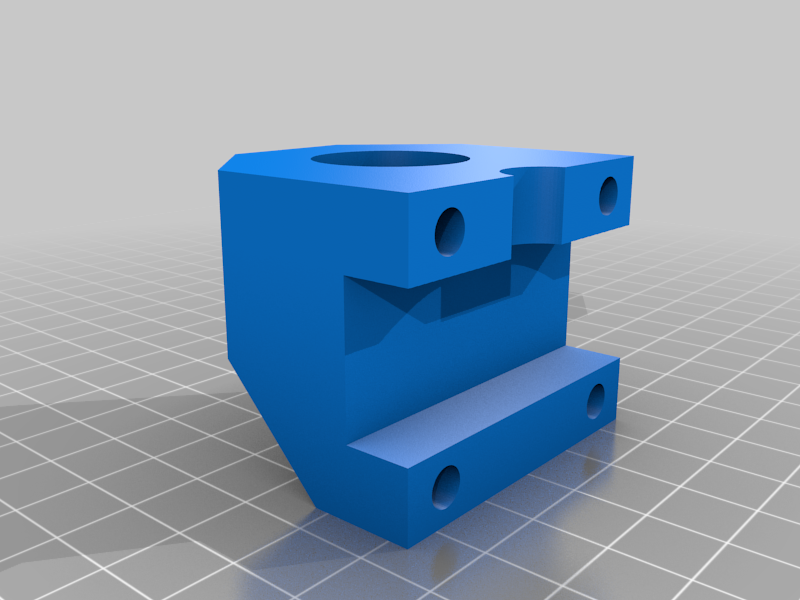

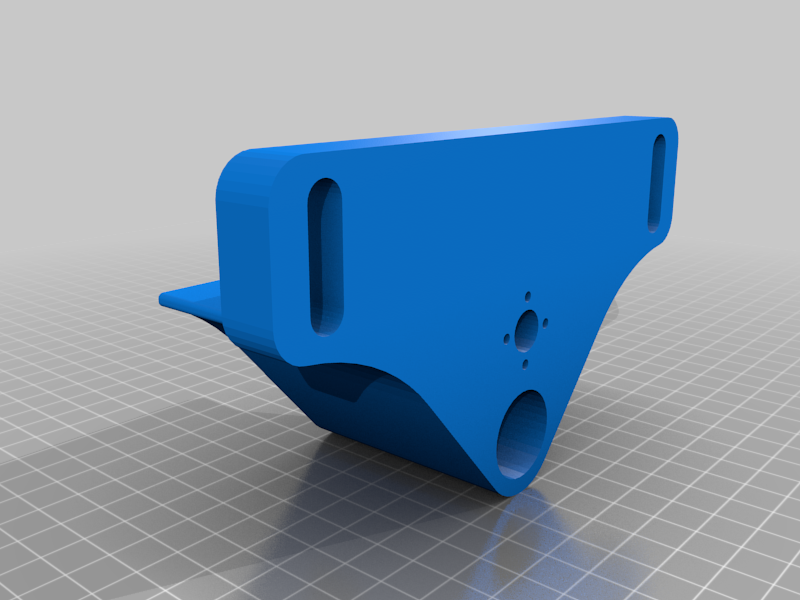

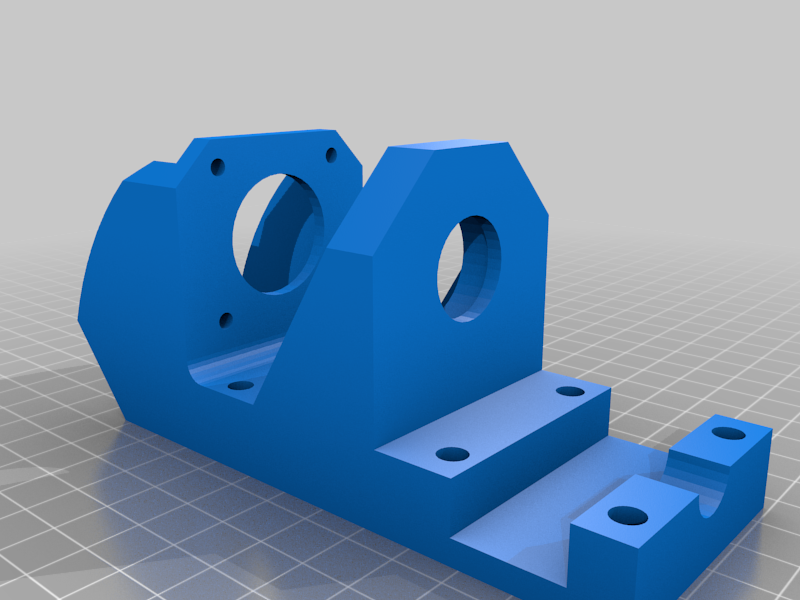

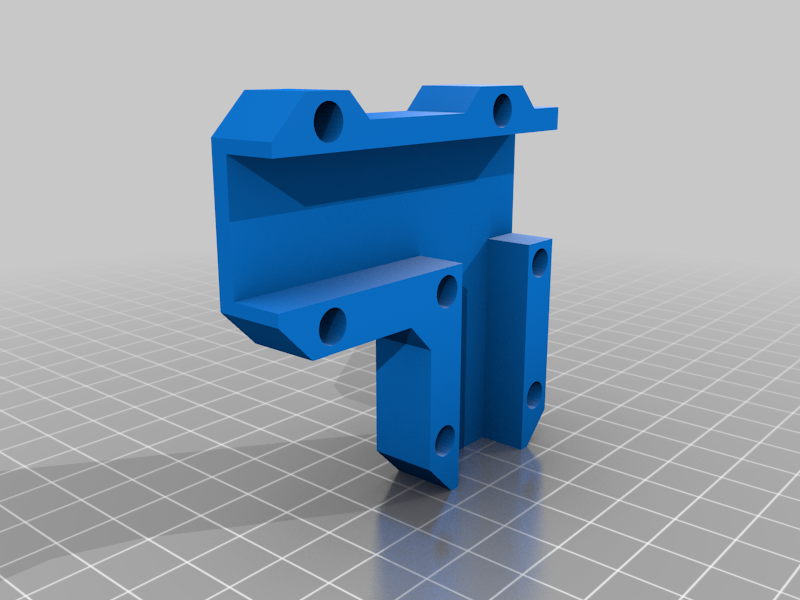

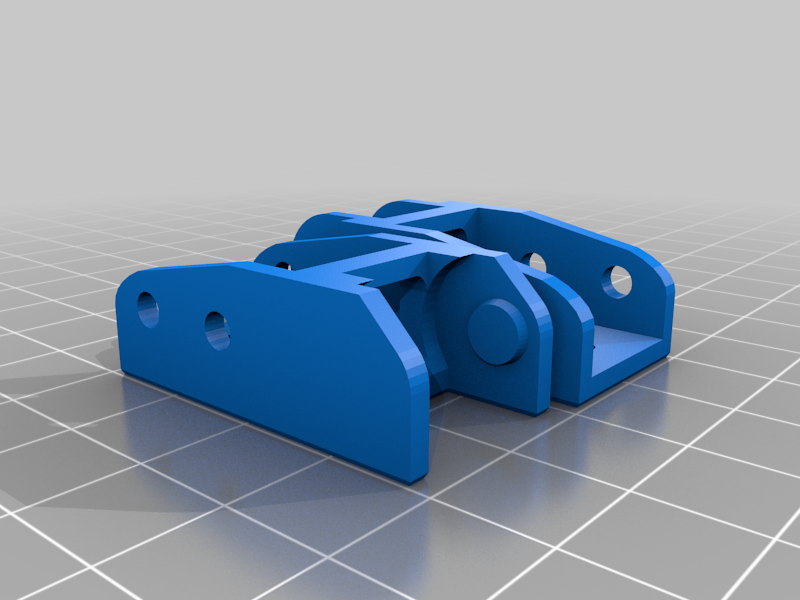

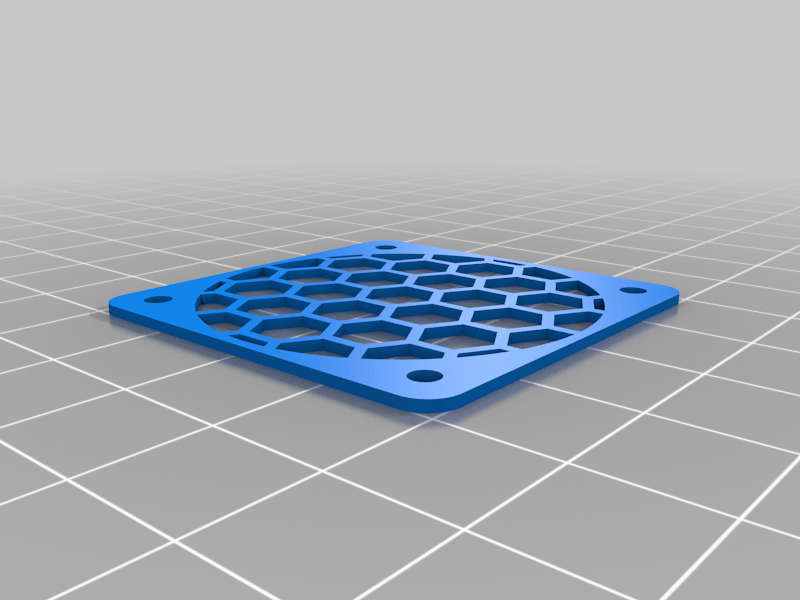

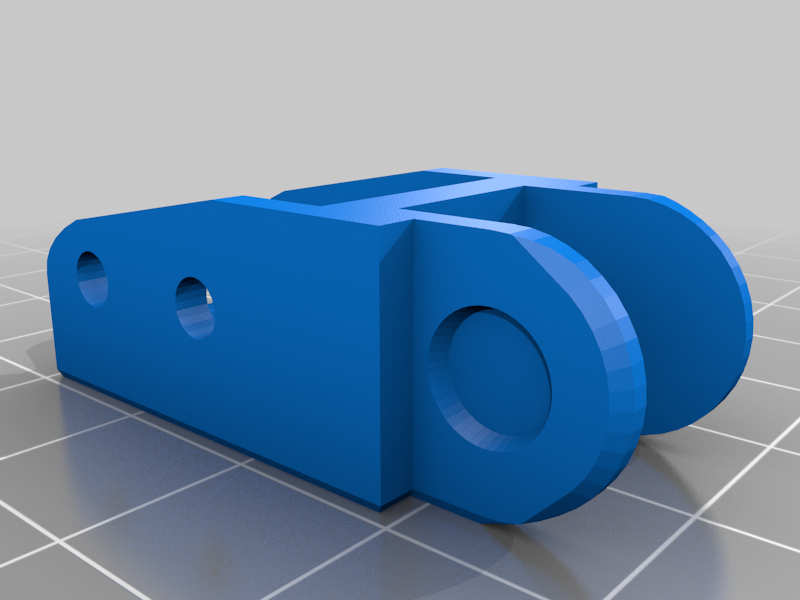

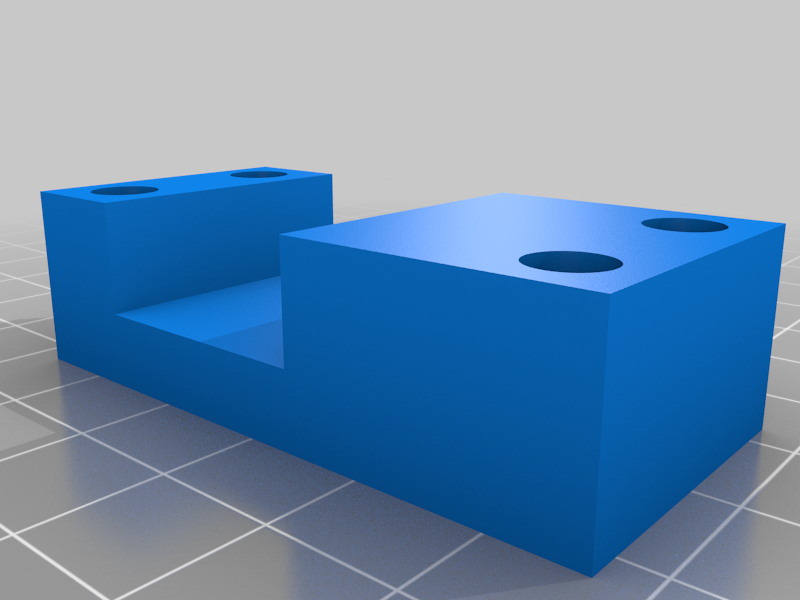

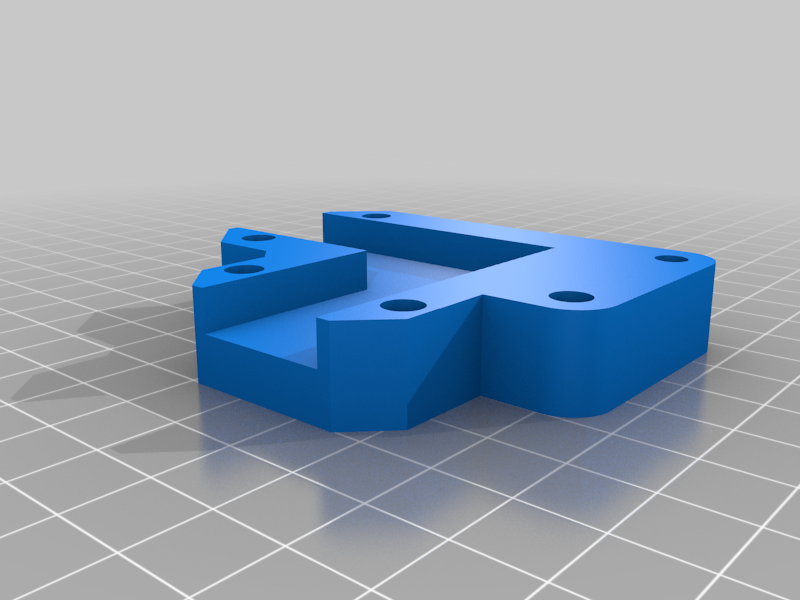

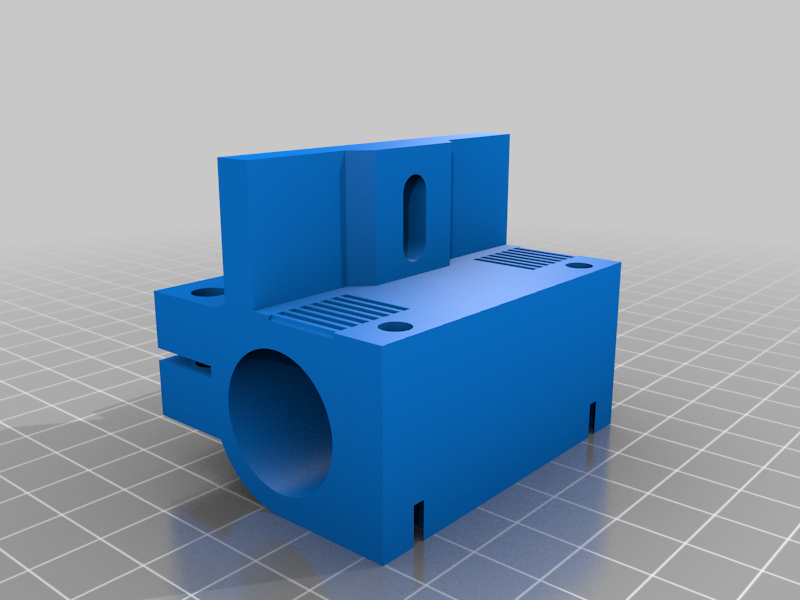

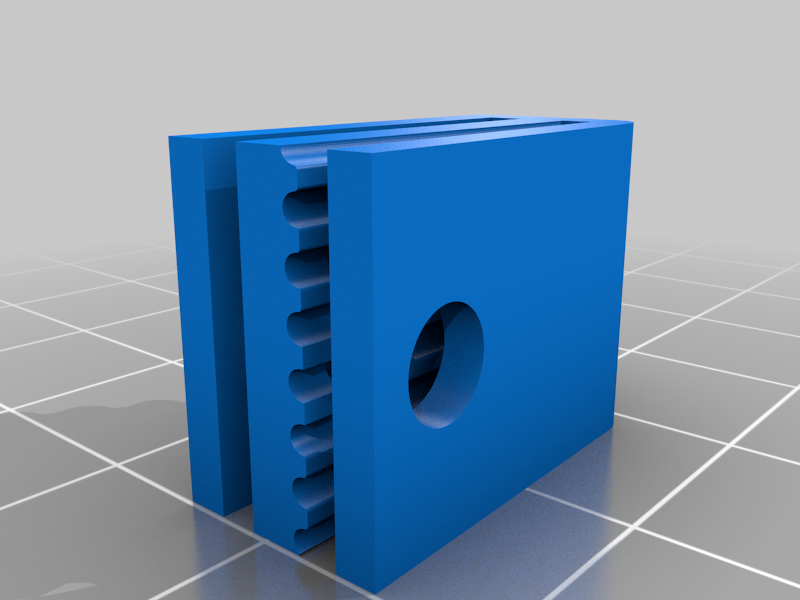

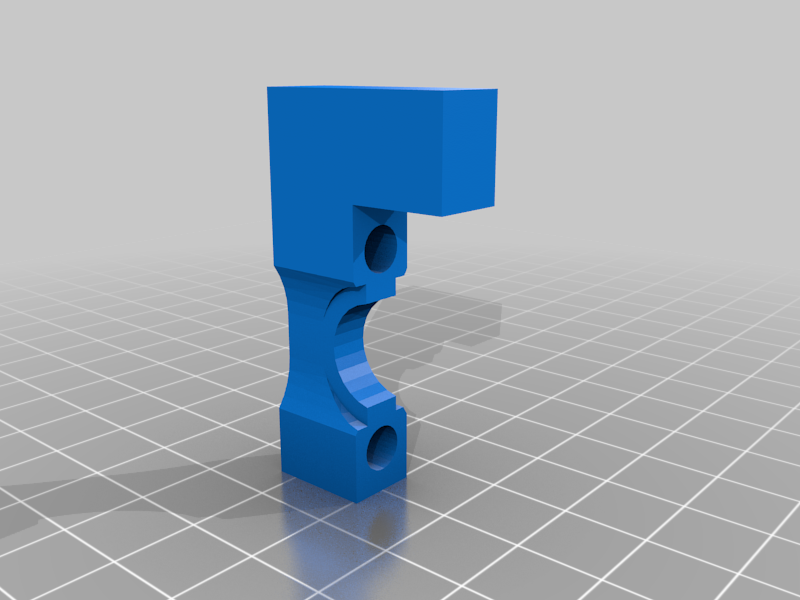

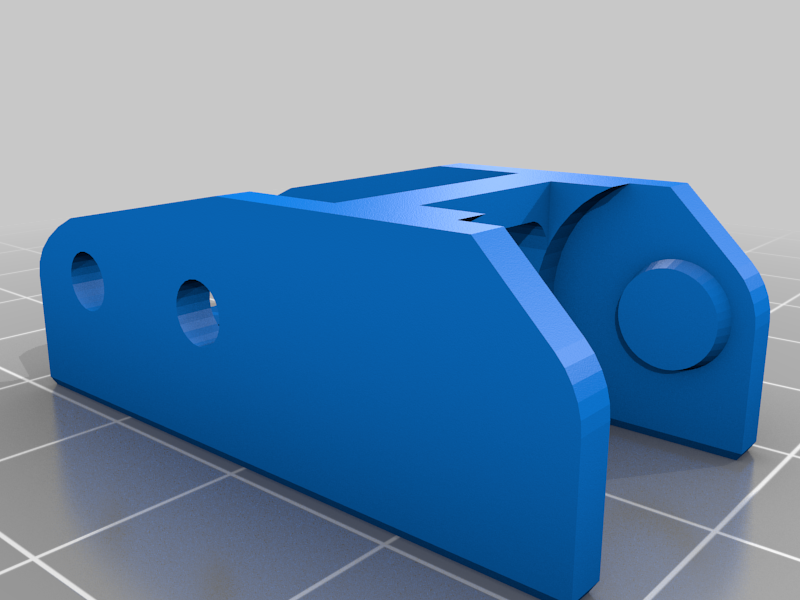

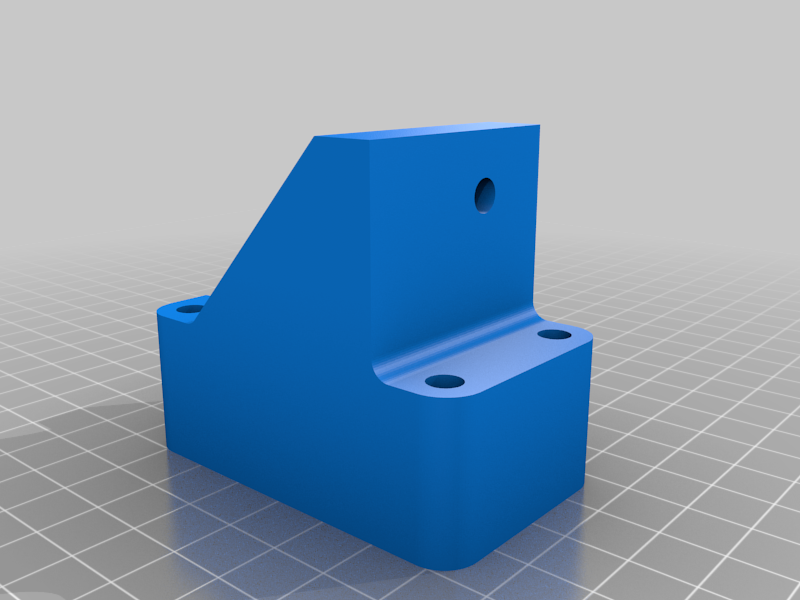

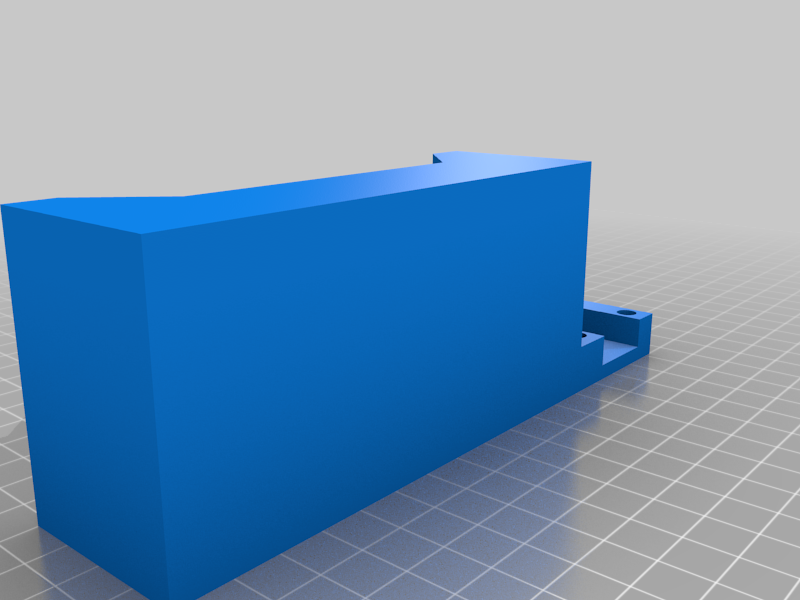

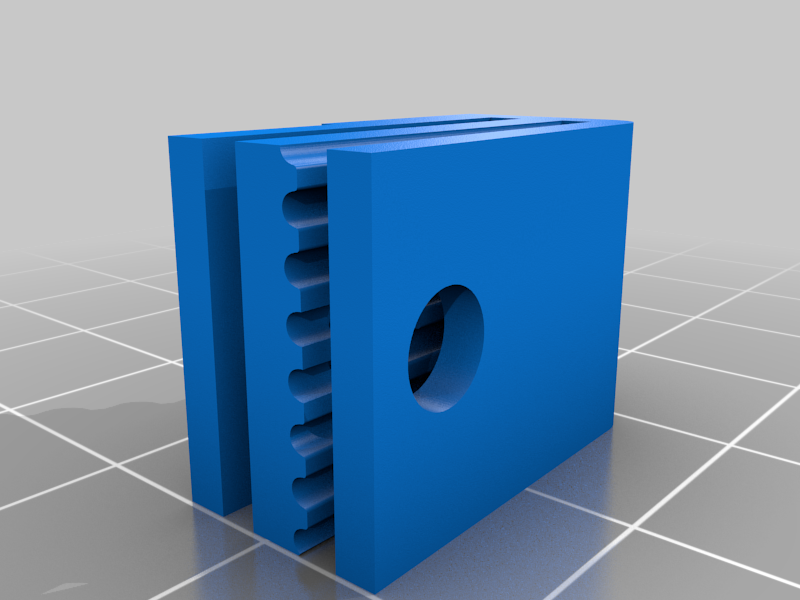

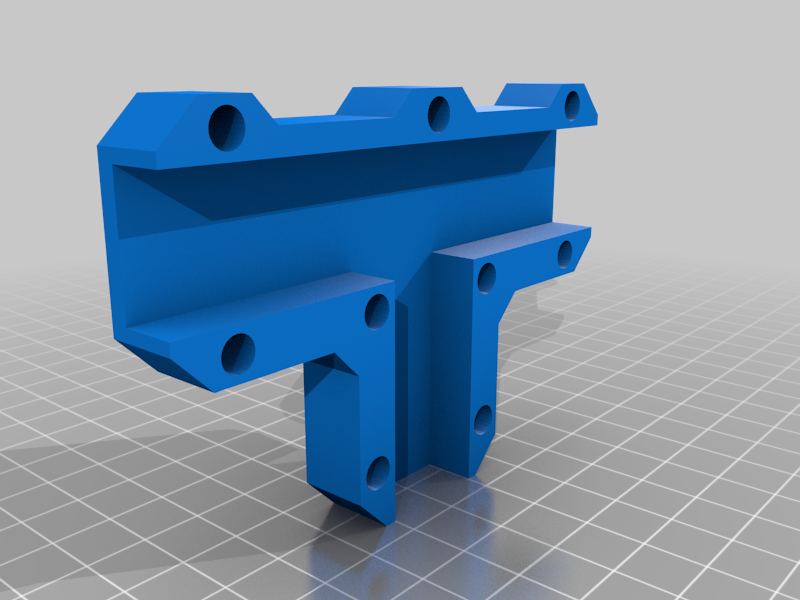

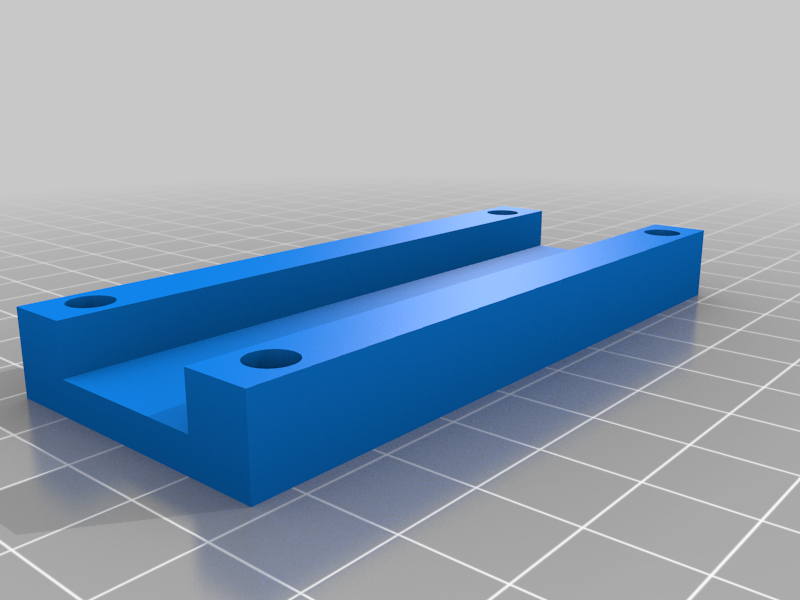

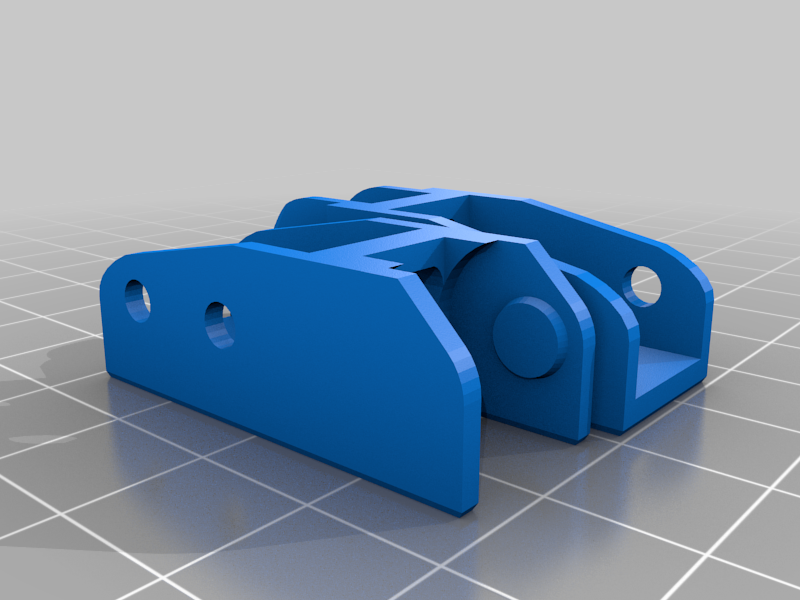

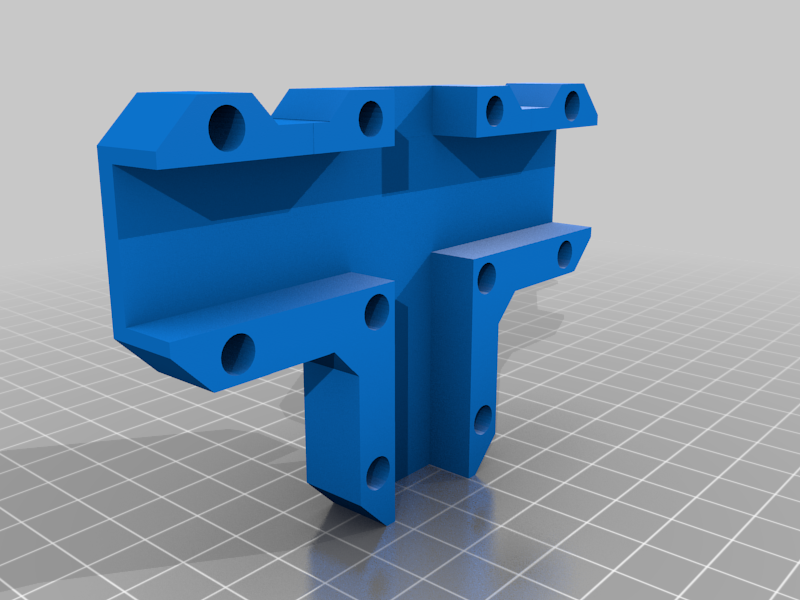

So I decided to publish my changes and improvements so far. Publishing all the files for other people's use will take some time though. Since it is a rather long list I included photos of the relevant items. All items belonging together have th same name prefix.
I also found another project here on Thingivers which customized to a size of 300x300mm and 500mm height. Some of the parts are include into my files.
Some of the files like the original cable chain came from Thingiverse. The Raspberry holder was a contribution on Ivan's pages. Unfortunately I have lost all the original URLs.
The original measurements don't give the mentioned 300x300x600, this is just the inner size. Quite some size is lost due to needed mechanics.
For a rough overview: currently I have a printable space of X:320 Y:530 Z:260. The profiles and rods have the following lengths:
X rod: 48,5 profile: 44 (difference must be same as in the original parts list)
Y: rod: 710 profile 702 (profiles could be 30mm longer for the same rod)
Z: rod/profile: 350
The short vertical profiles for the middle carrier profile is 170 but could be anything you need.
