TBS Source One Frame

by Bluto78

Printable files (7)

  • stl

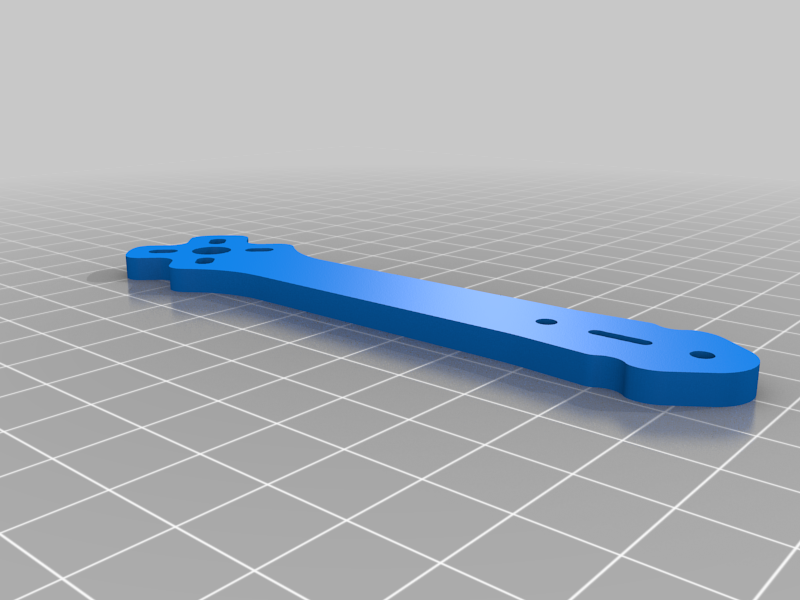

    Arm.stl

    115 Ko · 4 734 downloads

    Download
  • stl

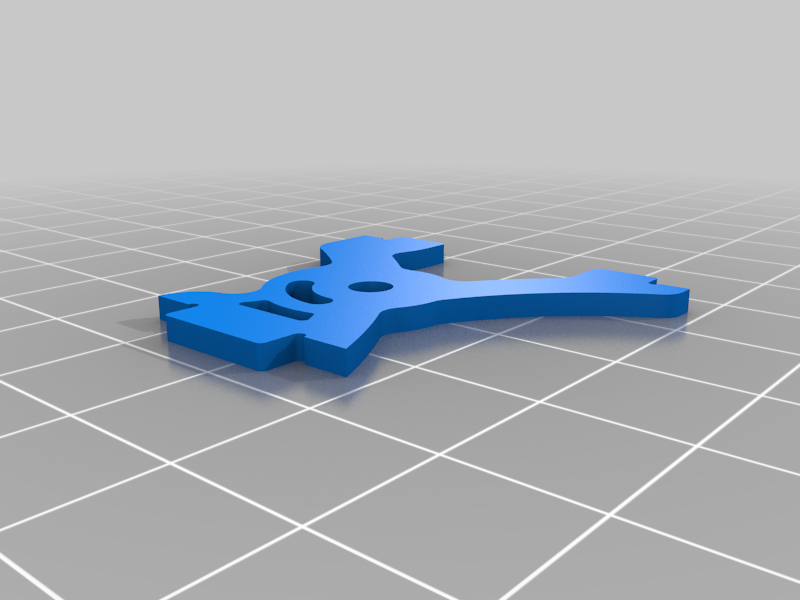

    Cam_Mount.stl

    117 Ko · 4 682 downloads

    Download
  • stl

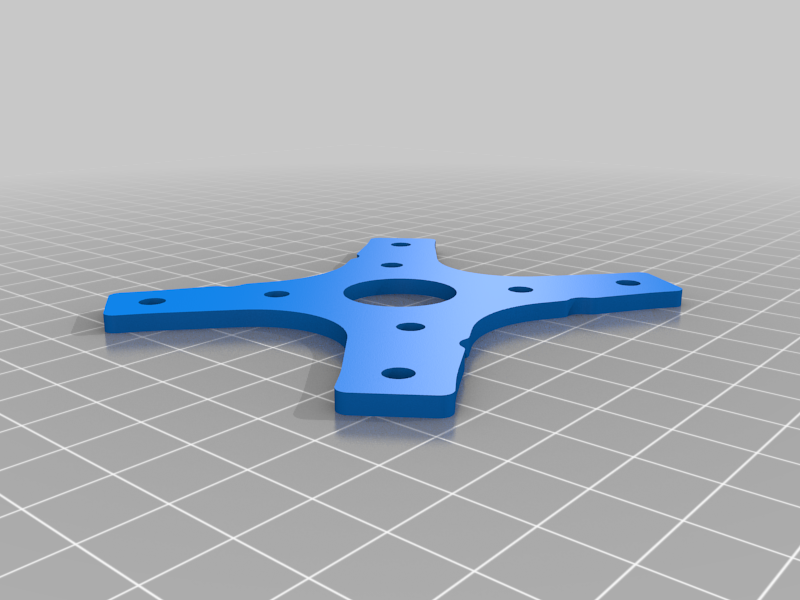

    Arm_Plate_M3_holes.stl

    143 Ko · 4 678 downloads

    Download
  • stl

    Arm_Plate_Press_Nuts.stl

    158 Ko · 4 648 downloads

    Download
  • stl

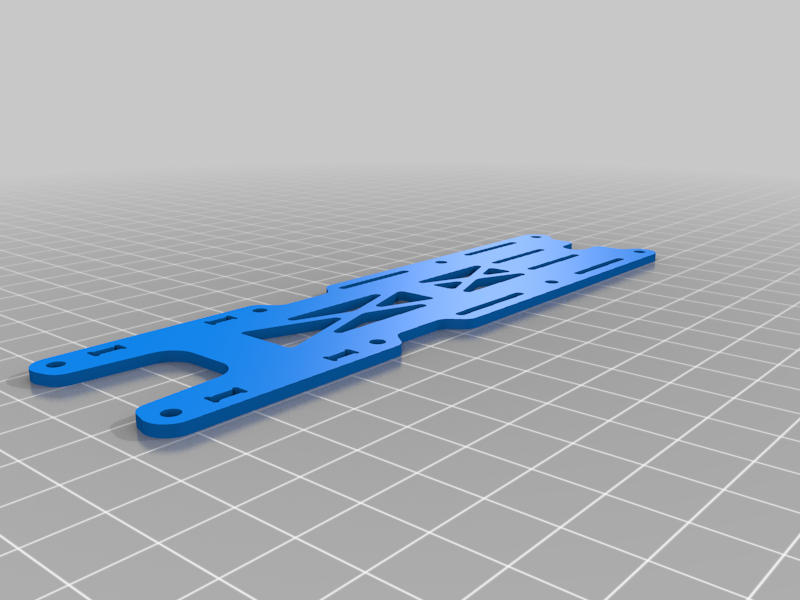

    Top_Plate.stl

    280 Ko · 4 764 downloads

    Download
  • stl

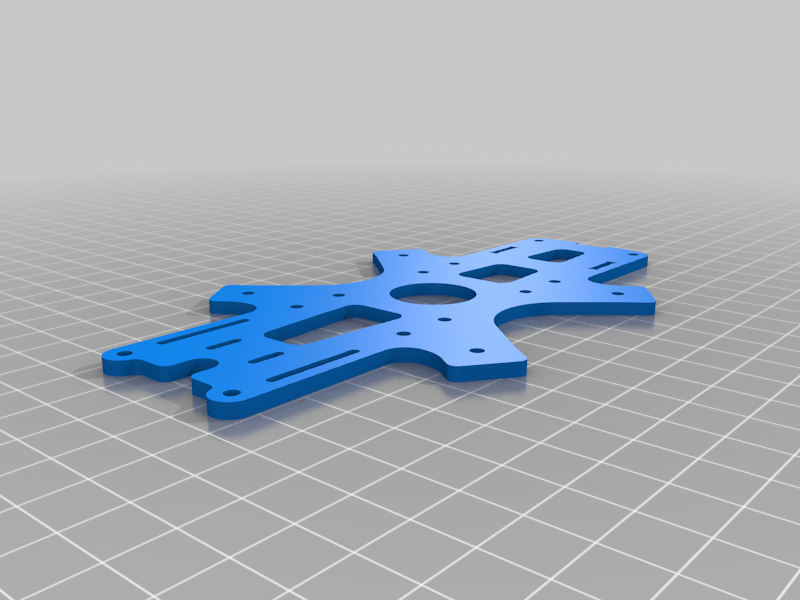

    Bottom_Plate.stl

    316 Ko · 4 700 downloads

    Download
  • stl

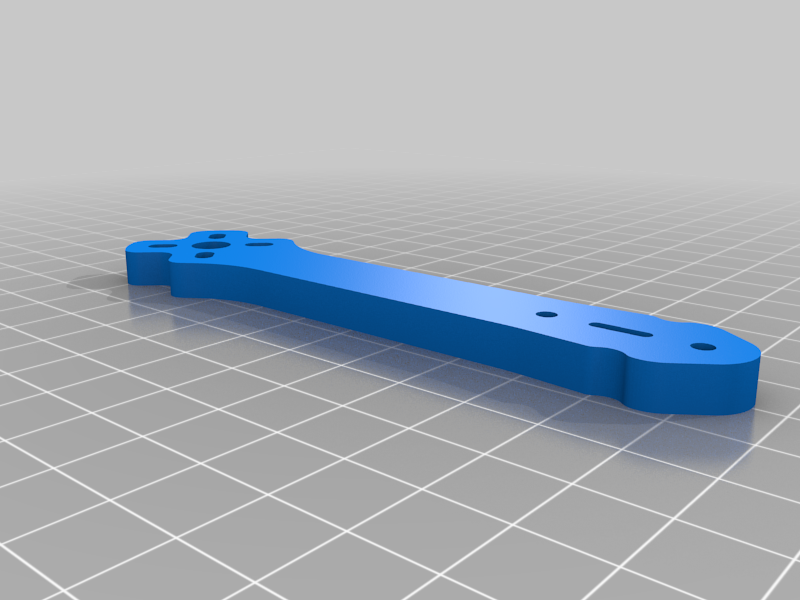

    6mm_Arm.stl

    125 Ko · 4 632 downloads

    Download

Description

TBS Source One frame. Since the files were open source I figured why not.
Print 2 camera mounts and 4 arms. Pick between M3 holes or press nut holes on the arm plate.

https://youtu.be/8qjpnIgd-O4
https://youtu.be/oWpCZgJzntc

9/30/2018 - I added a 6mm thick arm. That seemed to help mine a lot.

Tags

#drone frame #fpv #kwad #quad #Quadcopter #tbs source one
