Hypercube evolution standard new head

by heisenberg333

Printable files (7)

  • stl

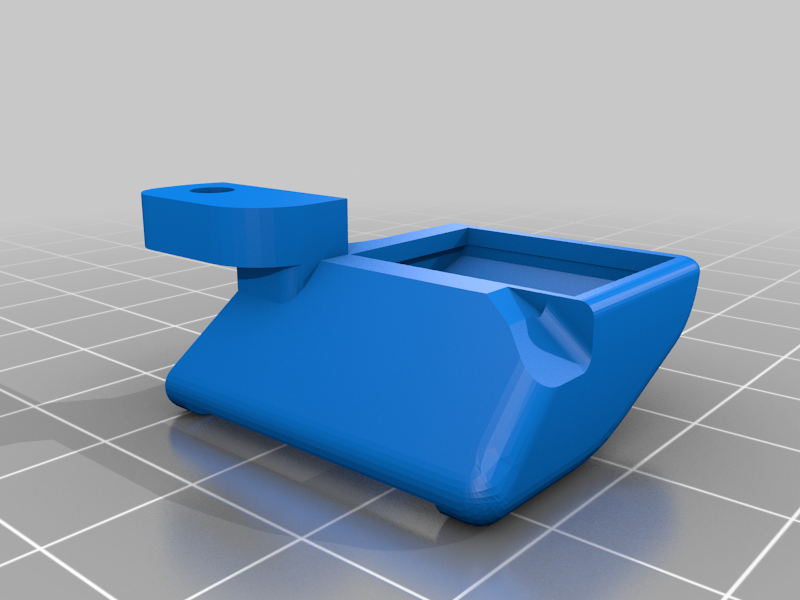

    buse.stl

    80 Ko · 1 439 downloads

    Download
  • stl

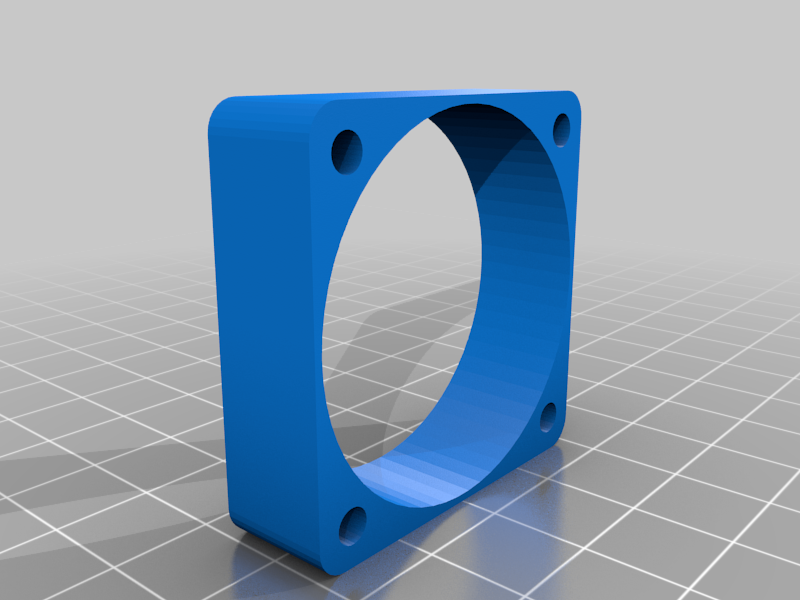

    adaptateur_fan_40.stl

    40 Ko · 1 463 downloads

    Download
  • stl

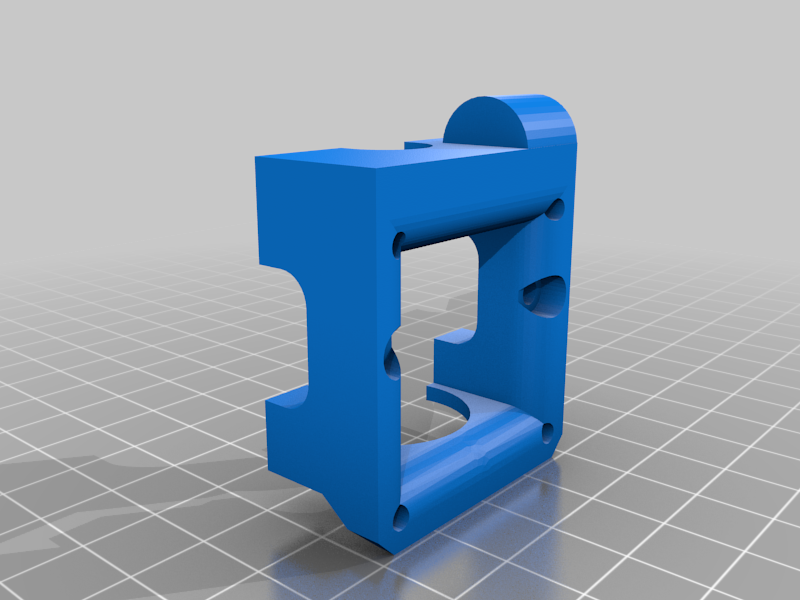

    support_e3d_avant.stl

    94 Ko · 1 477 downloads

    Download
  • stl

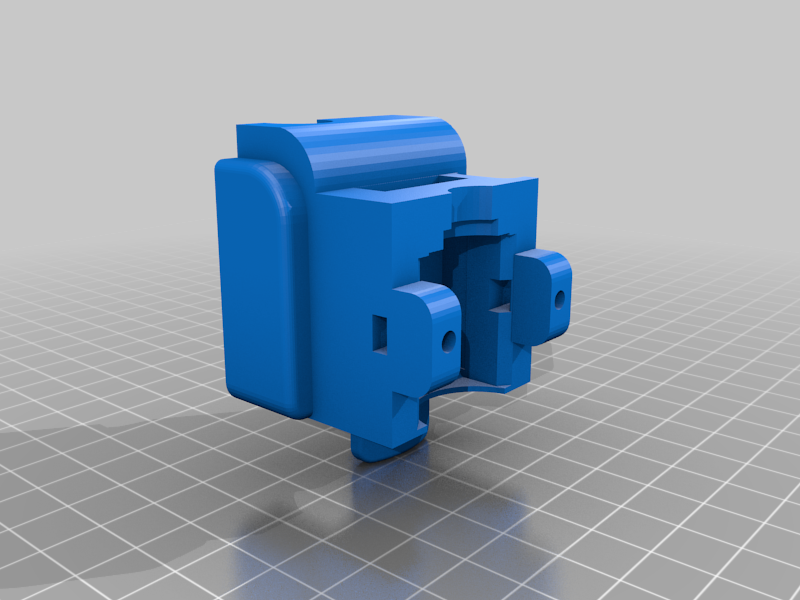

    support_e3d_arriere.stl

    208 Ko · 1 471 downloads

    Download
  • stl

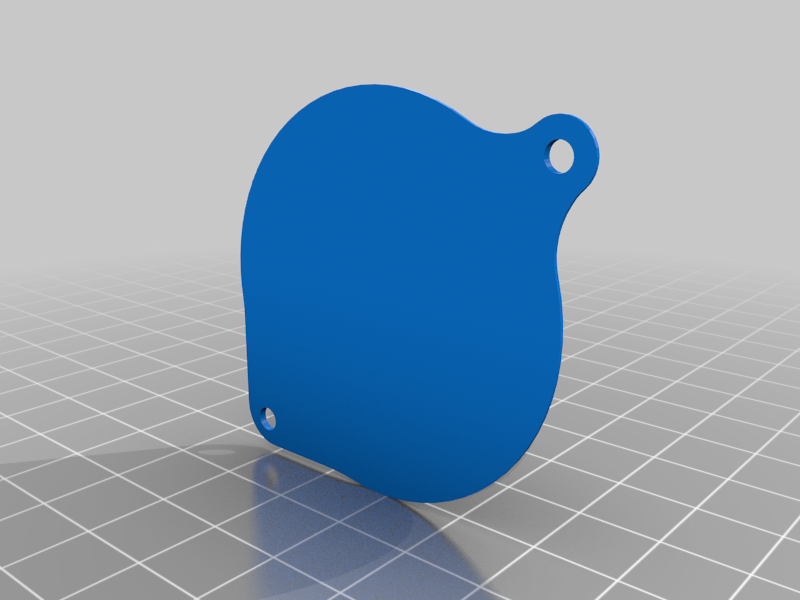

    cache_ventilo.stl

    608 Ko · 1 469 downloads

    Download
  • stl

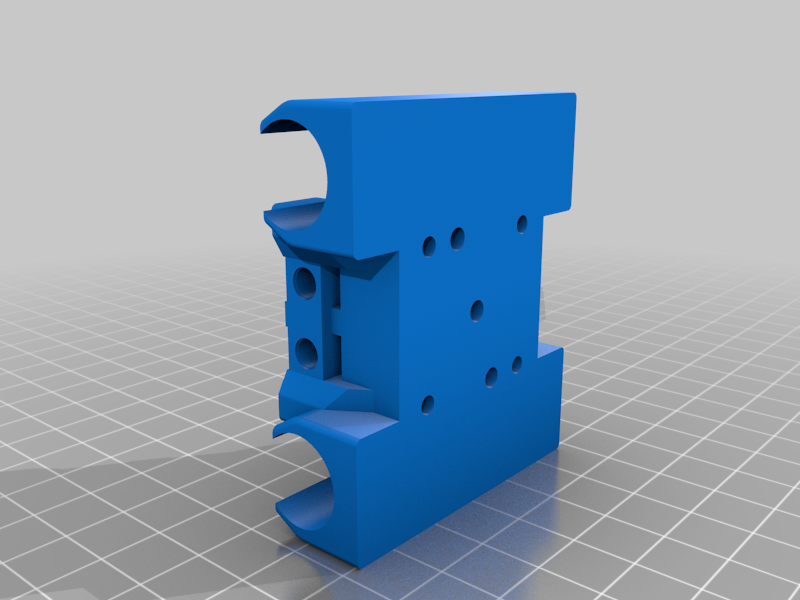

    support_palliers.stl

    996 Ko · 1 440 downloads

    Download
  • stl

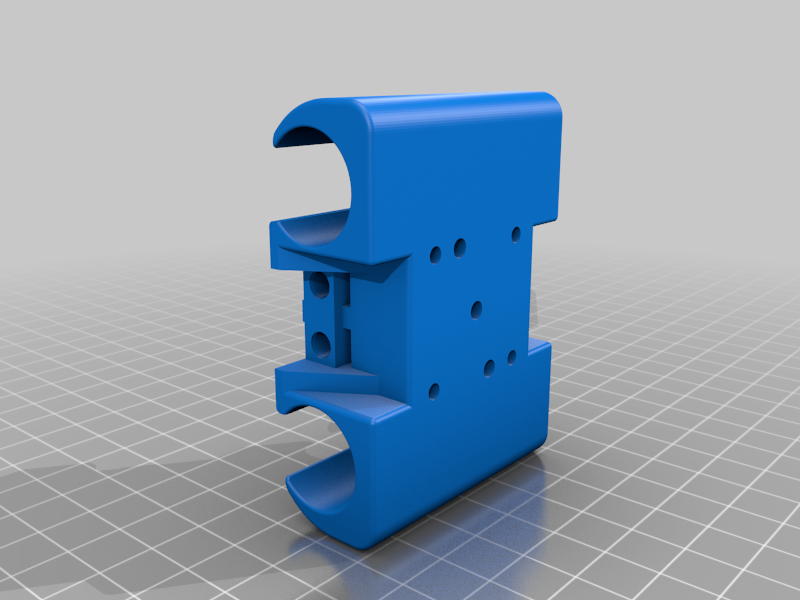

    support_x_10mm_modif.stl

    1.7 Mo · 964 downloads

    Download

Description

compact head for hypercube evolution standard.
print on PETG or ABS is recommended !!
need front fan 40mm diameter ( i have noctua 40 )
if x stopper is on left side no need cover fan
if x stopper is on right side , need to print all part with x mirror and reverse fan ,you can use cover on 5015 fan ( 5015 is install on reverse side but no probleme for airflow , hole is create for that on the head )

need
2 insert for m3 bolt
2 nut for m3 bolt
m3 bolt differents size
small screw for stopper

28-01-2019 add support for x axis 10mm ( support x 10mm modif )
