Flight Simulator Course Deviation Indicator
by CaptainBobSim
Printable files (10)
-
stlCDI_12_Stepper_Gear.stl
54 Ko · 453 downloads
-

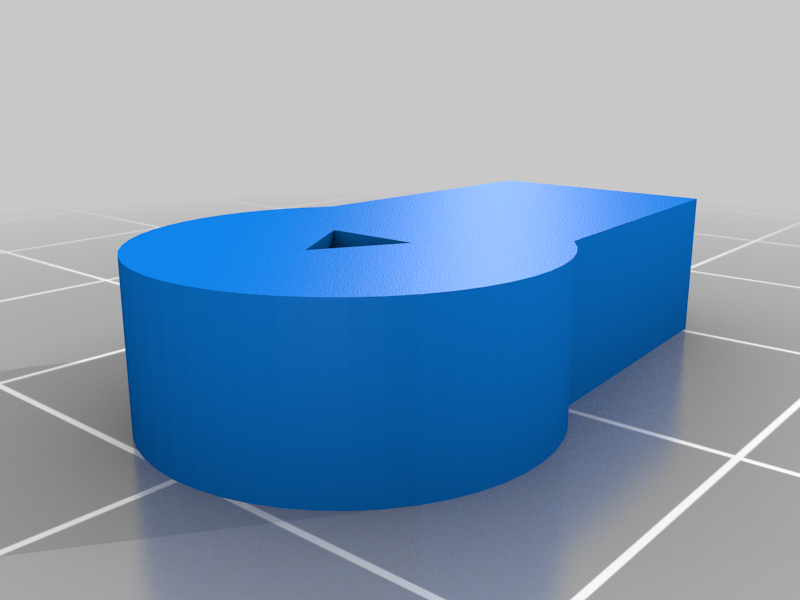

stlCDI_12_Servo_Shell.stl
15 Ko · 452 downloads
-

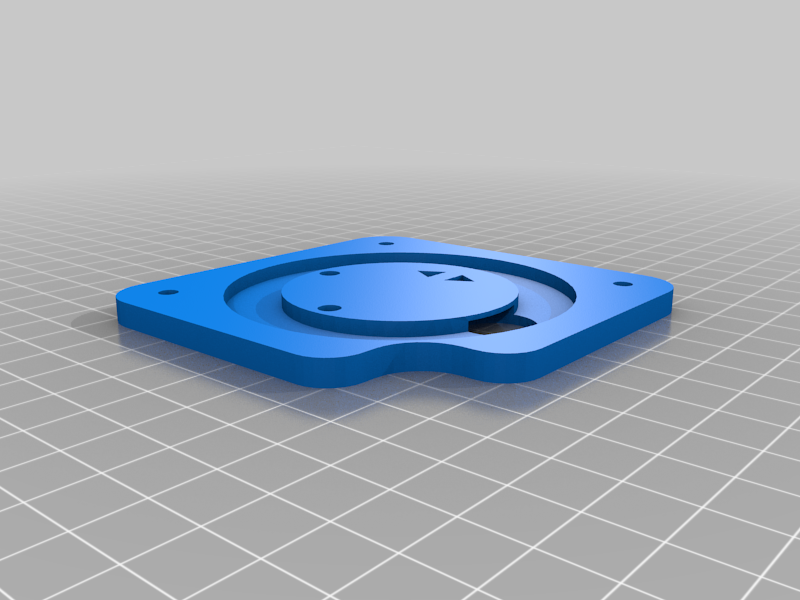

stlVOR_Faceplate_for_2_Needles.stl
69 Ko · 448 downloads
-
stlCDI_1_Needle_Horizontal.stl
7 Ko · 446 downloads
-
stlBezel_with_Knob_and_block_supports.stl
70 Ko · 458 downloads
-
stlCDI_12_Vertical_Needle.stl
7 Ko · 447 downloads
-
stlCDI_12_To-From_Indicator_Prototype.stl
17 Ko · 449 downloads
-
stlCDI_2_Faceplate_1_Needle.stl
69 Ko · 449 downloads
-
stlCDI_12_Hardware_Mount.stl
176 Ko · 454 downloads
-
stlCDI_12_Gear_Ring_Numbers.stl
168 Ko · 452 downloads
Description
Here are the VORs/CDIs for a flight simulator. They will be configured with MobiFlight.
View the build video here: https://youtu.be/Jq4_RMyj-hM
The configuration video has not been published as of writing this.
(I really just need to get off my bum and film it. Right?)
The decals are in this folder for higher resolution: https://drive.google.com/drive/folders/1r1SBga4WL2TXje20luGypGTj4T9WZyP7?usp=sharing as well as the GIMP file.
If you would like to purchase the printed parts, and/or a kit with the hardware, email me at CaptainBobSim@gmail.com.
Feel free to leave any comments, and ask any questions!
If you'd like to support projects like this in the future, feel free to leave a tip.
Release 1.0: Files Released
Release 1.1: FreeCAD prototype files and STLs attached 7.9.2021
