Quick Point Sight-Open
by TimETraveller8
Printable files (13)
-

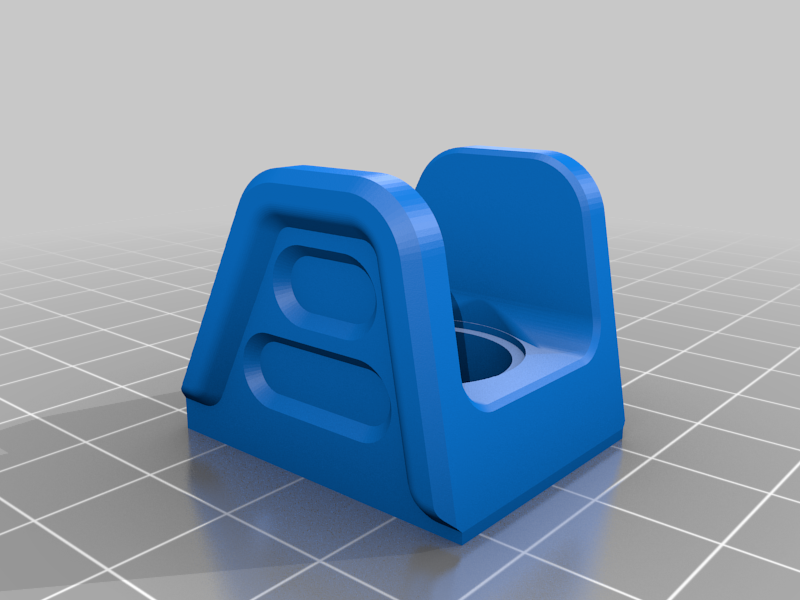

stlQPS-OPEN_FWD-TOP_V1-0.stl
524 Ko · 2 107 downloads
-

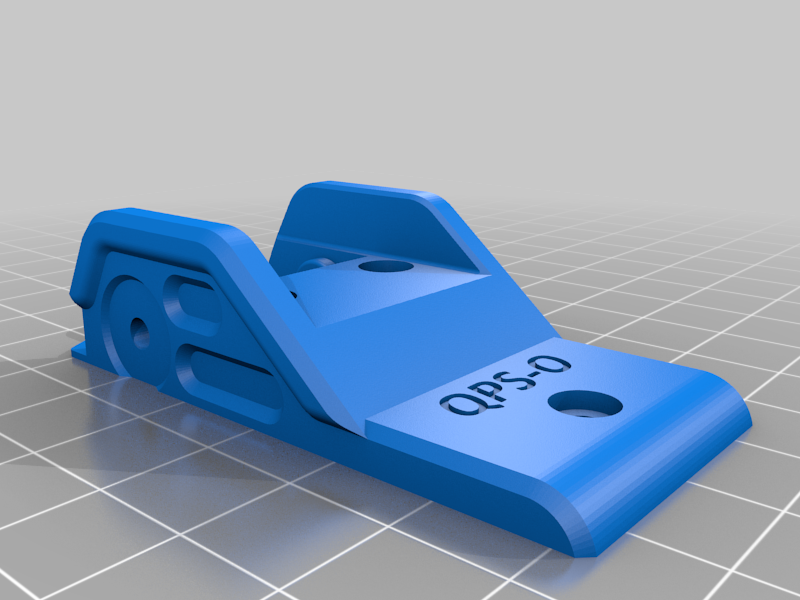

stlQPS-OPEN_AFT-TOPUPR_V1-0.stl
450 Ko · 2 097 downloads
-

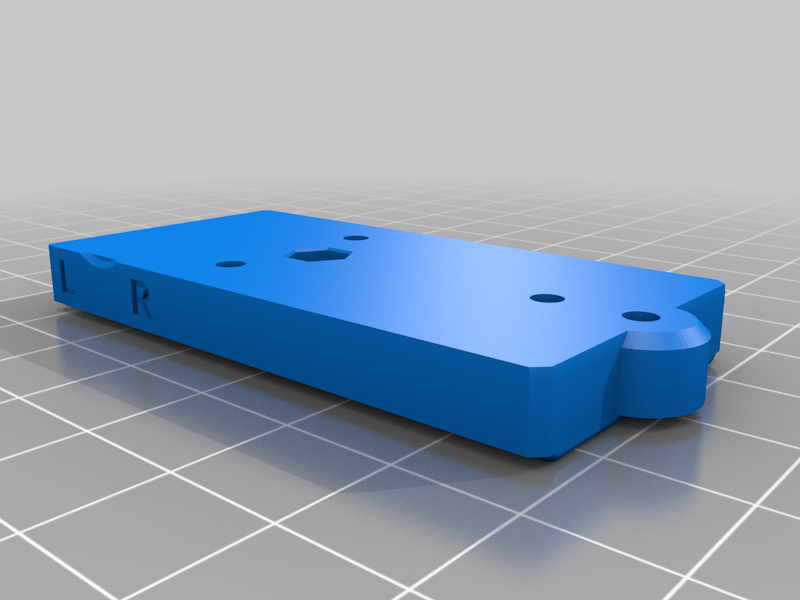

stlQPS-OPEN_AFT-TOPLWR_V1-0_REQS-SUPPORTS.stl
152 Ko · 2 083 downloads
-

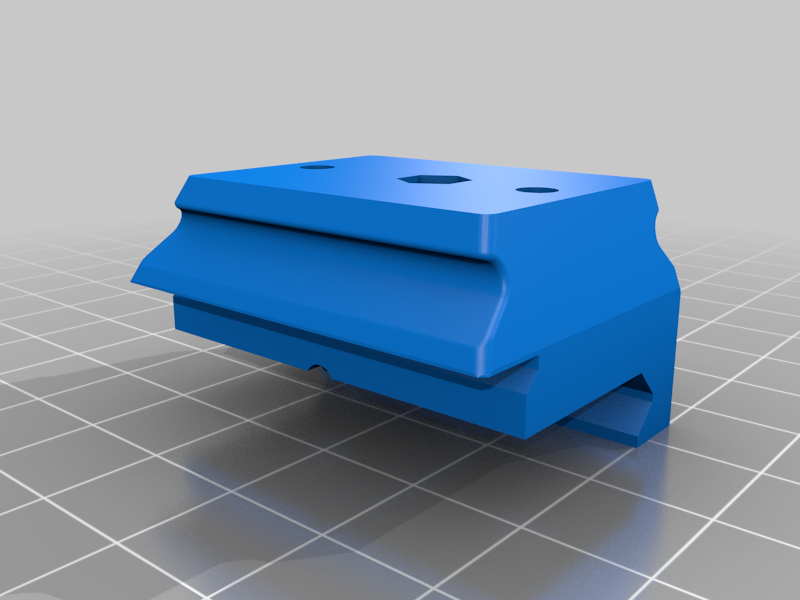

stlQPS-OPEN_FWD-MNT_V1-0_REQS-SUPPORTS.stl
263 Ko · 2 080 downloads
-

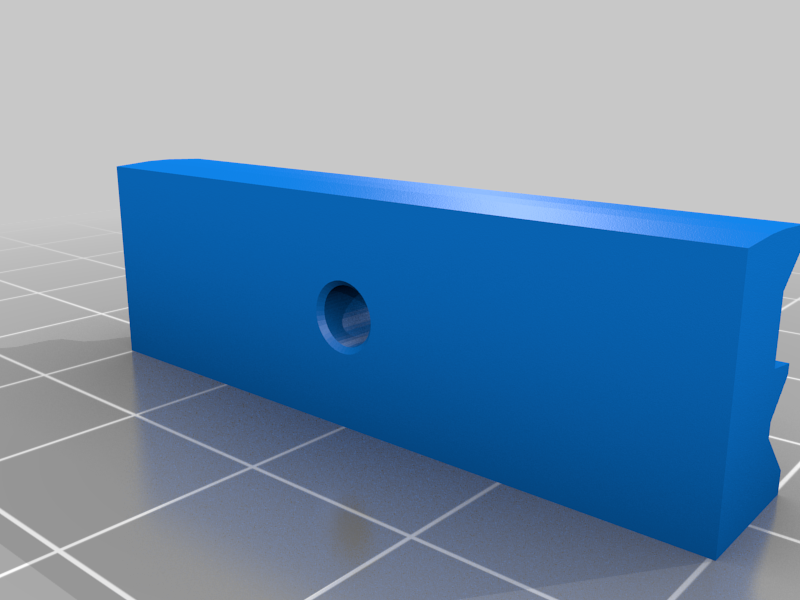

stlQPS-OPEN_FWD-MNTSIDE_V1-0.stl
37 Ko · 2 080 downloads
-

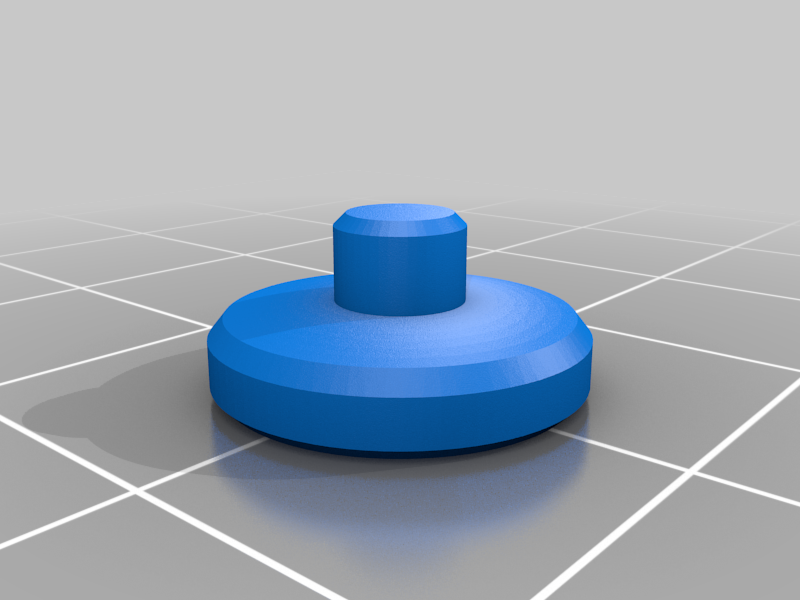

stlQPS-OPEN_FWD-SIGHT_V1-0.stl
142 Ko · 2 075 downloads
-

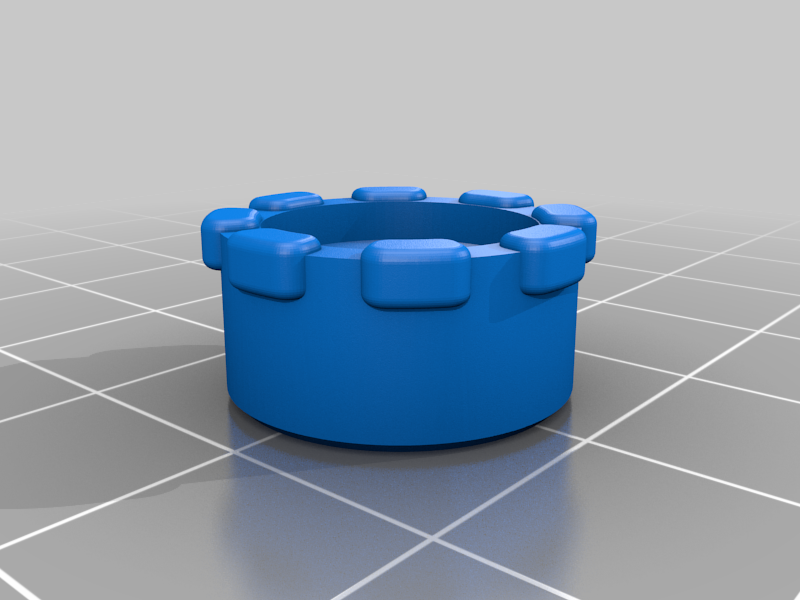

stlQPS-OPEN_FWD-SIGHT-ADJ_V1-0.stl
742 Ko · 2 073 downloads
-

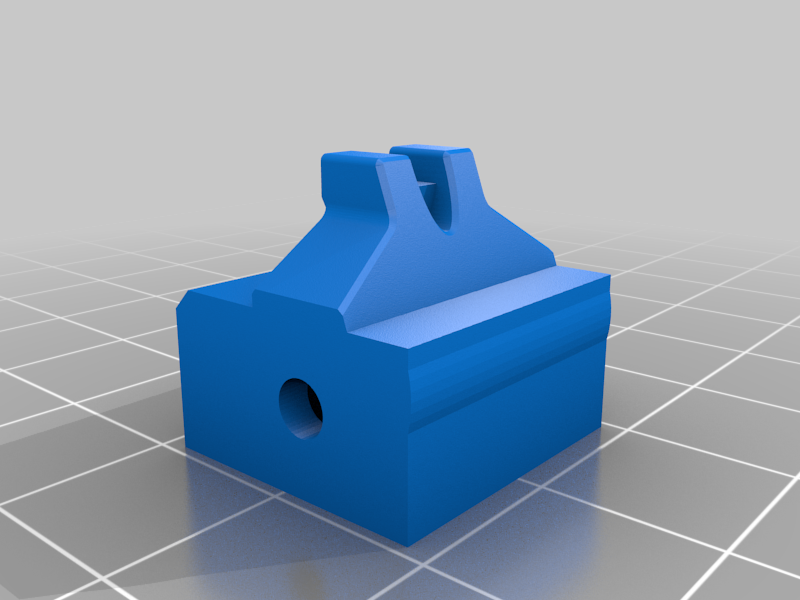

stlQPS-OPEN_AFT-SIGHT_V1-0.stl
104 Ko · 2 076 downloads
-

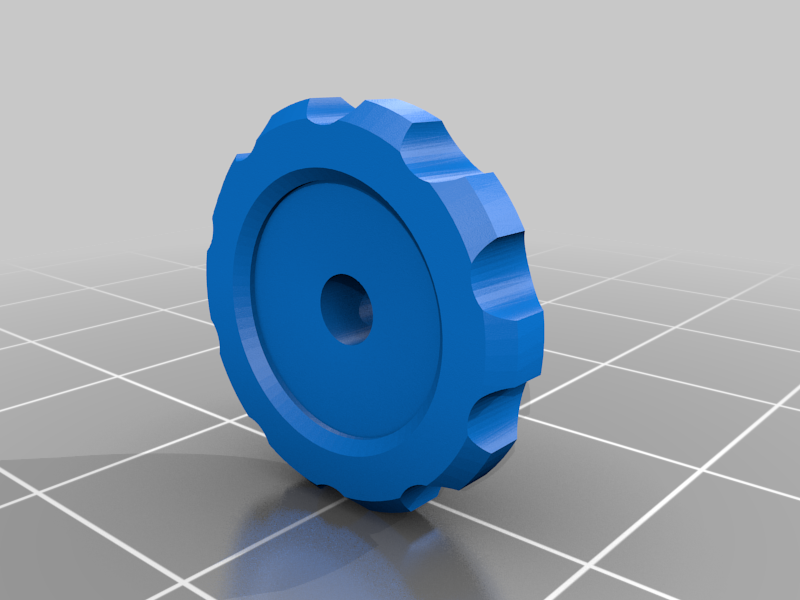

stlQPS-OPEN_YADJ-MED_V1-0.stl
180 Ko · 2 077 downloads
-

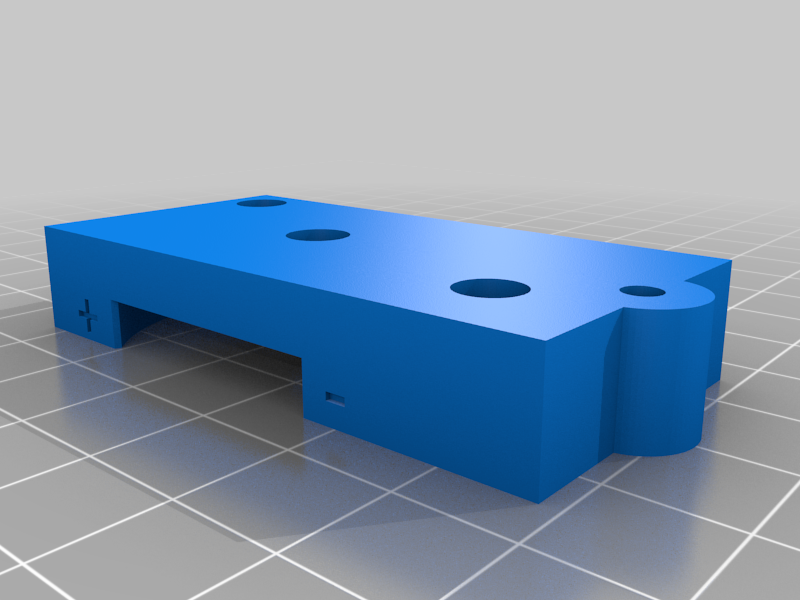

stlQPS_MNTUPR_V1-0.stl
97 Ko · 2 080 downloads
-

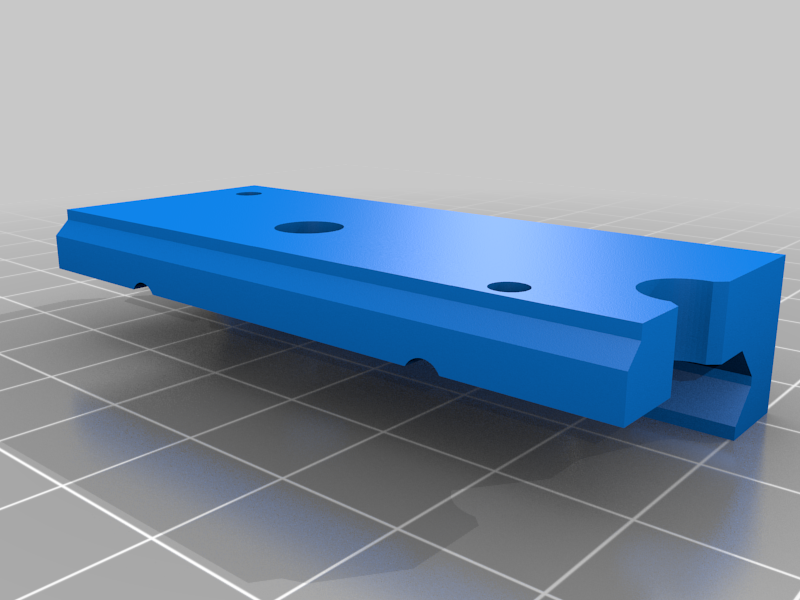

stlQPS_MNTLWR_V1-0.stl
100 Ko · 2 079 downloads
-

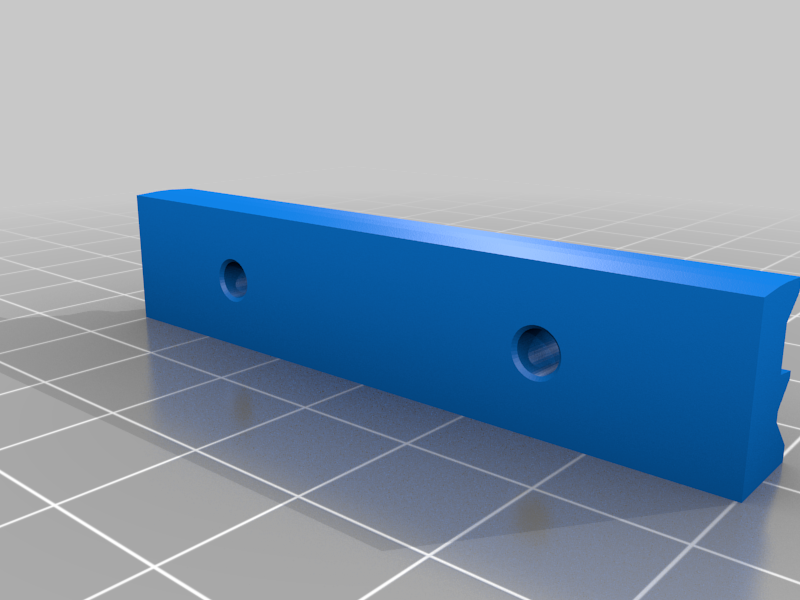

stlQPS_MNTSIDE_V1-0.stl
57 Ko · 2 075 downloads
-

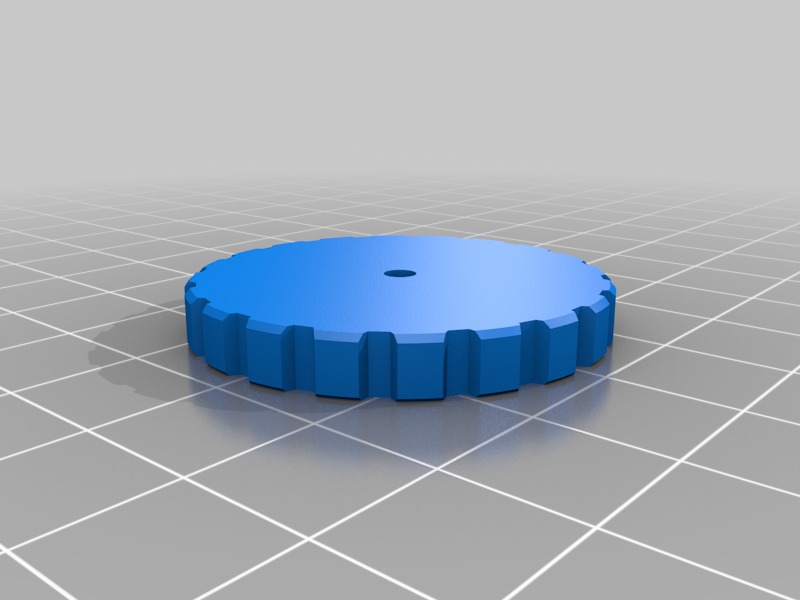

stlQPS_ZADJ_V1-0.stl
79 Ko · 2 077 downloads
Description
QPS-Open version for larger 3D printed Nerf blasters.
DESCRIPTION
The QPS-Open Sight is a New version of my original Quick Point Sight with separate adjustable fore sight part aimed at larger 3D printed blasters such as the Tempus blaster.
It is setup for Nerf blasters which have a larger amount of dart drop over distance.
Useful both for teaching basic sight adjustment & also for Nerf battles.
Attachment is for Picatinny rail.
DESIGN NOTES
This is two part sight based on my original QPS design, with the rear sight using parts from the original.
Original QPS design is available here:- https://www.thingiverse.com/thing:4705126
3D PRINTING NOTES
Generally print out using typical PLA 0.2mm layer height, 30% infill settings, No supports.
The Front Mount & the Aft Top Lower parts do require supports for the M3 nut recess (the STLs are marked).
The Fwd Sight, Sight Adjustment, and Rear Sight parts do benefit from a finer layer height of say 0.15mm.
ASSEMBLY NOTES
See Photo build guide pdf.
Tim.
PARTS REQUIRED
M3 Plain Nuts (7x)
M3x8 Socket Hd Bolt (4x)
M3x10 Socket Hd Bolt (4x)
M3x12 Socket Hd Bolt (1x)
M3x20 Socket Hd Bolt (1x)
M3x30 Socket Hd Bolt (3x)
PARTS INCLUDED (STL)
QPS-OPEN_FWD-TOP_V1-0.stl
QPS-OPEN_AFT-TOPUPR_V1-0.stl
QPS-OPEN_AFT-TOPLWR_V1-0 (REQS-SUPPORTS).stl
QPS-OPEN_FWD-MNT_V1-0 (REQS-SUPPORTS).stl
QPS-OPEN_FWD-MNTSIDE_V1-0.stl
QPS-OPEN_FWD-SIGHT_V1-0.stl
QPS-OPEN_FWD-SIGHT-ADJ_V1-0.stl
QPS-OPEN_AFT-SIGHT_V1-0.stl
QPS-OPEN_YADJ-MED_V1-0.stl
QPS_MNTUPR_V1-0.stl
QPS_MNTLWR_V1-0.stl
QPS_MNTSIDE V1-0.stl
QPS_ZADJ_V1-0.stl
