Balsa Stripper
by AeroMartin
Printable files (5)
Description
10/20/2024 Update: Added a protective guard to cover the blade, for safely store this handy tool. Check out a quick video for assembling at https://youtu.be/u935PC7Adco Enjoy!
Introduction
Balsa Stripper that cuts balsa sticks and more. Designed with precision in mind.
Calibrate flow rate, temperature, and other parameters carefully before printing.
BOM:
M3x50mm x1
M3x16mm Self-tapping x2
M3 nut x2
M3 lock nut x1 (or 2x M3 nuts)
Washer x2

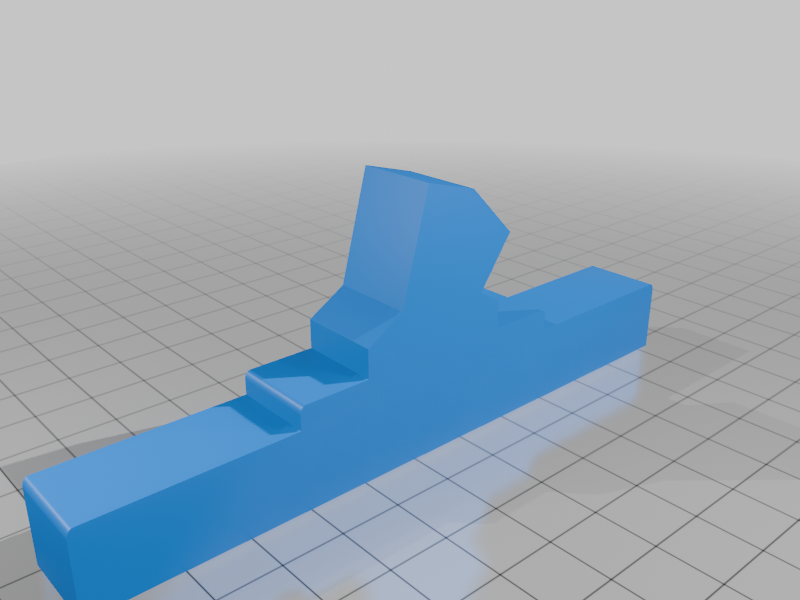

Use PLA+ for all components, except the blade guard. Use flexible TPE filament to print the blade guard. 20% Infill.
Assembly Instructions
See Photo/TinkerCAD drawing or watch the YouTube video:

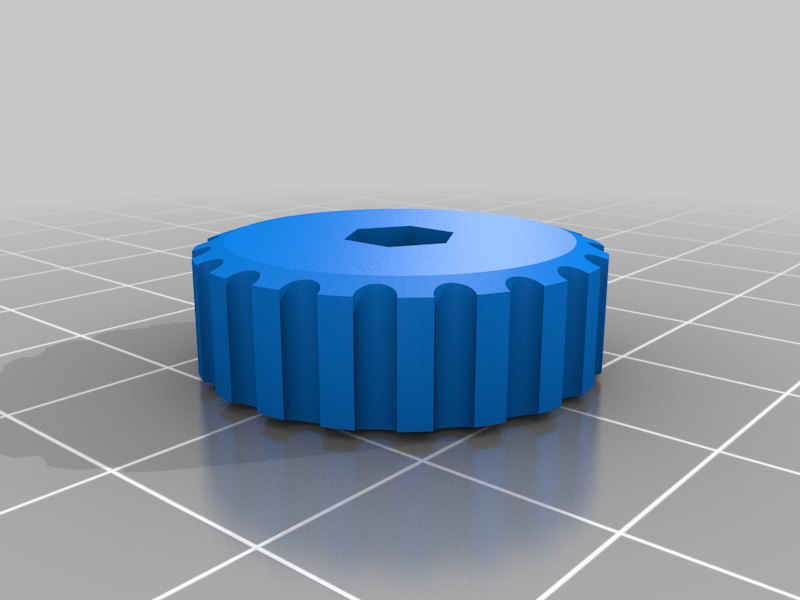

- Put a M3 nut in the cavity of the Knob piece. Screw in the main M3x50 screw.

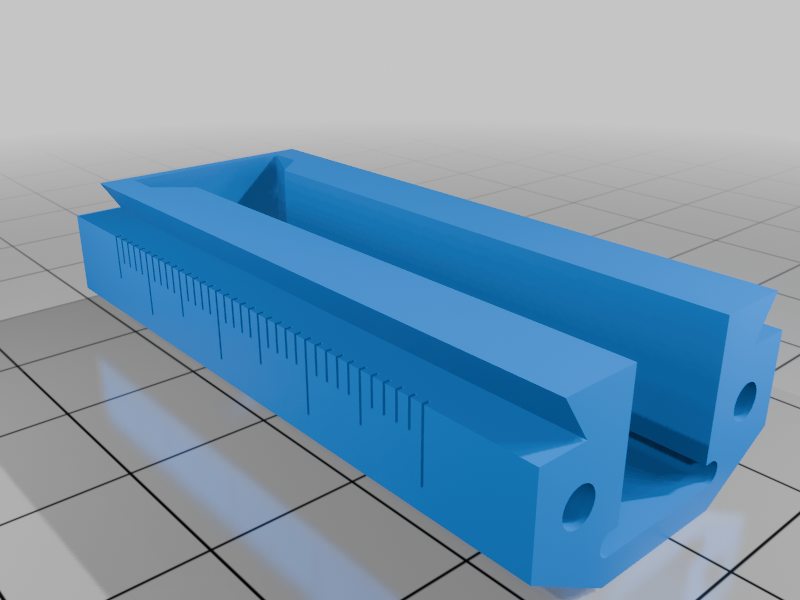

- Add a washer and then slide the set though the hole of the Slider piece.
- (See photo) Add another washer then a M3 Lock nut to the main screw. (If no lock nut, you may use two M3 nuts, i.e. double nuts.) Make sure the M3x50 main screw is free to turn afterwards

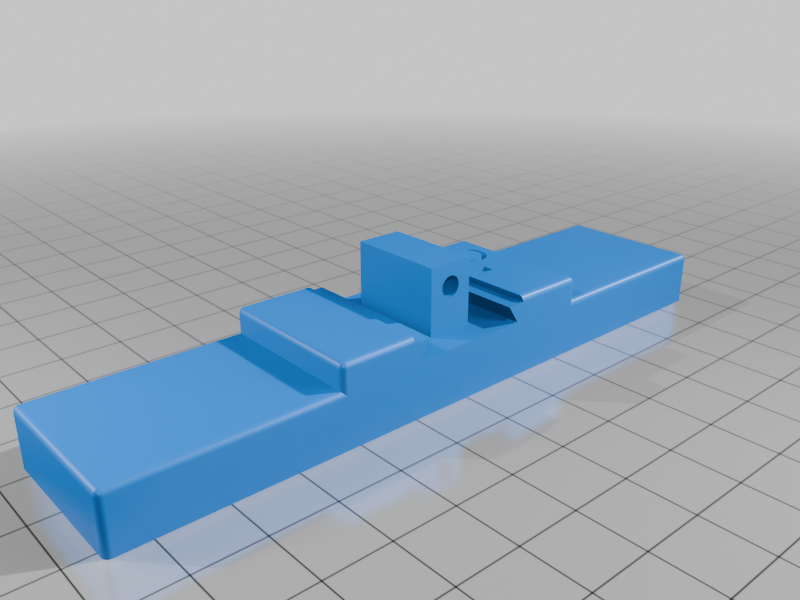

- Slide the slider set (turn the knob) to the base piece.

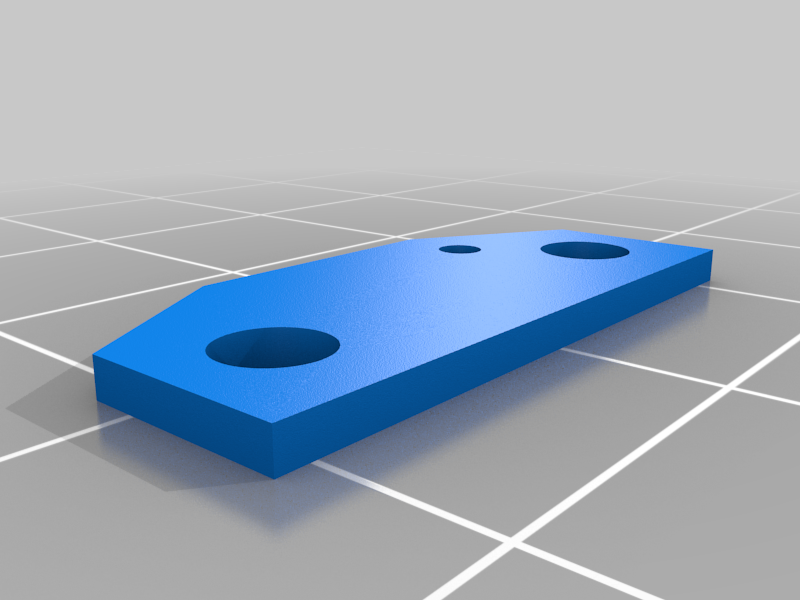

- Put a knife blade in between the two Clamps. Use 2x M3x16 self-tapping screws to secure the set onto the Slider.
