Gridfinity Ultralight Base
by Danimal91
Printable files (7)
-

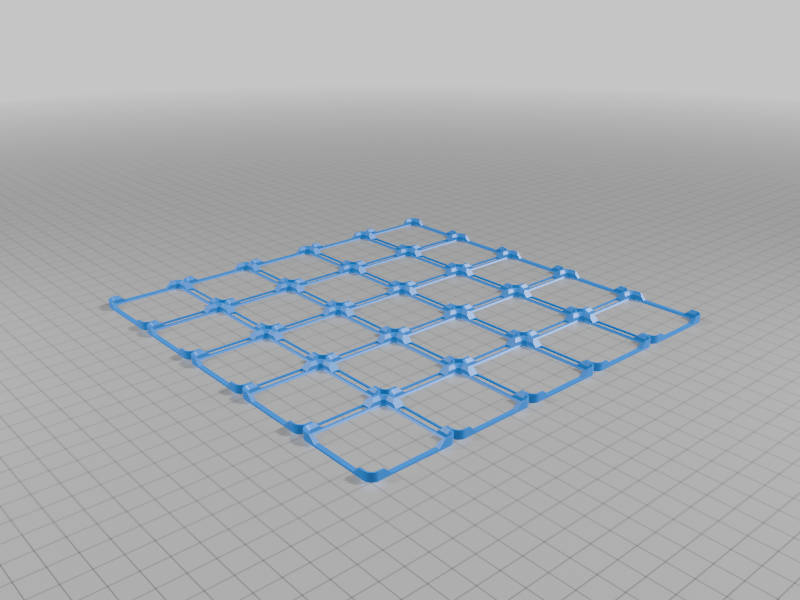

stlSkeletonbase5x5.stl
2.3 Mo · 1 130 downloads
-

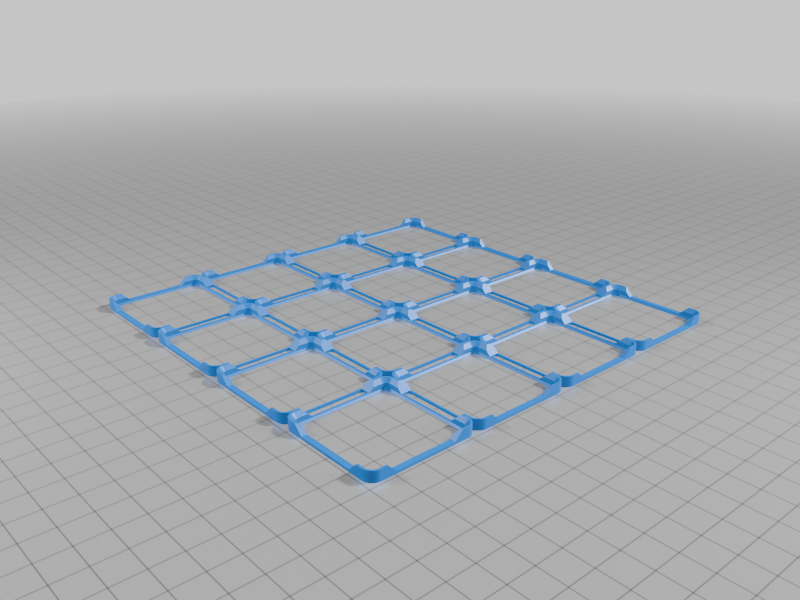

stlSkeleton_base_4x4.stl
1.5 Mo · 906 downloads
-

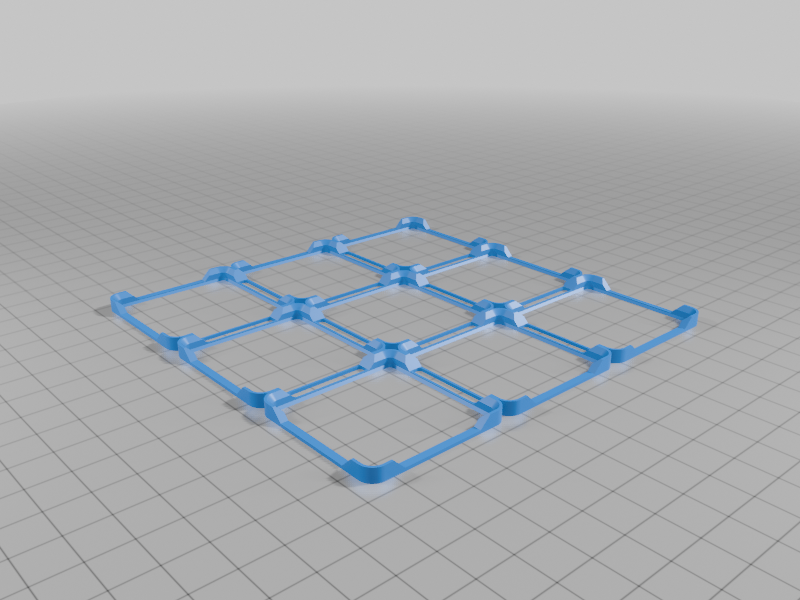

stlSkeleton_base_3x3.stl
892 Ko · 795 downloads
-

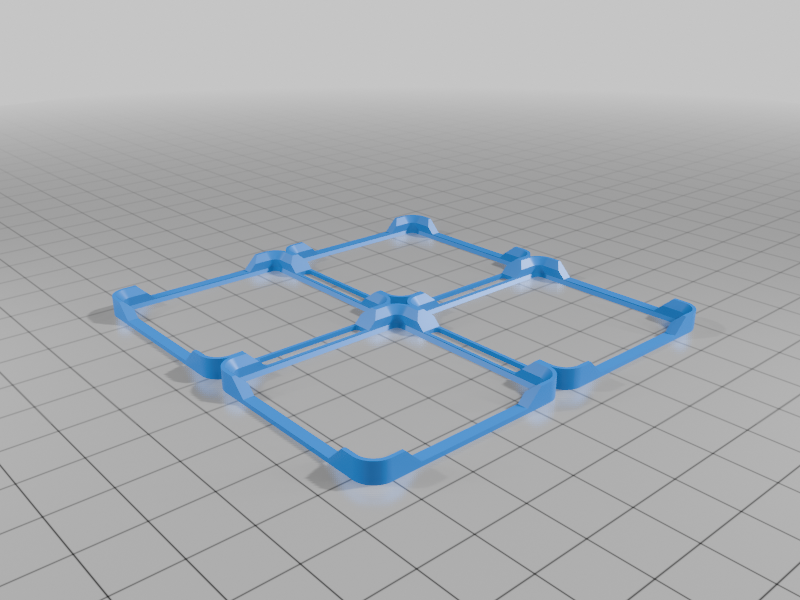

stlSkeleton_base_2x2.stl
387 Ko · 756 downloads
-

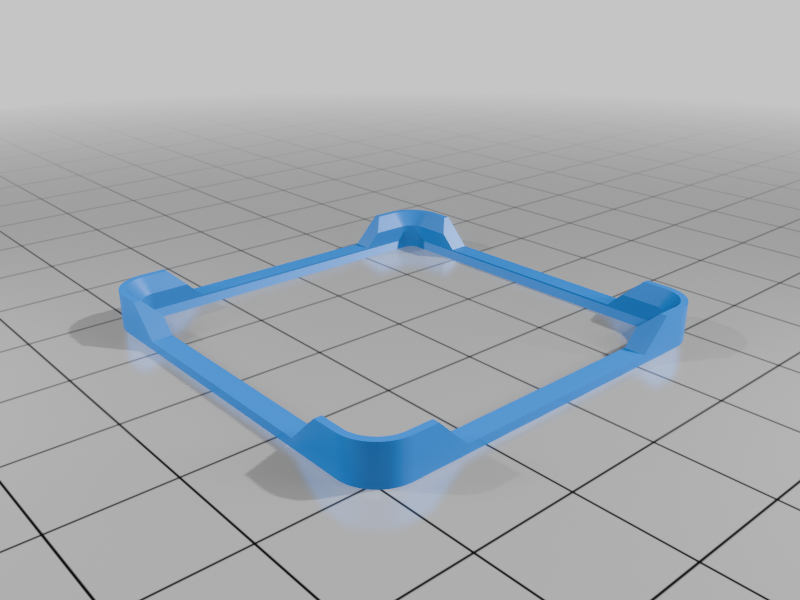

stlSkeleton_base_1x1.stl
93 Ko · 723 downloads
-
stepSkeleton_base_5x5.step
2.4 Mo · 664 downloads
-
step
Skeleton_base_1x1.step
72 Ko · 640 downloads
Description
Gridfinity Skeleton is a baseplate with the goal to use as little filament as possible. Since the baseplate will be generally be placed on a hard flat surface the baseplate does not need to resist bending but rather needs to be strong in the horizontal plane. With that in mind a LOT can be removed from the original design while still holding the bins well.
At only 16 grams for a 5x5 grid it's worth giving a try!
Let me know what you think and if there are requests for certain sizes. I have also included the step files so that it's easier to make improvements on my design.
The ultra light bin featured in the photo can be found here.
https://makerworld.com/en/models/227937?from=search#profileId-245542
Thanks, and happy printing!
