Linear motion guide 2020

por Lehaiver

Archivos imprimibles (7)

  • stl

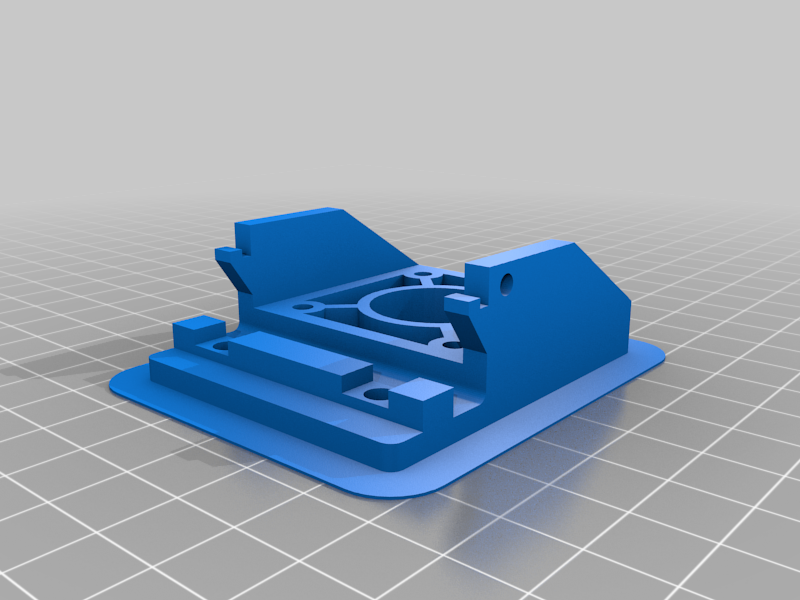

    2020_sm_mount.STL

    118 Ko · 4 608 descargas

    Descargar
  • stl

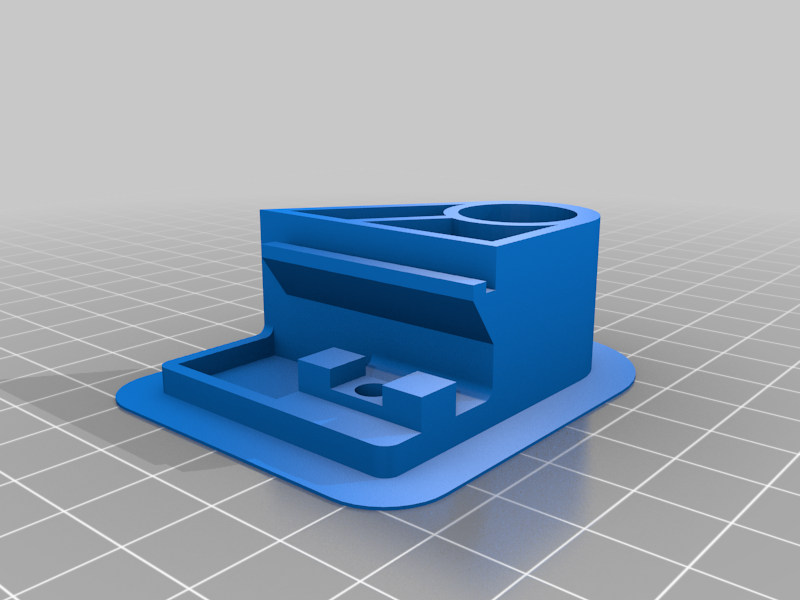

    2020_pul_mount.STL

    70 Ko · 4 568 descargas

    Descargar
  • stl

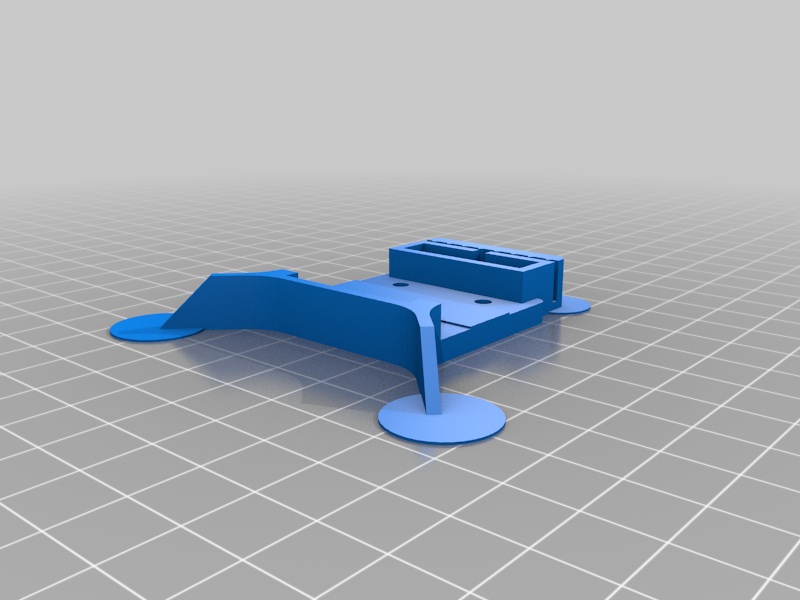

    mgn12h_hotbed_mount.STL

    73 Ko · 4 566 descargas

    Descargar
  • stl

    sw_mount.STL

    94 Ko · 4 537 descargas

    Descargar
  • stl

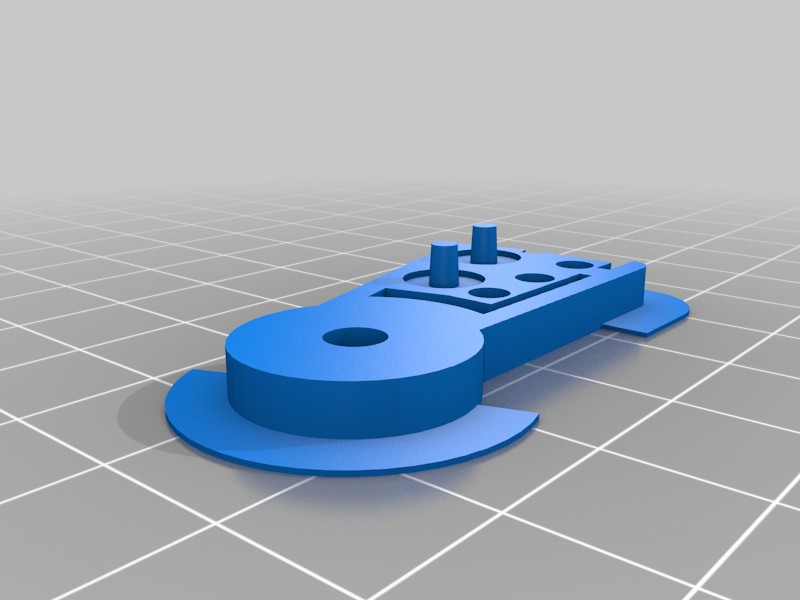

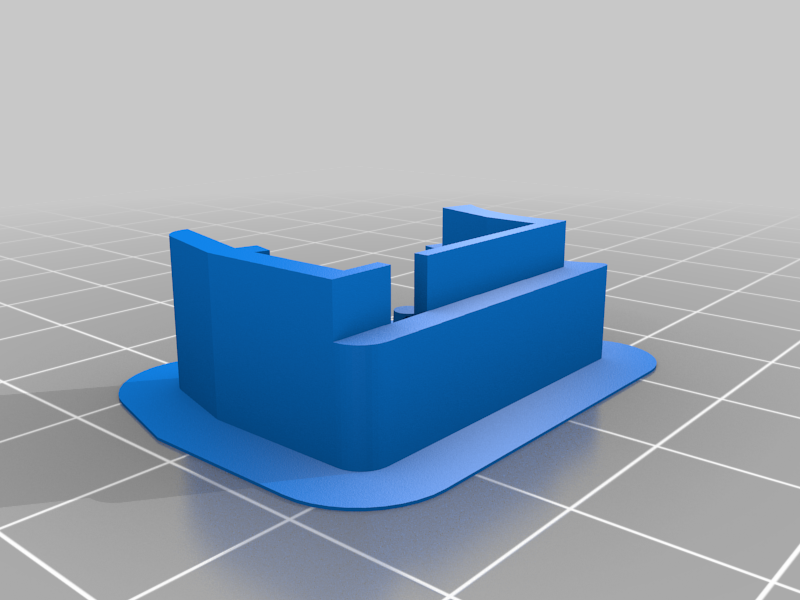

    sw_cover.STL

    63 Ko · 4 550 descargas

    Descargar
  • stl

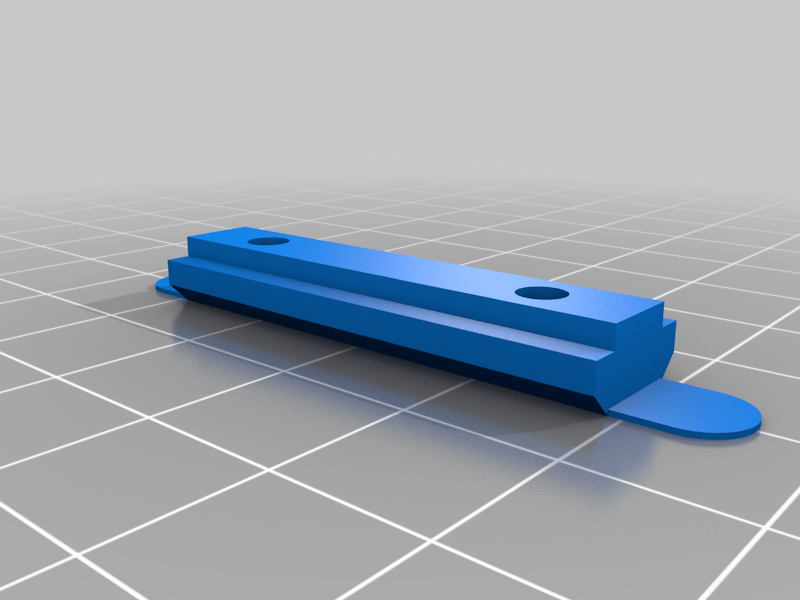

    rail_nut_2020.STL

    47 Ko · 4 533 descargas

    Descargar
  • stl

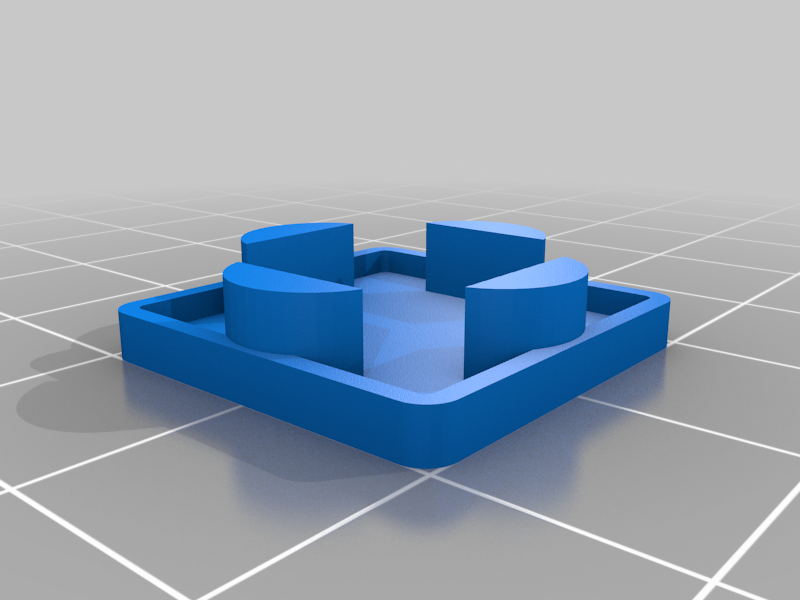

    2020_end_cap.STL

    32 Ko · 4 517 descargas

    Descargar

Descripción

Printable parts for a linear motion guide with the MR12 (MGN12) linear rail (length 300mm) and mini MGN12H linear block carriage (ref. link: http://ali.pub/j2xtc).
Mounts on a standard aluminium 20x20mm profile.
Double precision: http://www.thingiverse.com/thing:2136372
CAD (SW2013): https://grabcad.com/library/linear-motion-guide-2020-2

Aluminum profile: 20x20mm length 400mm (1.8mm thickness,slot 6 mm)
Belt: GT2 760 closed-loop or open ended
Pulley: GT2 20 teeth 2pcs
Stepper motor: NEMA17 18mm shaft
Bearings: 625ZZ x 2pcs
