Rotational Casting Machine

por RMagid

Archivos imprimibles (10)

  • stl

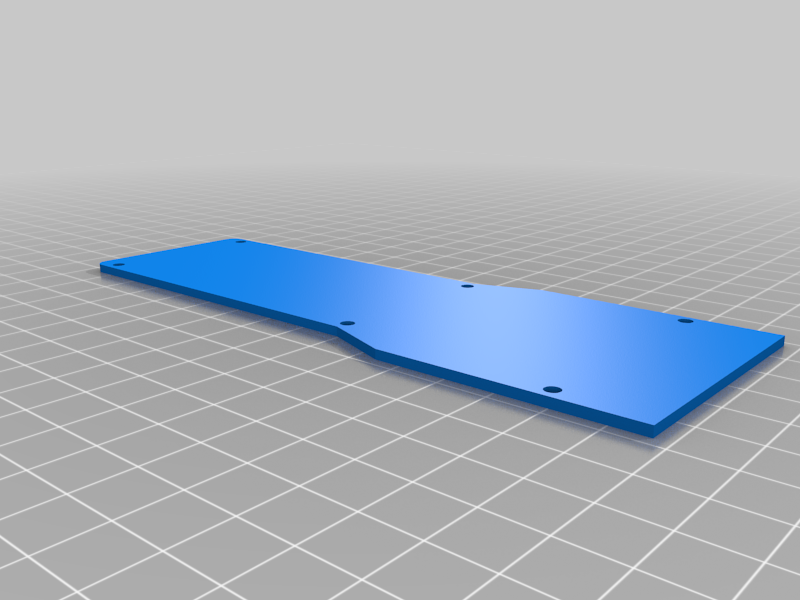

    MotorCover_POWER.stl

    37 Ko · 2 410 descargas

    Descargar
  • stl

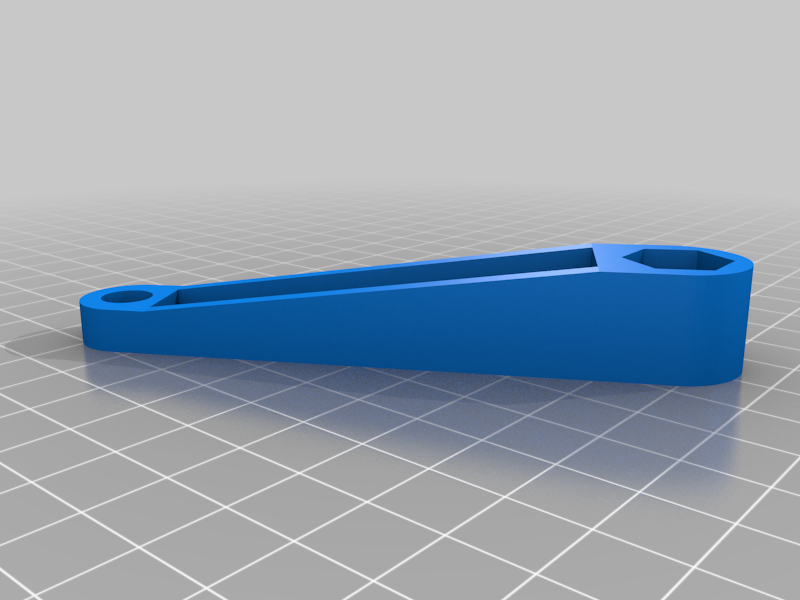

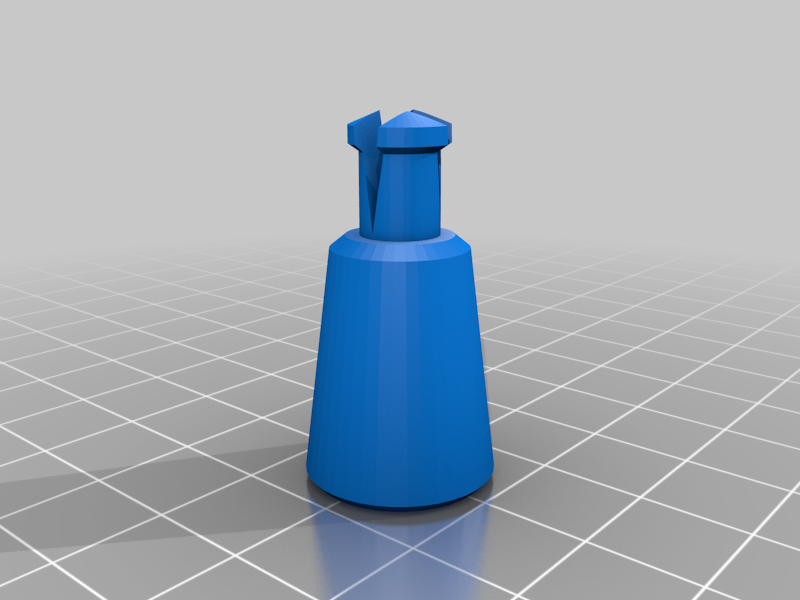

    CrankHandle_MANUAL.stl

    35 Ko · 2 413 descargas

    Descargar
  • stl

    HandCrank_MANUAL.stl

    67 Ko · 2 417 descargas

    Descargar
  • stl

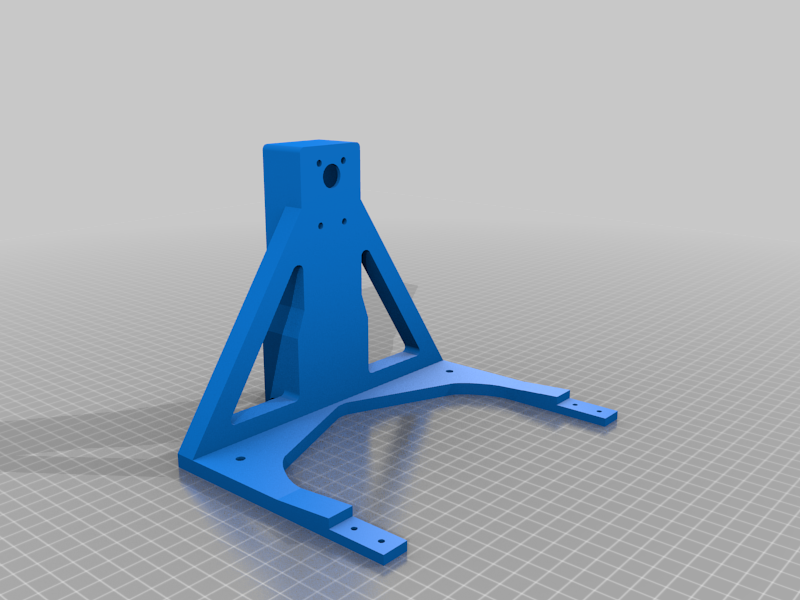

    RightBase_MANUAL.stl

    206 Ko · 2 414 descargas

    Descargar
  • stl

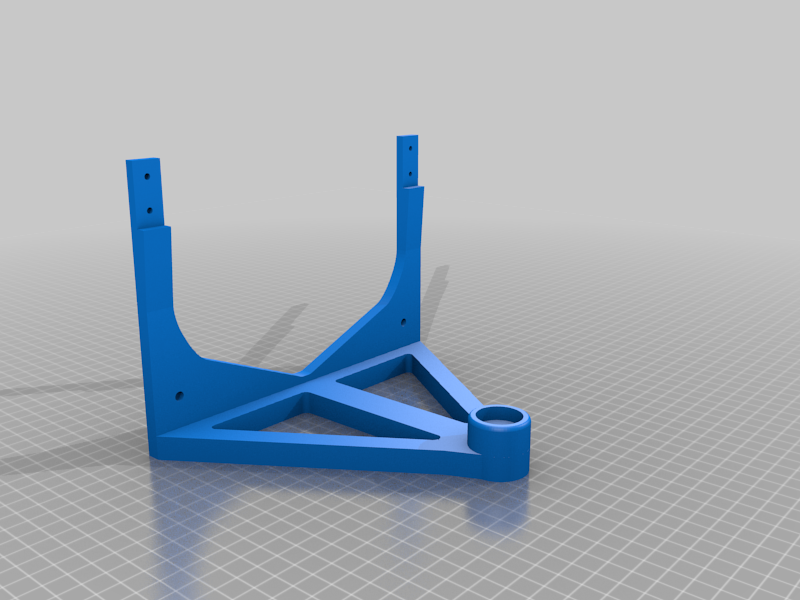

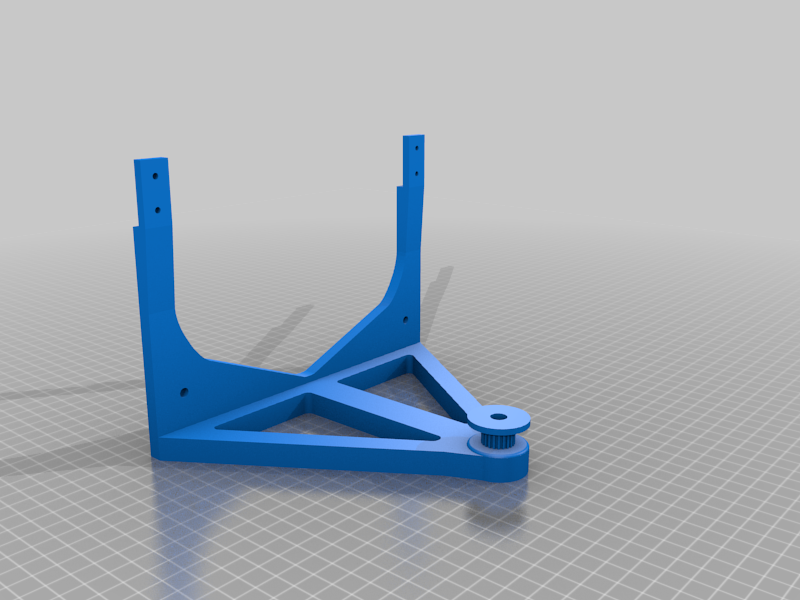

    LeftBase.stl

    230 Ko · 2 417 descargas

    Descargar
  • stl

    RightBase_POWER.stl

    222 Ko · 2 423 descargas

    Descargar
  • stl

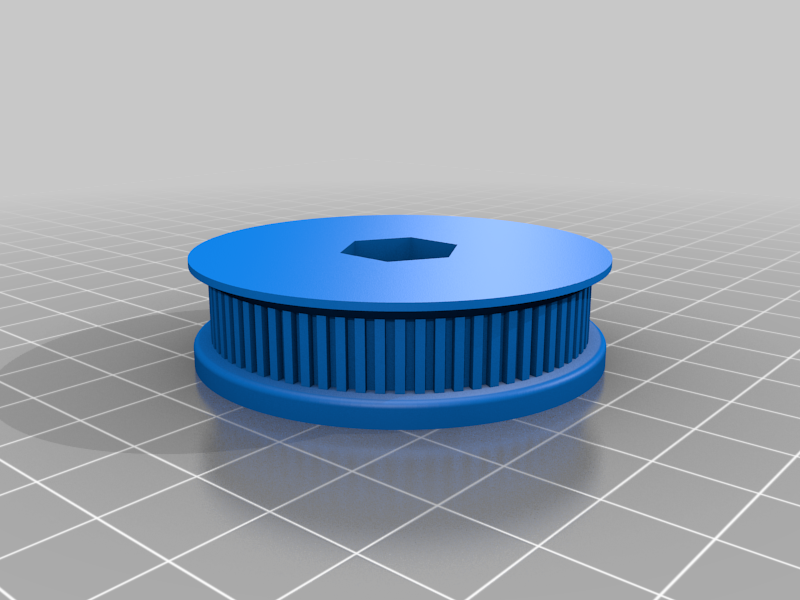

    TopGear.stl

    343 Ko · 2 428 descargas

    Descargar
  • stl

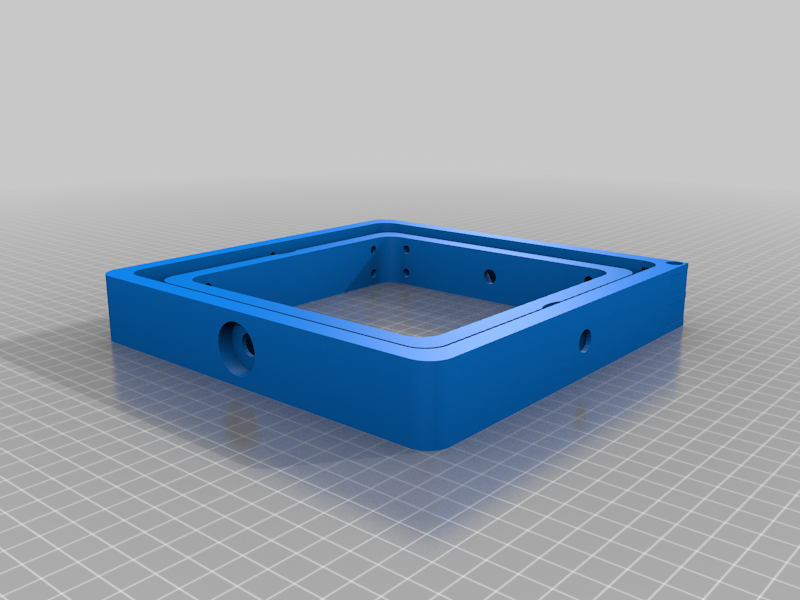

    Frames.stl

    568 Ko · 2 435 descargas

    Descargar
  • stl

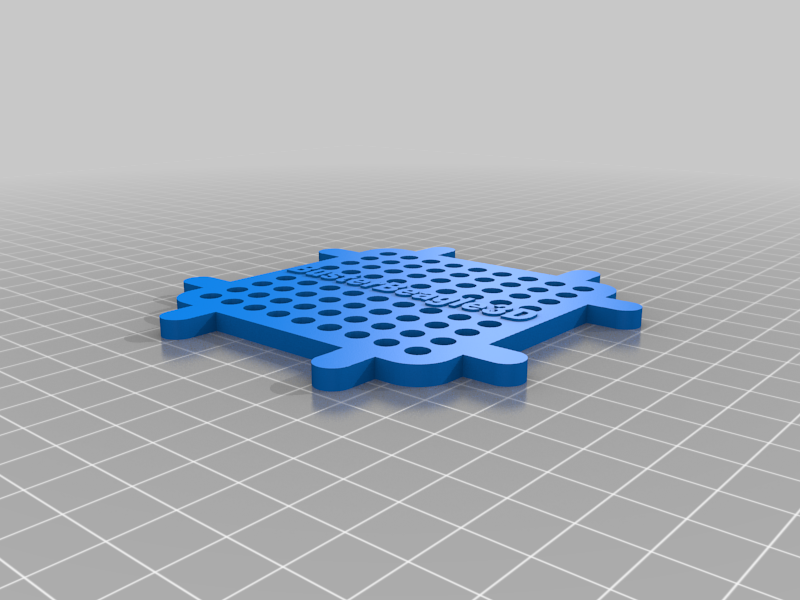

    BeagleCastCenter.stl

    2 Mo · 2 423 descargas

    Descargar
  • obj

    EntireMachine.obj

    35.7 Mo · 2 426 descargas

    Descargar

Descripción

This is a rotational casting machine I made so that I could print a mold and make hollow copies of the object in that mold with resin. It works just fine and there are 2 different versions you can download here.

One is fully automatic and requires a motor, controller, and power supply. If you don't want to go with power there is also a manual option with a hand crank. If you want power do not print the stl's ending in MANUAL. The same goes for if you want the hand crank do not print stl's ending in POWER.

Here is the list of additional parts you will need.

16- 5/16 X 1-1/8 INCH FENDER WASHER
1- 520 Width 6mm Belt Pitch 2mm Teeth 260 for Motor Belt
6- 608 Bearings (MANUAL VERSION requires 1 more to 7)
2- M8 x 40mm
2- M8 x 50mm (MANUAL VERSION requires 1 more to 3)
4- M8 Nuts (MANUAL VERSION requires 1 more to 5)
8- RubberBands
4- M3 x 10mm (POWER VERSION requires 10 more to 14)

Additional Parts POWER VERISON ONLY:

1- ALUMINUM MOUNTING HUB FOR 6mm SHAFT
https://www.amazon.com/gp/product/B081TPSJXB?ie=UTF8&psc=1&linkCode=ll1&tag=bb3d0c-20&linkId=ea7e676c7aa96c9701c35b9402ff0000&language=en_US&ref_=as_li_ss_tl
5 M3 X 14mm (For Mounting Hub to the frame)

1- DC 12V Worm Gear Motor 6mm Shaft High Torque Turbine Reducer (I used 11RPM, I highly recommend getting a fast motor ):
https://www.amazon.com/gp/product/B01N990WOU?ie=UTF8&psc=1&linkCode=ll1&tag=bb3d0c-20&linkId=171459074999a05ec9c9997f28f20e5b&language=en_US&ref_=as_li_ss_tl

1- 12V LED Power Supply with Female Barrel Connector:
https://www.amazon.com/gp/product/B01GD4ZQRS?ie=UTF8&psc=1&linkCode=ll1&tag=bb3d0c-20&linkId=299df8a81dba8943aa9c53d87f81356d&language=en_US&ref_=as_li_ss_tl

12v 2A 30W DC Motor Speed Controller Adjustable Driver Switch:
https://www.amazon.com/uniquegoods-Controller-1803BK-Adjustable-Driver/dp/B00QGMESHM?dchild=1&keywords=12v+2A+30W+DC+Motor+Speed+Controller+Adjustable+Driver+Switch&qid=1622620984&s=hi&sr=1-9&linkCode=ll1&tag=bb3d0c-20&linkId=c38e1d8c972c1f07c7b7c88dfa6f4c67&language=en_US&ref_=as_li_ss_tl

https://www.youtube.com/watch?v=oMqknPVKbt4&feature=youtu.be

Enjoy!
