Apollo Clock
por dimock
Archivos imprimibles (46)
-
stlCSM.stl
65 Ko · 1 261 descargas
-
stl
hour_sungearplug.stl
12 Ko · 1 263 descargas
-
stl
LM_upperpulley.stl
88 Ko · 1 265 descargas
-
stl
numerals.stl
451 Ko · 1 267 descargas
-
stl
LM.stl
93 Ko · 1 258 descargas
-
stl
base_rect.stl
137 Ko · 1 253 descargas
-
stl
base_elec.stl
52 Ko · 1 260 descargas
-
stl
bearingplug_5mm.stl
12 Ko · 1 260 descargas
-
stl
base_plaque_back.stl
78 Ko · 1 265 descargas
-
stl
minute_planetgear2.stl
294 Ko · 1 259 descargas
-
stl
hour_planetgear4.stl
301 Ko · 1 270 descargas
-
stl
CSM_lowergear.stl
44 Ko · 1 265 descargas
-
stl
base_circle.stl
104 Ko · 1 261 descargas
-
stl
minute_planetgear3.stl
298 Ko · 1 261 descargas
-
stl
minute_planetgear1.stl
288 Ko · 1 262 descargas
-
stl
bearingplug_4mm.stl
12 Ko · 1 258 descargas
-
stl
hour_planetgear6.stl
309 Ko · 1 257 descargas
-
stl
hour_planetgear5.stl
303 Ko · 1 259 descargas
-
stl
motor_spacer.stl
25 Ko · 1 260 descargas
-
stl
minute_sungearplug.stl
12 Ko · 1 261 descargas
-
stl
base_plaque.stl
1.4 Mo · 1 263 descargas
-
stl
motor_piniongear.stl
45 Ko · 1 260 descargas
-
stl
earth_transfergear_rear.stl
46 Ko · 1 266 descargas
-
stl
LM_lowerpulley.stl
92 Ko · 1 261 descargas
-
stl
earth_transfergear_front.stl
286 Ko · 1 269 descargas
-
stl
minute_drivegear.stl
241 Ko · 1 262 descargas
-
stl
minute_sungear.stl
891 Ko · 1 255 descargas
-
stl
base_footprint.stl
2.6 Mo · 1 256 descargas
-
stl
moon_front.stl
2.8 Mo · 1 256 descargas
-
stl
moon_rear.stl
3.8 Mo · 1 255 descargas
-
stl
CSM_uppergear.stl
65 Ko · 845 descargas
-
stl
carrier_plug.stl
12 Ko · 621 descargas
-
stl
hour_ring.stl
119 Ko · 621 descargas
-
stl
earth_rearbearingplug.stl
12 Ko · 620 descargas
-

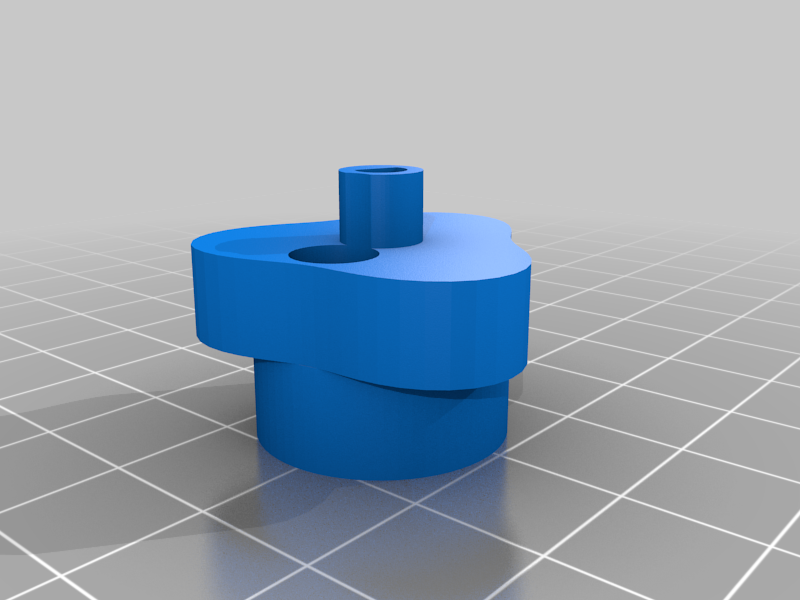

stlearth_frontbearing.stl
313 Ko · 605 descargas
-
stl
LED_ring.stl
50 Ko · 620 descargas
-
stl
earth_rearbearing.stl
366 Ko · 619 descargas
-
stl
minute_carrier.stl
1 Mo · 617 descargas
-
stl
hour_carrier.stl
1.1 Mo · 617 descargas
-
stl
hour_sungear.stl
1.1 Mo · 618 descargas
-
stl
hour_hand.stl
52 Ko · 617 descargas
-
stl
minute_hand.stl
64 Ko · 619 descargas
-
stl
frame_front.stl
819 Ko · 621 descargas
-
stl
earth_front.stl
890 Ko · 621 descargas
-
stl
earth_rear.stl
1.4 Mo · 618 descargas
-
stl
frame_rear.stl
749 Ko · 622 descargas
Descripción
UPDATE 3 March 2020:
Updated various parts for smoother rotation, added LED backlighting, and improved documentation. See Apollo Clock_RevA.pdf for details.
This is an Apollo-themed 3D-printed clock using compound planetary gears and a stepper motor drive. The moon (hour hand) orbits the earth once every 12 hours, with a Lunar Module orbiting the moon just for fun. A Command Module (minute hand) orbits the earth once per hour and spins for no good reason. The earth (seconds) spins once per minute. The south pole faces out, both for proper rotation direction and for aesthetics (fewer continents blocking the view inside).
Non-printed parts were kept to a minimum in order to keep the cost down. In addition to filament (I used PLA), you’ll need a 3mm rod, some M1/M2/M3 screws, a pile of 6mm plastic BBs, a rubber band, and about $20 in electronics. The plans allow for for LEDs, which I have not yet added.
Refer to PDF for assembly instructions.
Timelapse: https://www.youtube.com/watch?v=APDj2XSgm9U
Tinkercad model: https://www.tinkercad.com/things/7t096SUfR9u-apollo-clock-reva
The following things were used or remixed in this design (thanks!):
“The moon” - https://www.thingiverse.com/thing:1014620
"Gridded Globe” - https://www.thingiverse.com/thing:2674988
"One Small Step” - https://www.thingiverse.com/thing:266725
“Micro Apollo Mission with Stand” - https://www.thingiverse.com/thing:3758364
