Infinity Cube - Easy Assembly

por lancelevine

Archivos imprimibles (7)

  • stl

    cube_side_circles_front.stl

    62 Ko · 608 descargas

    Descargar
  • stl

    cube_side_circles_rear_1.stl

    60 Ko · 598 descargas

    Descargar
  • stl

    cube_side_circles_rear_2_hole.stl

    60 Ko · 596 descargas

    Descargar
  • stl

    cube_connector.stl

    33 Ko · 594 descargas

    Descargar
  • stl

    cube_side_circles_rear_2.stl

    61 Ko · 586 descargas

    Descargar
  • stl

    cube_connector_rear_2.stl

    18 Ko · 418 descargas

    Descargar
  • stl

    cube_connector_rear_1.stl

    18 Ko · 418 descargas

    Descargar

Descripción

Infinity cube made with ws2812b LEDs. The panels are 12 inches x 12 inches. 2 of the acrylic panels slide out the back so assembly is easy and any tinkering with the lights can be done without having to deconstruct anything.

For a video of it in action: https://www.lancelevine.com/images/cube.mp4

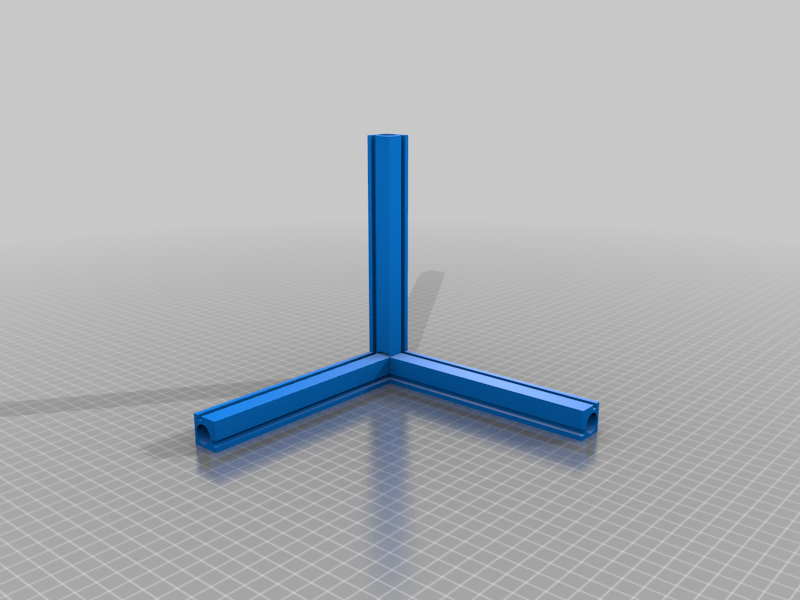

4x cube side circles front.stl
2x cube side circles rear 1.stl
1x cube side circles rear 2.stl
1x cube side circles rear 2 hole.stl
12x cube connector.stl
2x cube connector rear 1.stl
2x cube connector rear 2.stl

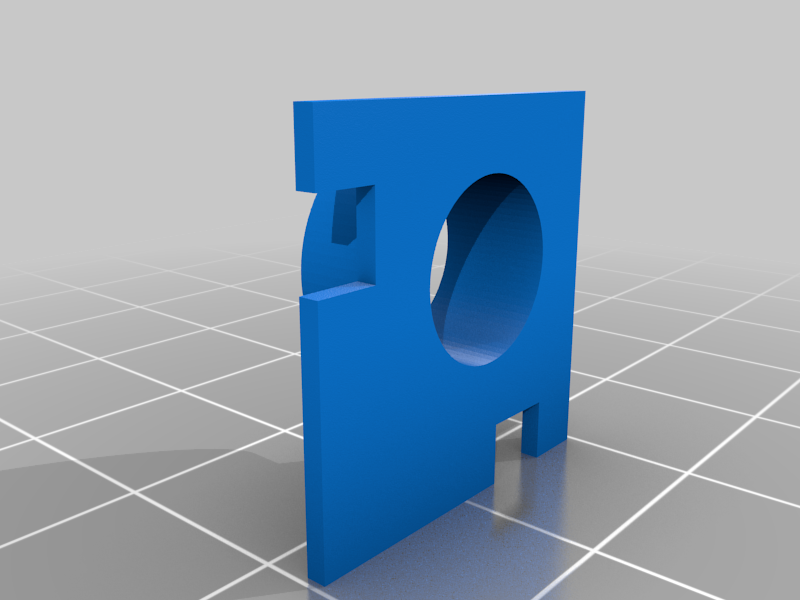

Very straightforward to assemble. Cube connectors are glued together back to back and allow the corner pieces of the cube to snap into place. There's also a hole in them for wires to go through.

Materials:

Tint:
https://www.amazon.com/gp/product/B00FQPGH8I/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1

Acrylic:
https://www.amazon.com/gp/product/B07K8PY652/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1

LEDs:
https://www.amazon.com/gp/product/B078S6Z9KG/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1

My code:
https://github.com/lancelevine/InfinityCube
