Commodore 64 Case
por EgeOzpalamutcu
Archivos imprimibles (5)
-

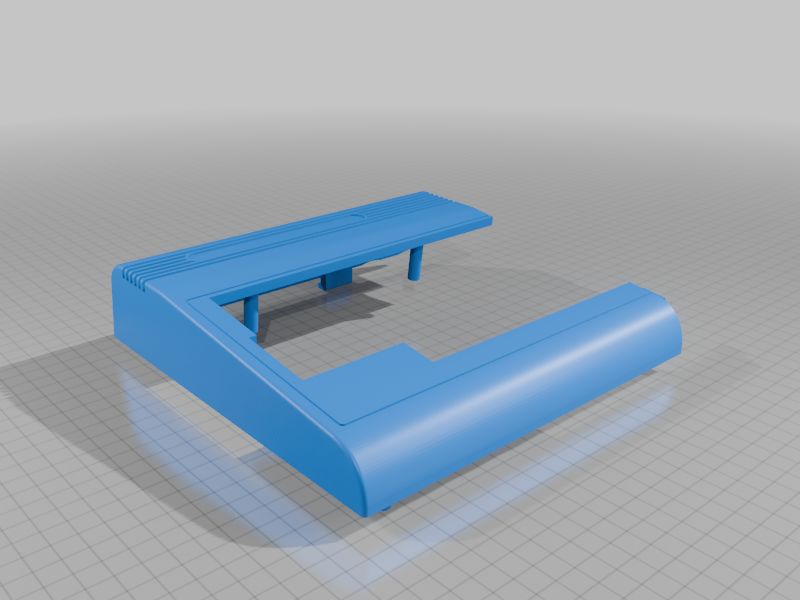

stlcommodore_case_2.0_top_left.stl
1.9 Mo · 155 descargas
-

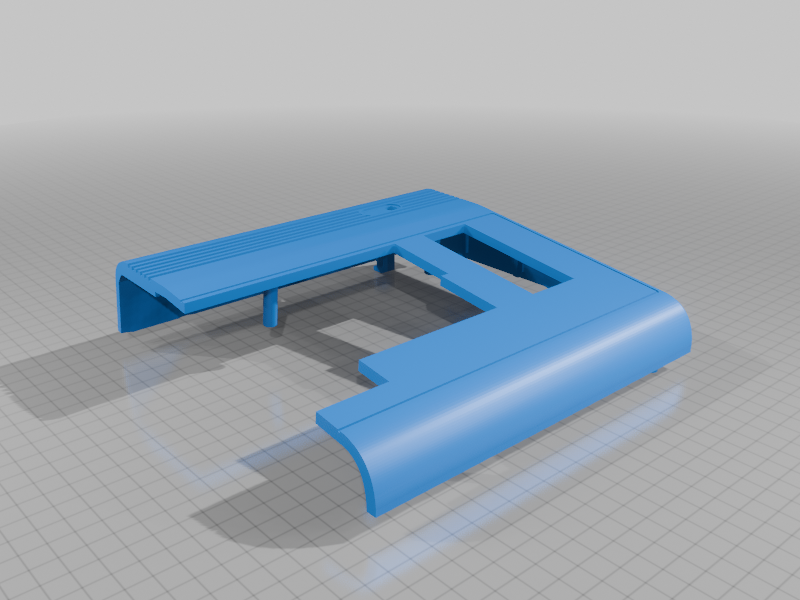

stlcommodore_case_2.0_top_right.stl
2.1 Mo · 153 descargas
-

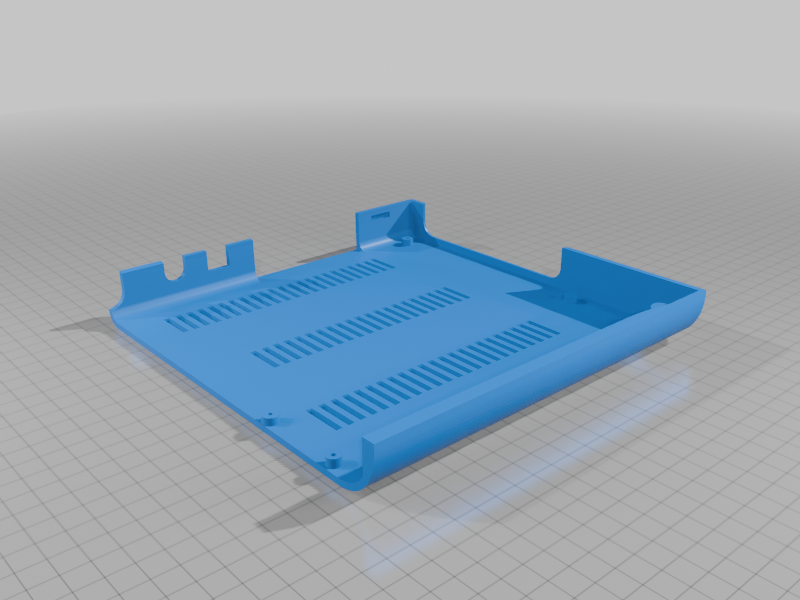

stlcommodore_case_2.0_bottom_right.stl
852 Ko · 150 descargas
-

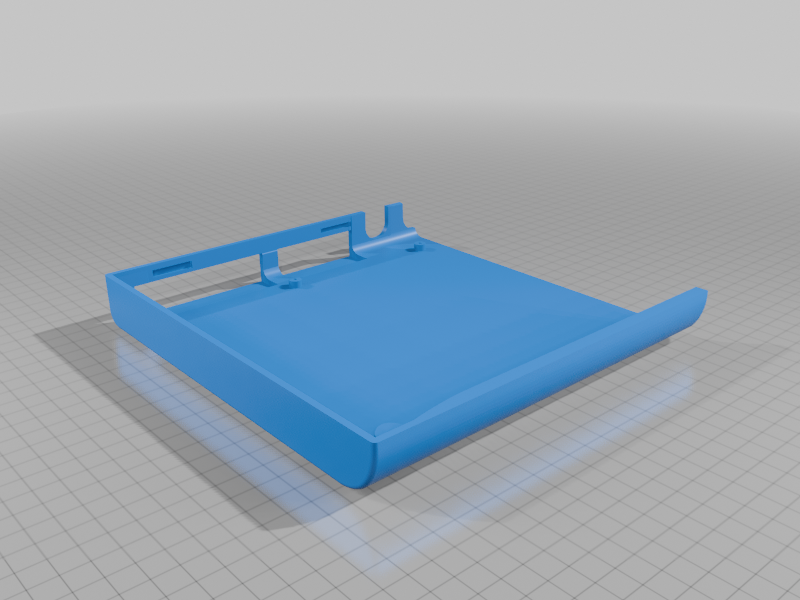

stlcommodore_case_2.0_bottom_left.stl
731 Ko · 150 descargas
-

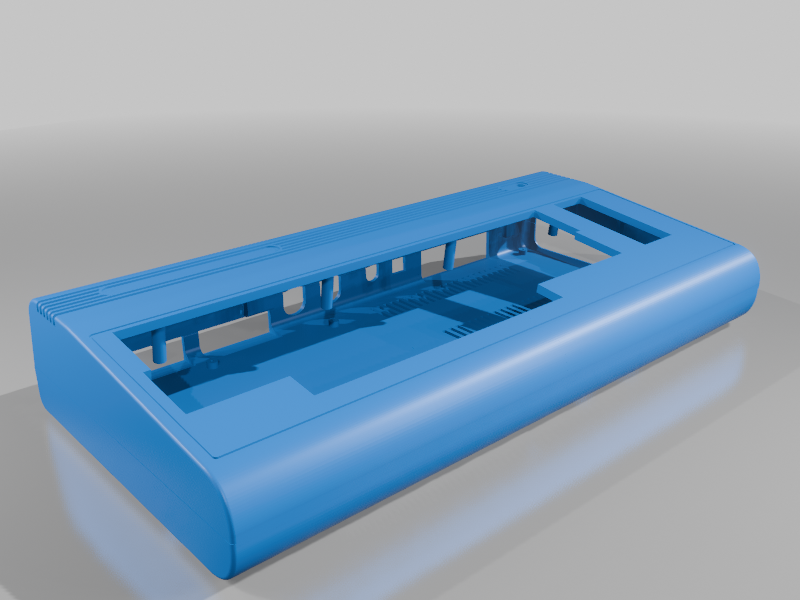

3mfcommodore_case_2.0_full_3mf.3mf
1.7 Mo · 164 descargas
Descripción
One and only free and 3D printable commodore 64 case on the internet!!!
like for future projects.
This case is consisting of 4 pieces, so it is compatible with 3D printing. bottom half is very similar to original case. even vents and supports are in original place. top part is a little different. biggest change to top part is it uses M3 size threaded insert on mounts that connect it to bottom. Top part is missing the middle screw mount to keep it compatible with 3d printing. but the threaded inserts are holding perfectly fine.
Because of the long and thin nature of parts I suggest you to print it slow.
Changes to Original Design:
V1.0
Added cutouts for ports
added vents
added keyboard brackets
added standoffs for board
added place for feets
V1.1
I tought I solved every problem on V1.0, but I wasn't , so V1.1 is here.
V2.0
added compatibility with shortboard.
