Functional Differential Gear System
por qsopc
Archivos imprimibles (13)
-

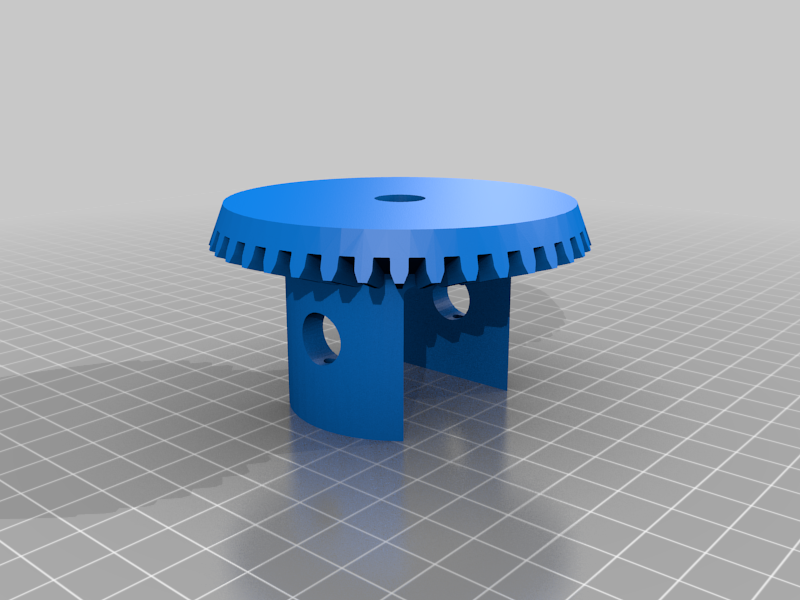

stlCasing.STL
1008 Ko · 43 009 descargas
-

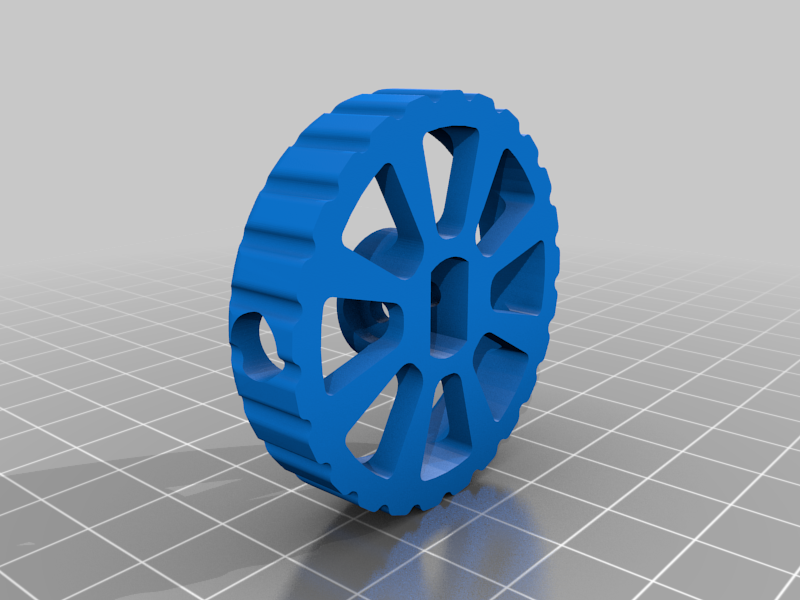

stlHandle_V2.STL
726 Ko · 42 632 descargas
-

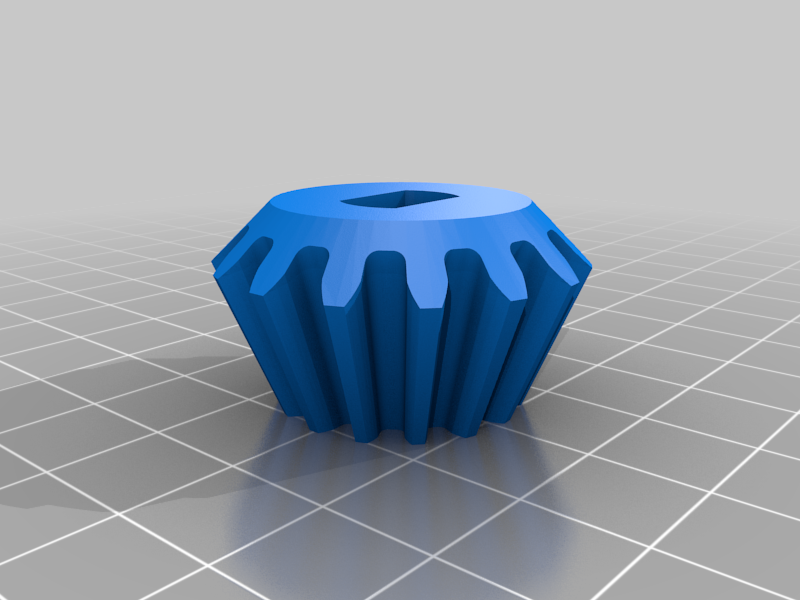

stlInput_Pinion.STL
344 Ko · 42 830 descargas
-

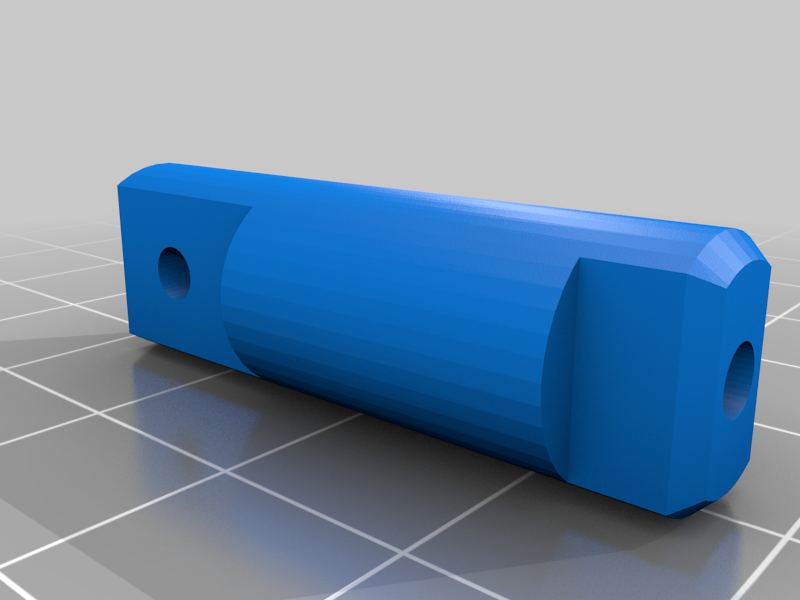

stlShaft_v2.STL
34 Ko · 42 561 descargas
-

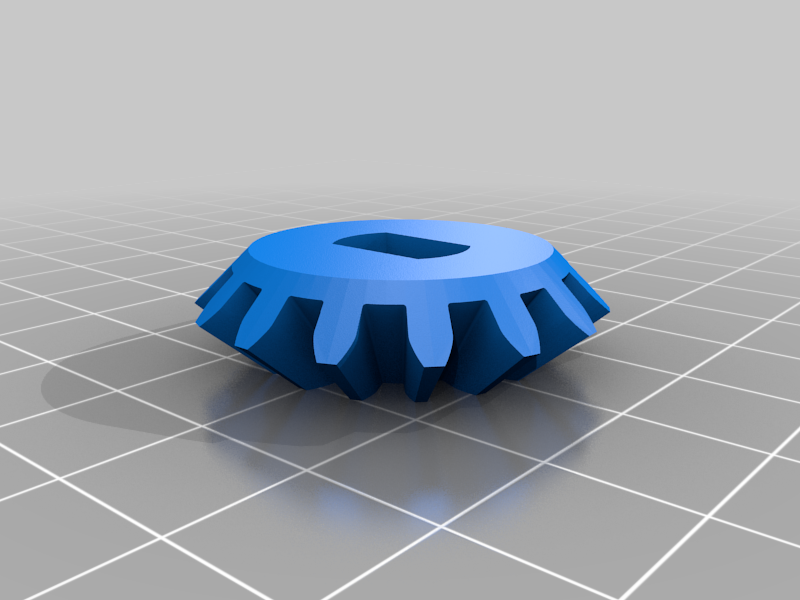

stlSide_Gear_V2.STL
307 Ko · 42 651 descargas
-

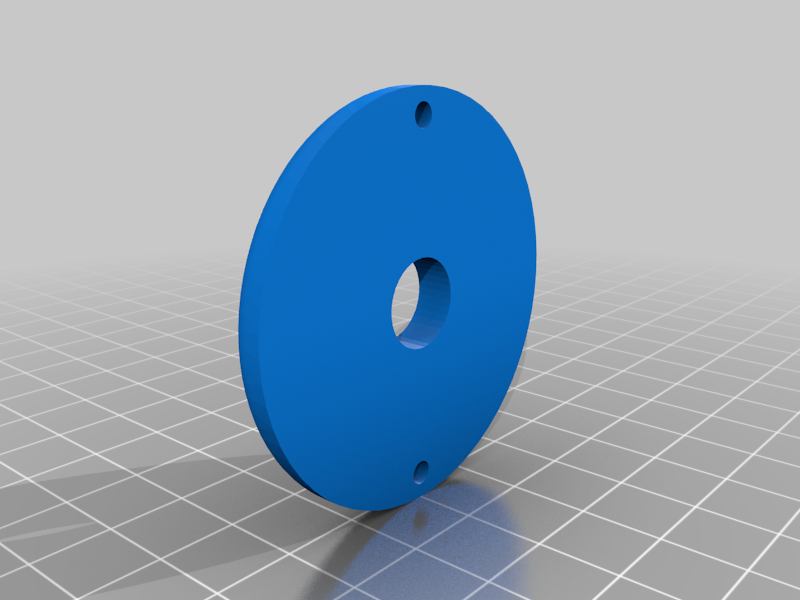

stlSide_V2.STL
147 Ko · 42 483 descargas
-

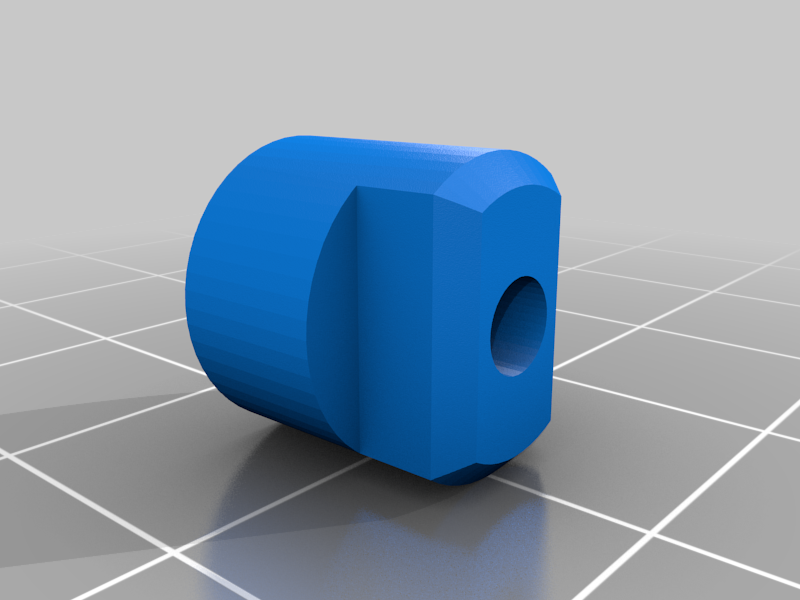

stlSpider_Shaft_V2.STL
33 Ko · 42 445 descargas
-
stlSpider_V2.STL
300 Ko · 42 577 descargas
-

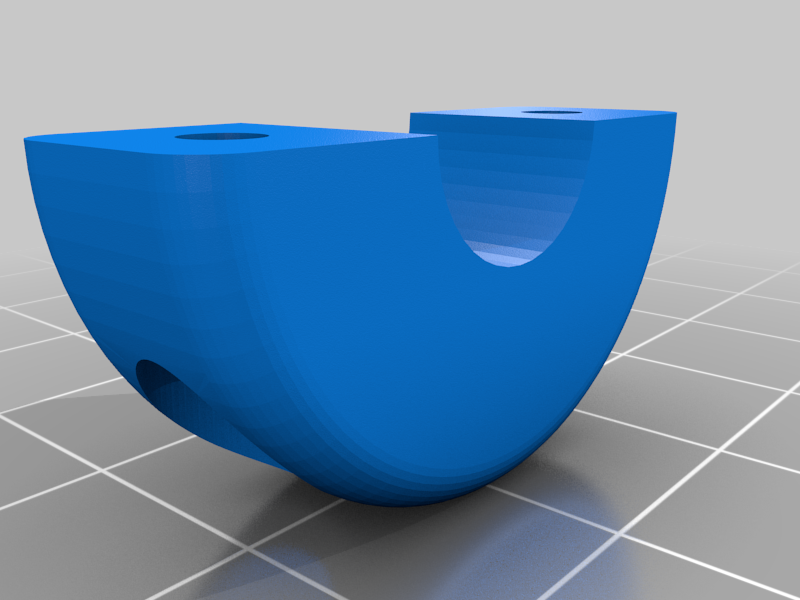

stlTop.STL
159 Ko · 42 445 descargas
-
stlYoke.STL
764 Ko · 42 401 descargas
-

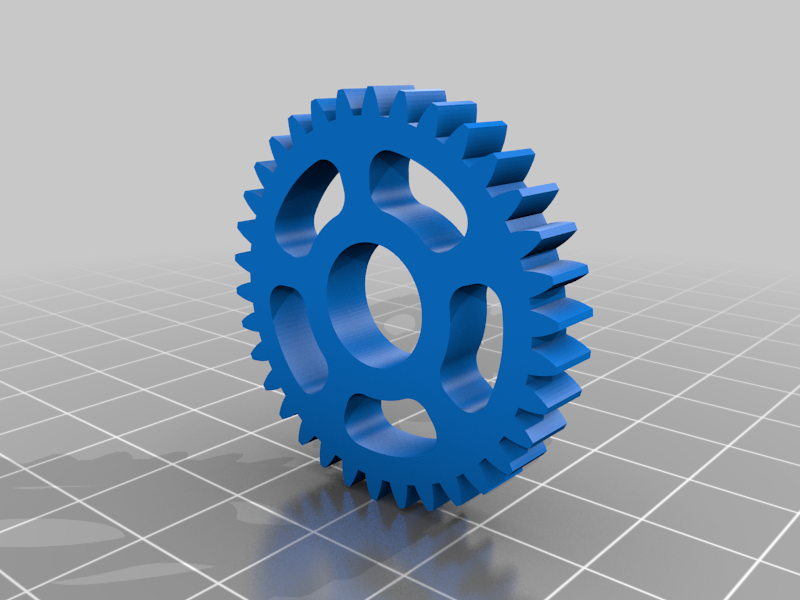

stlspur_gear_34.STL
247 Ko · 42 185 descargas
-

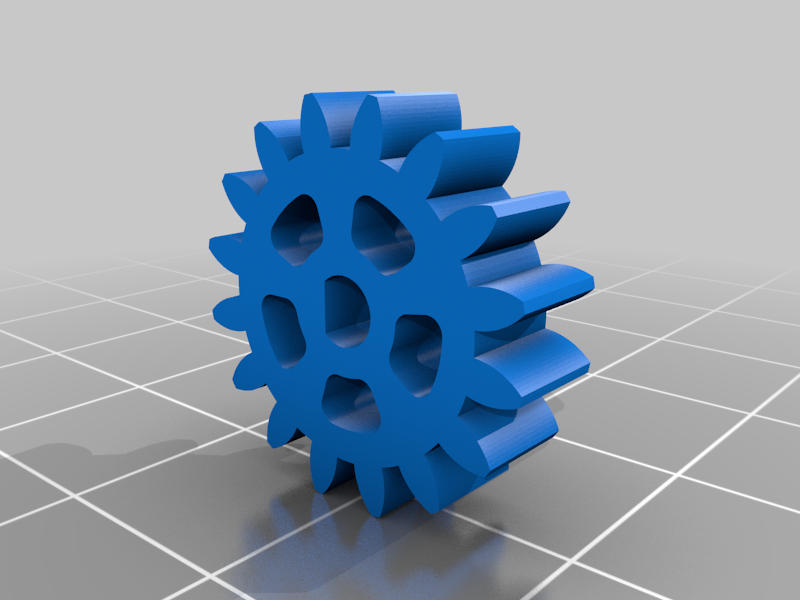

stlspur_gear_16.STL
226 Ko · 42 161 descargas
-
stlStand_wMotorMount.STL
2.6 Mo · 42 324 descargas
Descripción

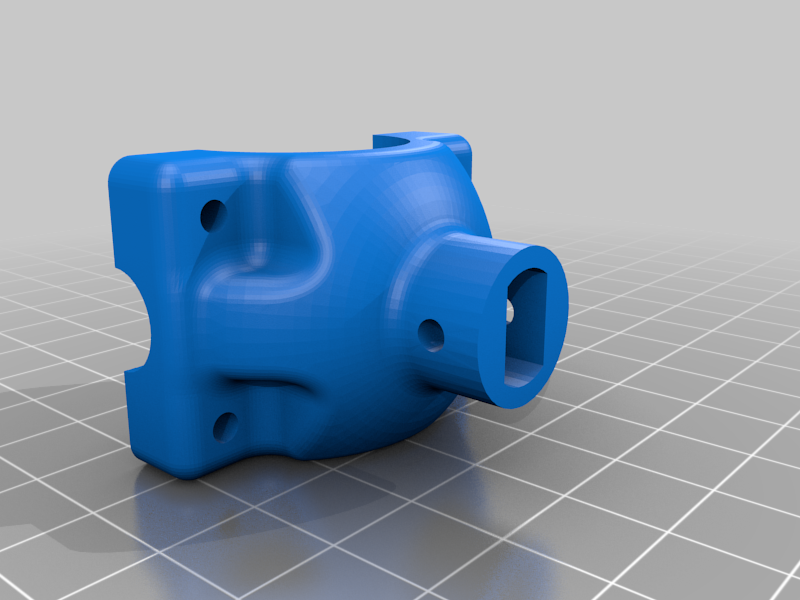

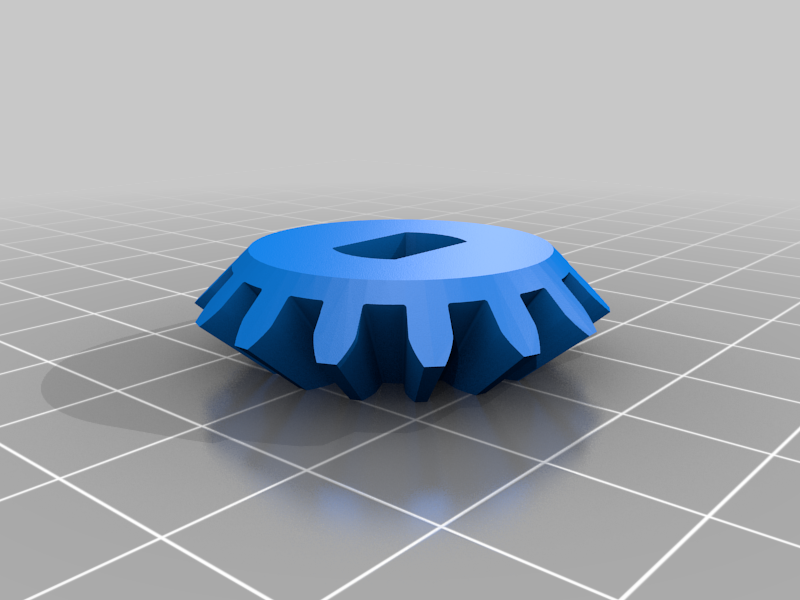

Remixed Differential from Thing-O-Fun. I added the Yoke to make it more realistic. The original files had a lot of play and were not all consistent sizes which are now consistent. I also redesigned the spider gears to accept screws from the outside to allow 4 spider gears to be installed.
Addition:

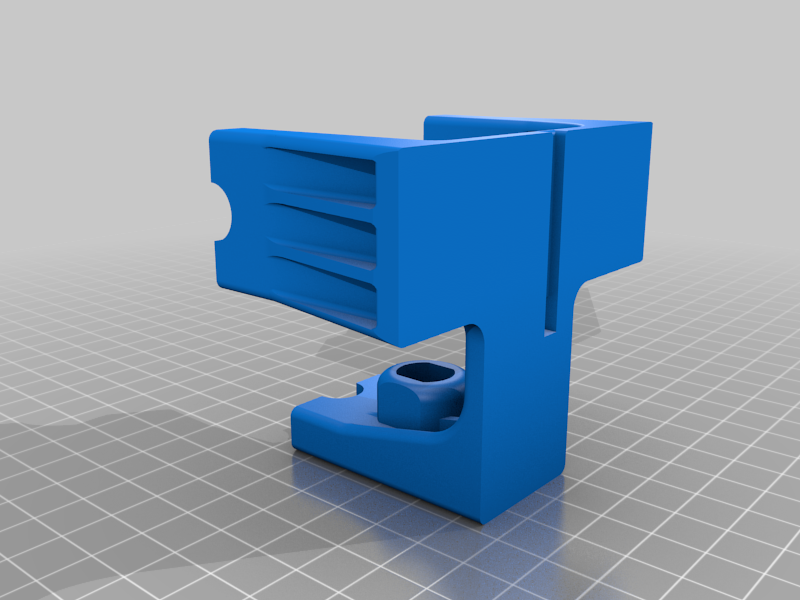

I added a stand with a motor from here http://www.jameco.com/webapp/wcs/stores/servlet/Product_10001_10001_2128219_-1. Use the 2 spur gears to drive the entire assembly. Motor can be wired to a USB port.
