Project Enclosure
di cabbageheart
1 / 6
File stampabili (4)
Descrizione

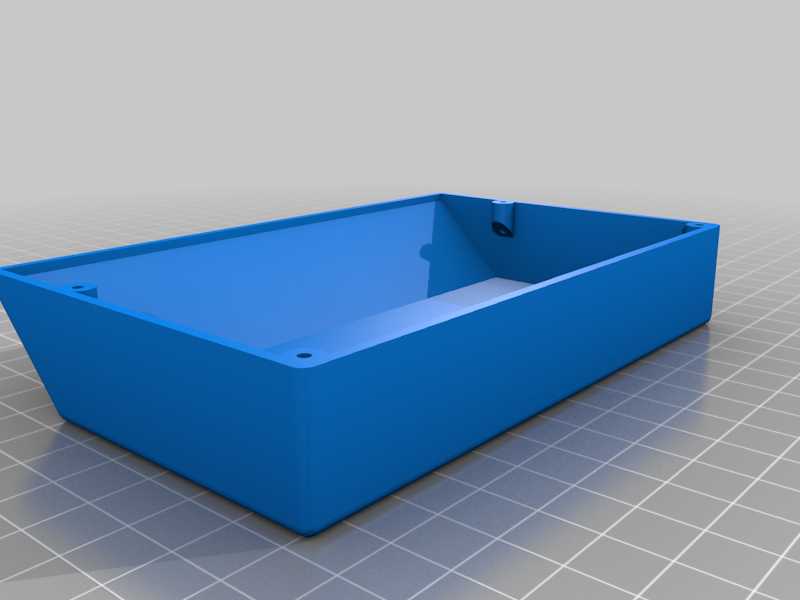

Adjustable Project Enclosure
Internal Width 130mm x Depth 80mm, Internal height adjustable

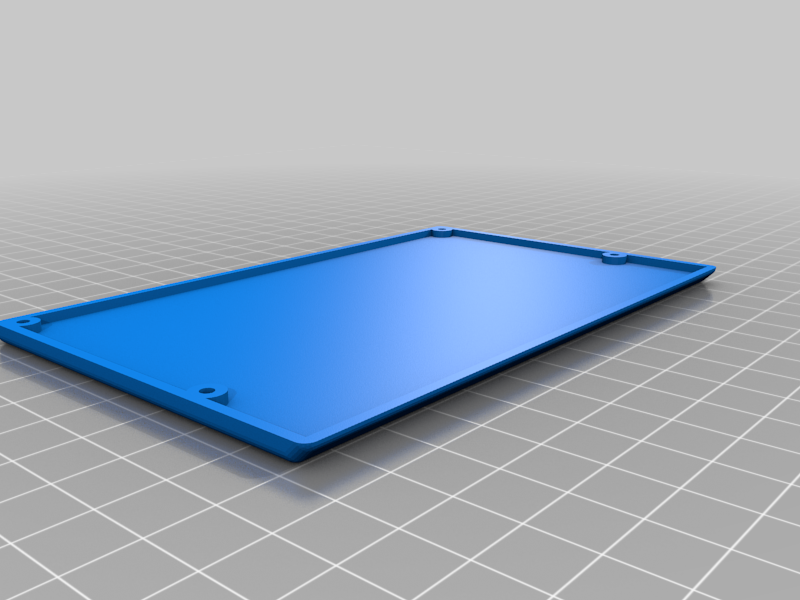

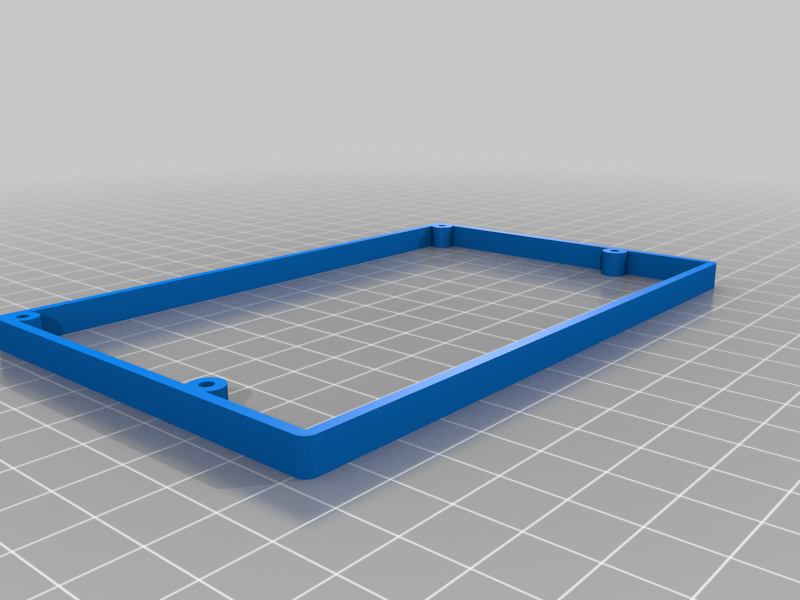

riser section height 6mm. Base plate screws M2 self tapping,
Screw length depends on riser sections used.
16mm seems to be the longest screws that I can find in M2 size.
So only 2 risers can be used, unless you glue them in place.

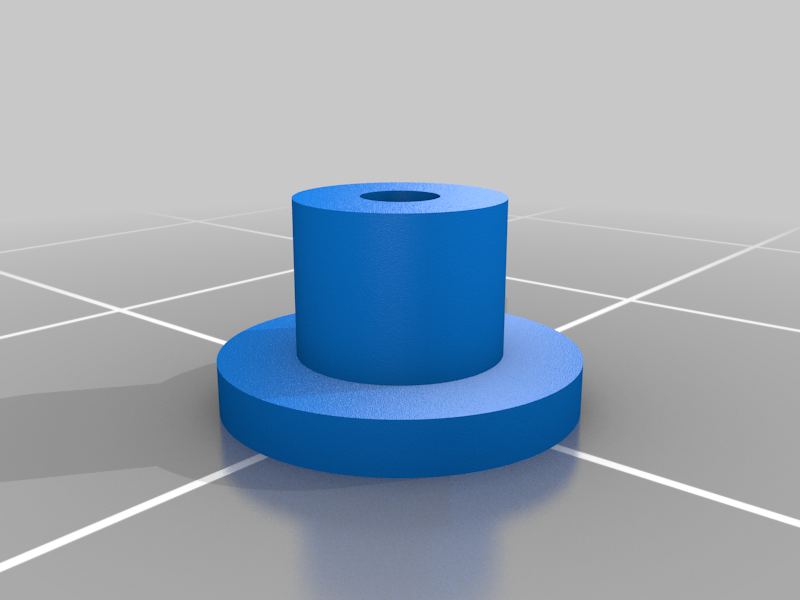

PCB Mounts can be glued wherever needed.
