Keyslink Auto
di virustwin
File stampabili (6)
-
stlksa_3_body_half_a.stl
36 Ko · 280 download
-
stlksa_3_carriage_slot.stl
19 Ko · 276 download
-

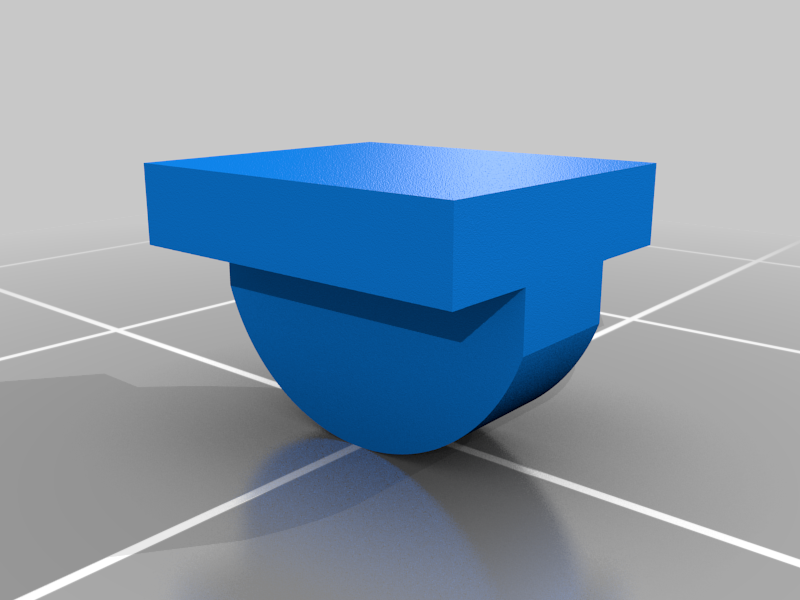

stlksa_3_stop.stl
23 Ko · 280 download
-

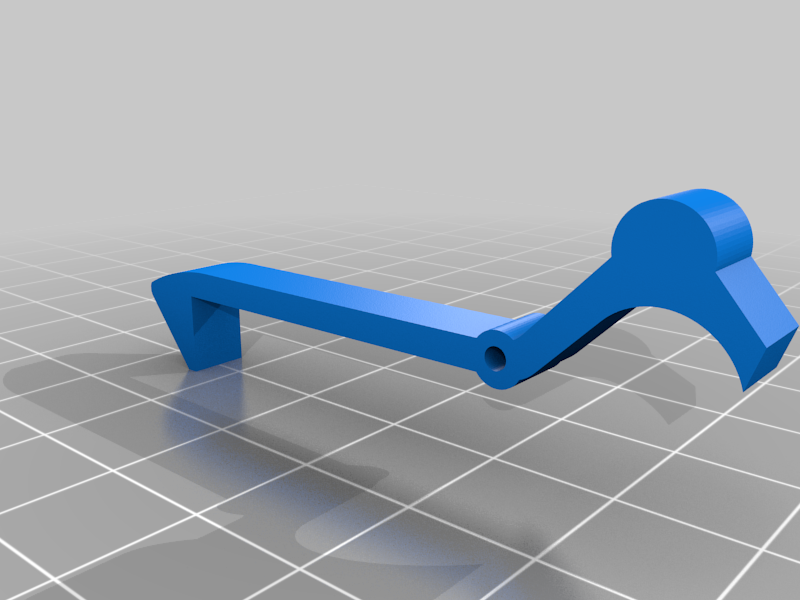

stlksa_3_button.stl
43 Ko · 275 download
-
stlksa_3_body_half_b.stl
36 Ko · 286 download
-
stlksa_3_carriage.stl
93 Ko · 283 download
Descrizione
Keyslink Auto is a spring loaded version of my original Keyslink. The key fires out from the front when the button is pressed and is retracted manually. You will need some springs which you can get in a small kit or individually or from other devices, as well as a couple of machine screws and nuts.The key modification is the same from the previous keyslink version, only the back is ground to be more flush with the height of the key (you can tweak it accordingly to fit into the carriage). Here is a video of it in action https://youtu.be/vNWh6GCM_as (if the video doesn't work let me know).
