Hi everyone
This is one of my first project. I'm tryng to make a console using a Raspberry PI 2. Nothing new, but this is the case I designed for myself.

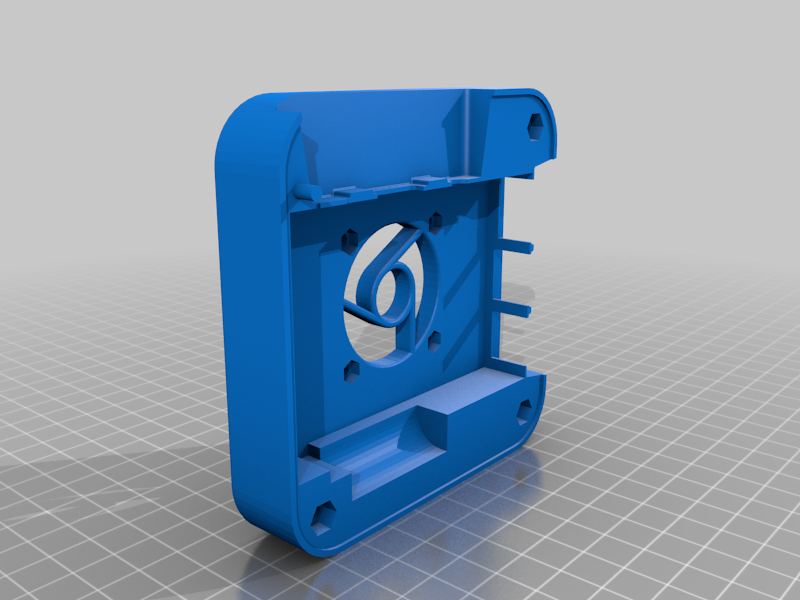

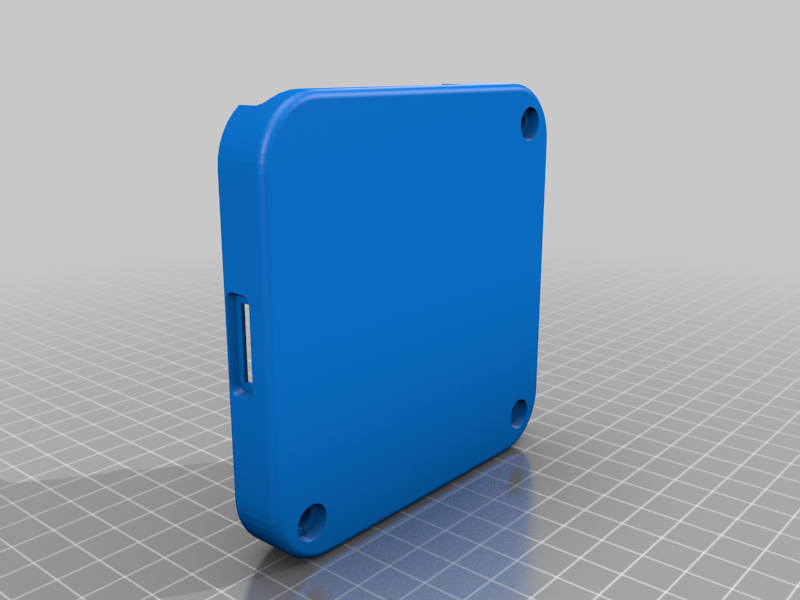

It is designed to encase a raspberry PI 2 and a cooling fan 40x40x10 5V.
To complete the assembly I used:
- N° 3 screws M4 x 20 with 3 M4 nuts (for the two cases)
- N° 4 Screws M3 x 16 (that I cutted to 13) with 4 M3 Nuts (for the colling fan)
- N° 4 Screws M2 x 12 (that I cutted to 8) with 4 M2 Nut (for the Raspberry board)
I hope you like it!
If you have any problem with the printing, please write me
