C-bot/D-bot
di Carlsen
File stampabili (8)
-

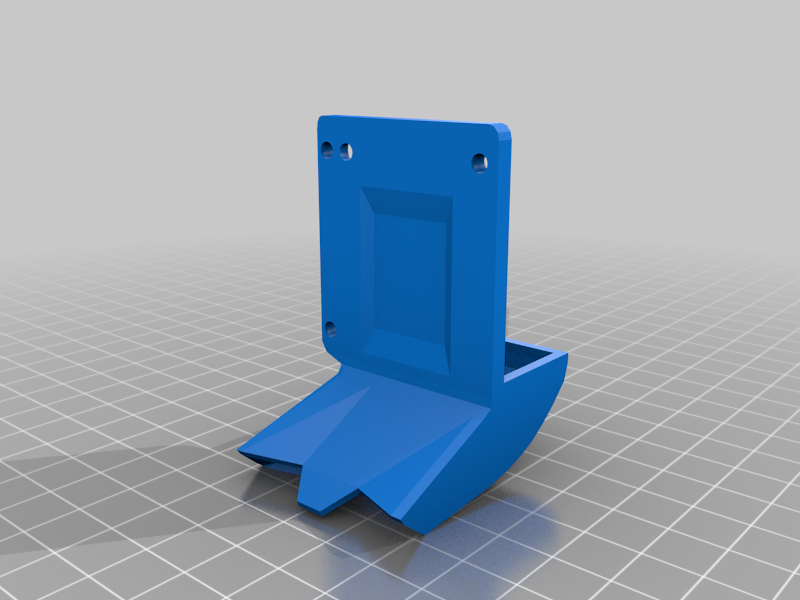

stlstl_fix_c-bot-FAN_DUCT_2_f.stl
113 Ko · 2 244 download
-

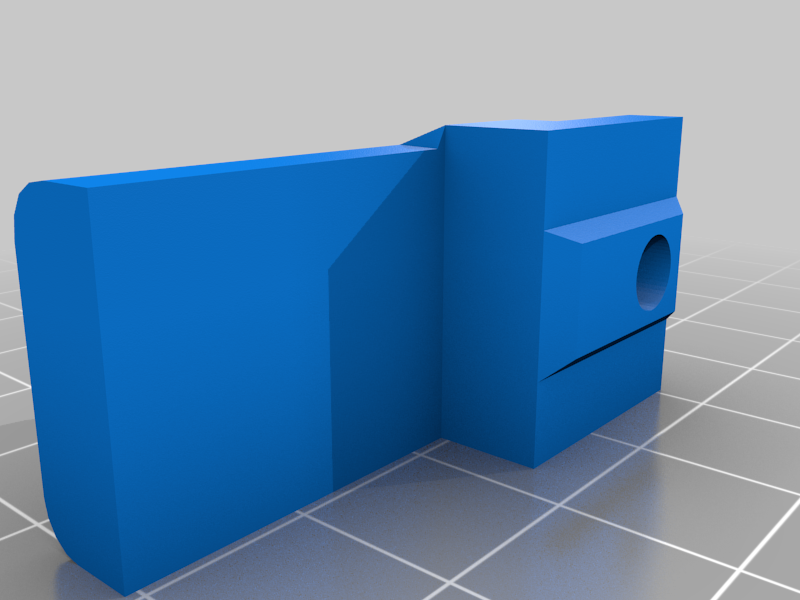

stlstl_fix_c-bot-1-EndstopX_Flange.stl
17 Ko · 2 170 download
-

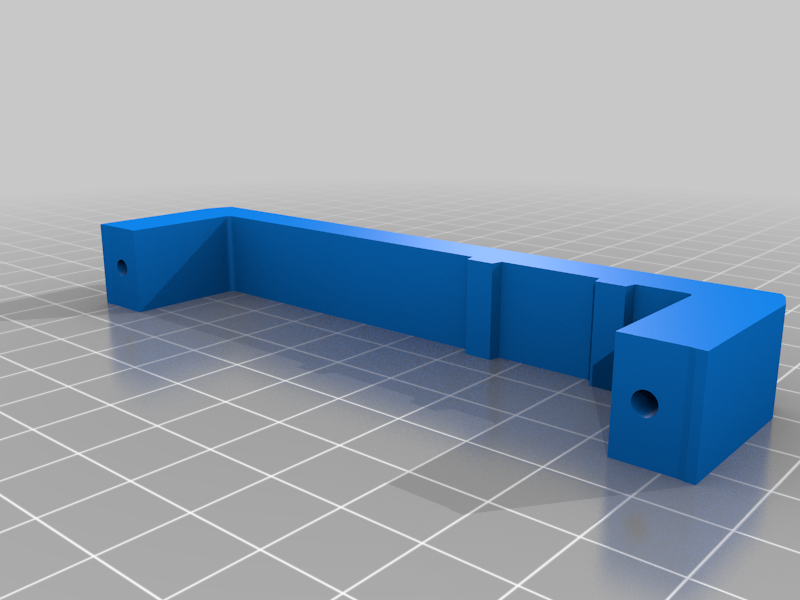

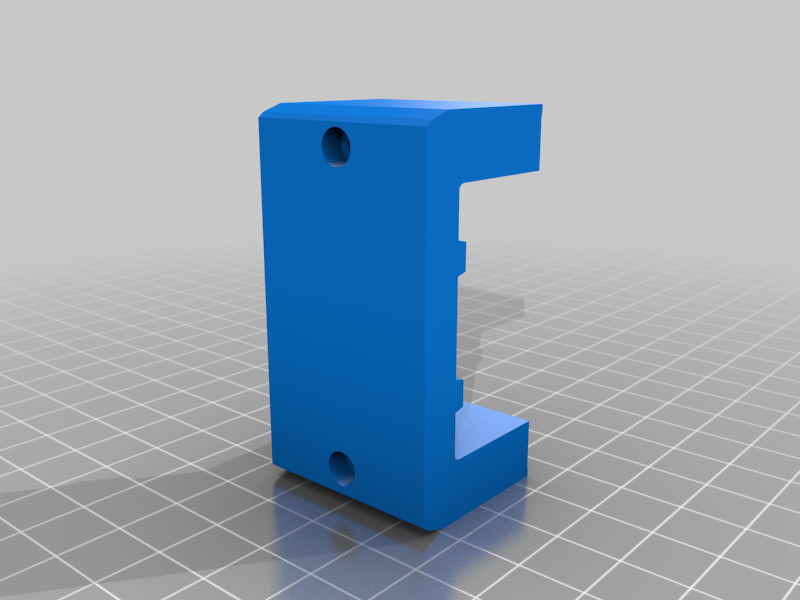

stlpowersuply_holder-ps_clip_2_f.stl
35 Ko · 2 234 download
-

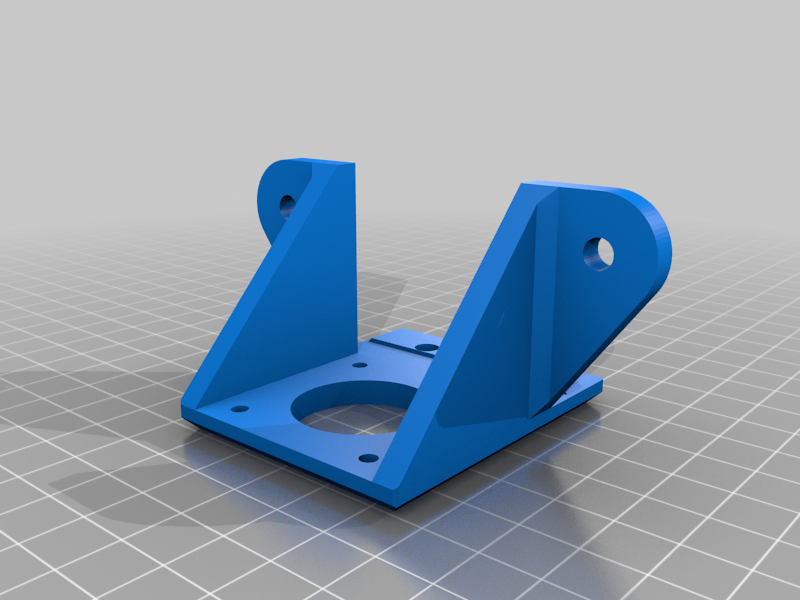

stlstl_fix_c-bot-C-Bot_Z_Motor_Mount__x2_.stl
102 Ko · 2 236 download
-

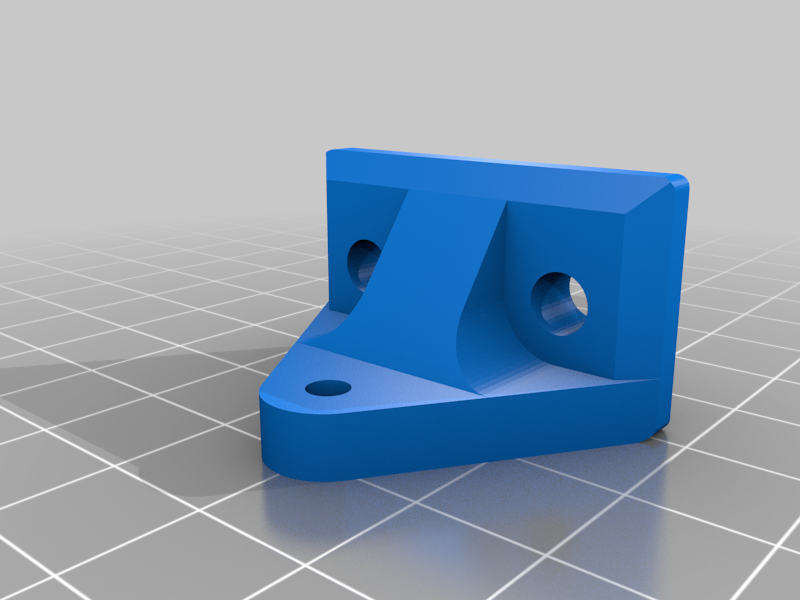

stlstl_fix_c-bot-C-Bot_Z_Axis_Bed_Mount__x4_.stl
43 Ko · 2 222 download
-

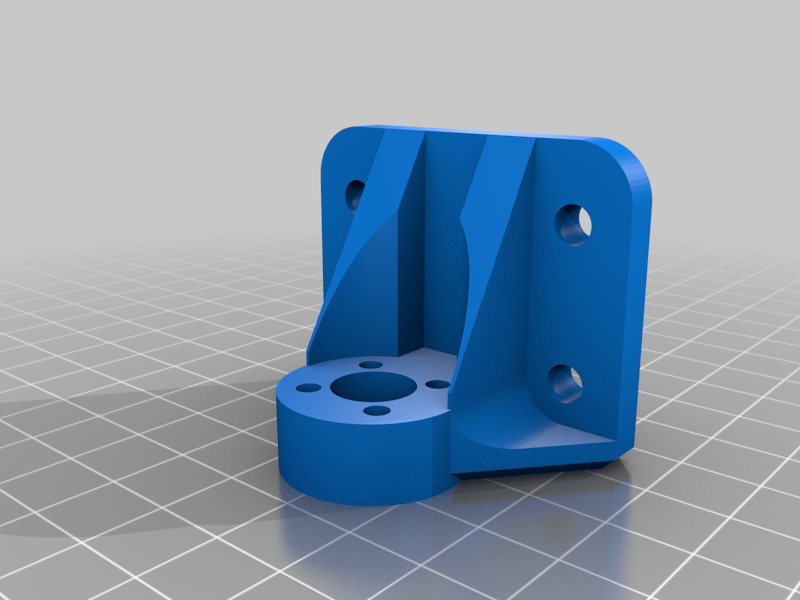

stlstl_fix_c-bot-C-Bot_Lead_Screw_Nut_Capture__x2_.stl
130 Ko · 2 244 download
-

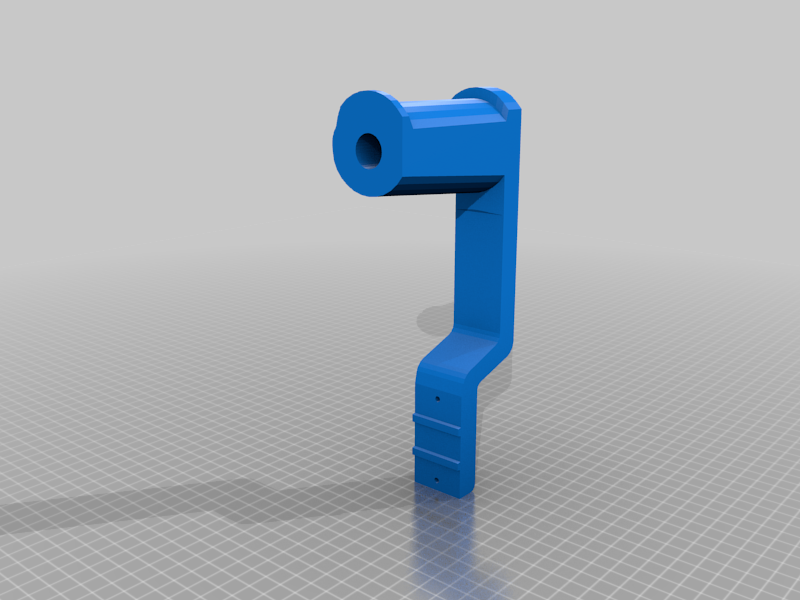

stlstl_fix_c-bot-filament_holder_0_3_2.stl
35 Ko · 2 167 download
-
stlstl_fix_c-bot-fillament_holder_03_f.stl
67 Ko · 2 161 download
Descrizione
A C-bot/D-bot with a reverse x axis (move the hotend to the backside of the x axis, to move the bed back)
And single lead screw.
30cm(X) x 20cm(Y) x 28cm(Z) build volume
There is a mix og standard extruded and v-slot.
the power supply mount and the filament mount are wrapped around the frame using M3 screws and bolts. (I ran out of t-nuts).
C-bot:
http://www.thingiverse.com/thing:500041
http://www.openbuilds.com/threads/c-bot.726/
