Inductrix modified frame

di babar121

File stampabili (3)

  • stl

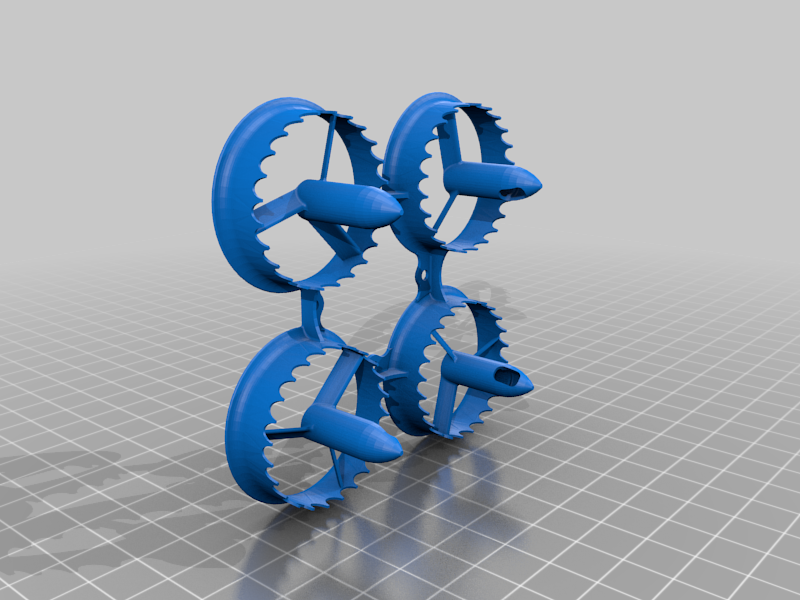

    inductrix_frame_rev2.STL

    3 Mo · 2 010 download

    Scarica
  • stl

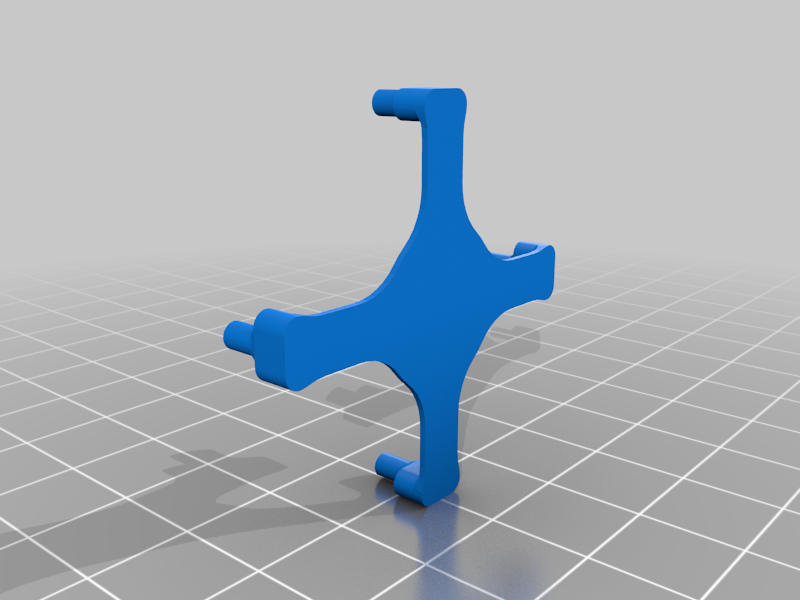

    battery_tray.STL

    477 Ko · 1 983 download

    Scarica
  • stl

    inductrix_frame_rev2_no_scallops.STL

    2.3 Mo · 1 963 download

    Scarica

Descrizione

This is a modified version of the Blade Inductrix that I have created. There are a few things to note. I have broken the frame into two pieces; main frame / battery sub-frame. This just made it much easier to print, although this is still not the easiest print. I have only printed in ABS and have adjusted certain features on the frame to accommodate for shrinkage.

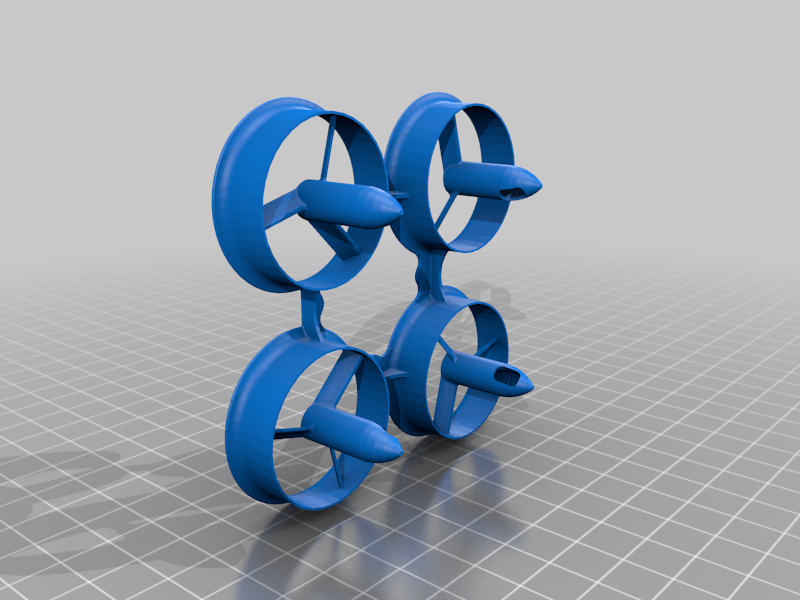

*New version of the frame added "Inductrix frame rev2 no scallops" has straight ducts, as well the fc board mounting holes have been adjusted so you dont need battery tray component.

Tag

#ABS #Blade Inductrix #fpv #fpv racer #Horizon Hobby #Inductrix #multirotor #Tinywhoop #tiny whoop
