3D Led Cube

di synd

File stampabili (3)

  • stl

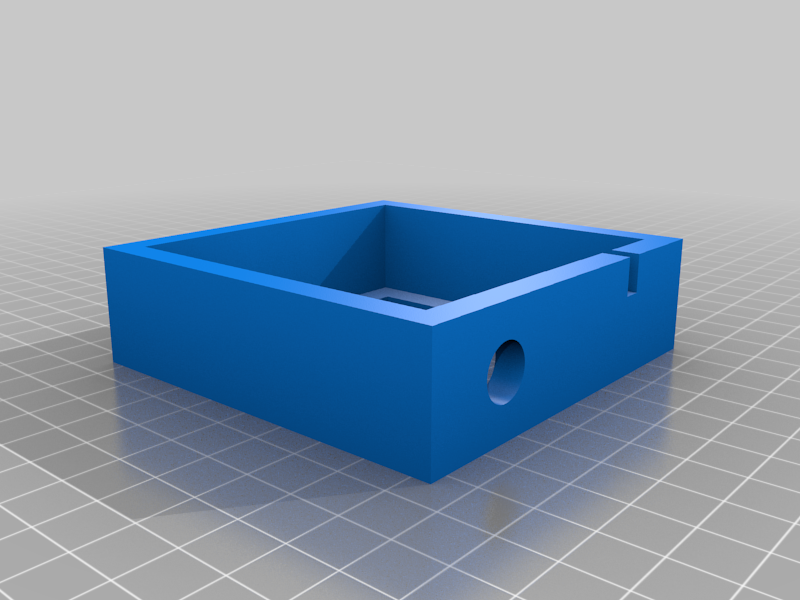

    LedCube_Basis.stl

    38 Ko · 1 130 download

    Scarica
  • stl

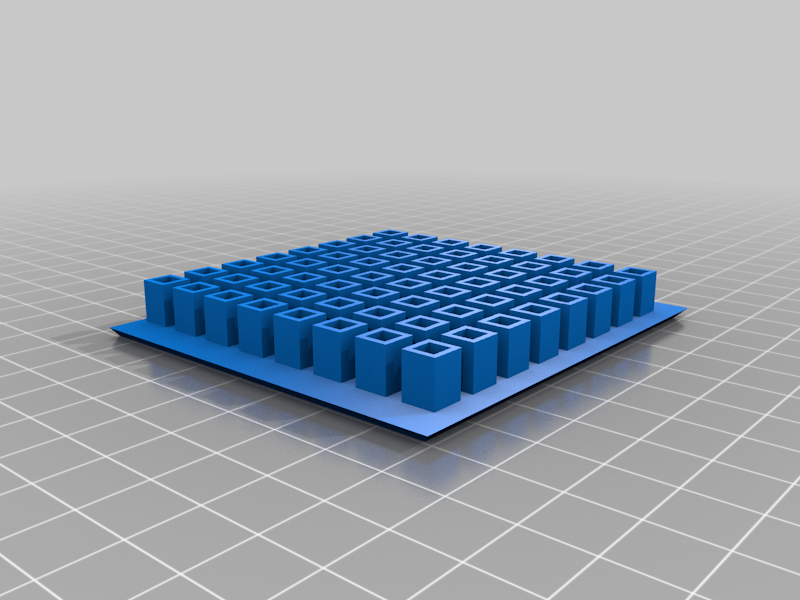

    LedCube_Side.stl

    103 Ko · 1 128 download

    Scarica
  • stl

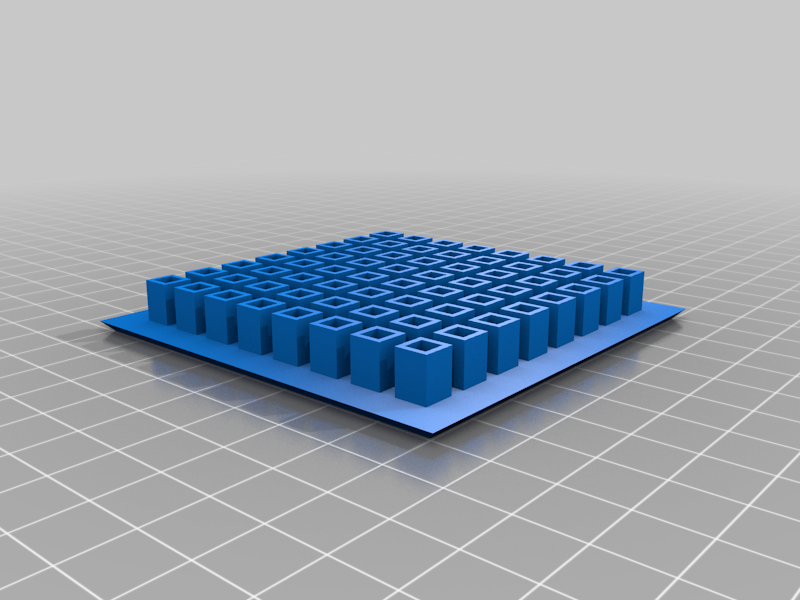

    LedCube_Top.stl

    103 Ko · 1 126 download

    Scarica

Descrizione

This is a stand and diffusor-set to build a LED-Cube with 5 8X8 RGB Matrix. The Thing is controlled by Fadecandy. I build up a wireless solution with a TP-Link MR3020. The Sketches are running under Processing 3.1.1 on the LattePanda!
Find more Details here:
https://www.hackster.io/synd/3d-led-cube-877cbd

and a demo Video here:
https://youtu.be/fsGQDySMK7w

Fadecandy:
https://github.com/scanlime/fadecandy

Standalone OpenWRT wireless Fadecandy Server:
http://blog.nemik.net/2014/02/standalone-openwrt-fadecandy-server-for-led-control/

TP-Link MR3020:
https://www.amazon.com/TP-LINK-TL-MR3020-Wireless-Portable-Router/dp/B00634PLTW/ref=sr_1_1?ie=UTF8&qid=1466961328&sr=8-1&keywords=TL-MR3020

Processing 3.1.1:
https://processing.org/

Tag

#3D printing #fadecandy #lattepanda #LED light #scuplture
